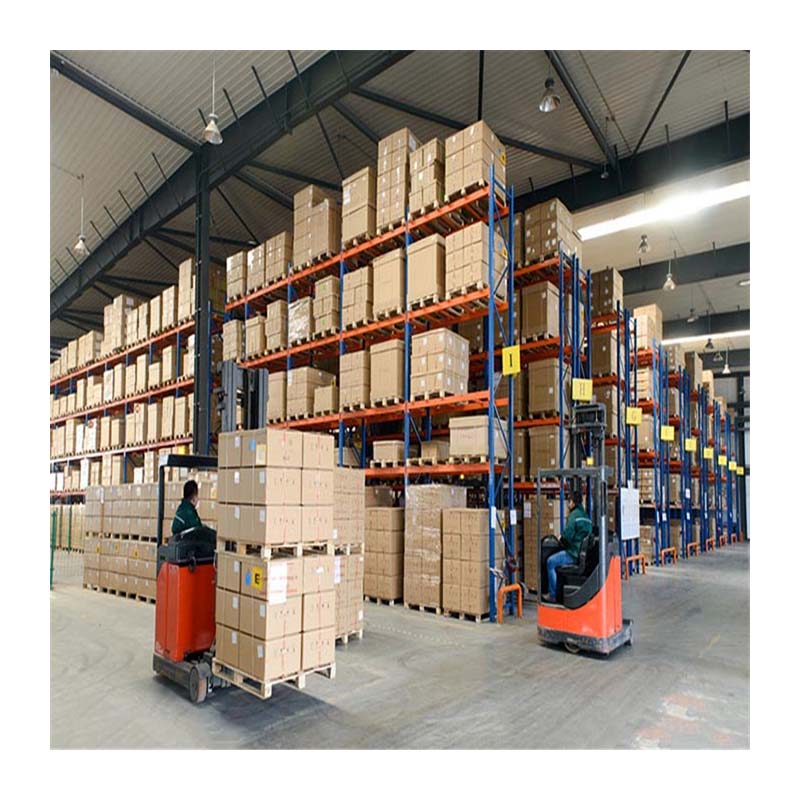

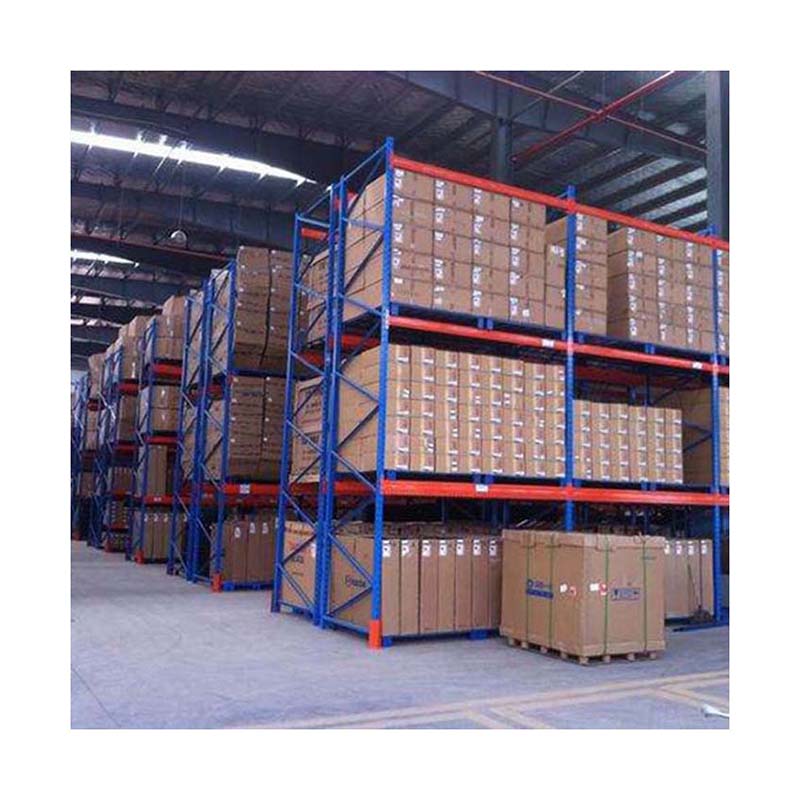

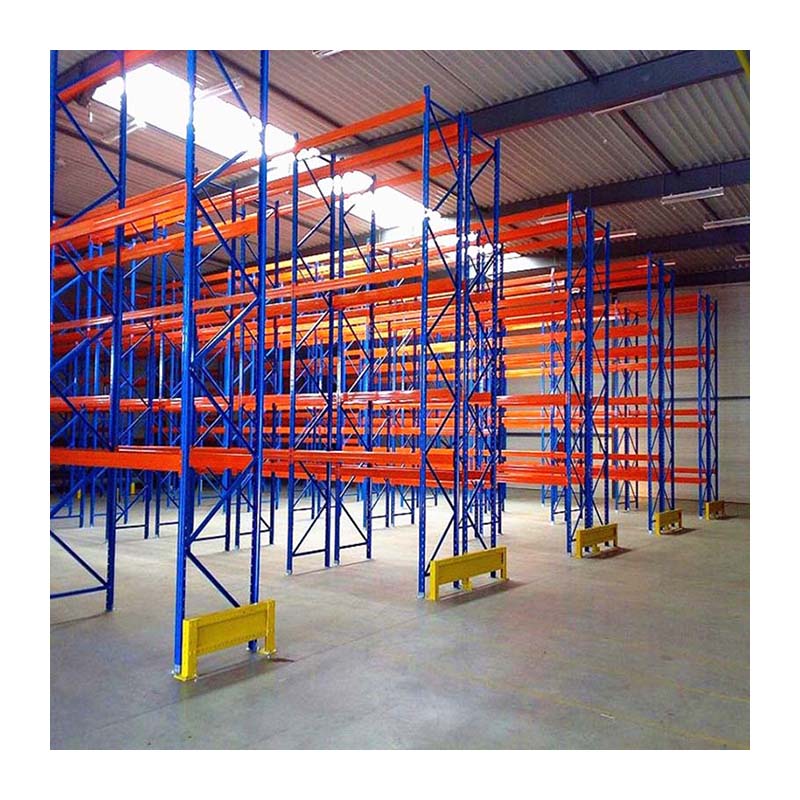

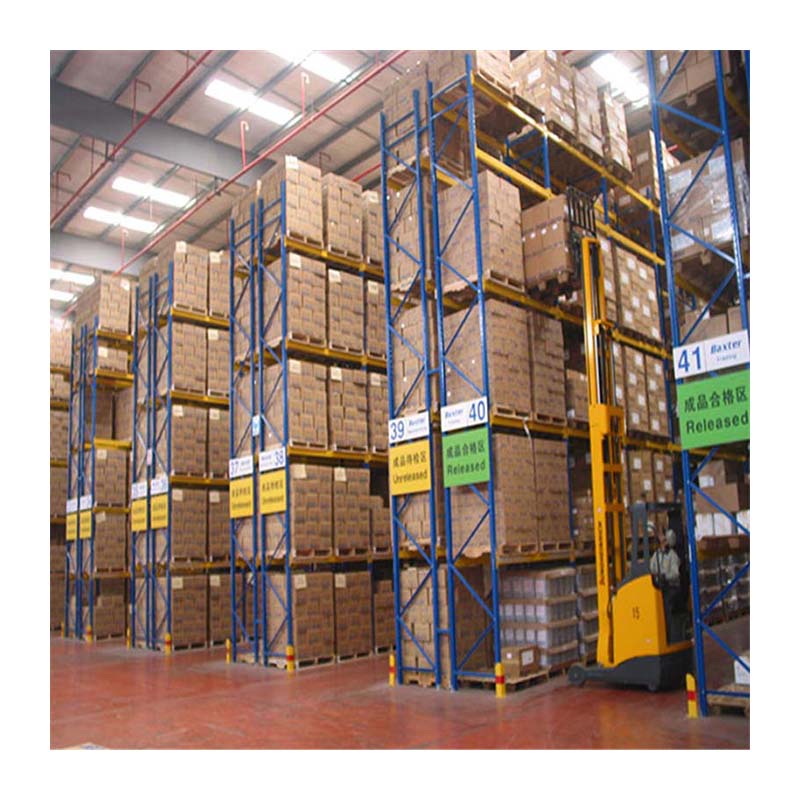

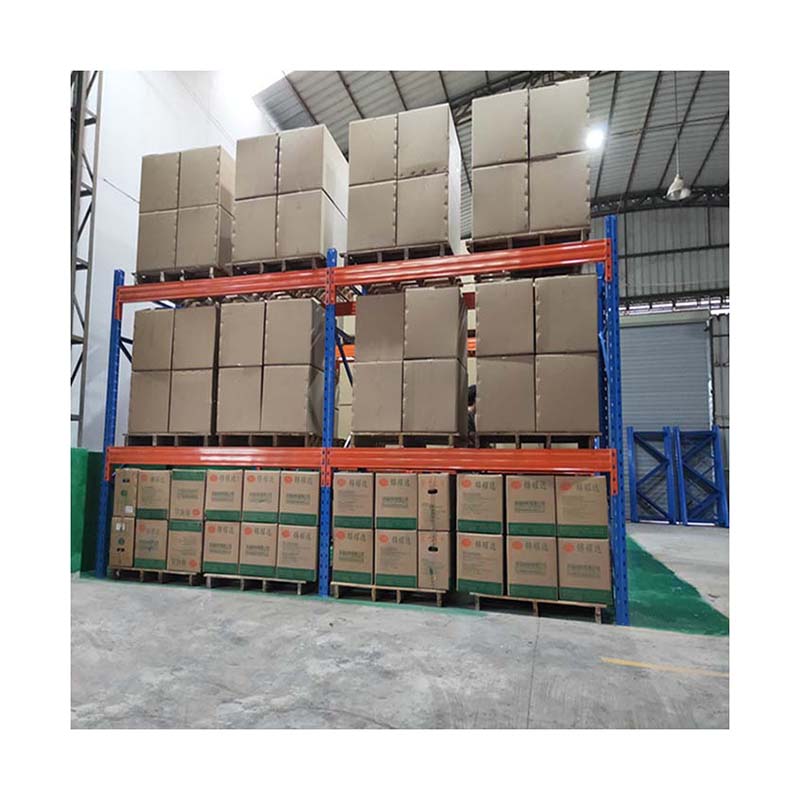

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chosen as the layer board. This kind of rack is an ideal storage solution for small and medium-sized warehouses for its advantages of appropriate height and convenience in accessing goods.
| Raw-Material | High-Quality Q235 Cold rolled steel |
|---|---|
| Color | Upright frame is blue, Beam is orange (Customizable) |
| Standard Size | L2300*D1000*H4500 (Customizable according to requirements) |
| Height | 1500-8000mm or Customized |
| Width/Depth | 400-1500mm or Customized |
| Length | 1500-3200mm or Customized |
| Upright Section | 80*60, 90*65, 100*70, 120*95mm (Thickness 1.5-2.5mm) |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Beam Section | 80*45, 100*45, 120*45, 140*45, 160*45, 180*45mm etc. |
| Surface Treatment | Powder coated |
| Packing Term | Air bubble film, Wooden Case, etc. |
