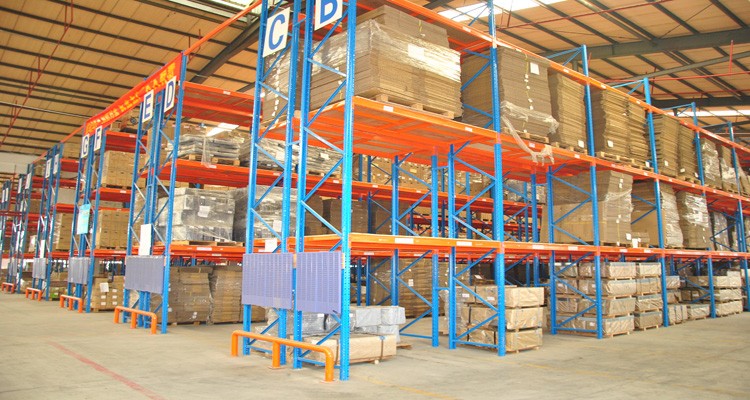

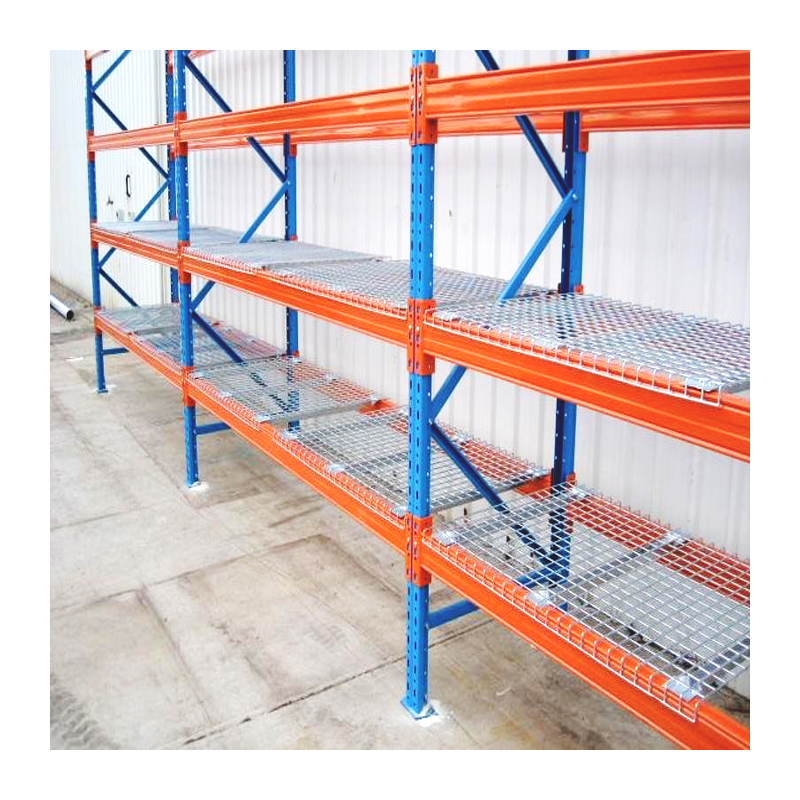

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chose as the layer board. This kinds of rack is an ideal storage rack for small and medium-sized warehouse for its advantages of appropriate height, and convenience in accessing goods.
| Raw-Material | High-Quality Q235 Cold rolled steel |
|---|---|
| Color | Upright frame is blue, Beam is orange, can be customized. |
| Standards Size | L2300*D1000*H4500 (Customizable sizes available) |
| Height | 1500-8000mm or Customized |
| Wide/Depth | 400-1500mm or Customized |
| Length | 1500-3200mm or Customized |
| Upright-Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, etc. |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Beam-Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, etc. |
| Surface Treatment | Powder coated |
| Packing Term | Air bubble, Wooden Case, etc. |
Beam Loading Capacity & Size
Upright & Beam Installed

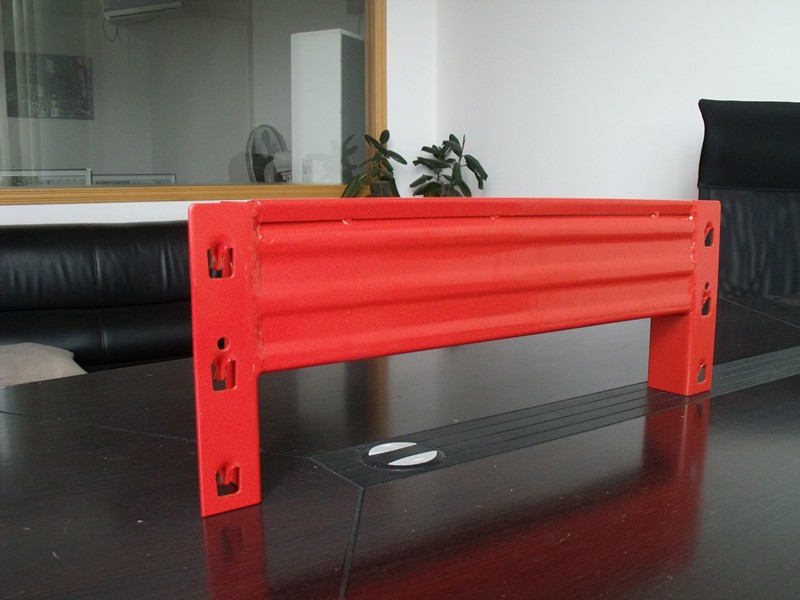

Box Beam

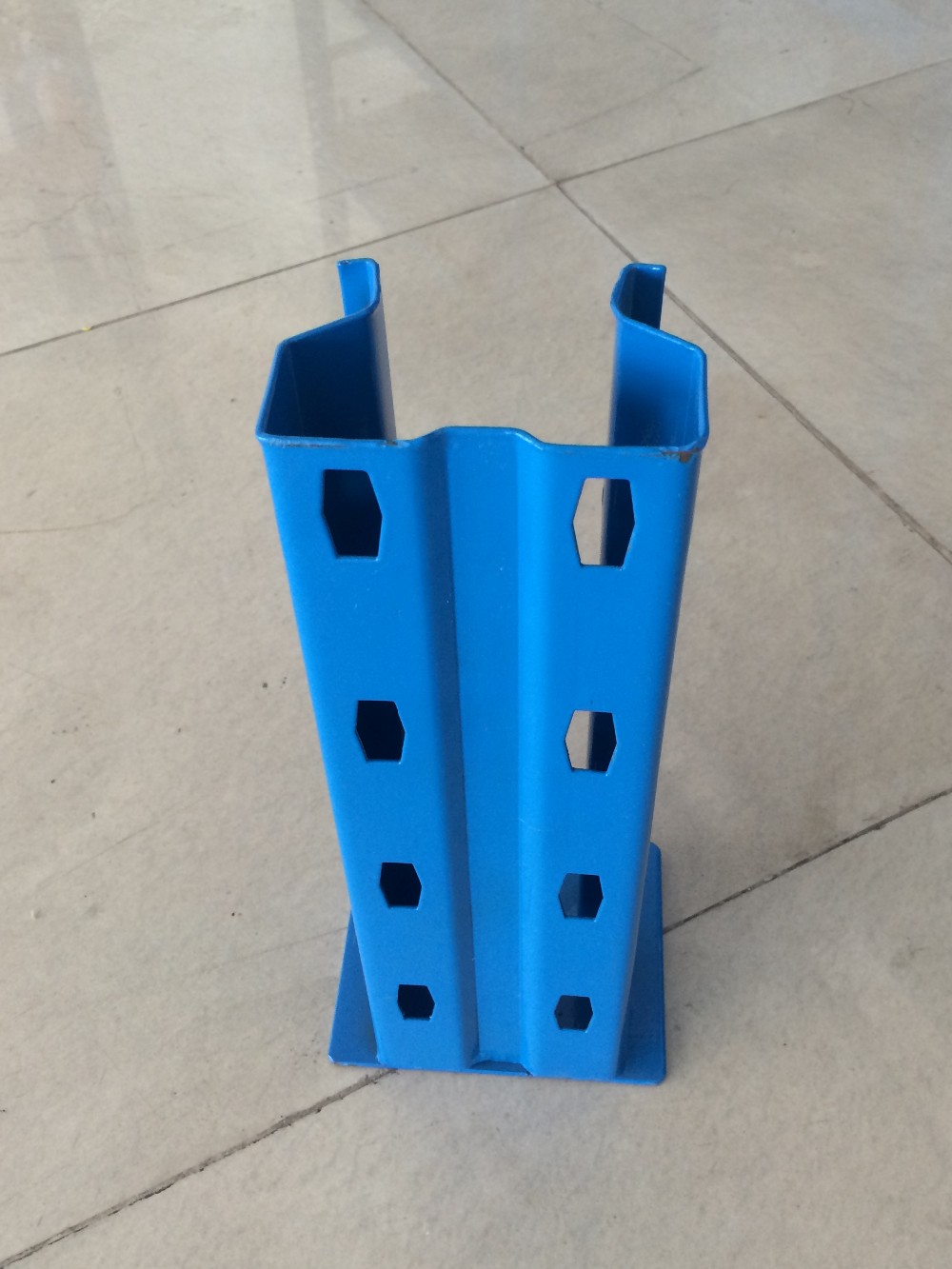

Upright

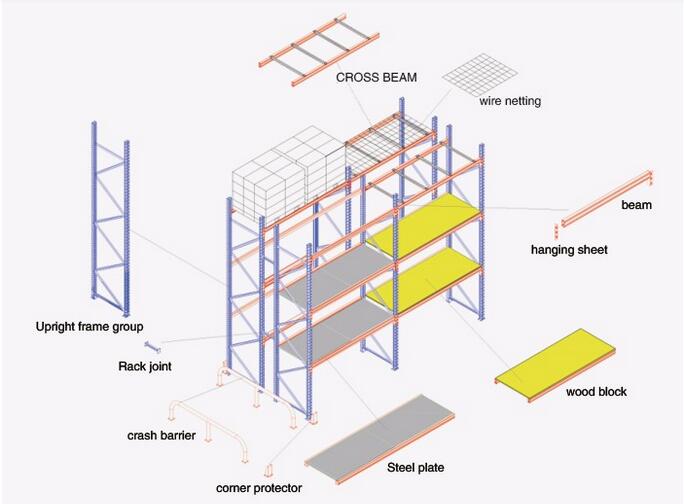

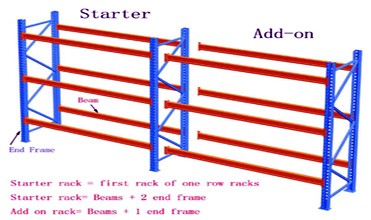

Start-bay: First rack of one row racks (Includes 2 end frames + Beams).
Add-bay: Connected racks (Includes 1 end frame + Beams).
Dedicated to the design and manufacture of storage equipment, we specialize in producing various pallet racking, longspan shelving, warehouse racks, mould racks, wire containers, mobile filing cabinets, cantilever racks, rivet shelving, drive-in racks, mezzanines and platforms, canton flow racks, stacking racking, and other related storage equipment.
Through products and services aimed at providing complete assistance for all warehousing requirements, we offer a wide range of products of highest quality with competitive prices, rapid delivery times, and first-class back-up service.
