Xinmiao Storage
1 / 5

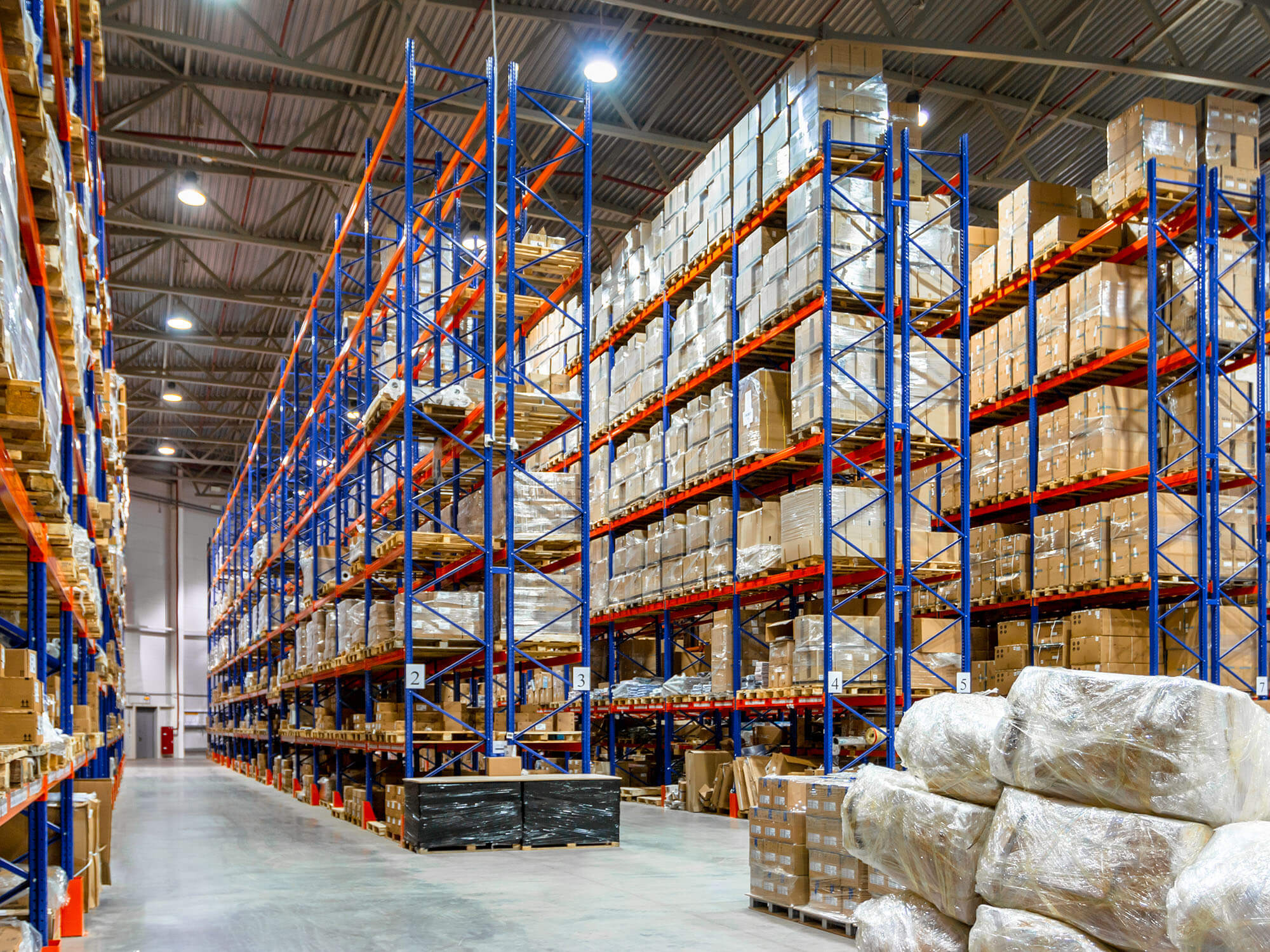

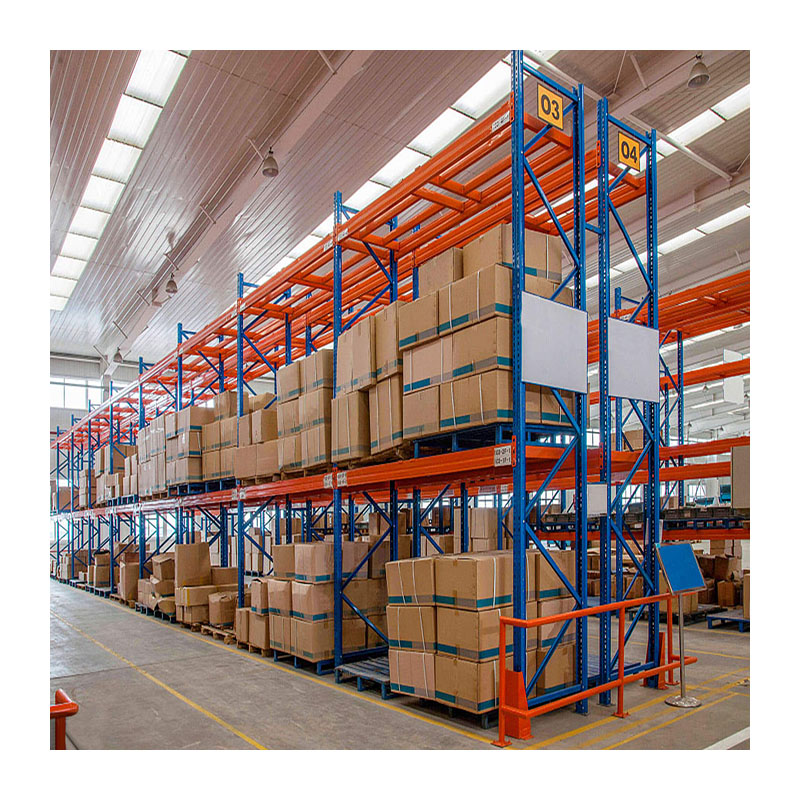

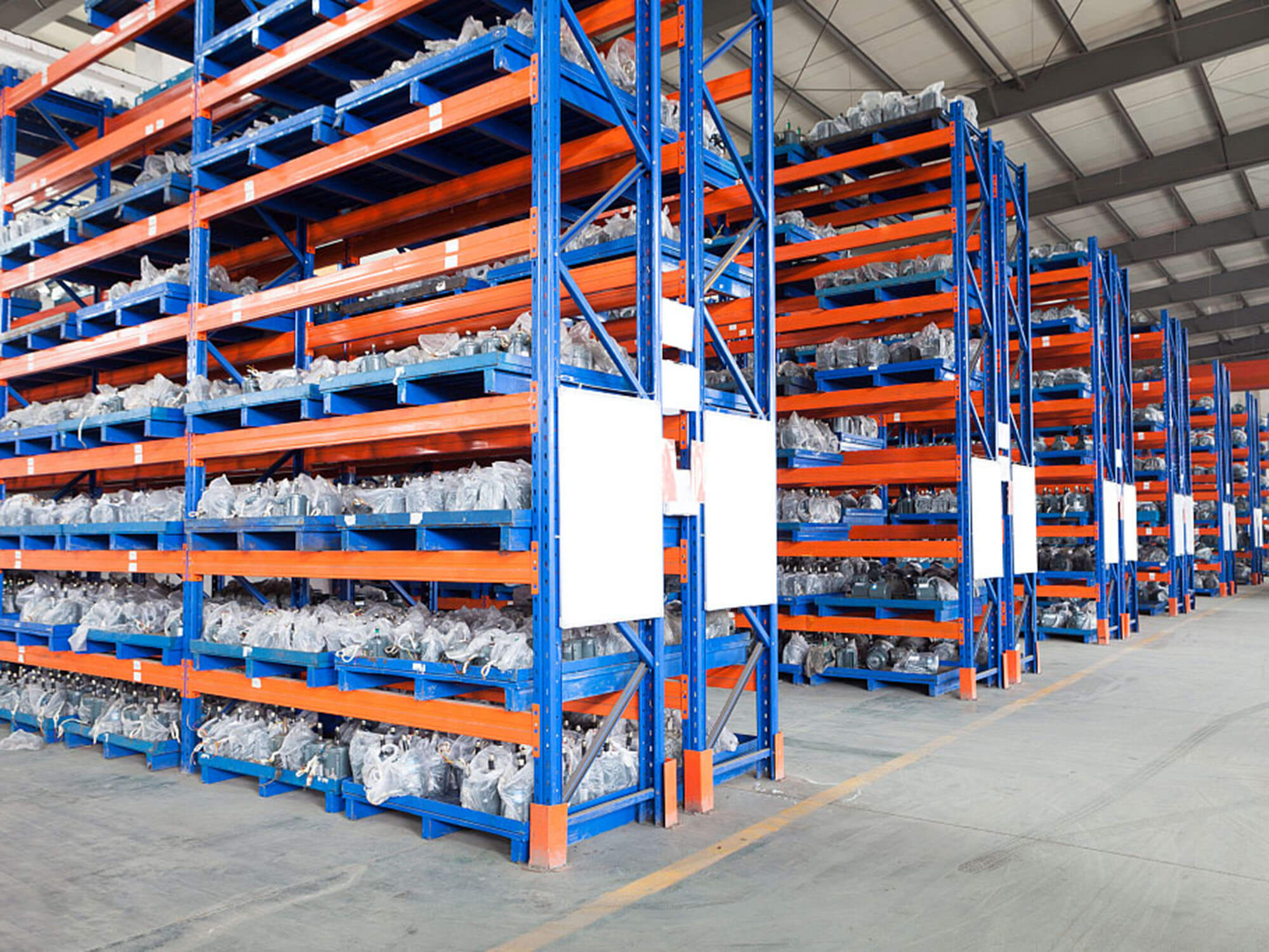

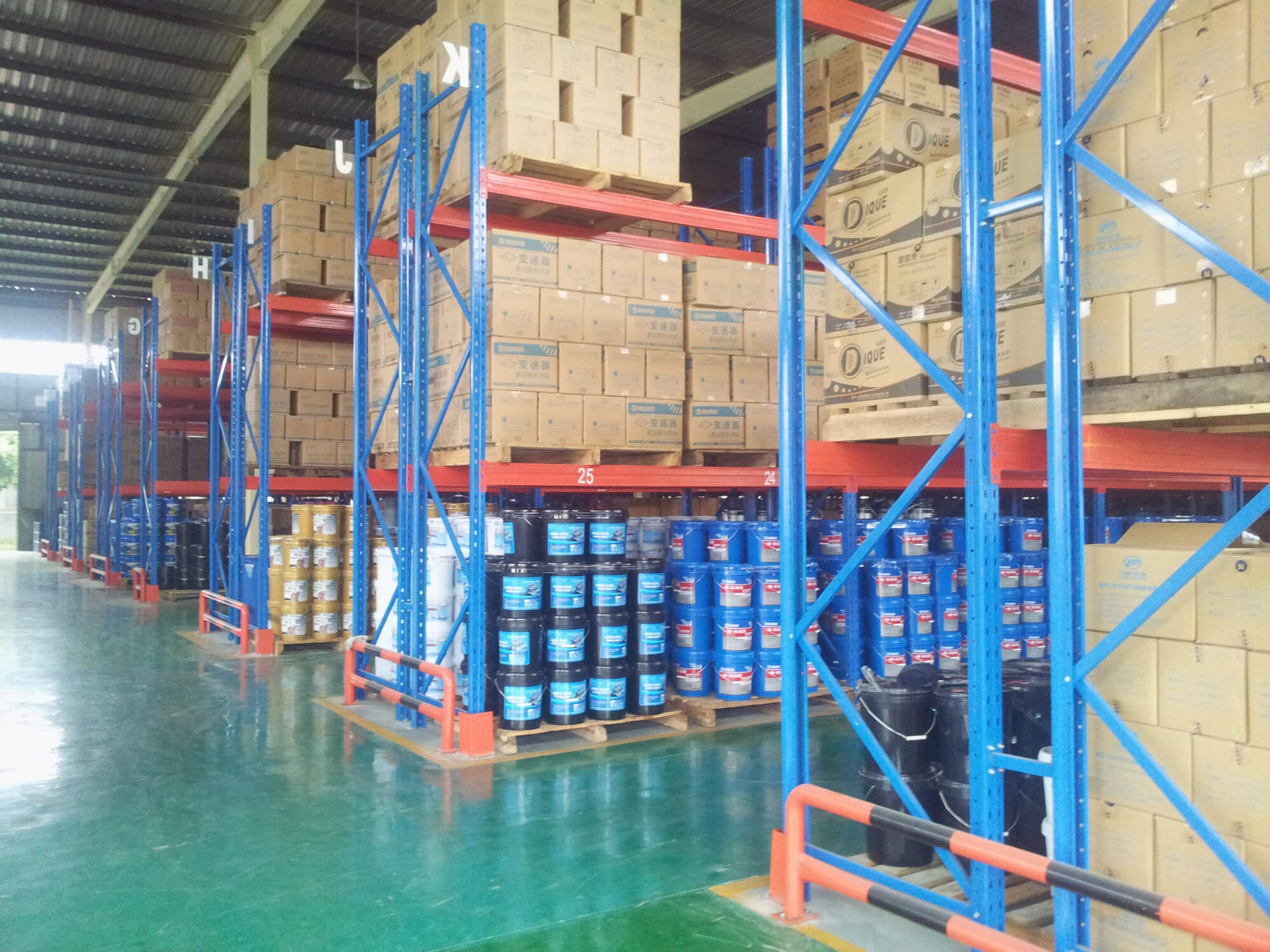

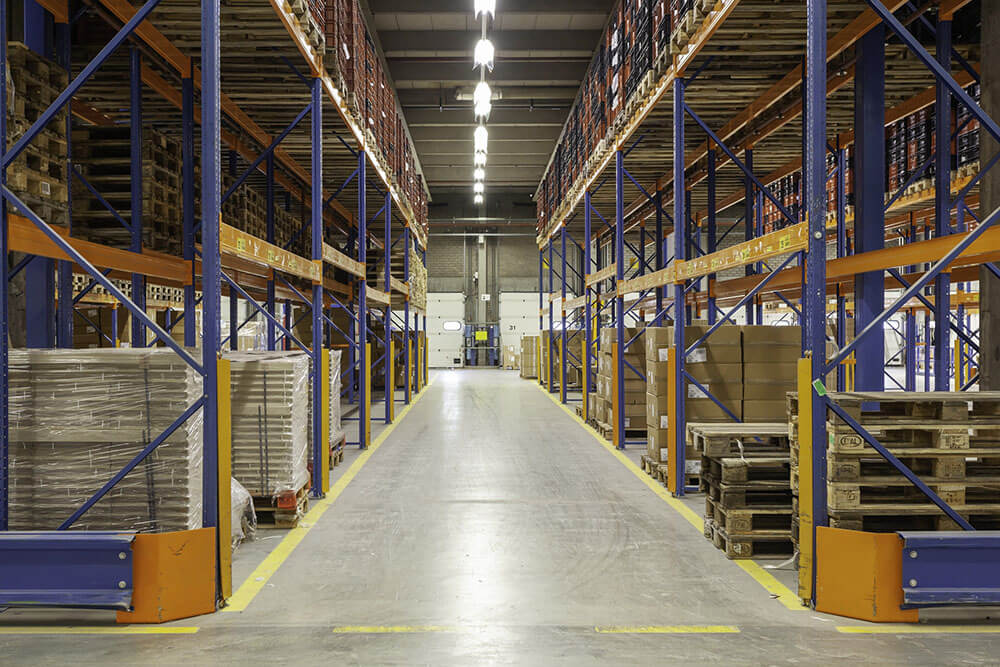

⚙️ Heavy Duty Rack: This heavy duty rack features a hooking structure, making it exceptionally easy to dismount and install. The shelf levels are adjustable every 75mm to accommodate varying goods heights.
With a robust loading capacity of 800-3000kg per layer, users can choose from steel plates, wood plates, or MDF for the layer boards. It serves as an ideal storage solution for small and medium-sized warehouses due to its accessibility and customizable height.
| Raw Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange (Customizable) |
| Standard Size | L2300 * D1000 * H4500 (Custom sizes available) |
| Height Range | 1500-8000mm or Customized |
| Width/Depth | 400-1500mm or Customized |
| Length Range | 1500-3200mm or Customized |
| Upright Section | 80*60, 90*65, 100*70, 120*95mm (Thickness: 1.5/1.8/2.0/2.5mm) |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Beam Section | 80*45, 100*45, 120*45, 140*45, 160*45, 180*45mm |
| Surface Treatment | Professional Powder Coated |
| Packing | Air bubble film, Wooden Case options |
