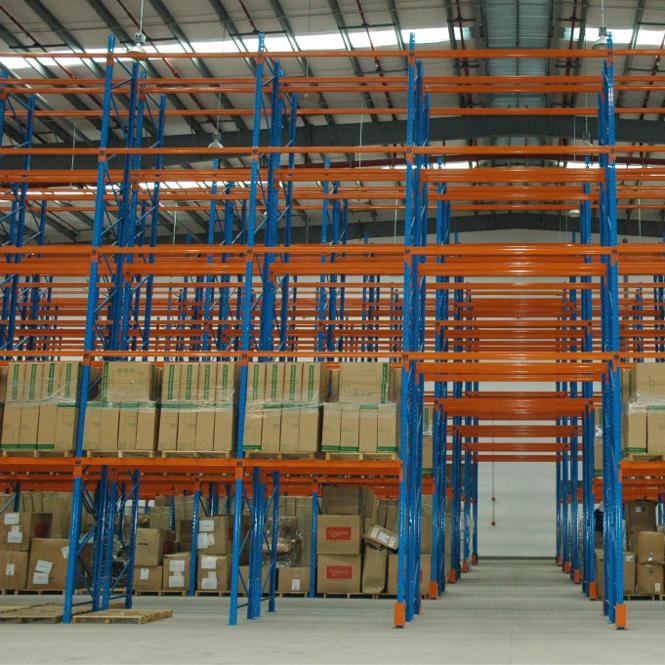

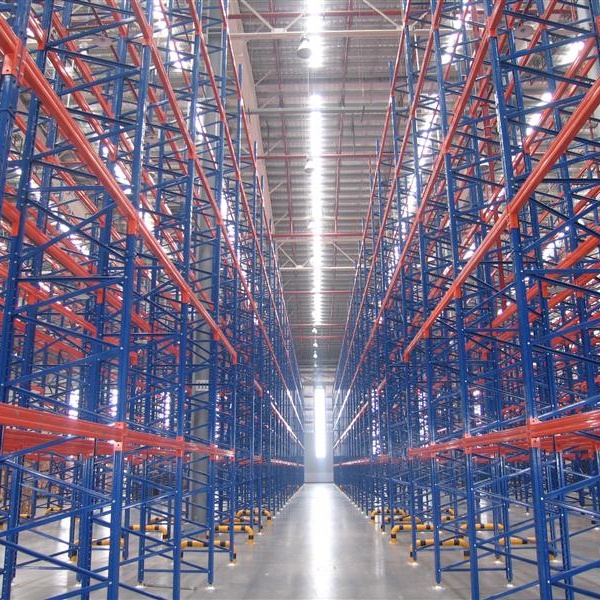

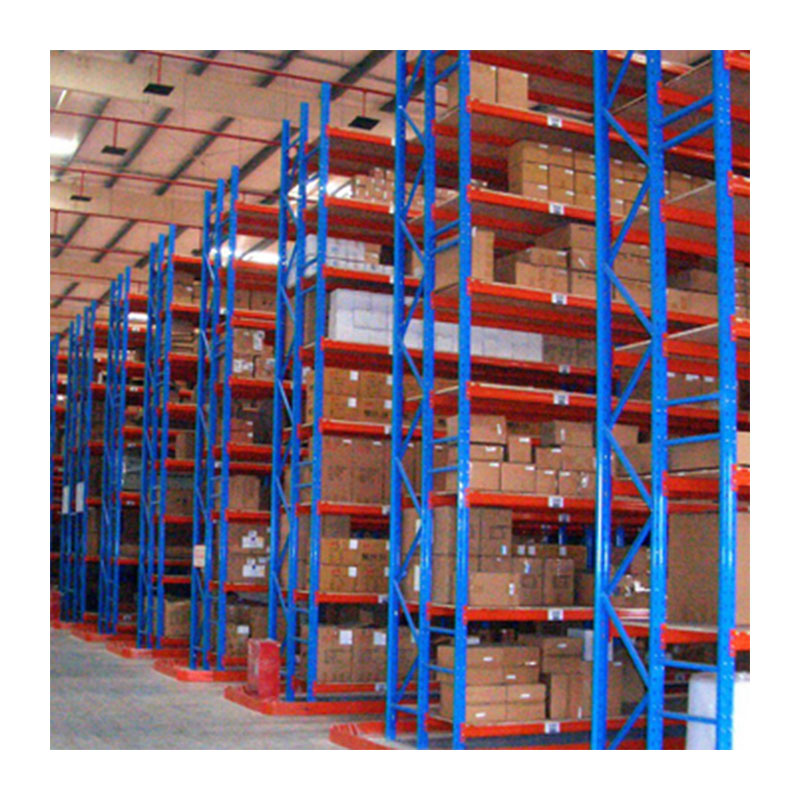

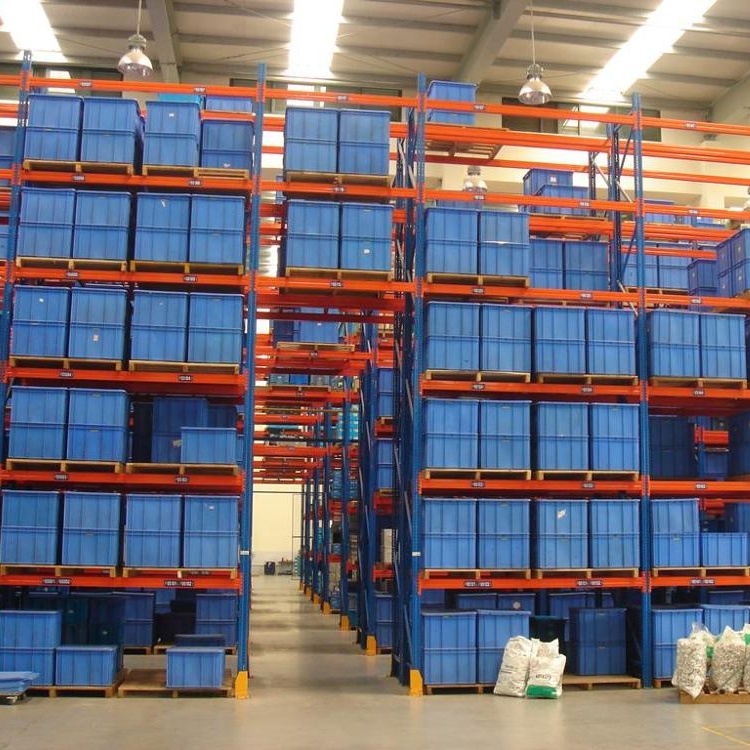

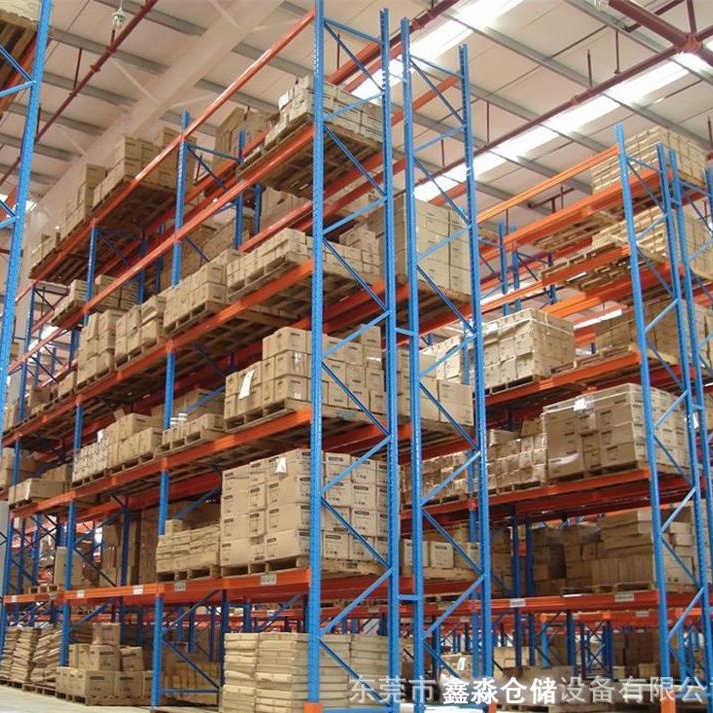

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chose as the layer board. This kinds of rack is an ideal storage rack for small and medium-sized warehouse for its advantages of appropriate height, and convenience in accessing goods.
| Technical Specifications | |
|---|---|
| Raw-Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange (Customizable) |
| Standard Size | L2300*D1000*H4500 (Customizable) |
| Height Range | 1500-8000mm |
| Width/Depth | 400-1500mm |
| Length | 1500-3200mm |
| Upright Section | 80*60 / 90*65 / 100*70 / 120*95 (mm) |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Beam Section | 80*45 / 100*45 / 120*45 / 140*45 / 160*45 / 180*45 (mm) |
| Surface Treatment | Powder coated |
| Packing | Air bubble, Wooden Case, etc. |
Upright & Beam Installed
Box Beam
Upright Profile
Specialized in the design and manufacture of storage equipment, we produce various pallet racking, longspan shelving, warehouse racks, mould racks, wire containers, cantilever racks, and mezzanine platforms. We provide complete assistance for all warehousing requirements, offering high-quality products with competitive pricing and rapid delivery.
