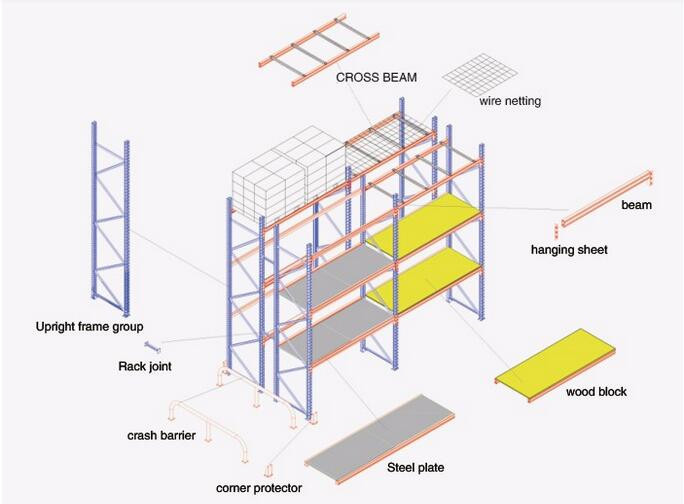

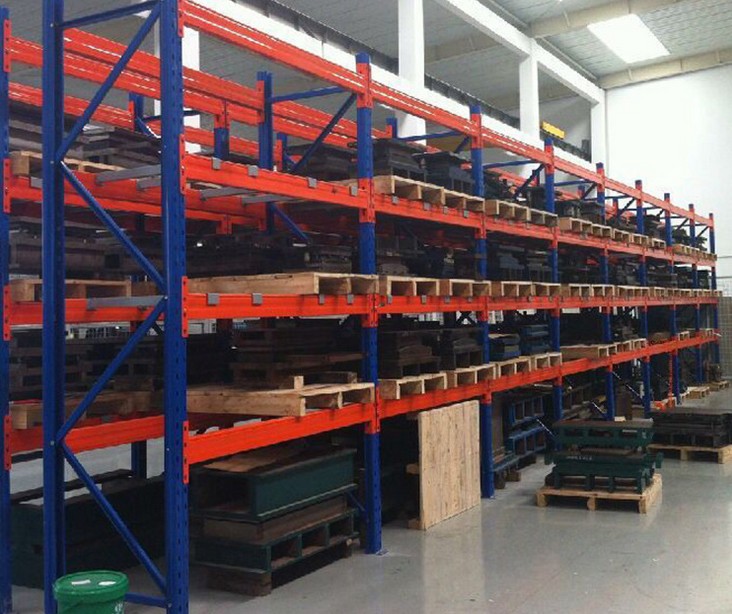

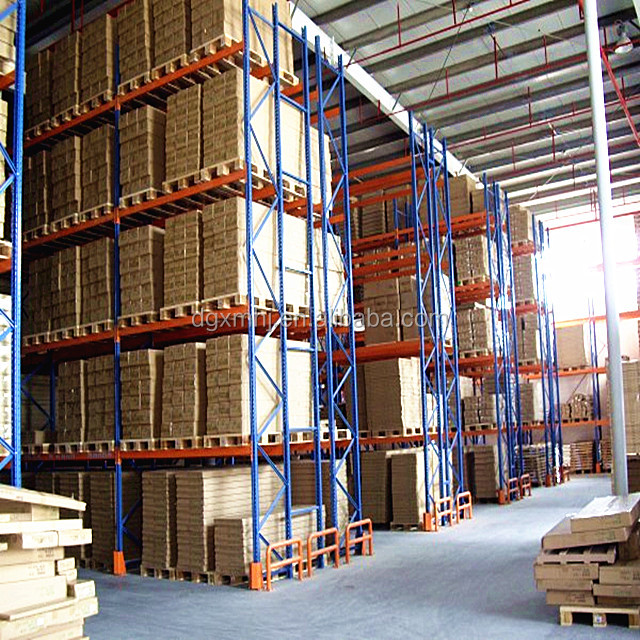

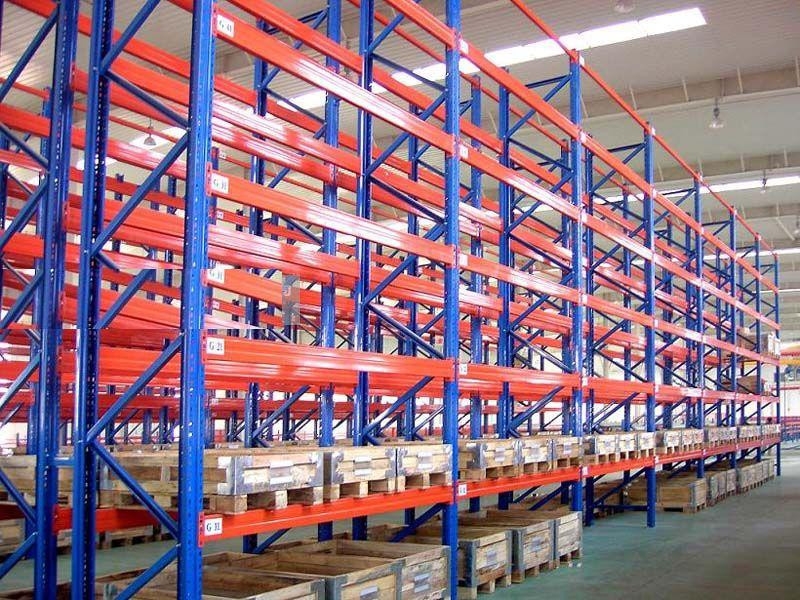

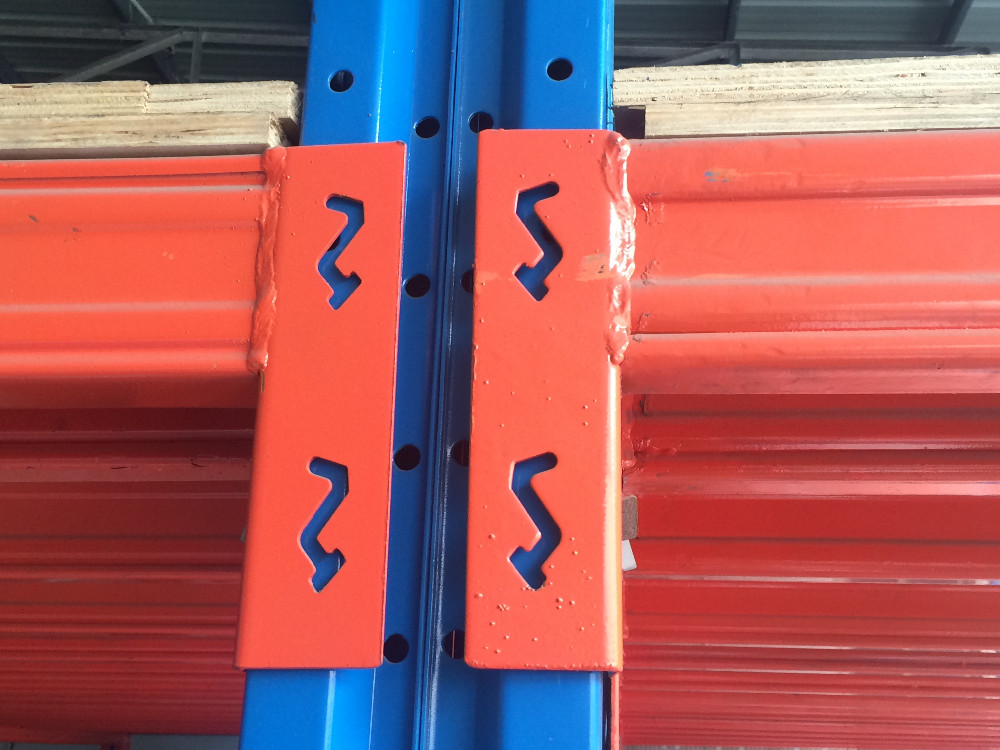

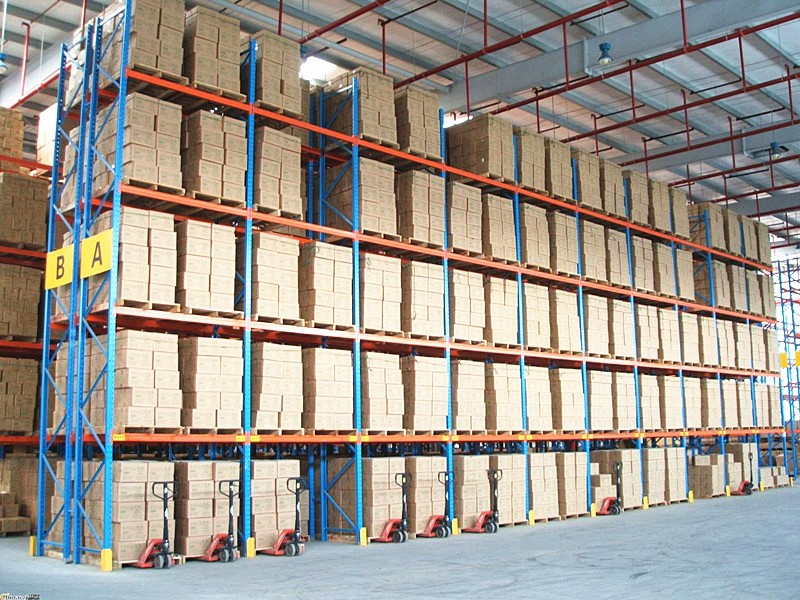

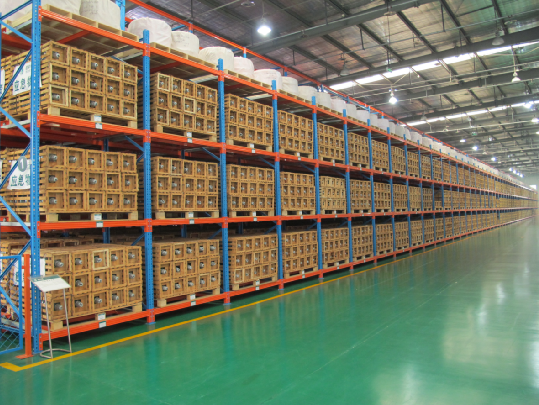

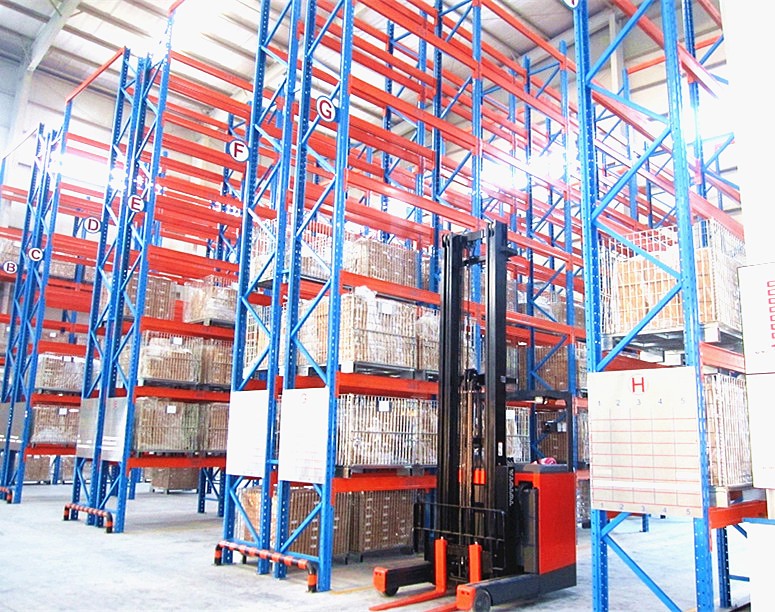

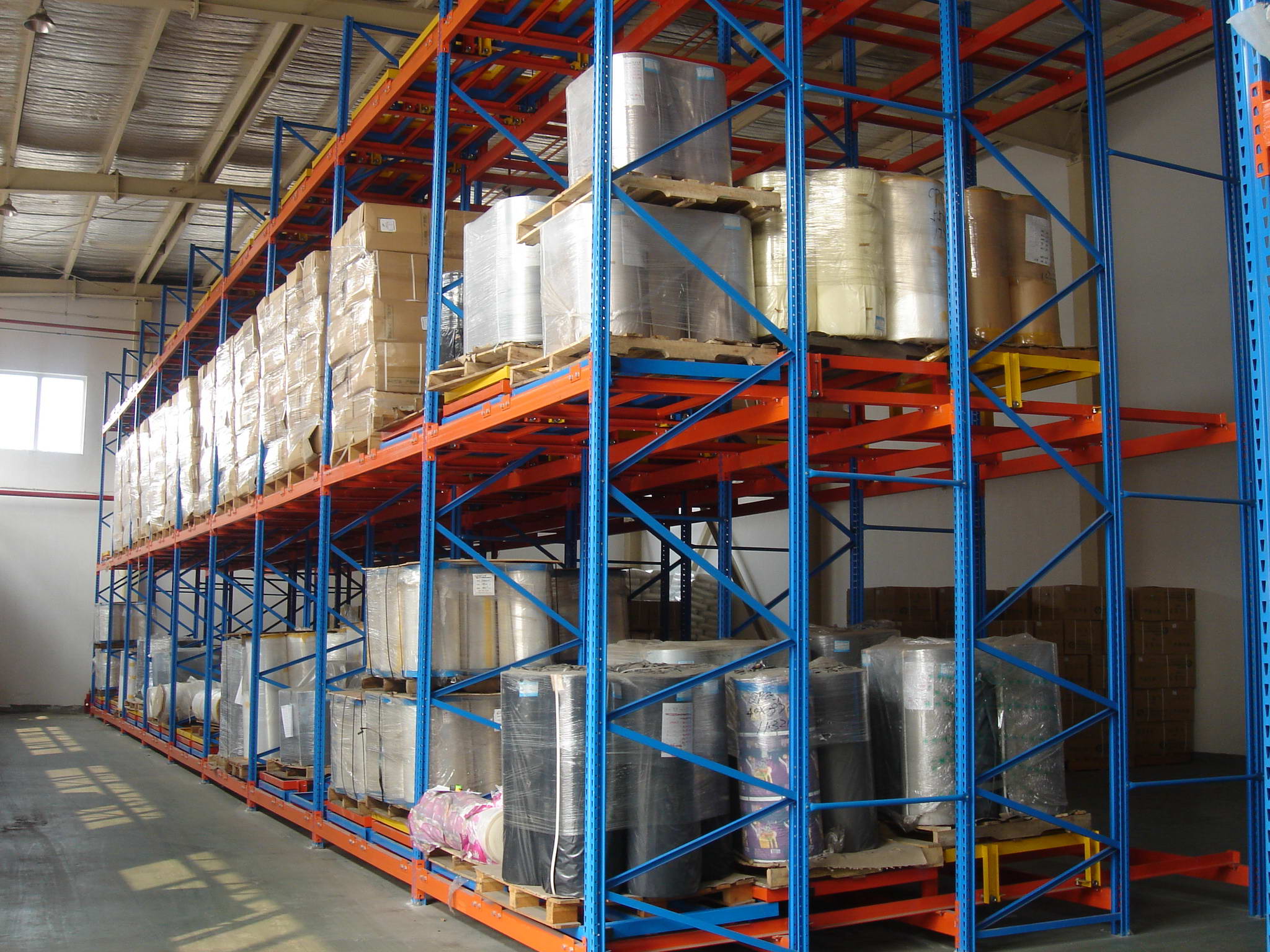

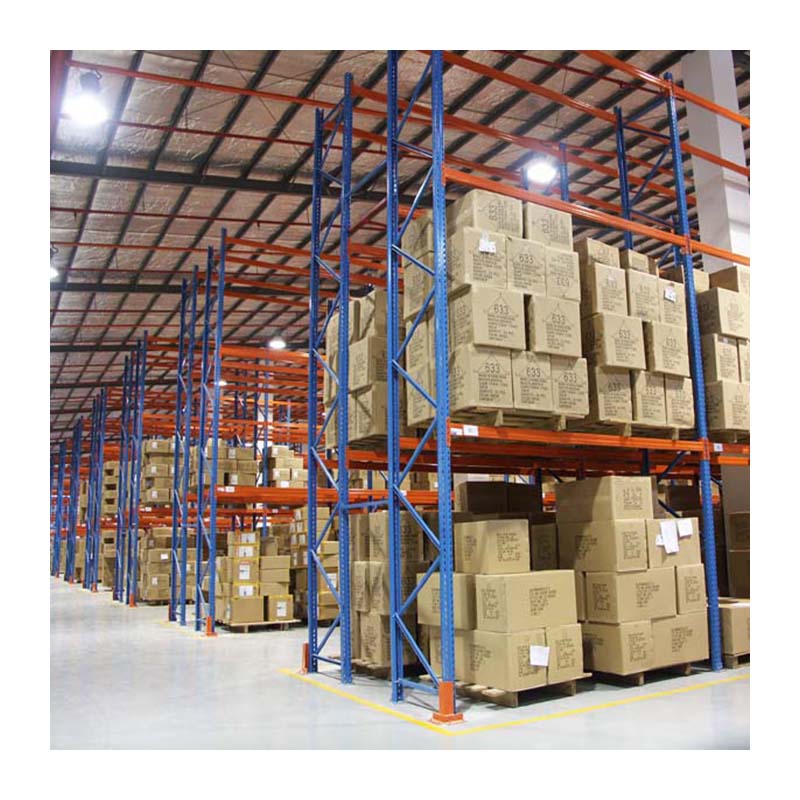

Heavy duty rack features a hooking structure, making it exceptionally easy to dismount and install. It can be adjusted in 50mm increments based on goods height and supports a loading capacity of 800-3000kg per layer. Options for layer boards include steel plates, wood plates, and MDF. This system is an ideal storage solution for small and medium-sized warehouses due to its adaptable height and convenient access to goods.
| Technical Specifications | |
|---|---|
| Raw Material | High-Quality Q235 Cold rolled steel |

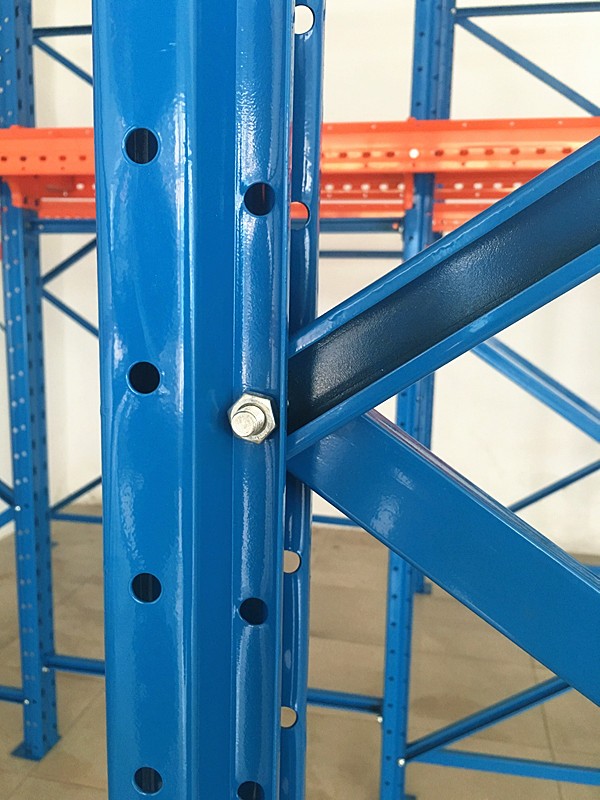

| Color | Upright frame (Blue), Beam (Orange), customizable |
| Standard Size | L2300*D1000*H4500 (Customizable) |
| Height Range | 1500-8000mm |
| Width/Depth | 400-1500mm |
| Length Range | 1500-3200mm |

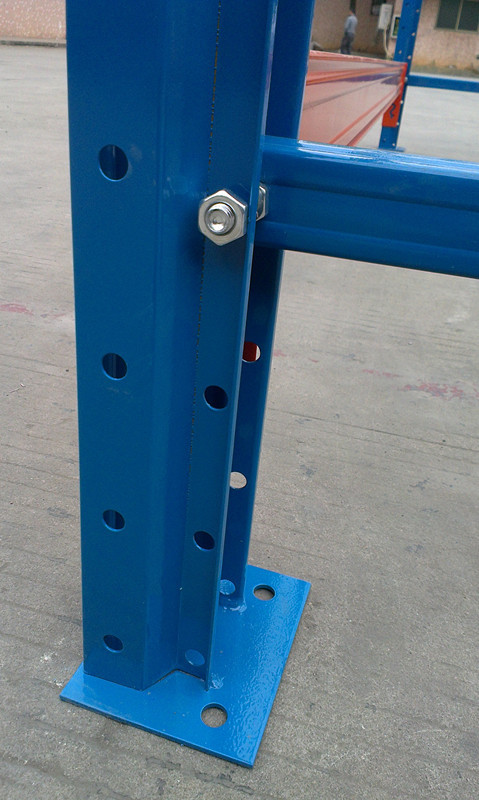

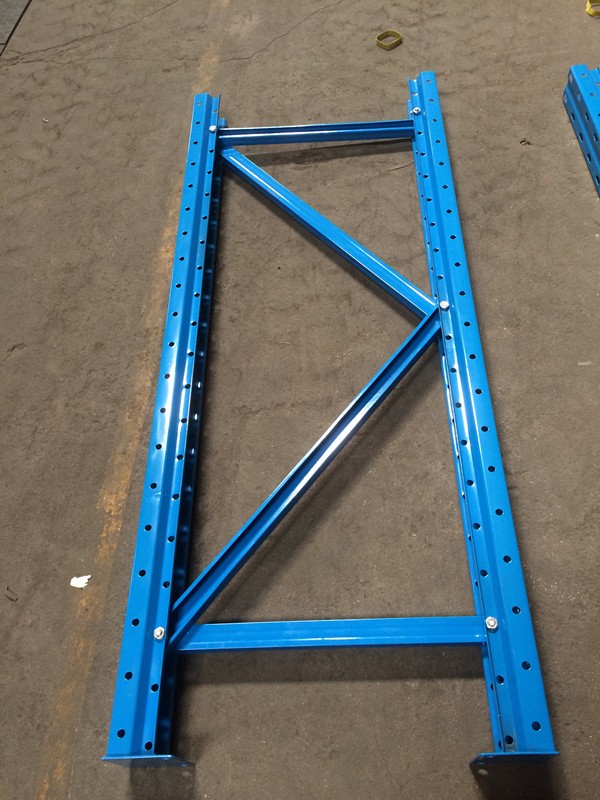

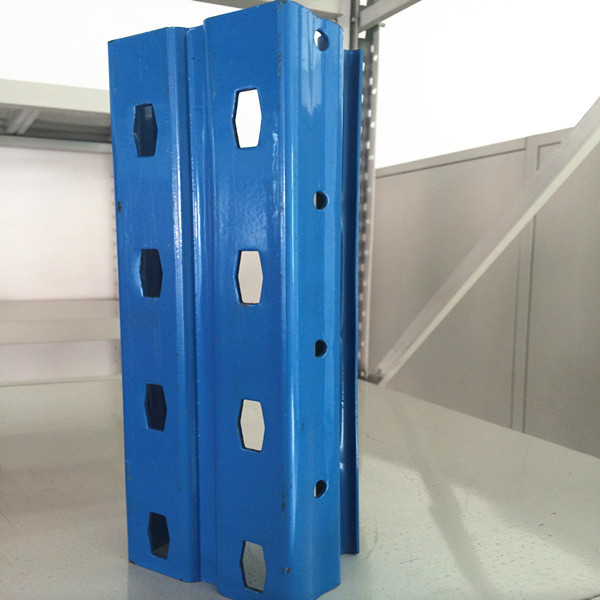

| Upright Section | 80*60, 90*65, 100*70, 120*95mm (various thicknesses) |

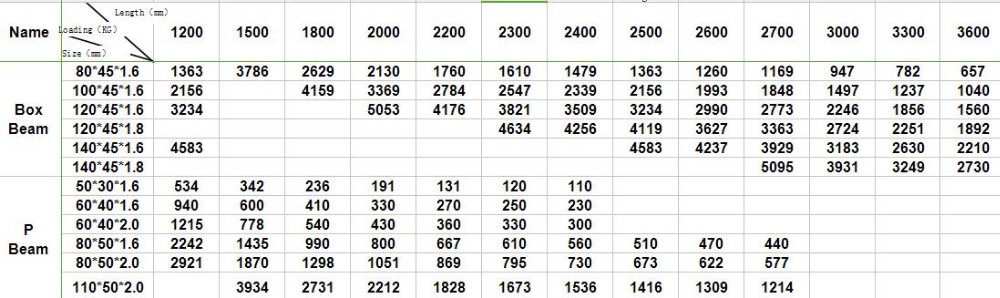

| Loading Capacity | 1000~6000kgs (2200~13200lbs) |

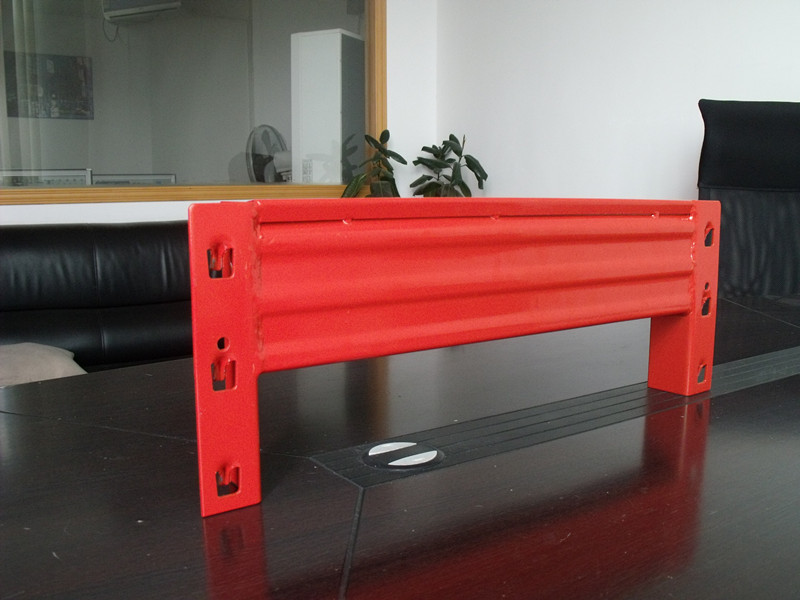

| Beam Section | 80*45, 100*45, 120*45, 140*45, 160*45, 180*45mm etc. |
| Surface Treatment | Powder coated |

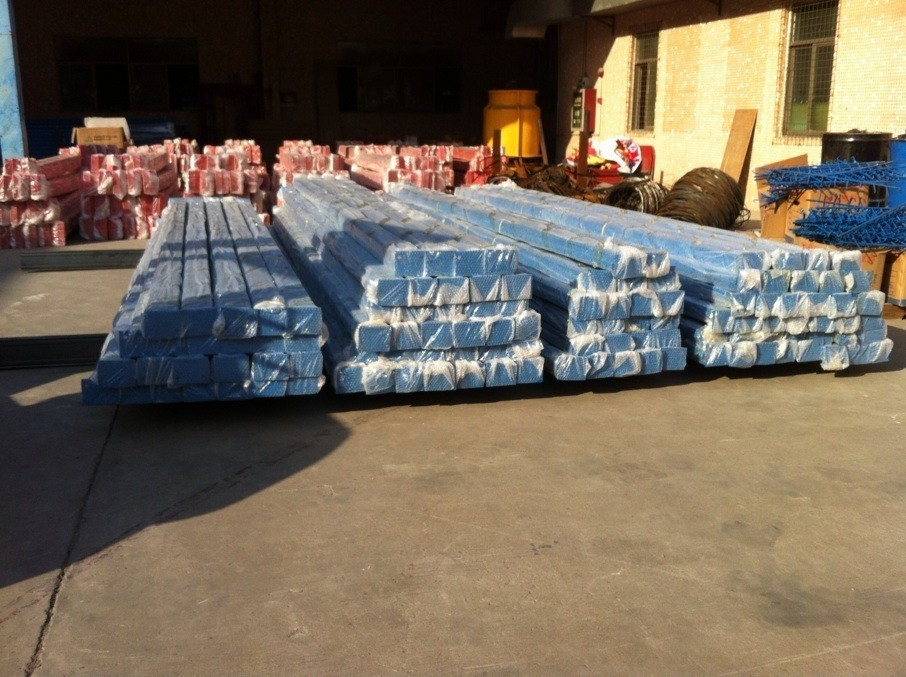

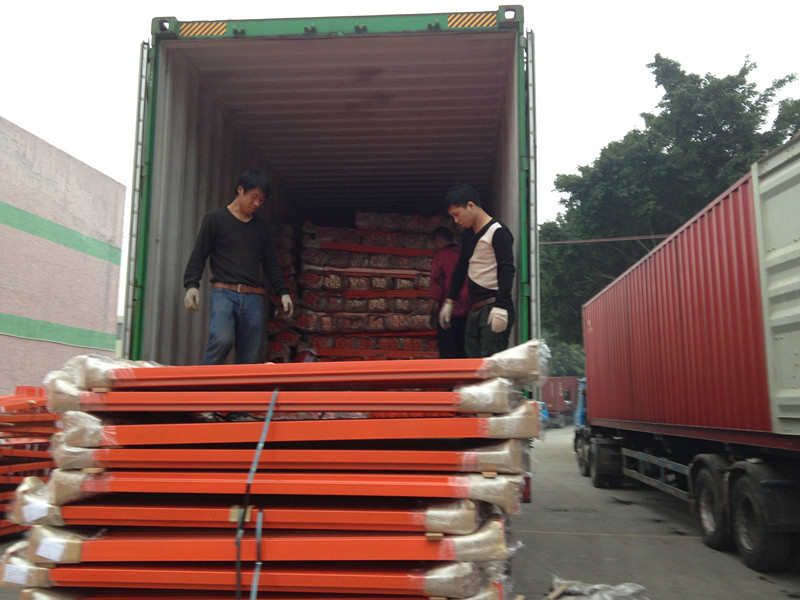

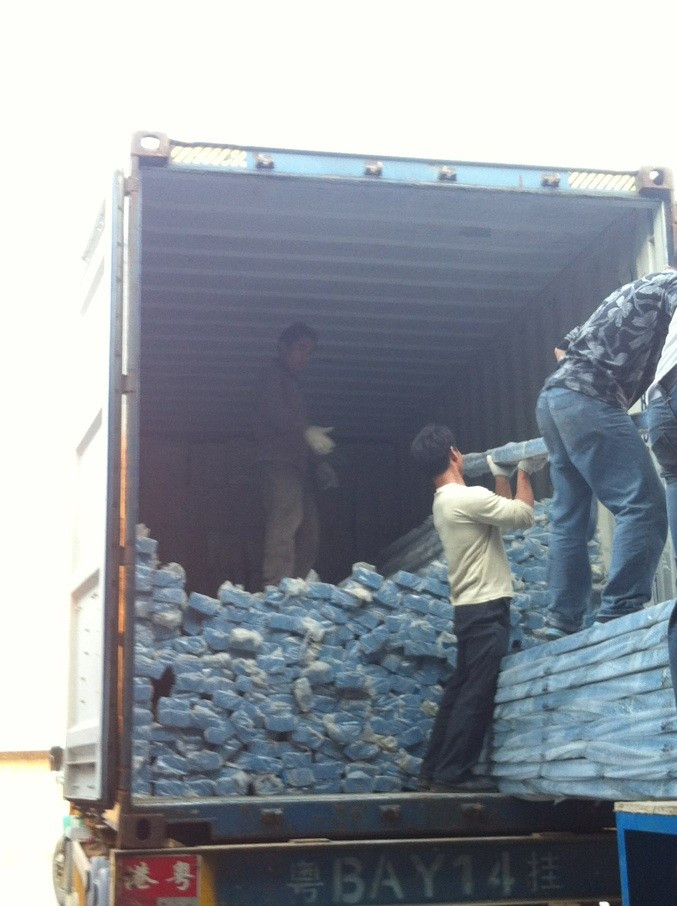

| Packing | Air bubble, Wooden Case, etc. |
Specialized in producing various pallet racking, longspan shelving, warehouse racks, mold racks, wire containers, cantilever racks, drive-in racks, and mezzanine platforms. We provide complete assistance for all warehousing requirements with high-quality products and competitive pricing.
