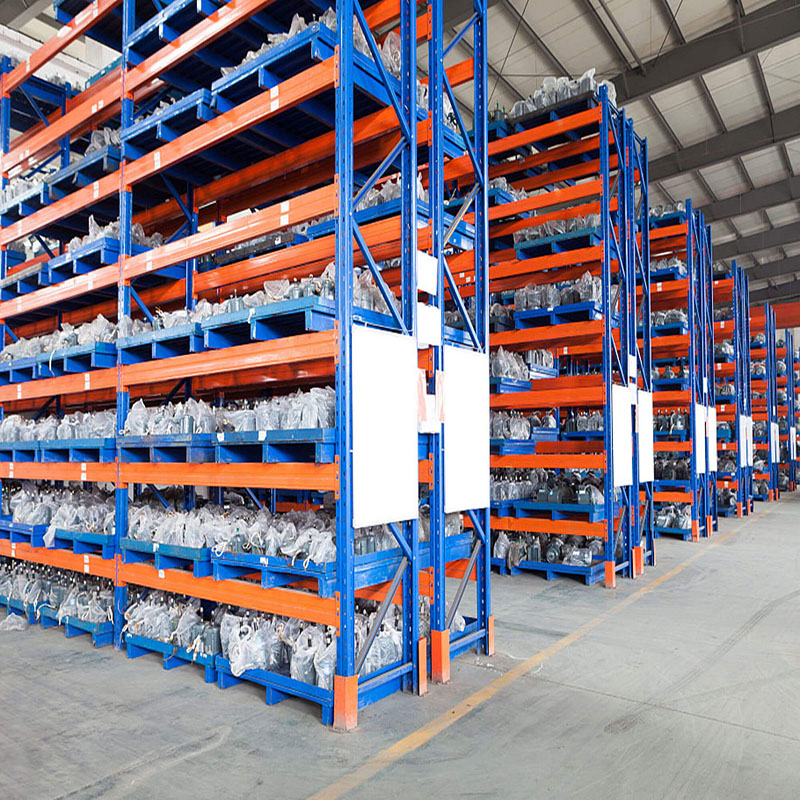

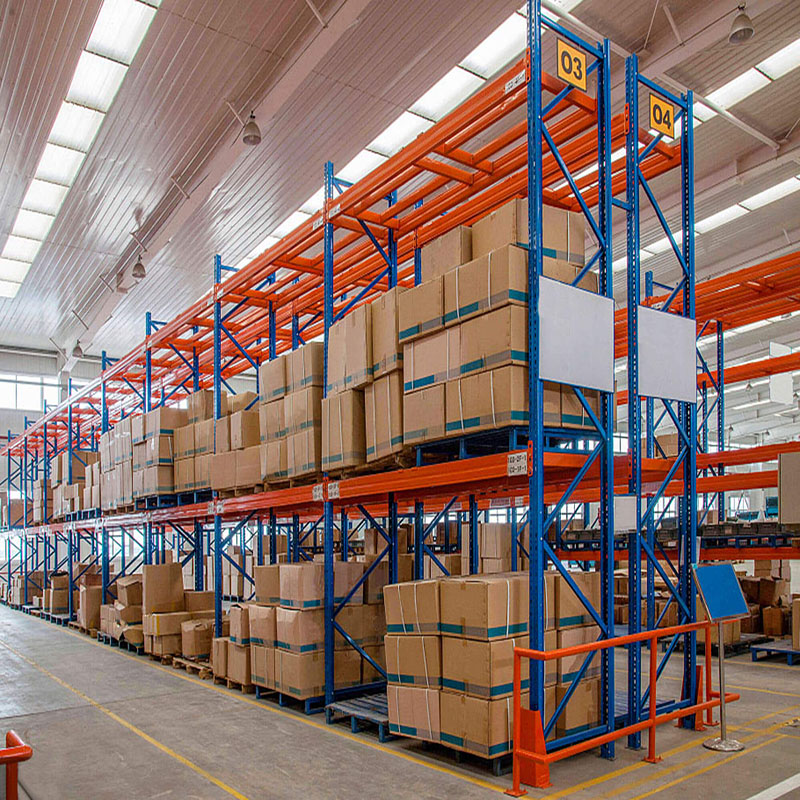

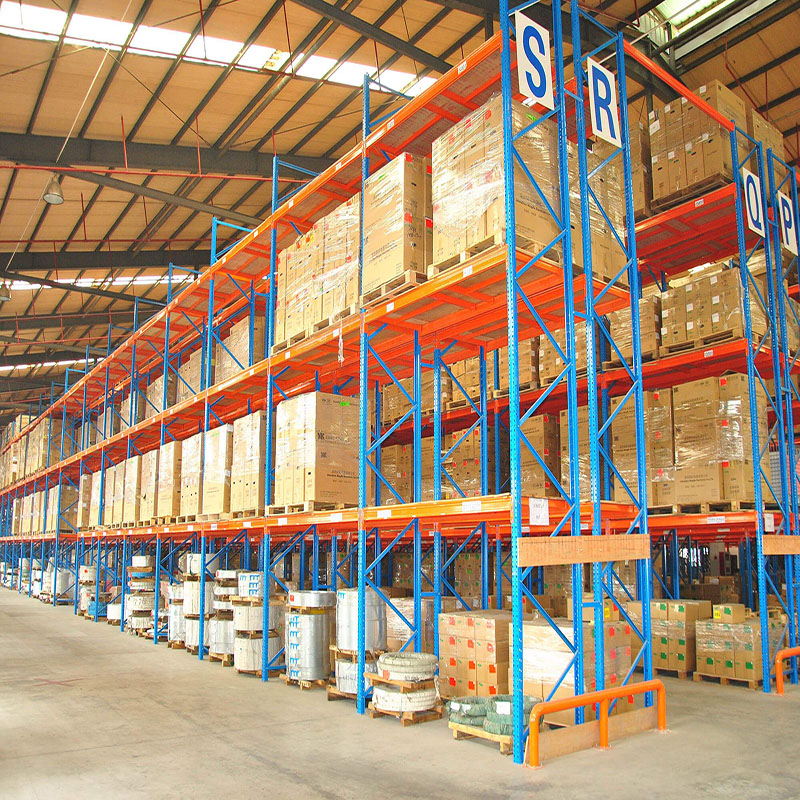

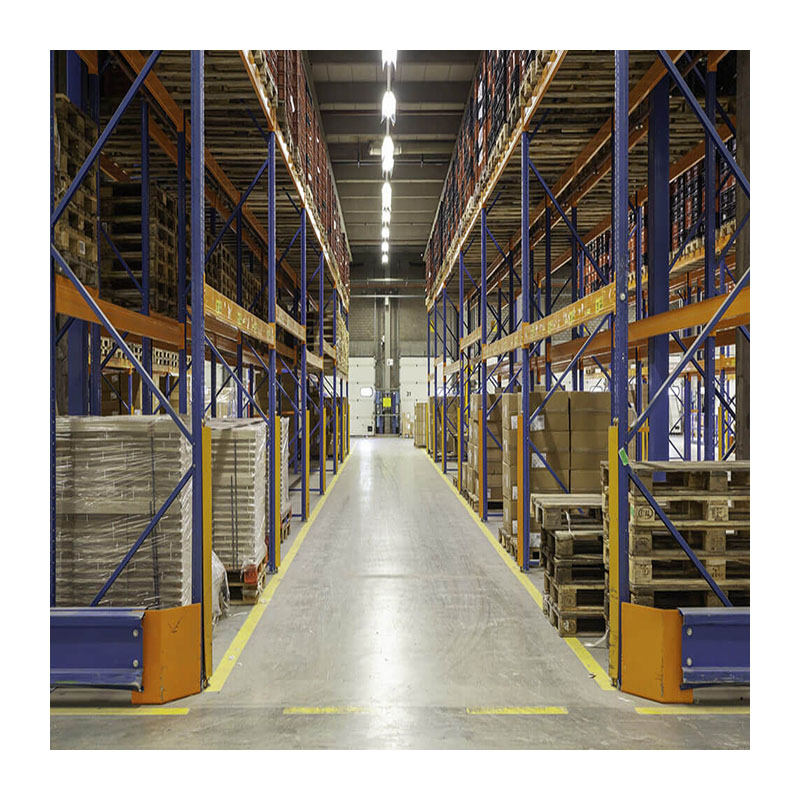

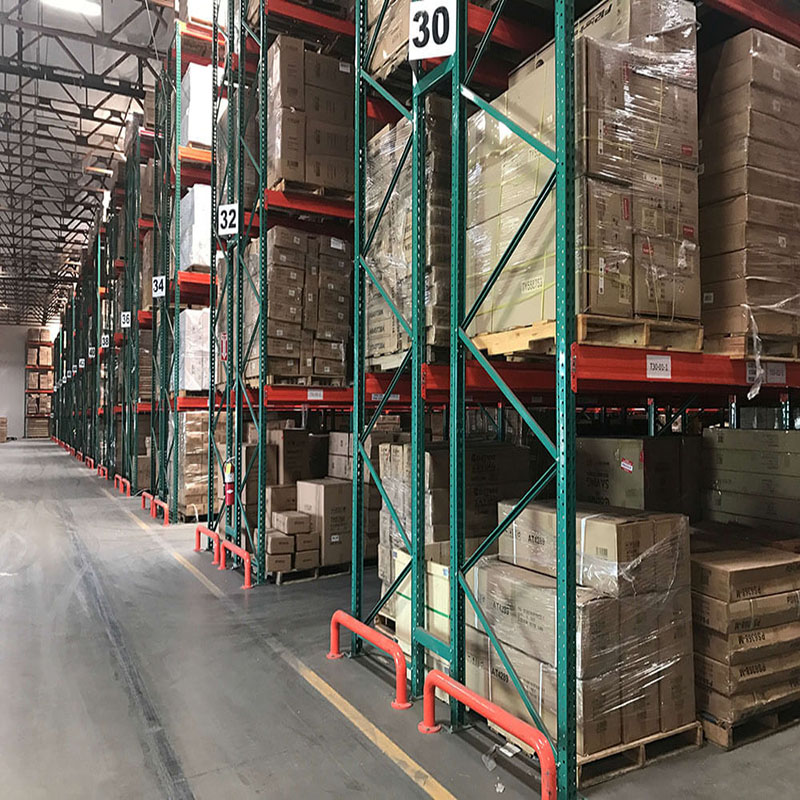

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chose as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouses for its advantages of appropriate height and convenience in accessing goods.
| Raw-Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange, can be customized. |
| Standard Size | L2300*D1000*H4500 (Customizable) |
| Height Range | 1500-8000mm or Customized |
| Wide/Depth | 400-1500mm or Customized |
| Length | 1500-3200mm or Customized |
| Upright-Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, etc. |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs per layer |
| Beam-Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, etc. |
| Surface Treatment | Powder coated |
| Packing Term | Air bubble film, Wooden Case, etc. |
