Cantilever Rack

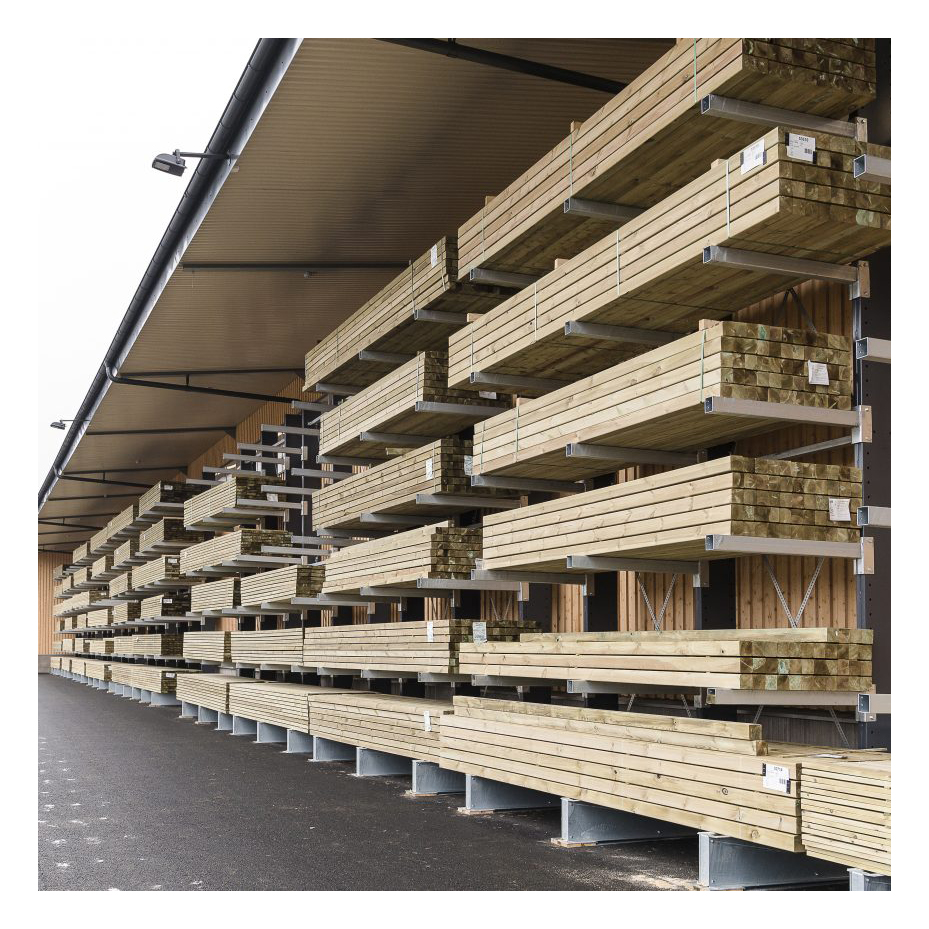

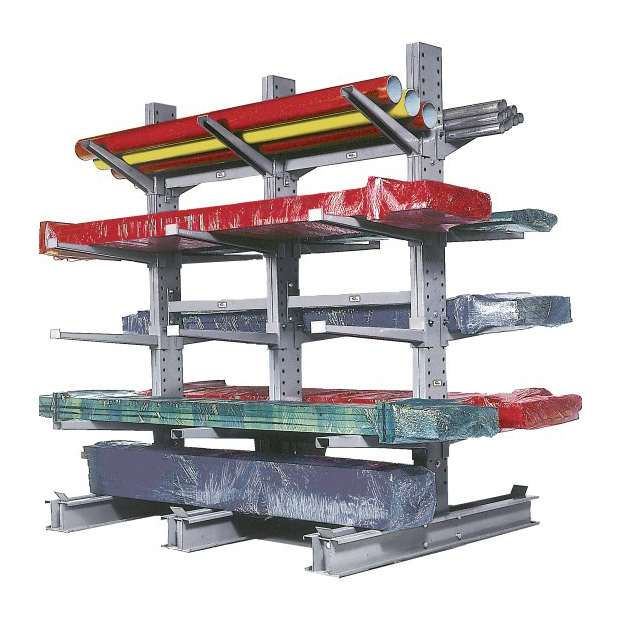

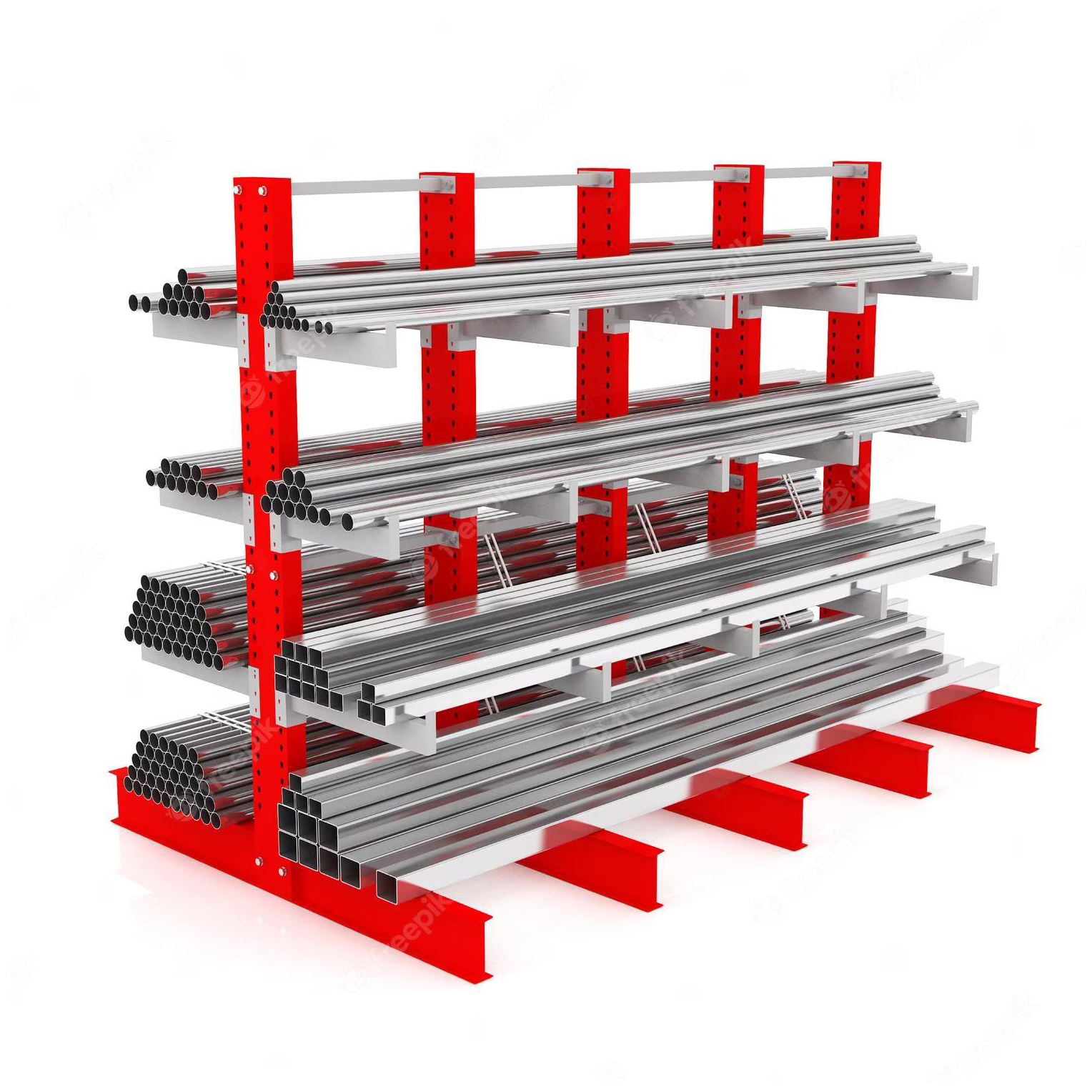

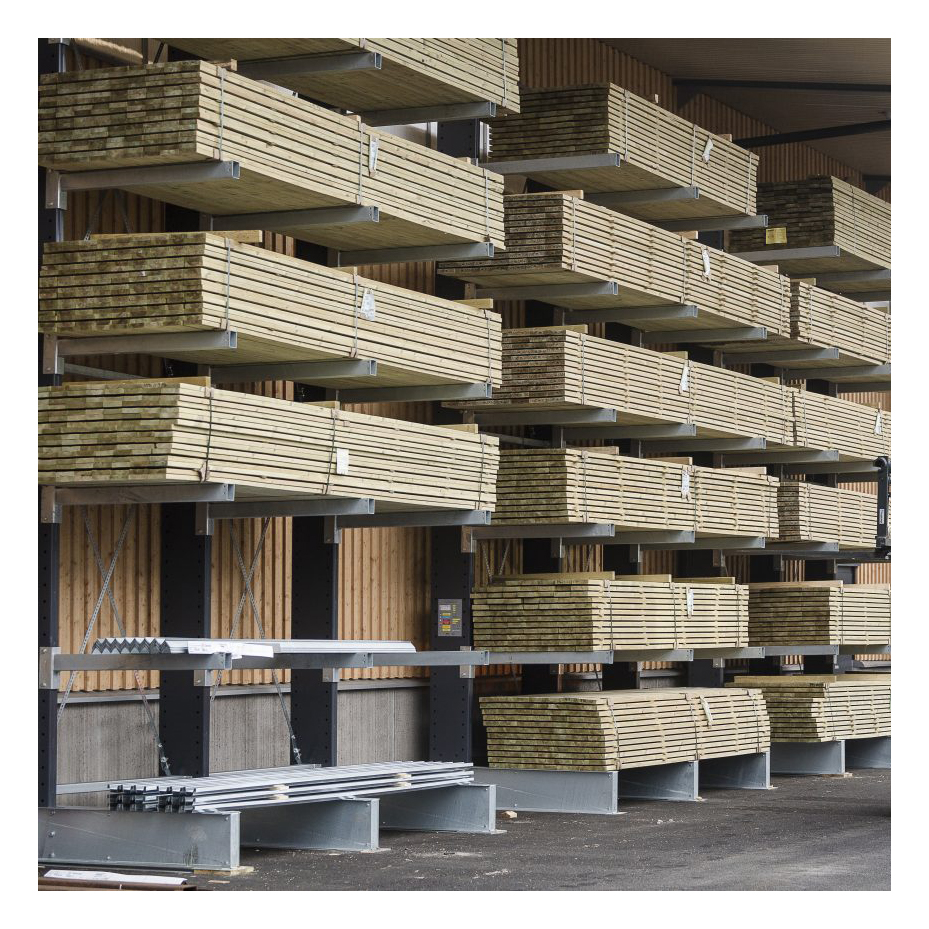

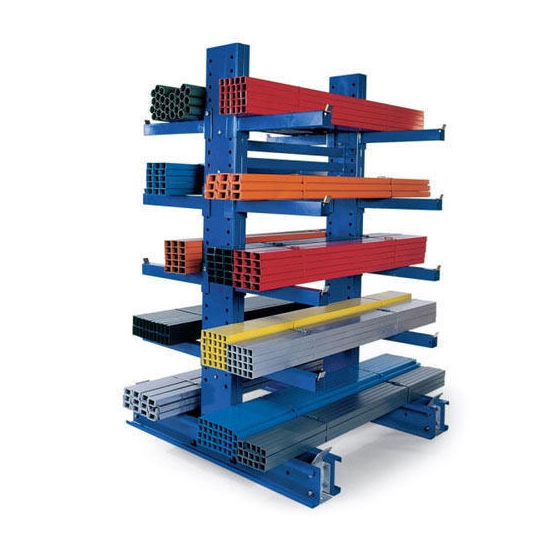

Cantilever rack, also called arm rack, is ideal for loads that require no obstruction at the pick face, so that bulky and awkwardly sized or shaped products can be safely stored and accessed. This type of racking allows you to use your warehouse space more efficiently - you do not need to waste horizontal space with awkward posts and columns obstructing storage areas.

Items best suited to such a system include furniture, building materials, piping, rolls, appliances, and flooring. You can fit this racking system to your facility by adjusting the shelf height, ensuring that the maximum amount of vertical storage space is maintained. Moreover, the support arms can vary in depth and capacity depending on the type of load. Open rows allow not only secure load support but also easy access - safety, flexibility, and selectivity are all maintained.

Technical Specifications

Parameter	Details
Raw Material	High-Quality Q235 Cold rolled steel; H-steel
Color	Upright frame is blue, Beam is orange (can be customized)
Standard Size	Non-standard specification is available
Upright Section	200901.5/2.0/2.5/3.0mm
Loading Capacity	300kg ~ 1000kg per cantilever arm
Cantilever Arm	8080, 80100, 100*100mm
Surface Treatment	Powder coated
Suitable Products	Long-shaped and bulky materials, profiles, pipe, timber, moulding, etc.
