Xinmiao Storage
1 / 5

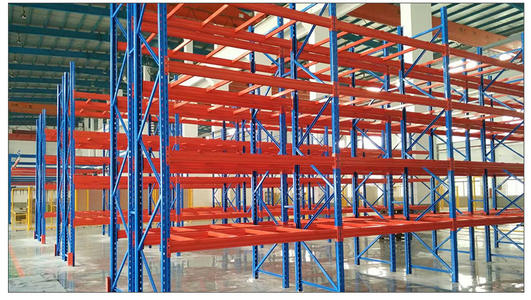

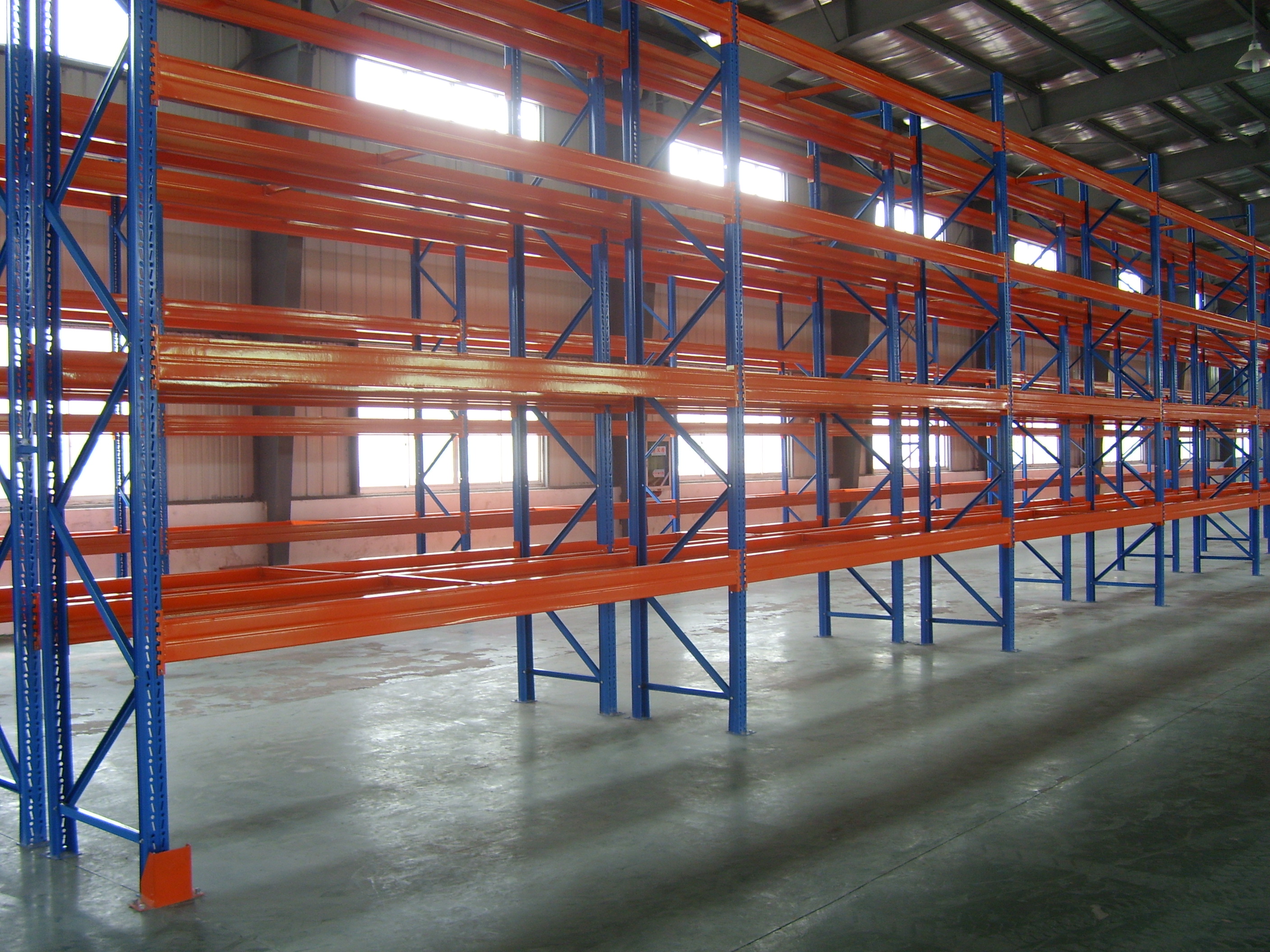

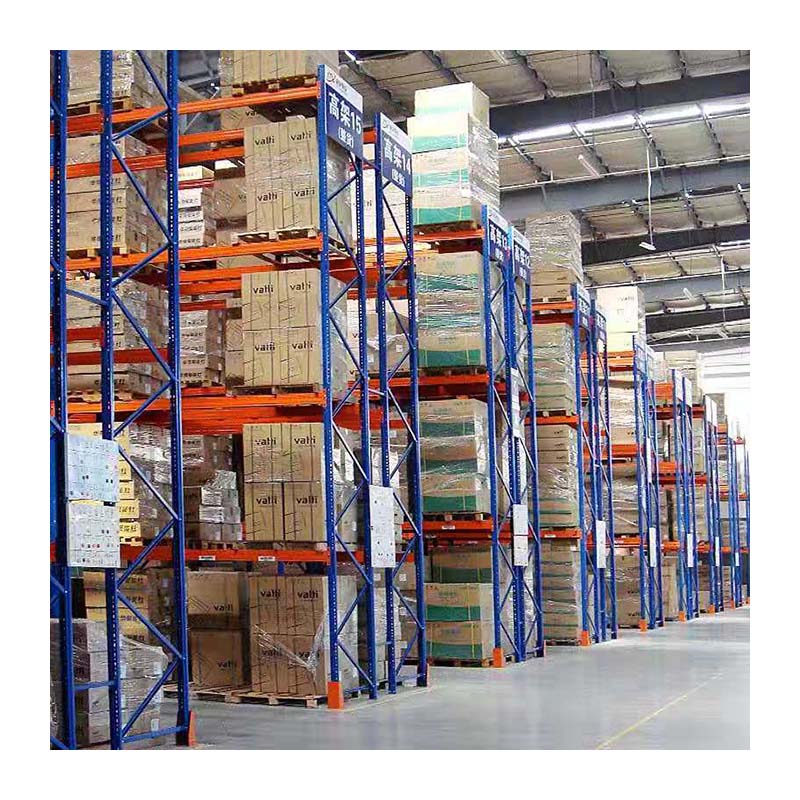

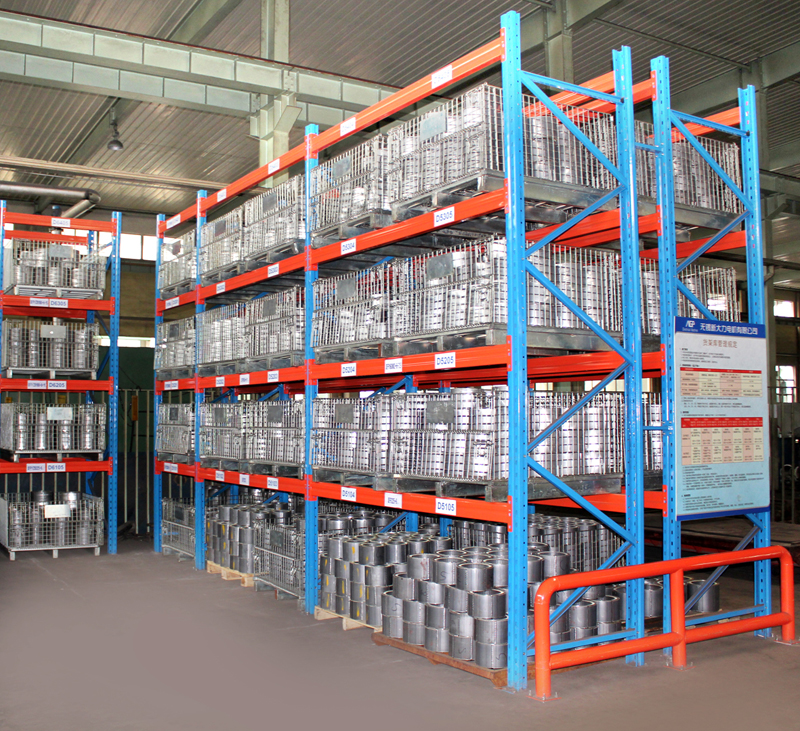

Heavy Duty Rack:
Heavy duty rack features a hooking structure, making it easy to dismount and install. It can be adjusted in 75mm increments based on goods height and supports a load capacity of 800-3000kg per layer. Options for layer boards include steel plate, wood plate, and MDF. This type of rack is an ideal storage solution for small and medium-sized warehouses due to its appropriate height and convenience in accessing goods.
| Feature Details | |
|---|---|
| Raw-Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange (Customizable) |
| Standard Size | L2300*D1000*H4500 (Customizable according to requirements) |
| Height Range | 1500-8000mm |
| Width/Depth | 400-1500mm |
| Length | 1500-3200mm |
| Upright Section | 80*60, 90*65, 100*70, 120*95mm (Thickness 1.5-2.5mm) |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Surface Treatment | Professional Powder Coated |
| Packing Term | Air bubble, Wooden Case, etc. |
