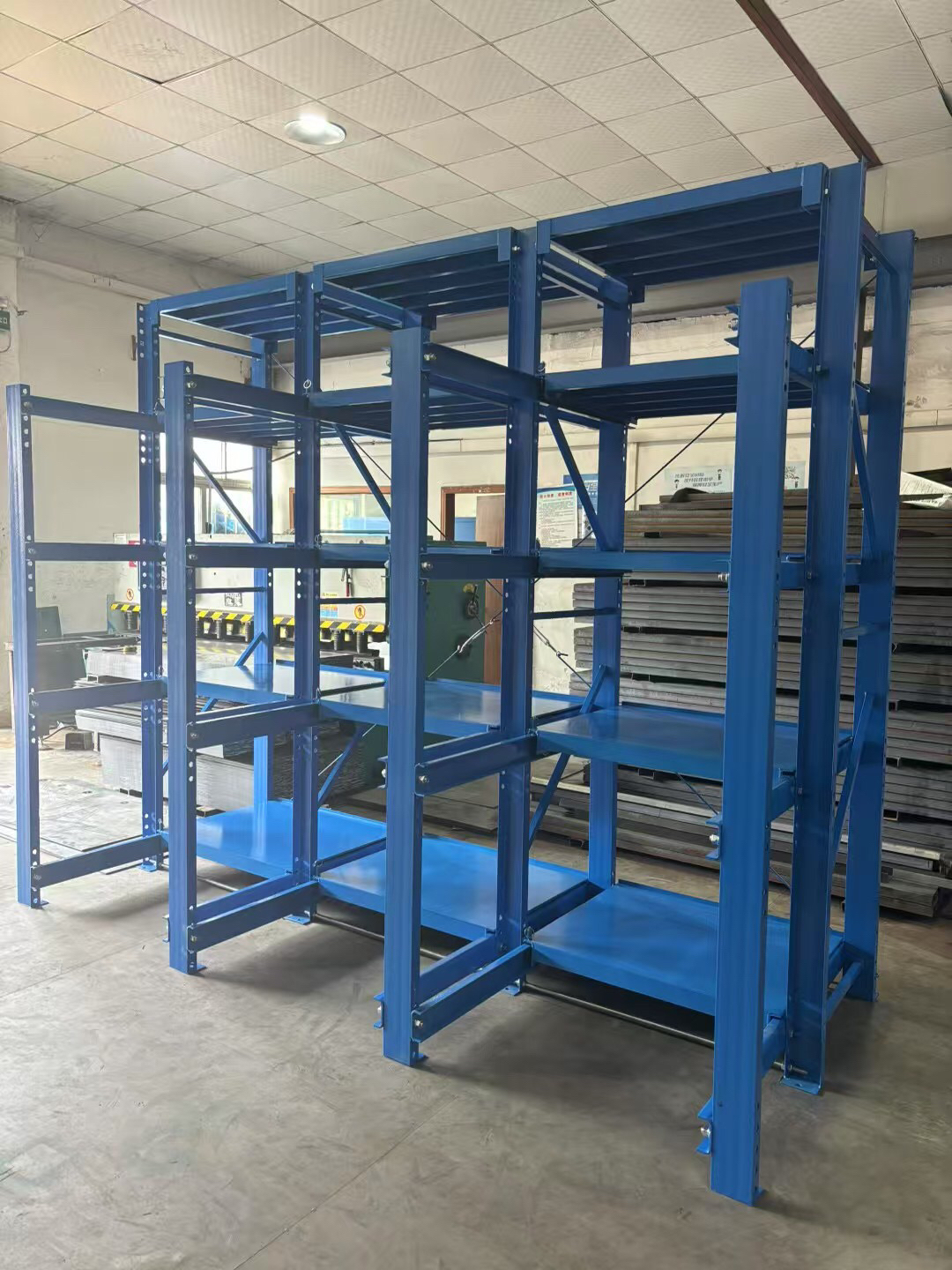

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

1 / 5

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Send Inquiry

Product Description

Introduction

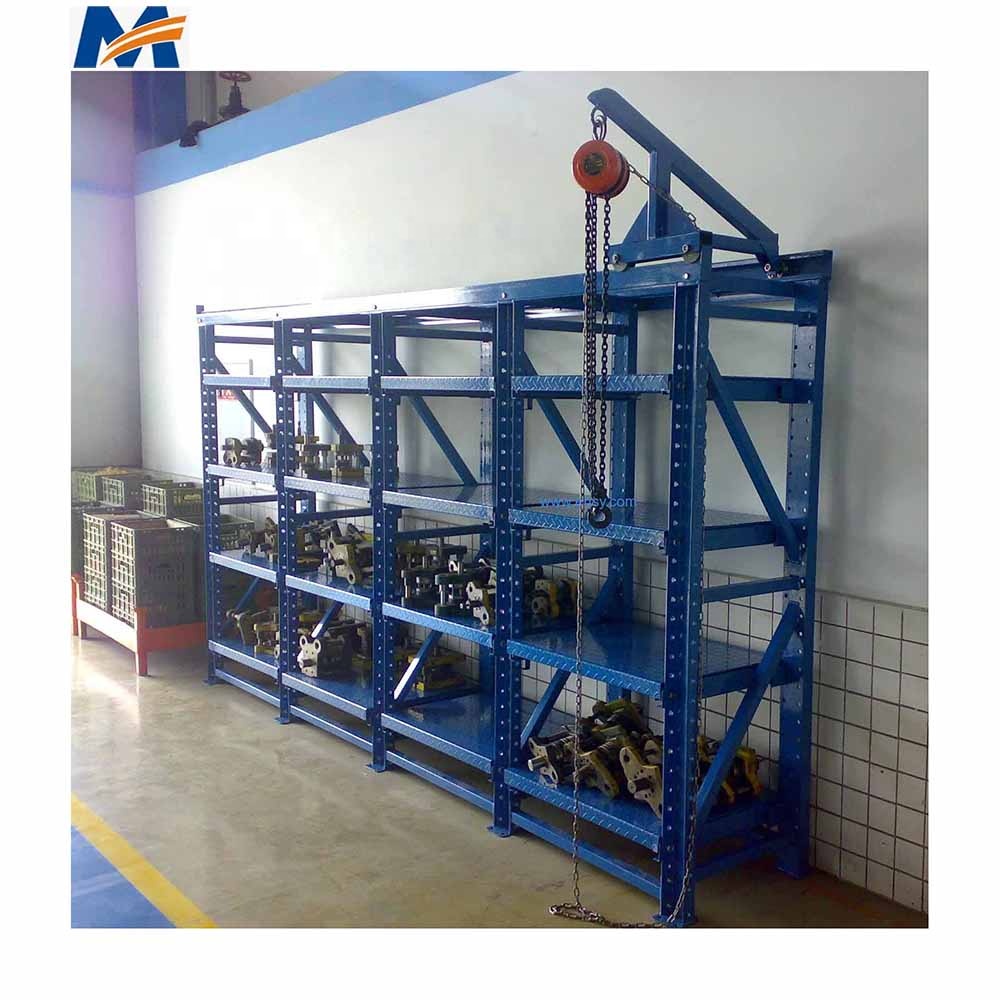

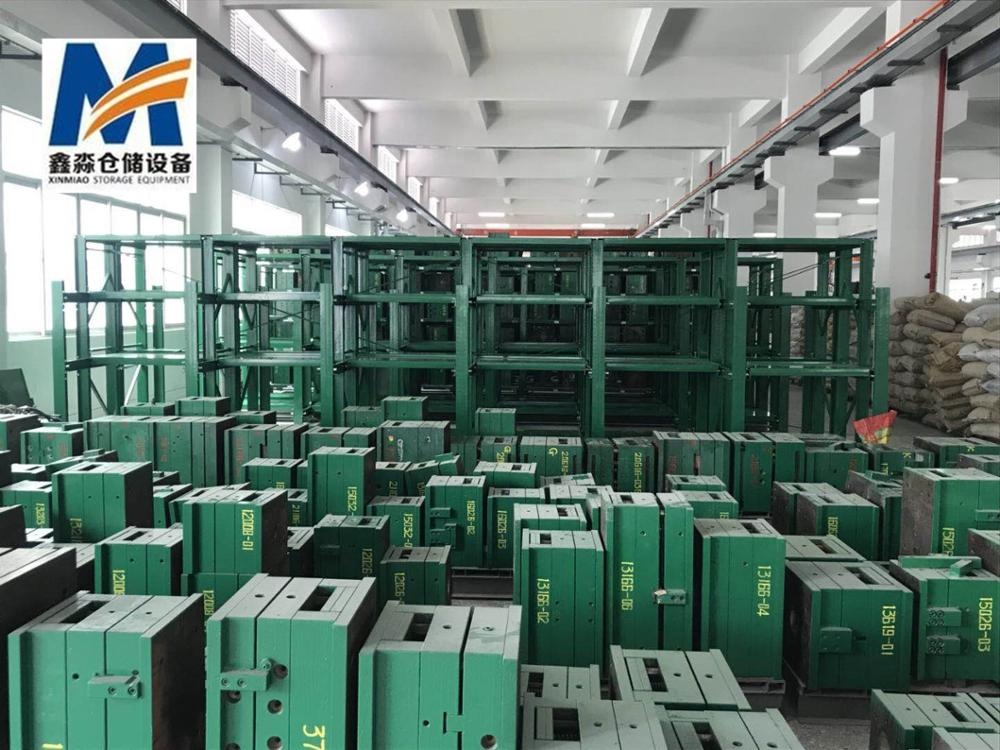

Mold rack mainly storage various kinds molds, according to loading capacity be divided into drawer type mold rack and open-type mold rack. The top of mold rack can be equipped with crane and manual hoist, mold racks of sling.

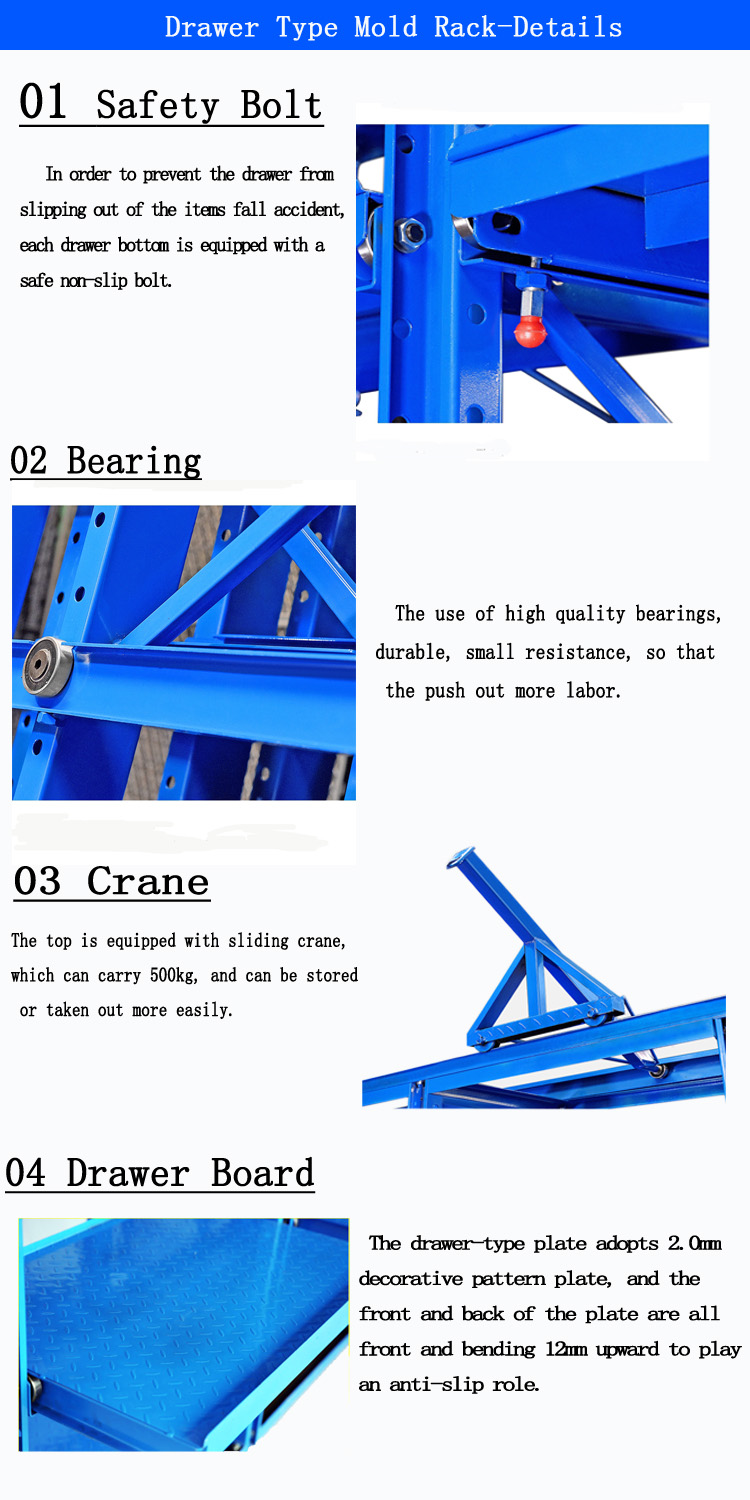

★Features:

1. The structure is solid and loading and unloading, is easy to transportation;
2. Suitable for small and medium of molds;
3. The drawer board can draw out, easy to removal of molds;
4. Can be installed crane and hoist.

■Material & Specs:

1. Column: 10# channel steel, diagonal bracing: 25*25 square meters;
2. Backing plate: 50*25 angle iron and 2.0mm iron plate;
3. Chute: 4.0mm iron plate;
4. Bearing: 6403;
5. Bearing capacity: 800-1000kg/drawer.

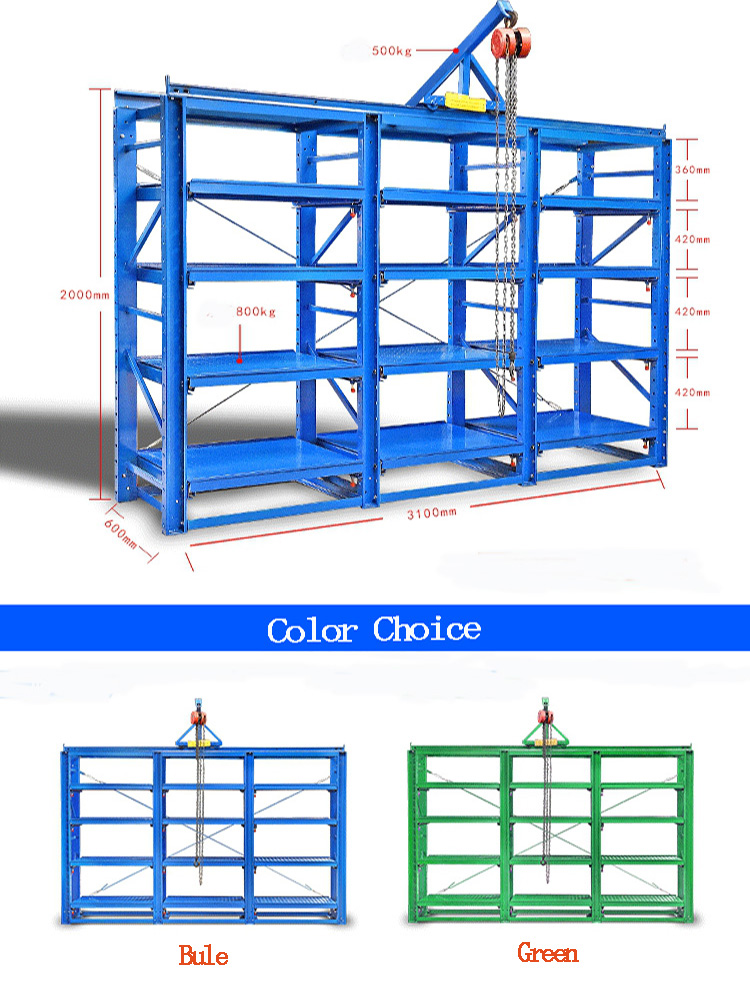

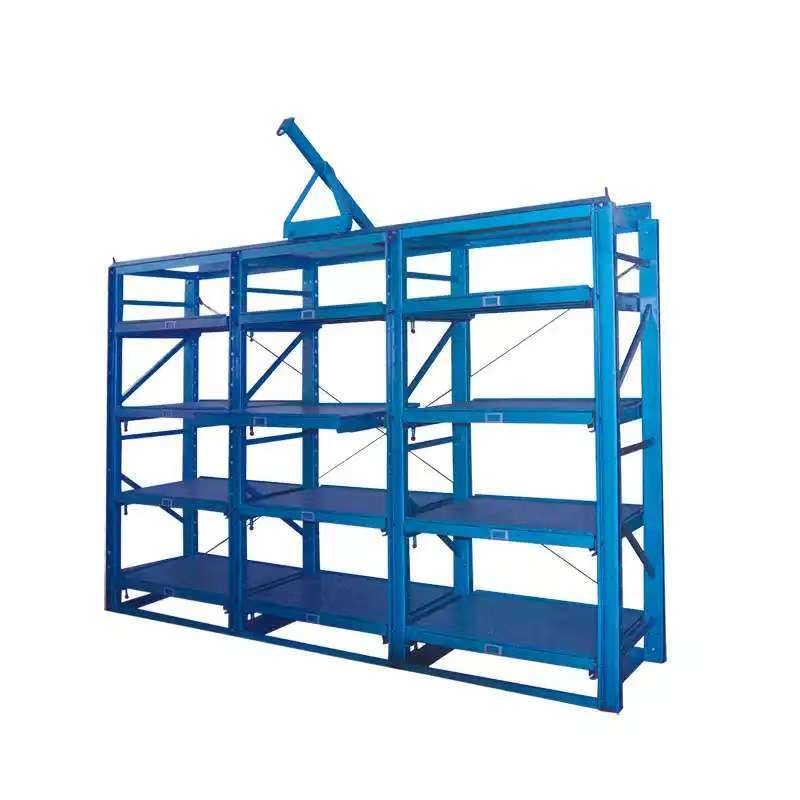

Drawer Type Mold Rack

Standards Size	Layer	Loading Capacity	Bearing	Upright (mm)	Thickness (mm)
*L3100D600H2000*	4	1000kg/drawer	Model 6403	100404	2.0

Product	Drawer Type Mould Rack
Material	High-Quality Channel Steel
Standard Size	L3100D600H2000mm
Color	Green; Blue (Customizable)
Loading Capacity	1000KG/drawer
Surface Treatment	Powder coated
Packing	Air bubble film

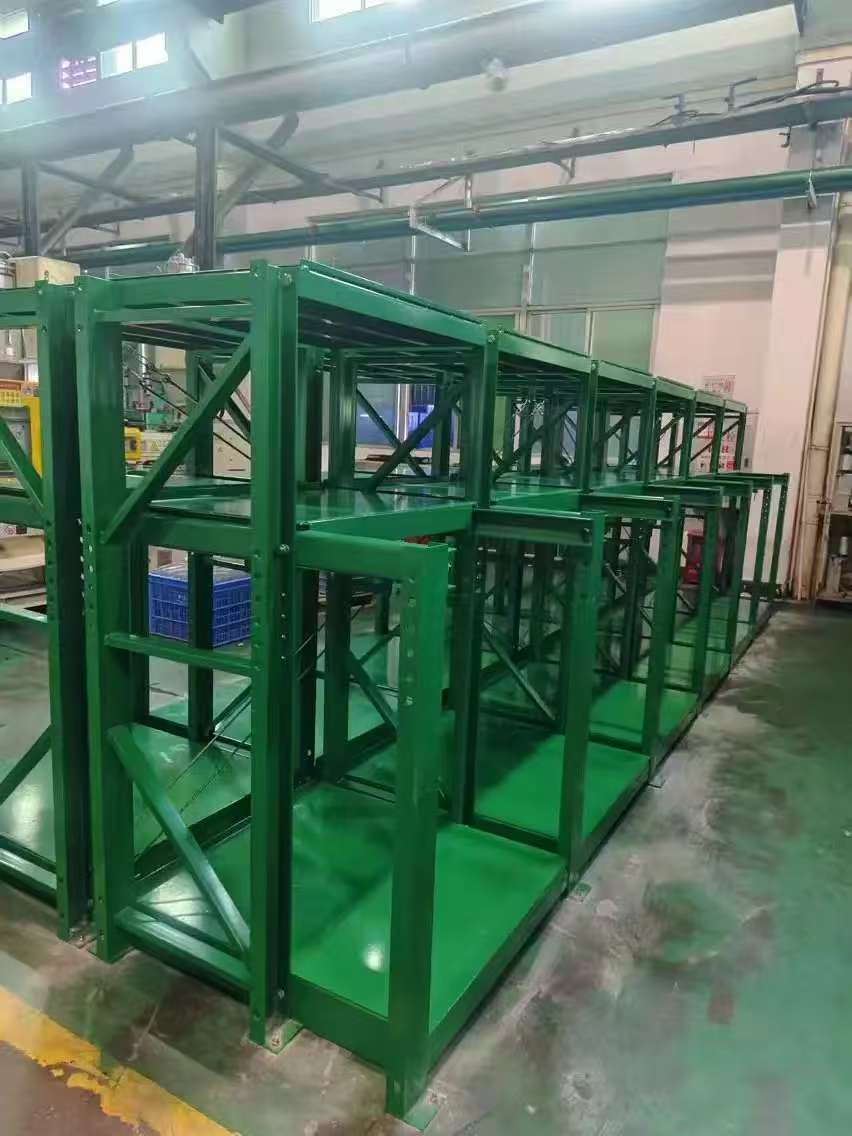

Full Open Mould Rack

Standard Size (mm)	Layer	Loading Capacity	Bearing	Upright (mm)	Thickness (mm)
*L3100D800+400H2000*	4	2000kg/drawer	Model 6403	100404	2.0

Product	Full Open Mould Rack
Material	High Quality Channel Steel
Standard Size	L3100D800+400H2000mm
Color	Green; Blue (Customizable)
Loading Capacity	1000kg/drawer
Surface Treatment	Powder coated
Packing	Air bubble film
