Product Description

Hot Sale Products
Product Introduction

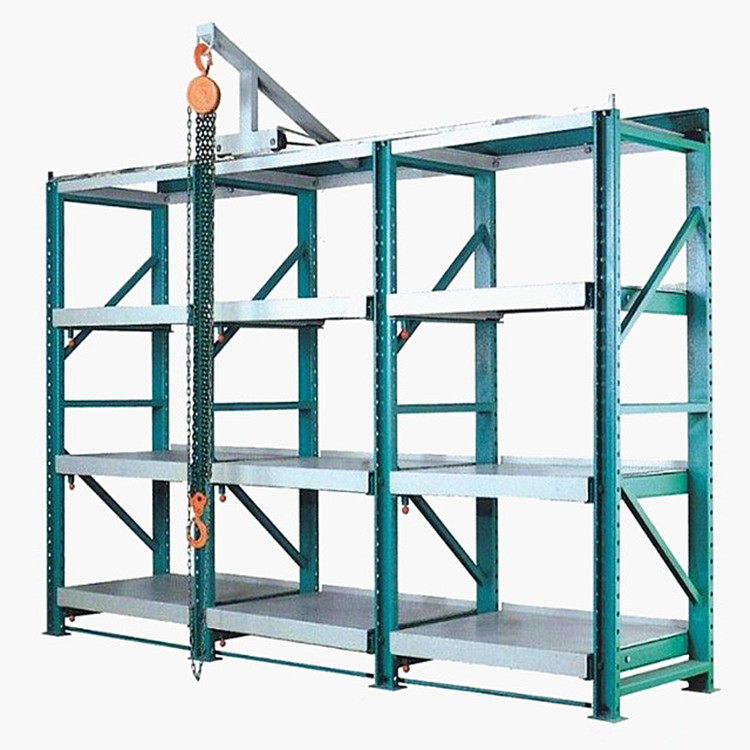

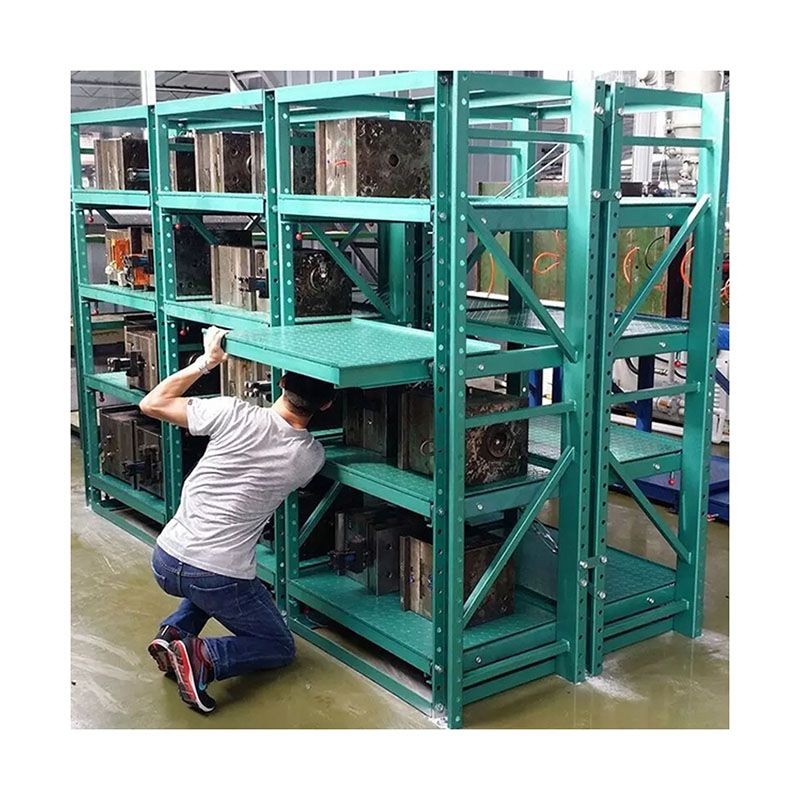

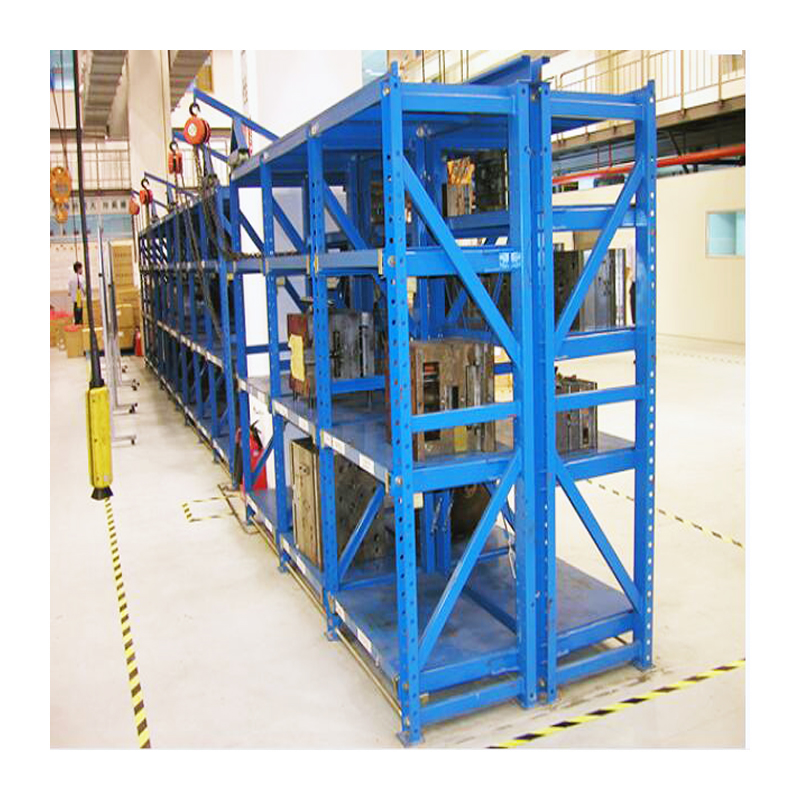

Mold rack mainly stores various kinds of molds. According to loading capacity, it can be divided into drawer type mold rack and open-type mold rack. The top of the mold rack can be equipped with a crane and manual hoist for efficient handling.

✔
Features: Solid structure, easy transportation, suitable for small and medium molds, drawer boards can draw out for easy access, and compatible with cranes/hoists.
✔

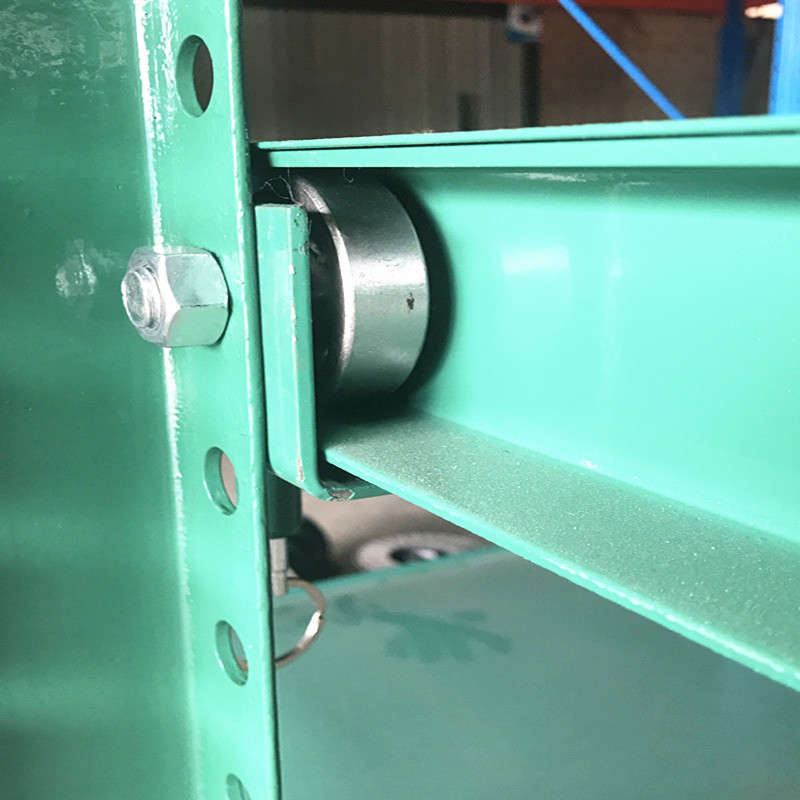

Material: Column (10# channel steel), backing plate (50*25 angle iron and 2.0mm iron plate), chute (4.0mm iron plate), and high-quality bearings (6403).
Drawer Type Mold Rack Specification
ProductDrawer Type Mould Rack
MaterialHigh-Quality Channel Steel
Standard SizeL3100*D600*H2000mm
Loading Capacity1000KG / Drawer
Surface TreatmentPowder Coated
Standard ColorGreen, Blue (Customizable)
Full Open Mould Rack Specification
Standard SizeL3100*D800+400*H2000 mm
Layers4
Loading Capacity2000kg / Drawer
Bearing Model6403
Upright Size100*40*4 mm
Board Thickness2.0 mm
Packaging & Installation
Frequently Asked Questions
1. Are you a factory or trading company? We are a professional factory specializing in industrial storage solutions.
2. What materials are used for your products? The primary material used is Q235 cold rolled steel. We can also select materials based on specific customer requirements.
3. Can I request samples of the racking components? Yes, we are honored to offer you samples for quality verification.
4. How is quality control managed in your factory? Quality is our priority. We maintain strict quality control from the beginning to the end, and our factory holds ISO9001 and SGS authentication.
5. Are customized sizes and colors available? Yes, sizes can be customized to your specific needs. Standard colors are Blue and Green, but other colors can be provided upon request.
6. How are the products packaged for shipping? We typically use air bubble film packaging to ensure the safety of the products during transportation.
