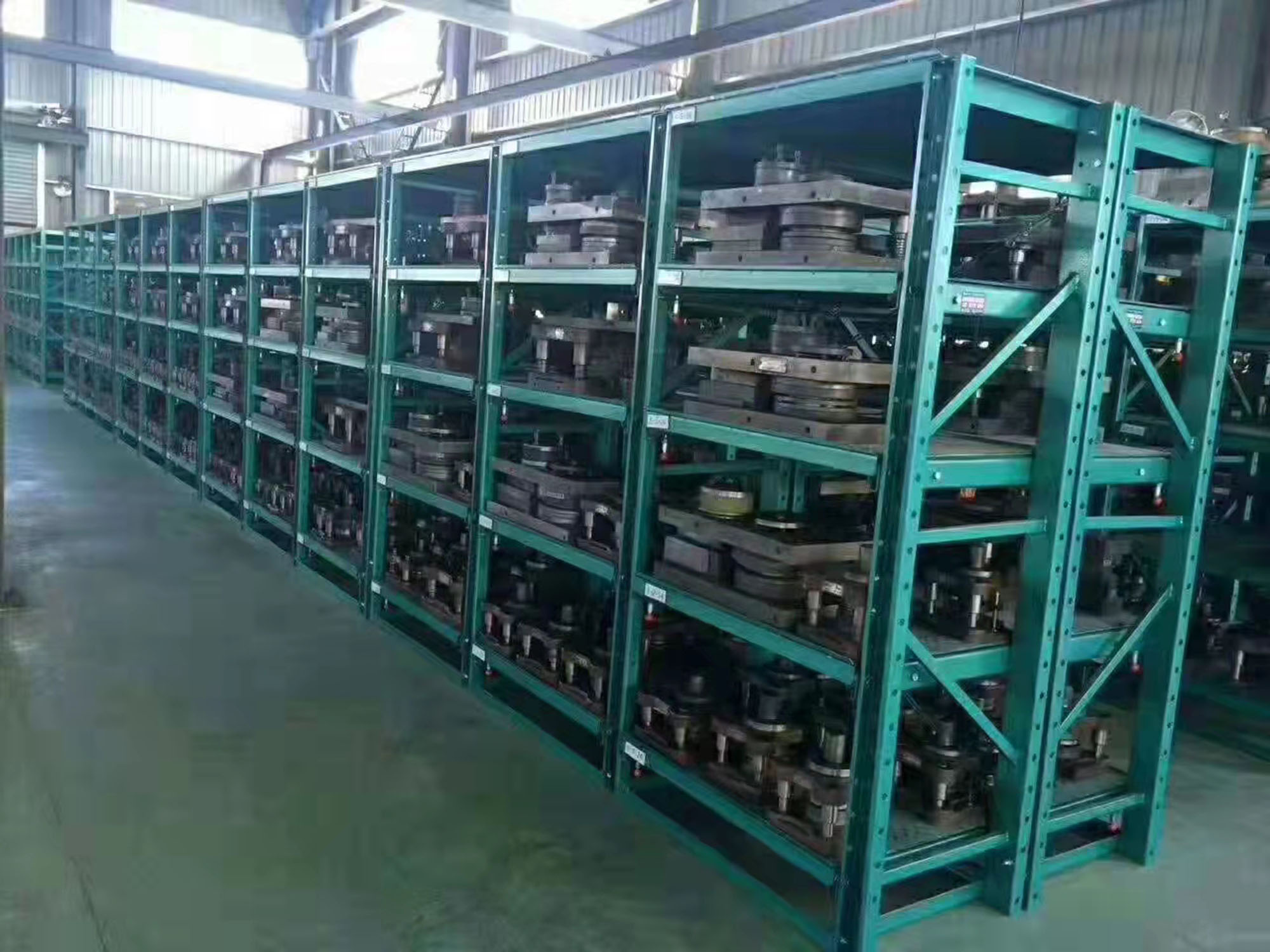

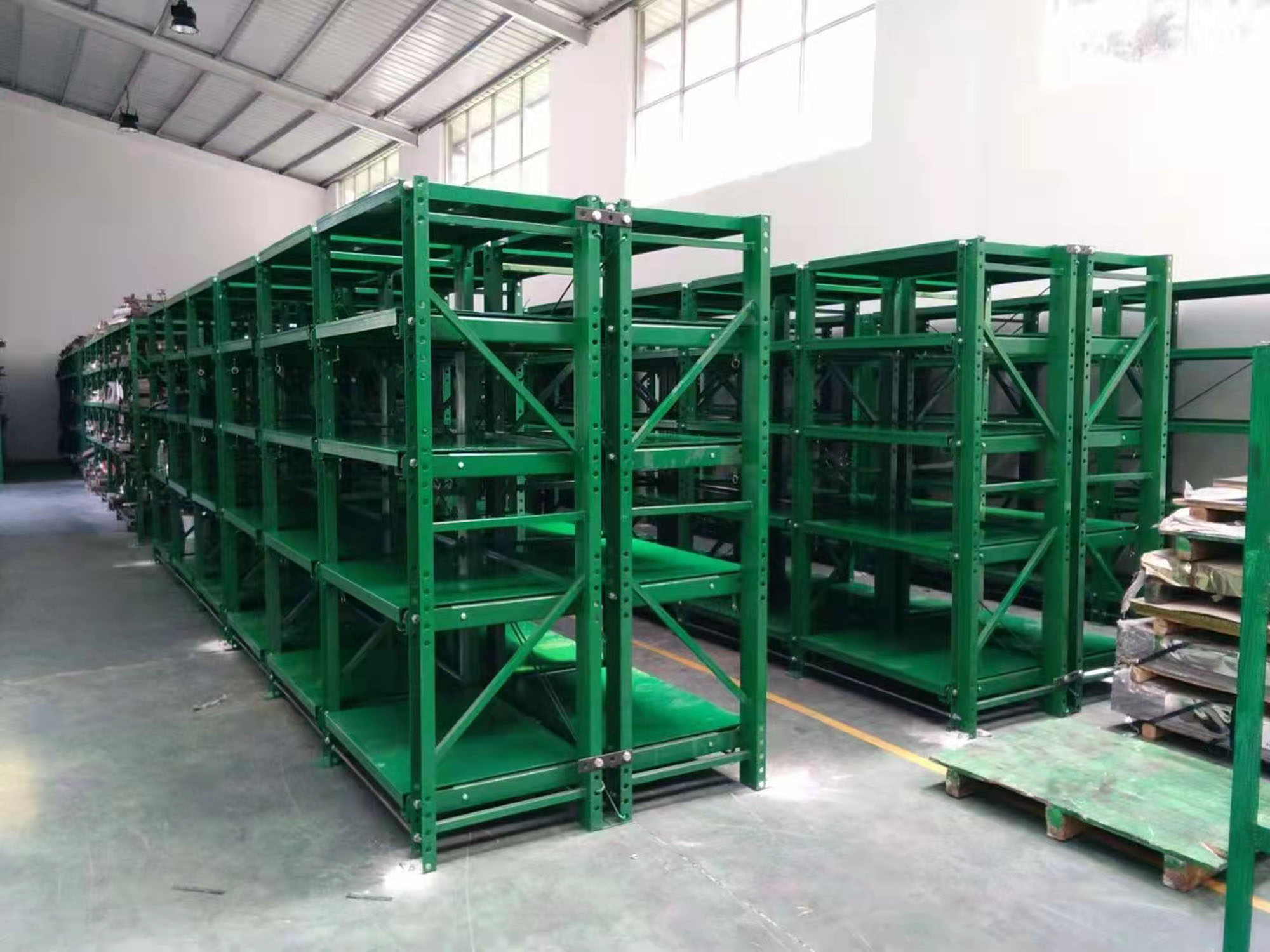

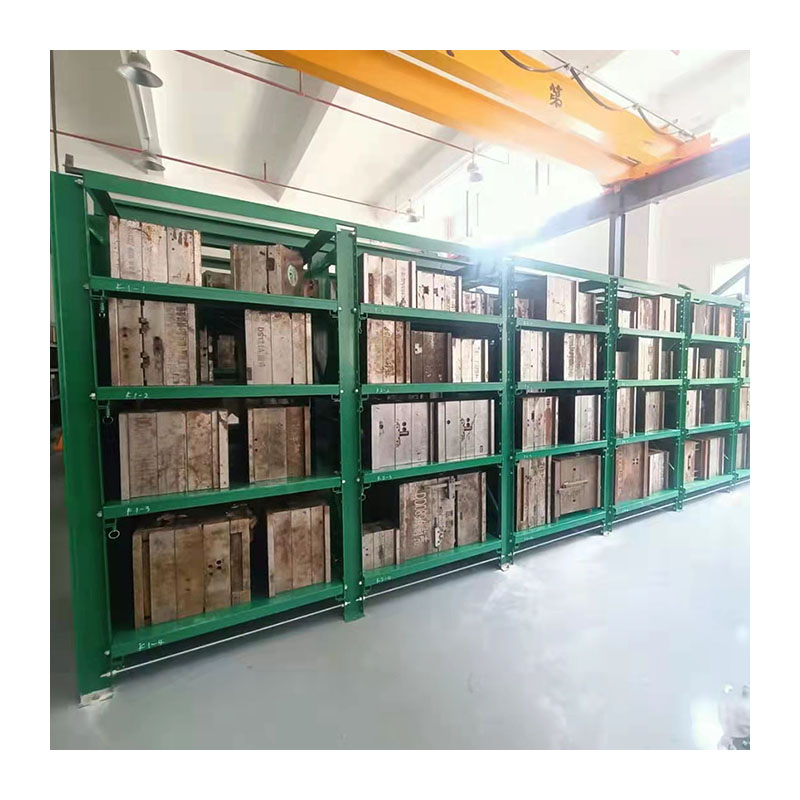

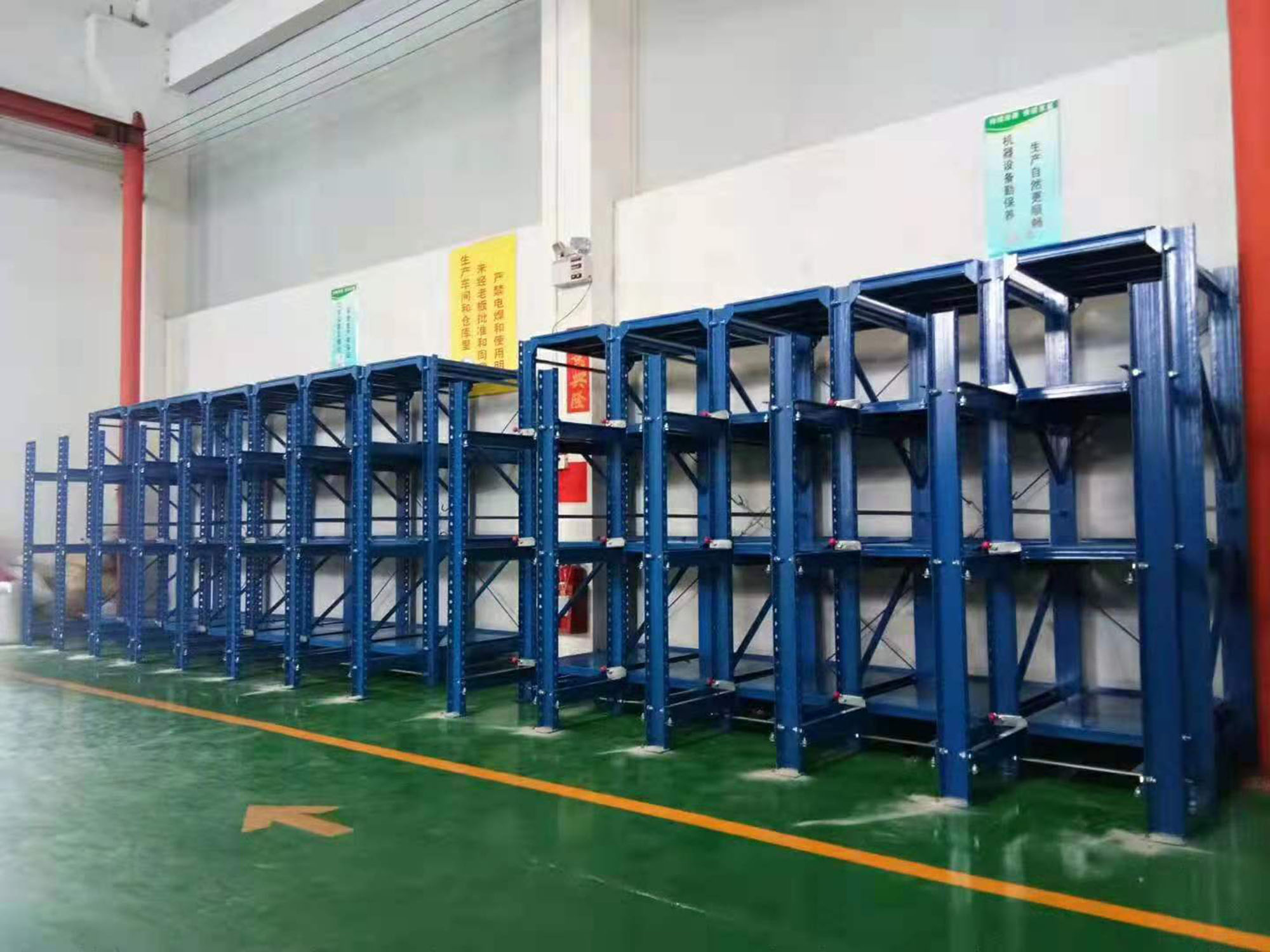

Mould Rack Features:
| Standards Size | Layer | Loading Weight | Bearing | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L3100*D600*H2000 | 4 | 1000kg/drawer | Model 6403 | 100*40*4 | 2.0 |
| Product | Mold Rack |
|---|---|
| Material | High-Quality Channel Steel |
| Size | L3100*D600*H2000 |
| Color | Green (Customizable) |
| Loading Capacity | 1000KG/drawer |
| Surface Treatment | Powder Coated |
| Packing | Air Bubble |
| Features |

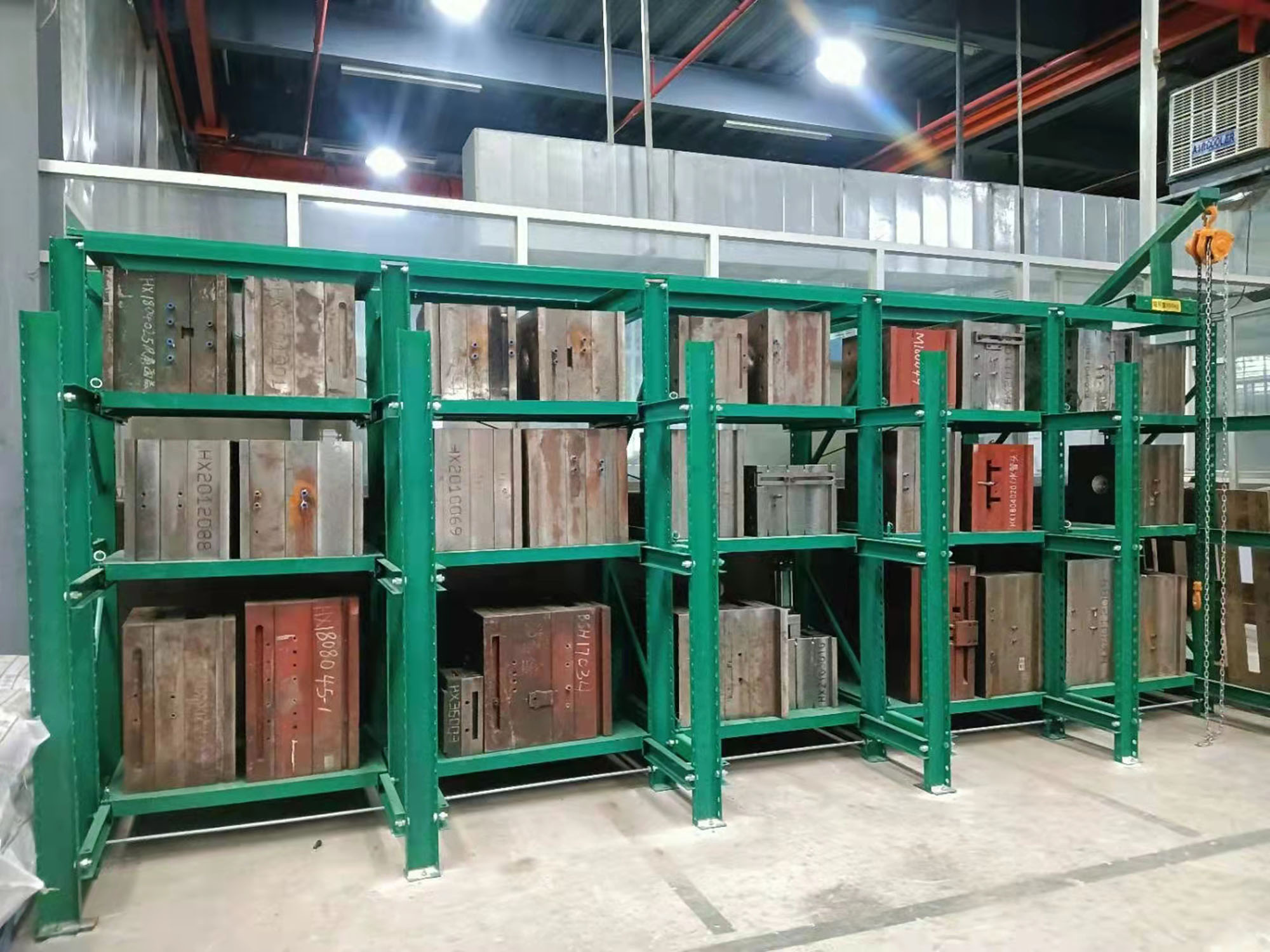

• Easy to remove the shelf boards; vertical spaces are adjustable. • Each group has a pulley and handy-lift hoist block for easy storage and unloading. • Sections can store several sets of molds, convenient for maintenance and management. |
|---|---|
| Technological Specs |
• Post adopts 10# channel steel; diagonal brace is 25*25 square meters. • Rack of backing plate is 50*50 angle iron; board size is 2mm iron plate. • Sliding chute is made of folding 4mm iron plate. • Bearing capacity: 800-1000kg/backing plates. |
| Material | High-quality cold rolled steel Q235 |
| Delivery & Packaging | Standard color is green; foam or wooden case packaging; within 15 days delivery. |
Professional Design Service
Raw Materials Storage Area
Automatic Cold Rolling Line
Spraying Coating Line
Stamping Area (Bracket)
Packaging Area
Our company specializes in R&D, production, selling, and installation of warehouse shelves and related equipment. We pursue product development with the spirit of "striving for excellence" to achieve maximum storage volume in limited spaces.
