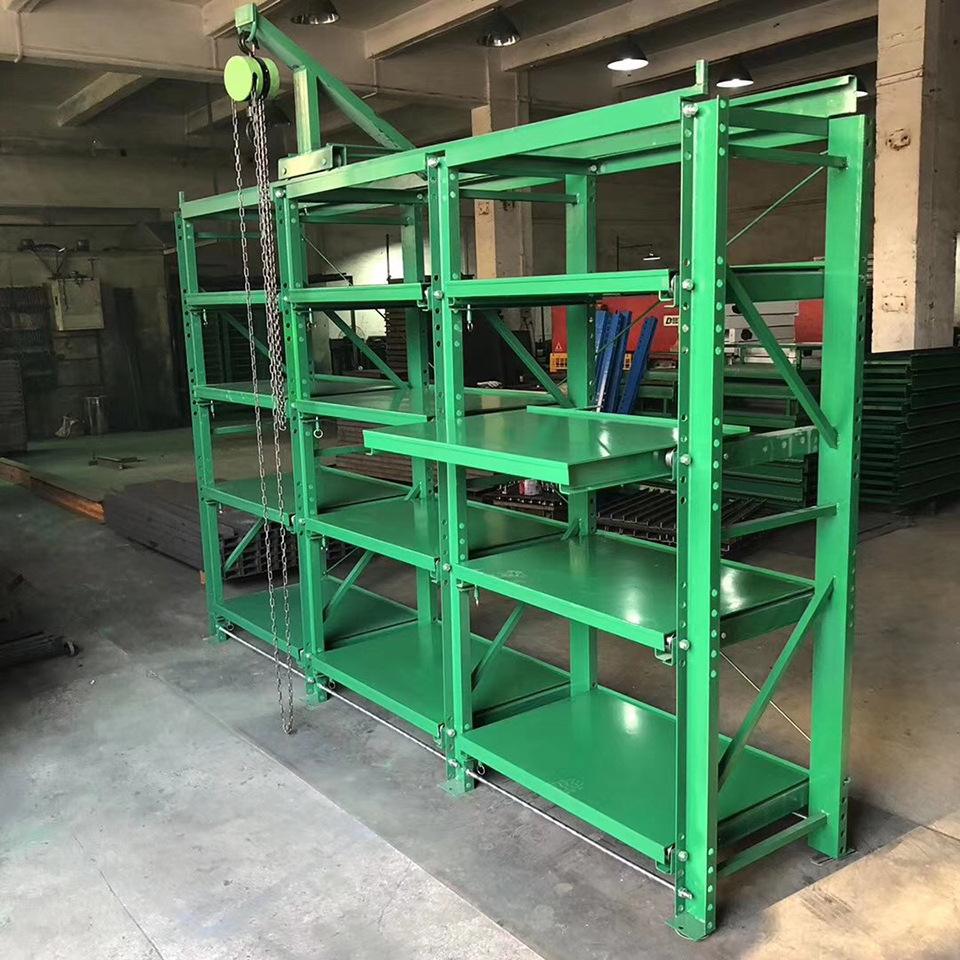

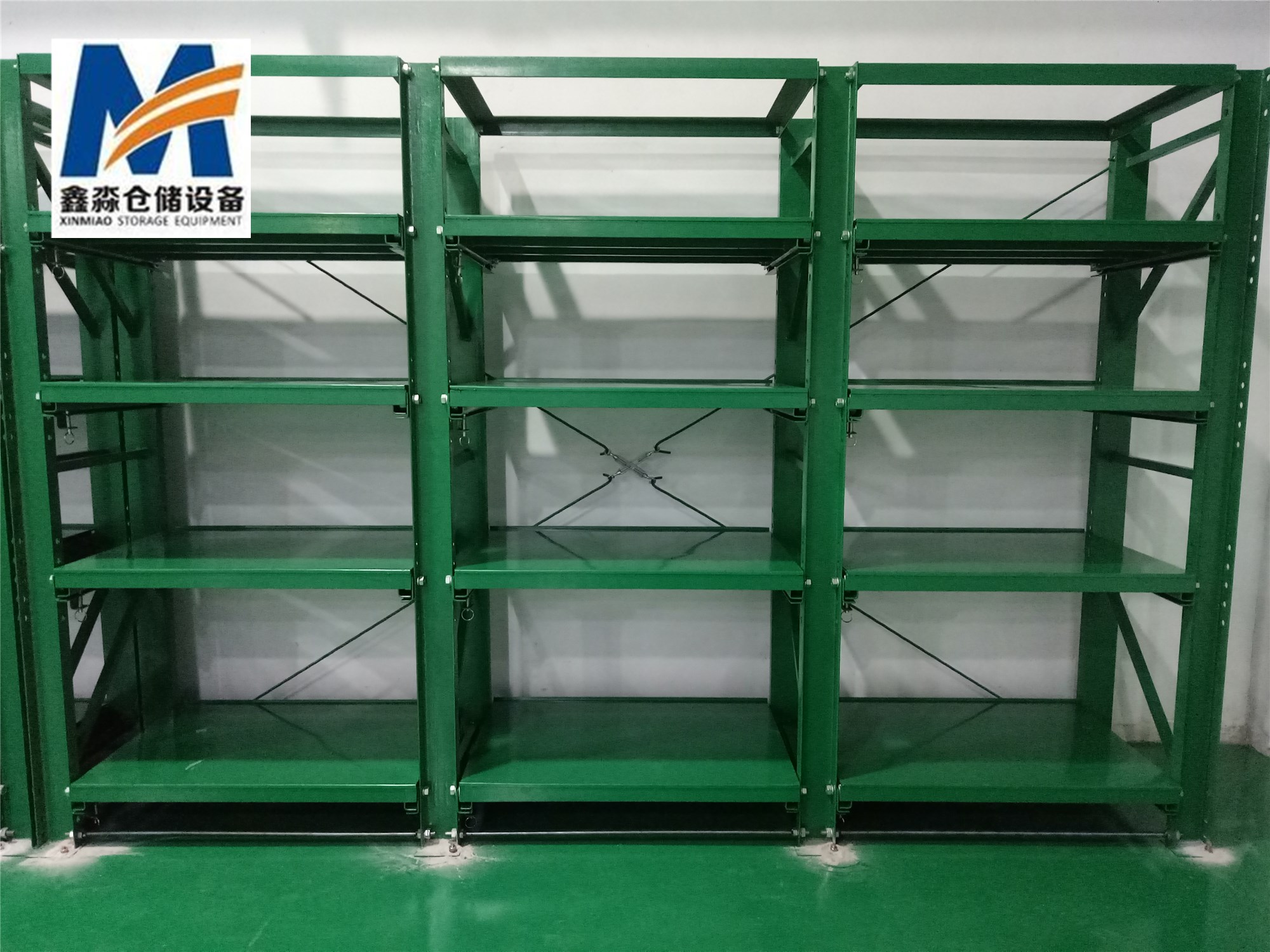

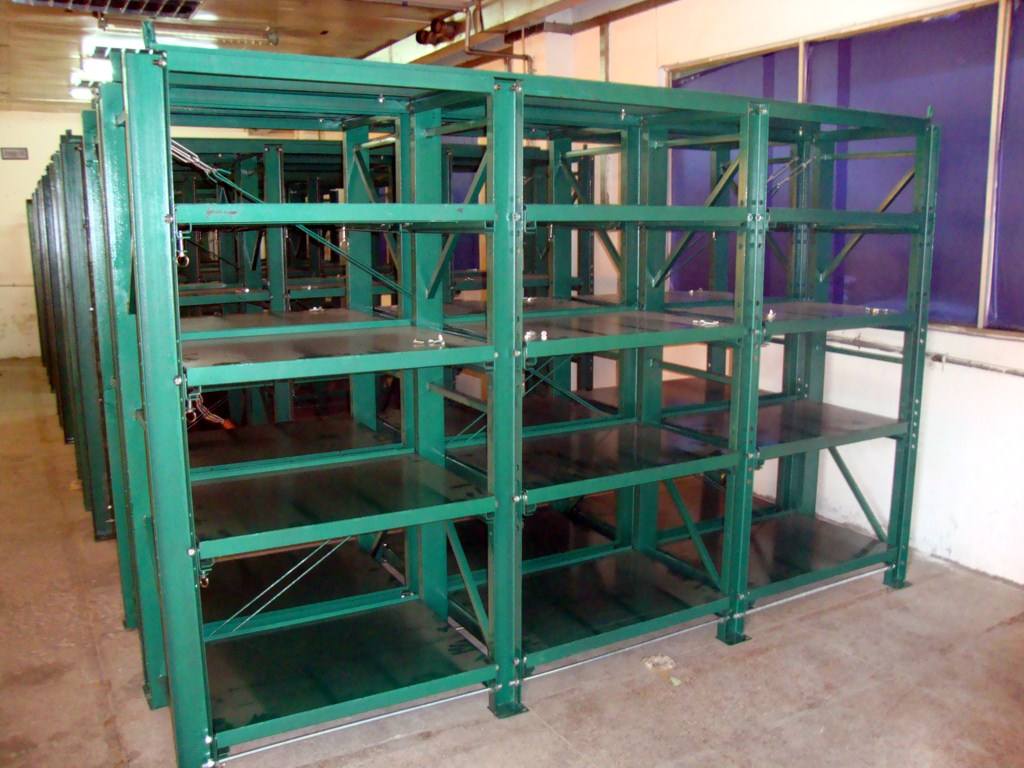

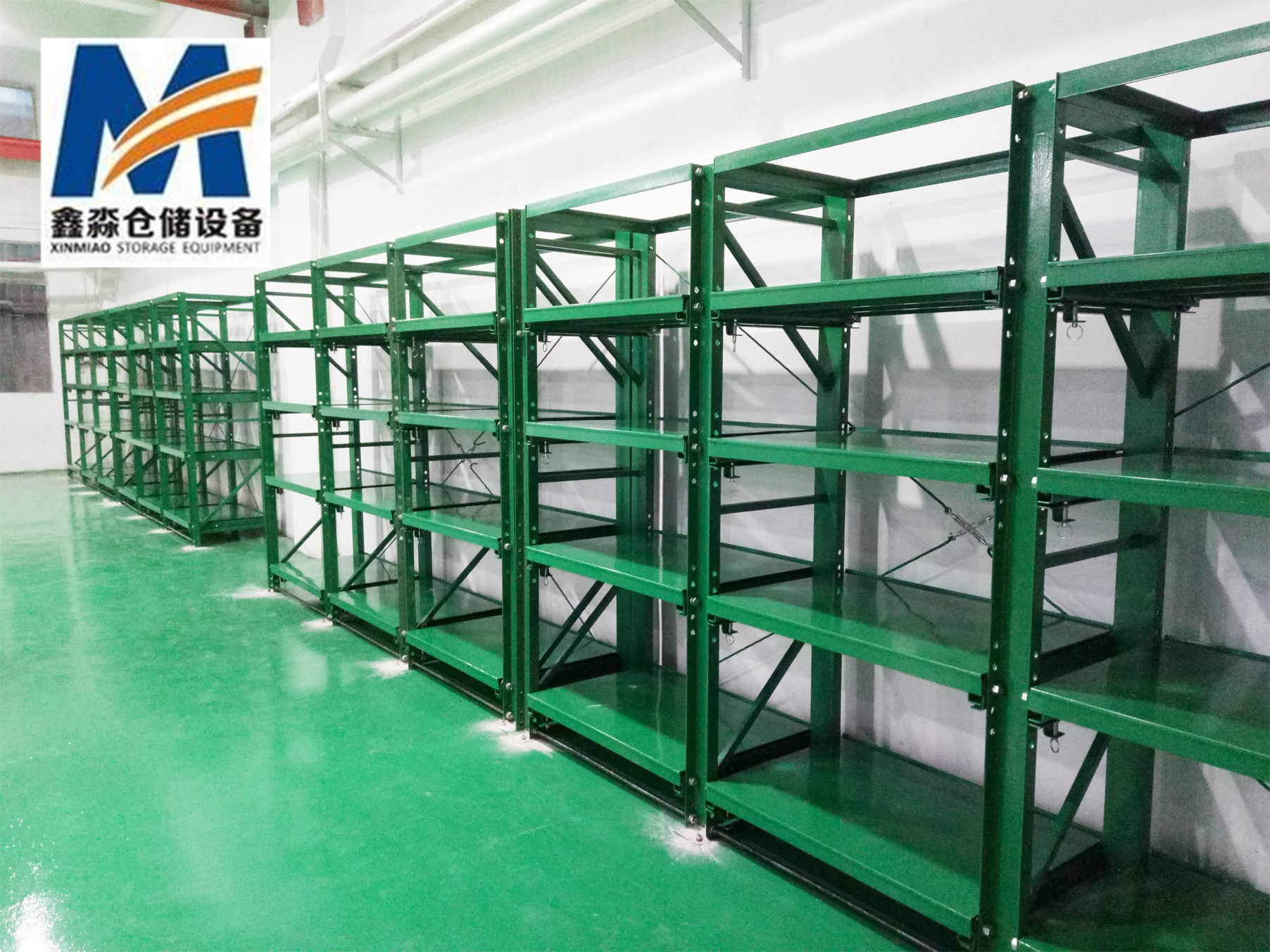

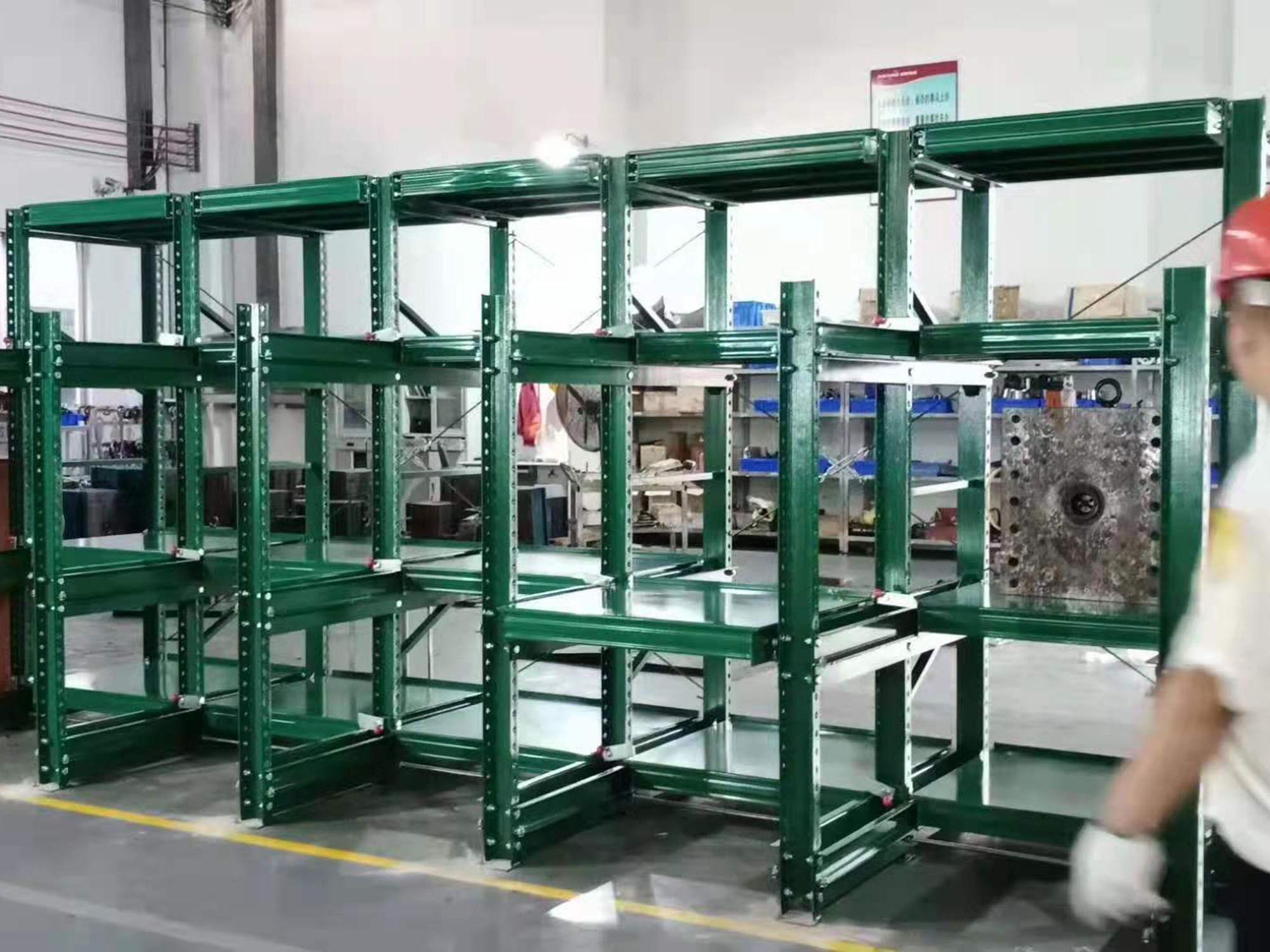

Mold racks are primarily used for storing various kinds of molds. According to loading capacity, they are divided into drawer type mold racks and open-type mold racks. The top of the mold rack can be equipped with a crane and manual hoist, along with mold rack slings.
| Standards Size | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness (mm) |
|---|---|---|---|---|---|
| L3100*D600*H2000 | 4 | 1000kg/drawer | Model 6403 | 100*40*4 | 2.0 |
| Product | Drawer Type Mould Rack |
| Material | High-Quality Channel Steel |
| Standard Size | L3100*D600*H2000mm |
| Color | Green; Blue (Customizable) |
| Capacity | 1000KG/drawer |
| Surface | Powder coated |
| Packing | Air bubble film |
| Standard Size (mm) | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness (mm) |
|---|---|---|---|---|---|
| L3100*D800+400*H2000 | 4 | 2000kg/drawer | Model 6403 | 100*40*4 | 2.0 |
| Product | Full Open Mould Rack |
| Material | High Quality Channel Steel |
| Standard Size | L3100*D800+400*H2000mm |
| Color | Green; Blue (Customizable) |
| Capacity | 1000kg/drawer |
| Surface | Powder coated |
| Packing | Air bubble film |
