Mracking Manufacturing Unit Tools Mould Rack Design Storage Rack Manufacturer

Product Description

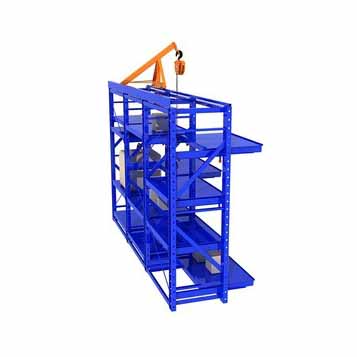

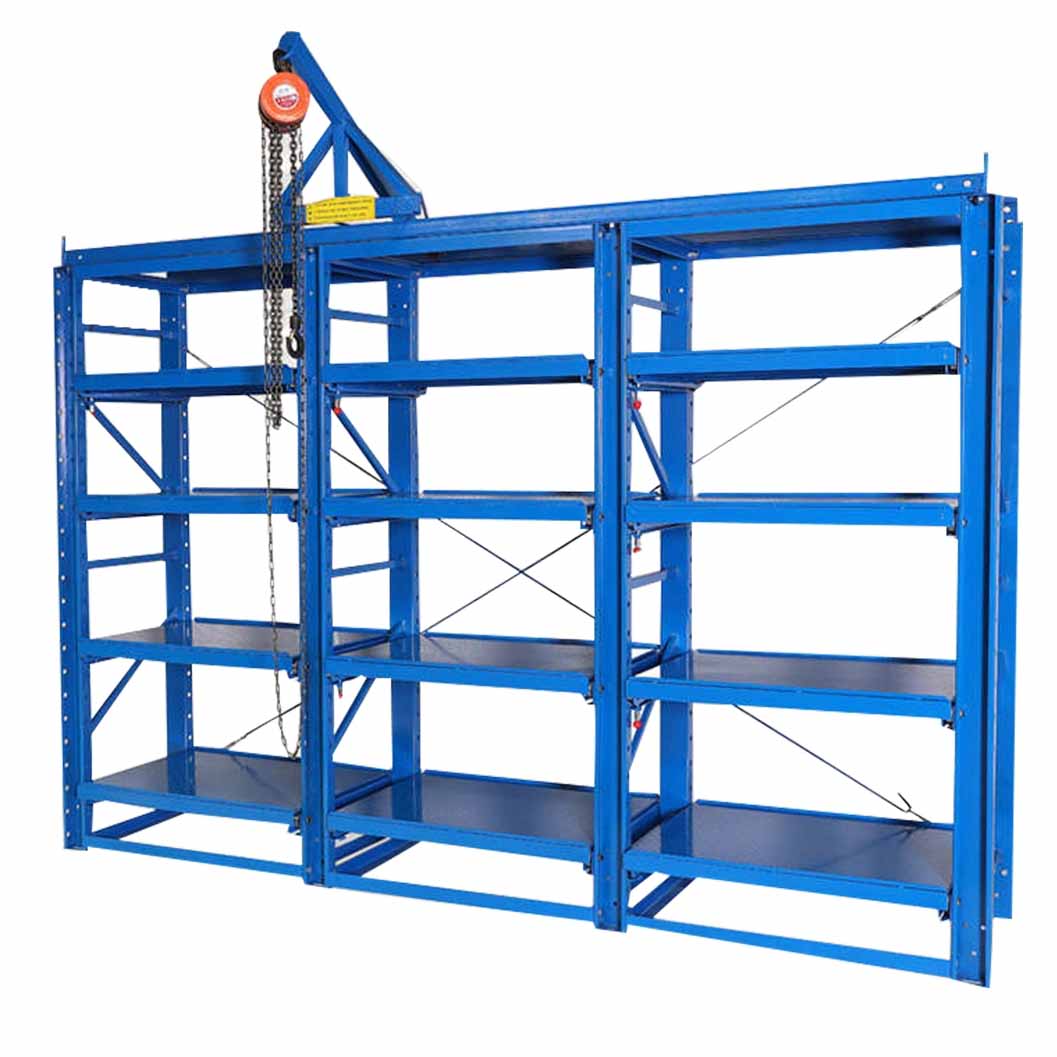

Mold rack mainly storage various kinds molds, according to loading capacity be divided into drawer type mold rack and open-type mold rack. The top of mold rack can be equipped with crane and manual hoist, mold racks of sling.

Main Features

Solid structure, easy loading/unloading and transportation.
Perfectly suitable for small and medium-sized molds.
Drawer boards can draw out for easy removal of molds.
Configurable with installed crane and hoist systems.

Material Specifications

Column: 10# channel steel
Diagonal Bracing: 25*25 square steel
Backing Plate: 50*25 angle iron & 2.0mm iron plate
Chute: 4.0mm iron plate
Bearing: 6403 model
Capacity: 800-1000kg per drawer

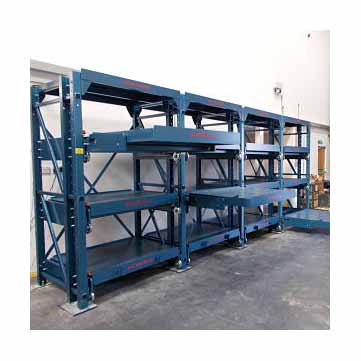

Drawer Type Mold Rack

Standard Size	Layer	Loading Capacity	Bearing	Upright (mm)	Board Thickness (mm)
L3100D600H2000	4	1000kg/drawer	Model 6403	100404	2.0

Product	Drawer Type Mould Rack
Material	High-Quality Channel Steel
Standard size	L3100D600H2000mm
Color	Green, Blue (Customizable)
Capacity	1000KG/drawer
Surface	Powder coated
Packing	Air bubble film

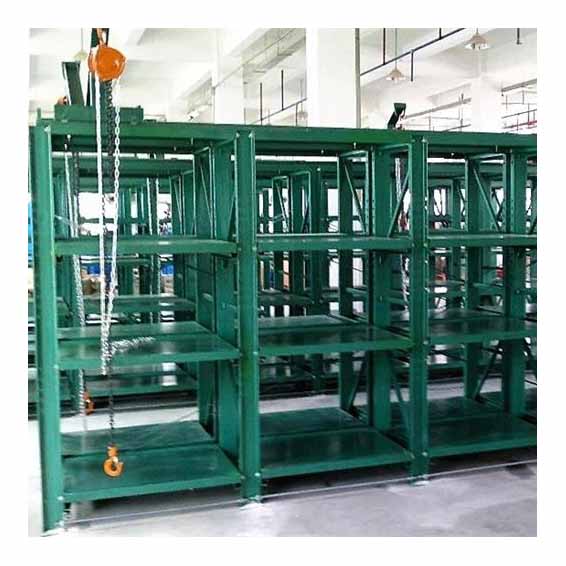

Full Open Mould Rack

Standard Size (mm)	Layer	Loading Capacity	Bearing	Upright (mm)	Board Thickness (mm)
L3100D800+400H2000	4	2000kg/drawer	Model 6403	100404	2.0

Product	Full Open Mould Rack
Material	High Quality Channel Steel
Standard Size	L3100D800+400H2000mm
Color	Green, Blue (Customizable)
Capacity	1000kg/drawer
Surface	Powder coated
Packing	Air bubble film
