Mold rack mainly storage various kinds molds, according to loading capacity be divided into drawer type mold rack and open-type mold rack. The top of mold rack can be equipped with crane and manual hoist, mold racks of sling.
| Column | 10# channel steel, diagonal bracing: 25*25 square meters |
| Backing Plate | 50*25 angle iron and 2.0mm iron plate |
| Chute | 4.0mm iron plate |
| Bearing | Model 6403 |
| Bearing Capacity | 800-1000kg/drawer |
| Standard Size | Layer | Loading Capacity | Bearing | Upright(mm) | Thickness of Board(mm) |
|---|---|---|---|---|---|
| L3100*D600*H2000 | 4 | 1000kg/drawer | Model 6403 | 100*40*4 | 2.0 |

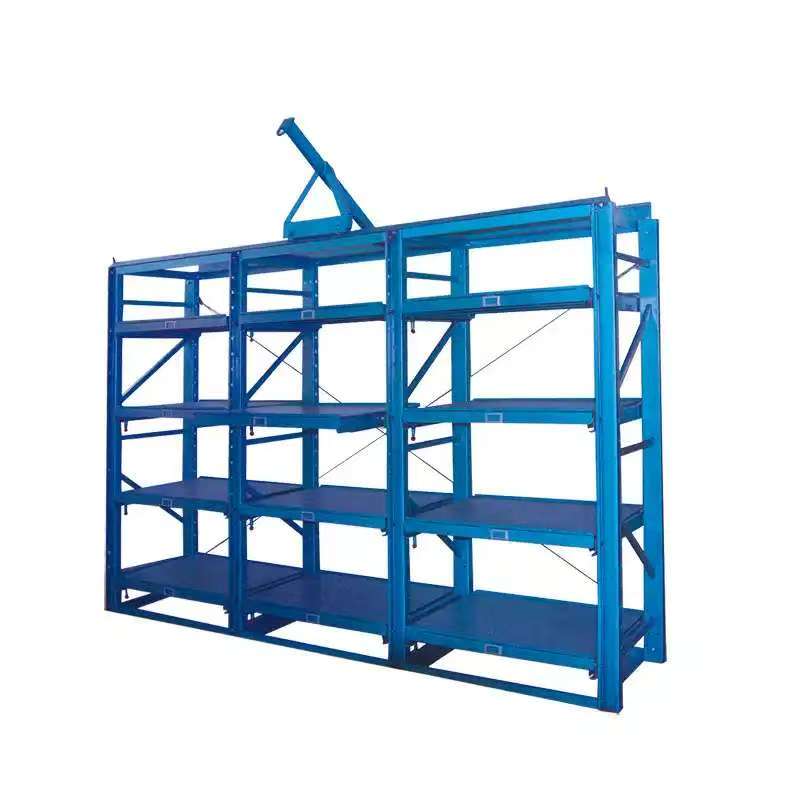

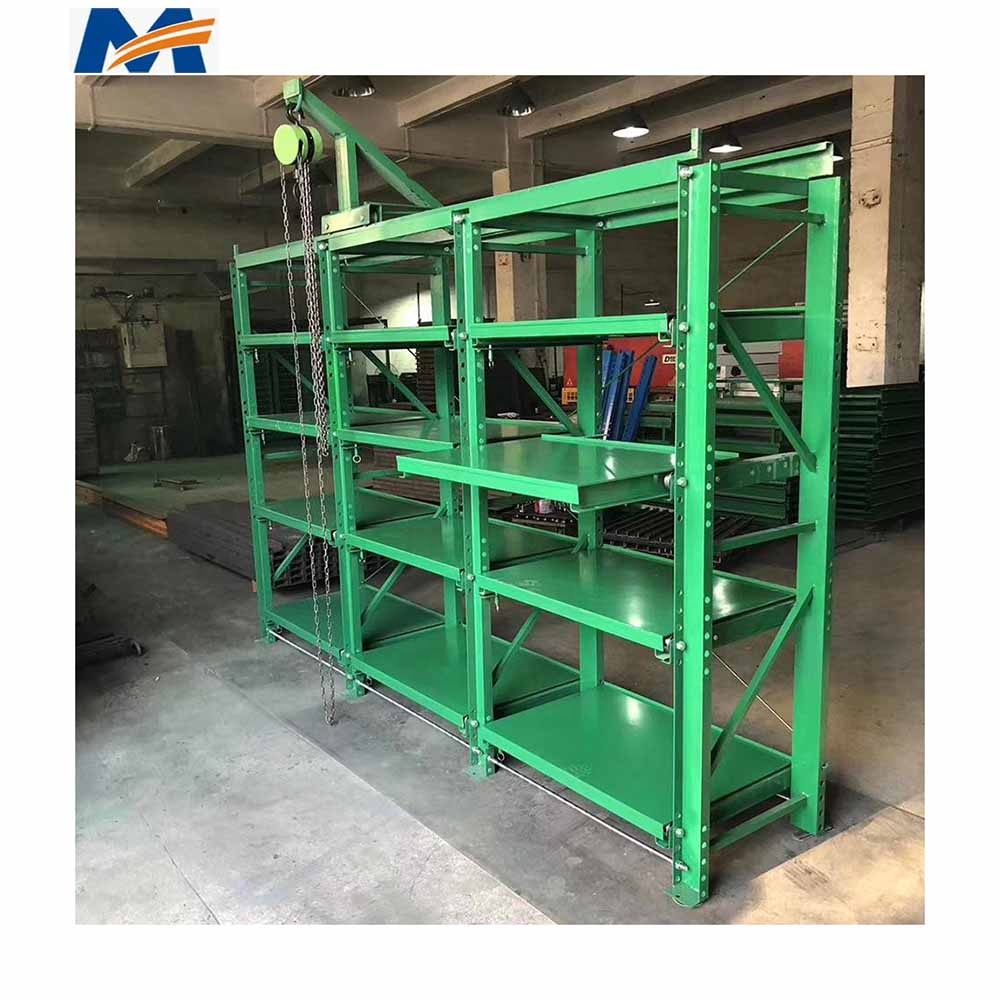

| Product | Drawer Type Mould Rack |
| Material | High-Quality Channel Steel |
| Standard size | L3100*D600*H2000mm |
| Color | Green; Blue. Can be customized. |
| Loading Capacity | 1000KG/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble |
| Standard Size(mm) | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness of Board(mm) |
|---|---|---|---|---|---|
| L3100*D800+400*H2000 | 4 | 2000kg/drawer | Model 6403 | 100*40*4 | 2.0 |
| Product | Full Open Mould Rack |
| Material | High-Quality Channel Steel |
| Standard size | L3100*D800+400*H2000mm |
| Color | Green; Blue. Can be customized. |
| Loading Capacity | 1000kg/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble |
