Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack

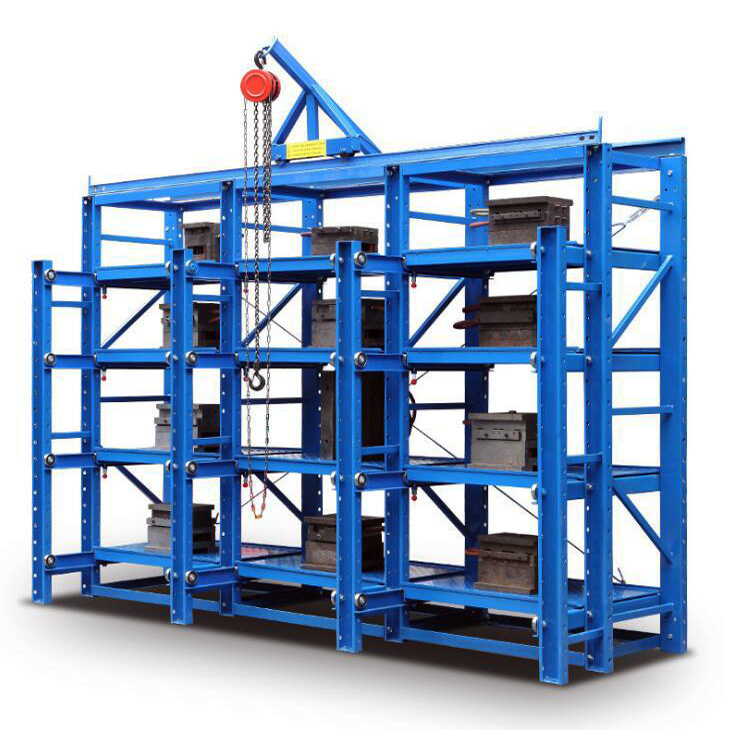

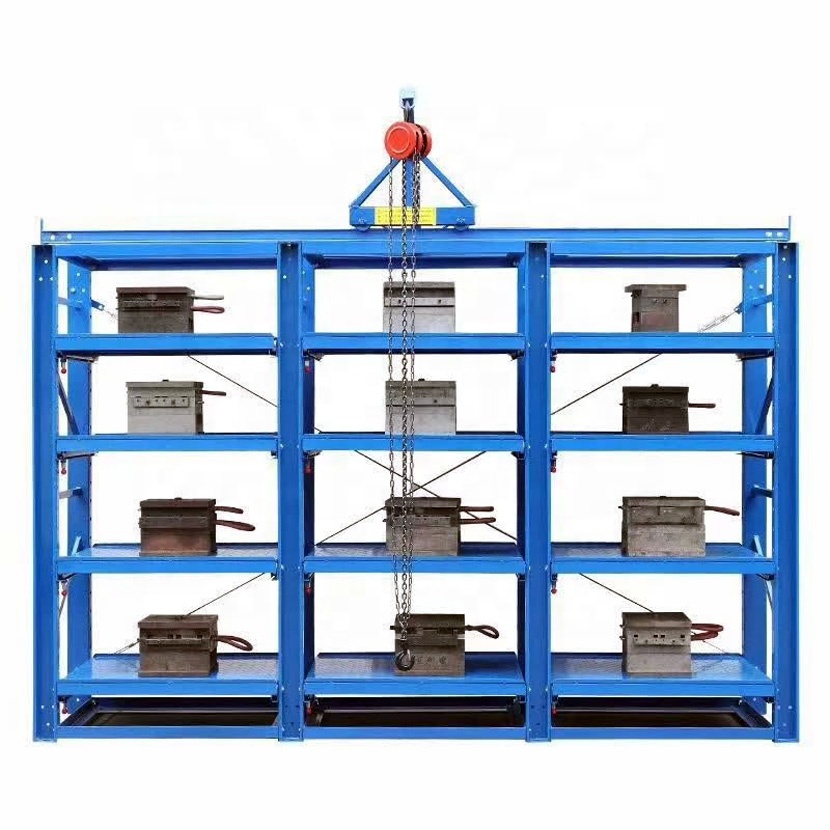

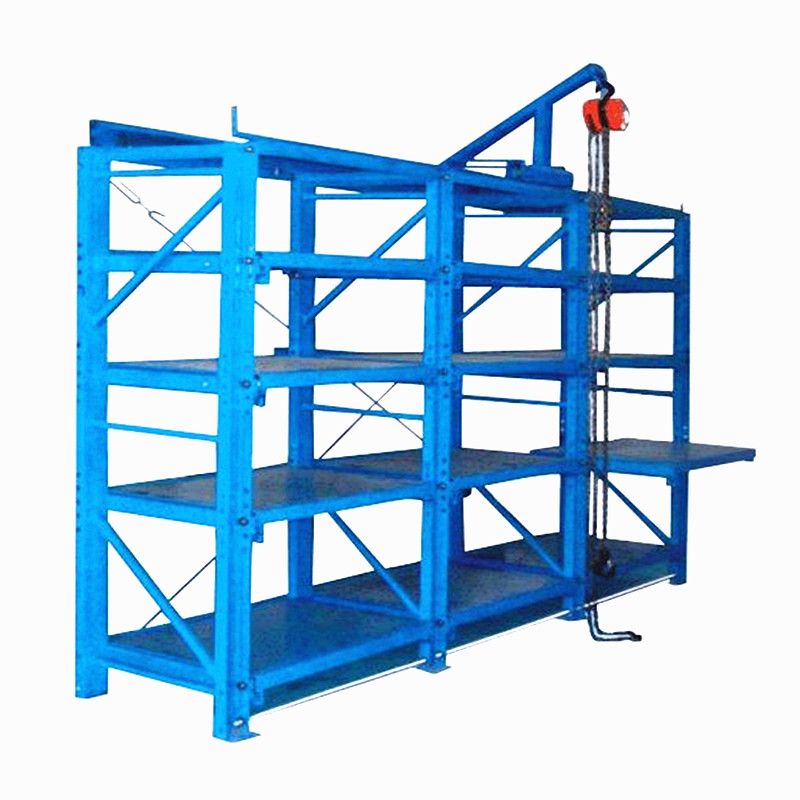

Mold rack mainly stores various kinds of molds. According to loading capacity, it is divided into drawer type mold rack and open-type mold rack. The top of the mold rack can be equipped with a crane and manual hoist for easy handling.
| Parameter | Details |
|---|---|
| Material | High-Quality Channel Steel |
| Standard Size | L3100*D600*H2000mm |
| Loading Capacity | 1000kg/drawer |
| Surface Treatment | Powder Coated |
| Available Colors | Green, Blue (Customizable) |
| Parameter | Details |
|---|---|
| Product | Full Open Mould Rack |
| Standard Size | L3100*D800+400*H2000mm |
| Material | Cold Rolled Steel Q235 |
| Loading Capacity | 2000kg/drawer |
| Bearing Model | 6403 |
| Category | Technological Details |
|---|---|
| Ease of Use | Easy to remove shelf boards; vertical spaces are fully adjustable. |
| Handling | Each group includes a pulley and handy-lift hoist block for safe storage and unloading. |
| Efficiency | Multi-mold storage per section, convenient for maintenance and management without occupying excess space. |
| Construction | Post adopts 10# channel steel; sliding chute made of folding 4mm iron plate. |
| Delivery | Standard goods delivered within 15 days. |
We devote ourselves to the design and manufacture of high-quality storage equipment. Our specialized production lines include pallet racking, longspan shelving, warehouse racks, mould racks, wire containers, cantilever racks, mezzanine platforms, and other related storage solutions.
Through products and services aimed at providing complete assistance for all warehousing and sales outlet requirements, we offer a wide range of products of highest quality with competitive prices and rapid delivery times.
A: We are a professional manufacturing factory specializing in warehouse storage equipment.
A: The primary material is Q235 Cold Rolled Steel. We can also select materials based on specific customer requirements.
A: Quality is our priority. We maintain strict quality control throughout the production process and have obtained ISO9001 and SGS authentication.
A: Yes, we are honored to offer samples for your evaluation.
A: Goods are typically delivered within 15 days after order confirmation.
A: Yes, while standard colors are green and blue, we can customize the color to meet your specific requests.
