Adjustable Storage Steel Rack Drive-In Pallet Racking System Heavy Duty Industrial Storage Equipment

1 / 5

Adjustable Storage Steel Rack Drive-In Pallet Racking System Heavy Duty Industrial Storage Equipment

Send Inquiry

Product Description

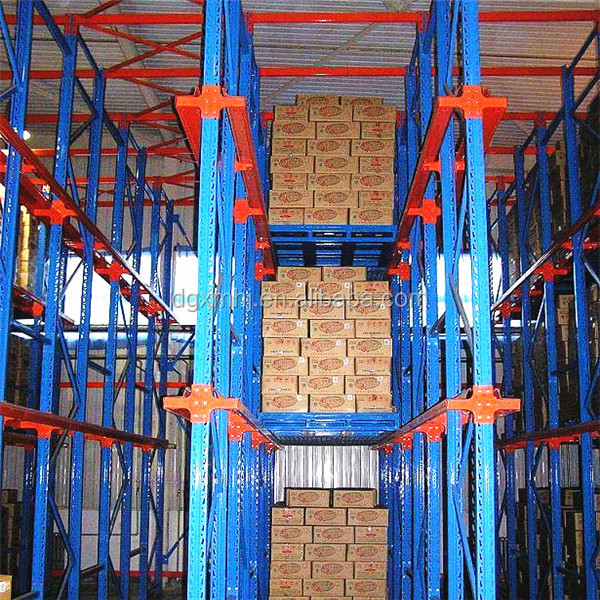

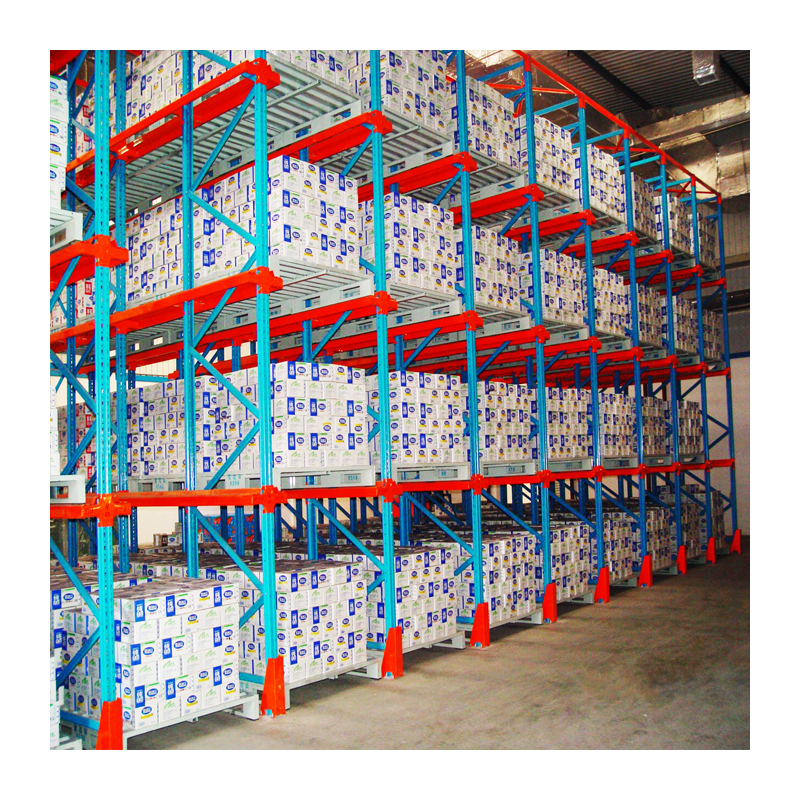

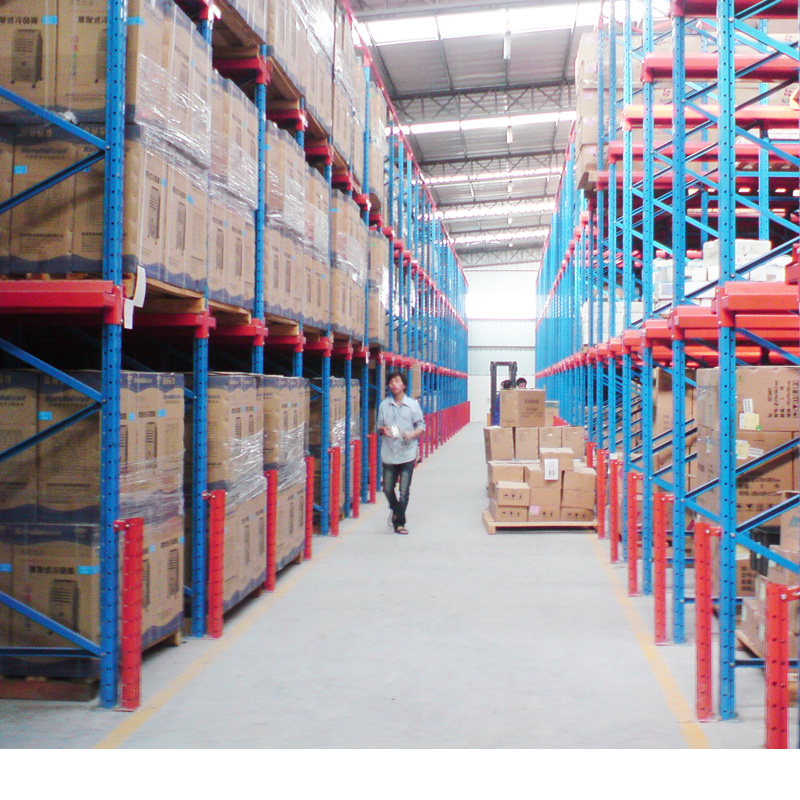

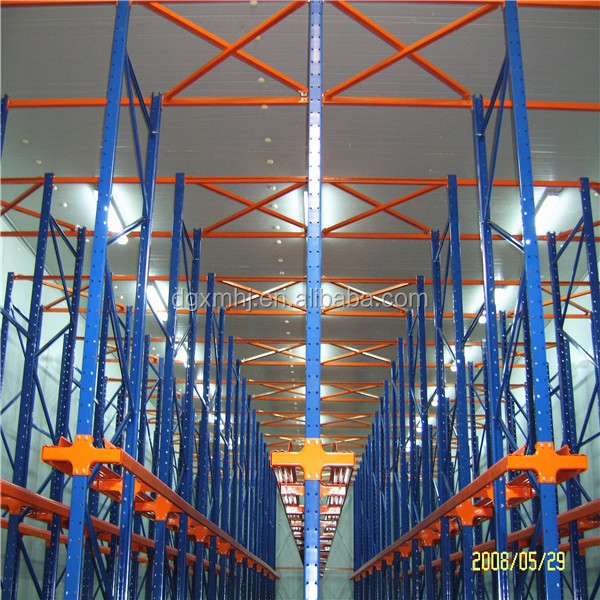

Drive-in Rack

It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.

Technical Specifications

Category	Details & Dimensions
Loading Weight	800~1000kg/pallet; Height: 1500-8000mm, Wide/Depth: 1000-1500mm, Length: 1500-3200mm. Special size available for specific needs.

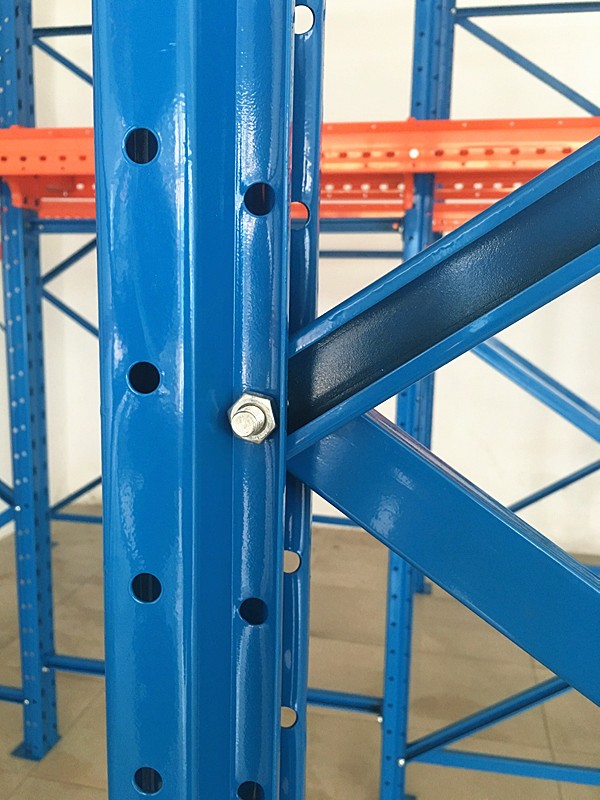

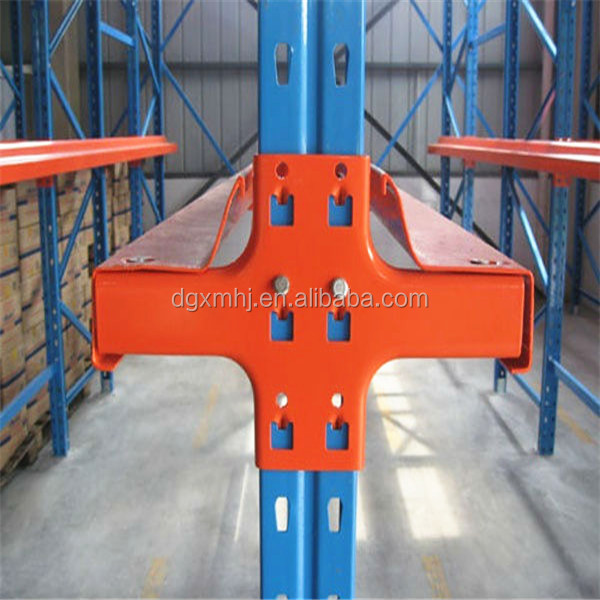

Main Parts Specs	Upright section: 9065, 12065 (1.5, 2.0mm); Beam Section: box beam 8045/10045/12045/14045/160*45, etc.
Components	Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Material	High-quality cold rolled steel, Q235
Package Term	Air bubble pack, PE stretch film for keeping free from scratch

Product Features

✔ Large loading capability: 1000KG-2000KG/each pallet.

✔ Forklifts drive directly into channels to place/fetch pallets.

✔ Low capital cost using conventional handling equipment.

✔ Extremely high utility ratio of the warehouse space.

✔ Supports both FIFO (First-In, First-Out) and FILO (First-In, Last-Out).

✔ Durable structural steel construction.

✔ Configurable pallet positions: 2 to 5 deep and 2 to 5 high.

✔ Finish: Professional powder coating available in various colors.

Beam Loading Capacity & Size

Detailed Entry Configurations

Single Entry Racks
Lift trucks can enter the rack from only one side.

Double Entry Racks
Lift trucks can enter from both sides. Stabilized by a center beam.

Hot Sale Products

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

Product Packaging

Frequently Asked Questions

1. Are you a factory or trading company? We are a professional factory specializing in industrial storage solutions.

2. What is the material used for your products? Our products are primarily made from high-quality Q235 cold rolled steel. We can also provide other materials based on specific customer requirements.

3. Can I get samples of your racking systems? Yes, we are honored to offer you samples for quality evaluation.

4. How is quality control managed? Quality is our priority. We maintain strict quality control throughout the production process, and our factory holds ISO9001 and SGS certifications.

5. Do you offer custom sizes for Drive-in racks? Absolutely. While we have standard sizes, we specialize in providing custom dimensions to meet your specific warehouse storage needs.

6. How are the products packaged for shipping? We use air bubble packs and PE stretch film to ensure all components are protected from scratches and damage during transport.
