Mracking Drive-In Pallet Racking System Heavy Duty Industrial Storage Equipment

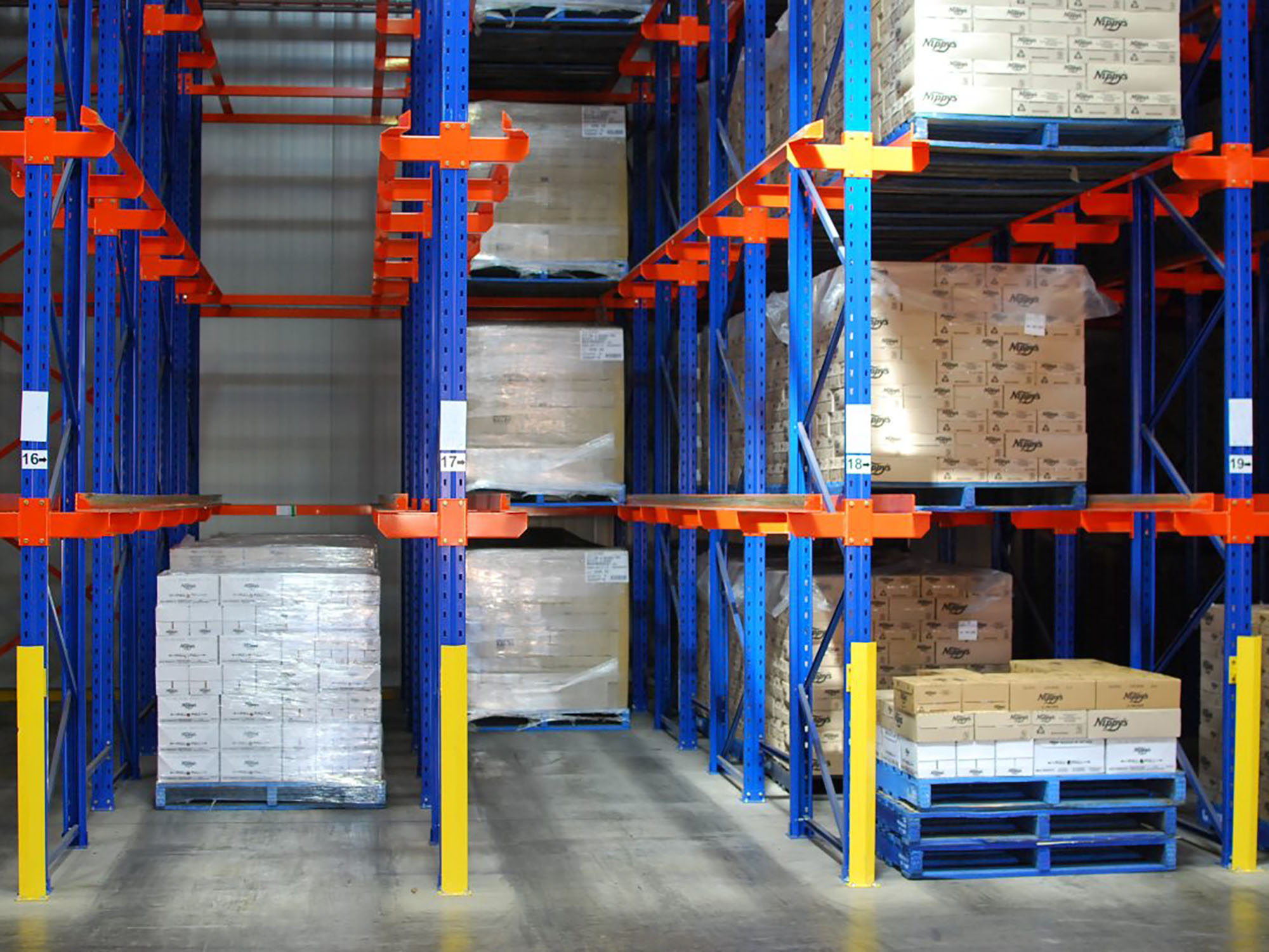

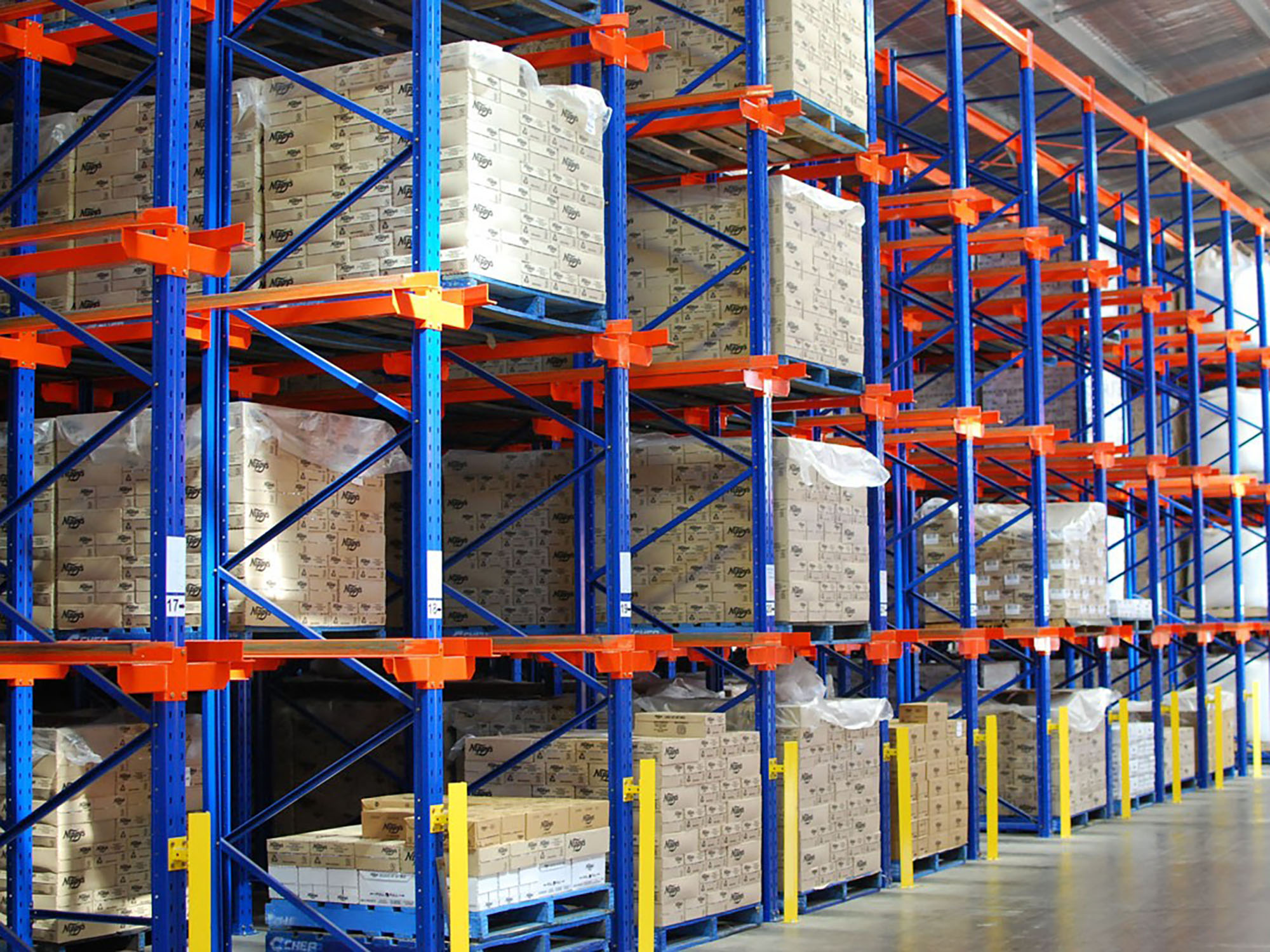

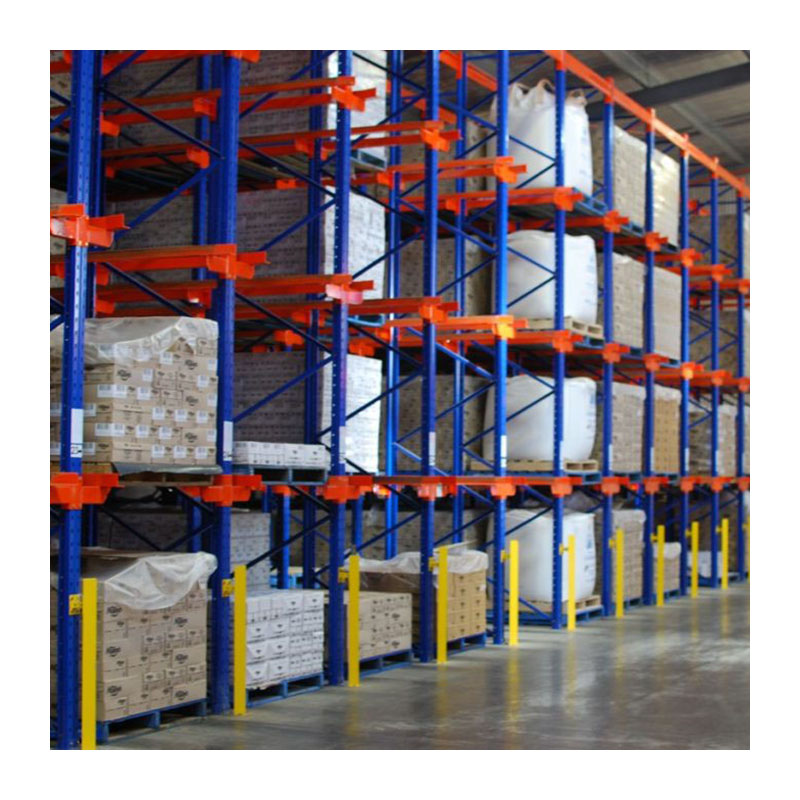

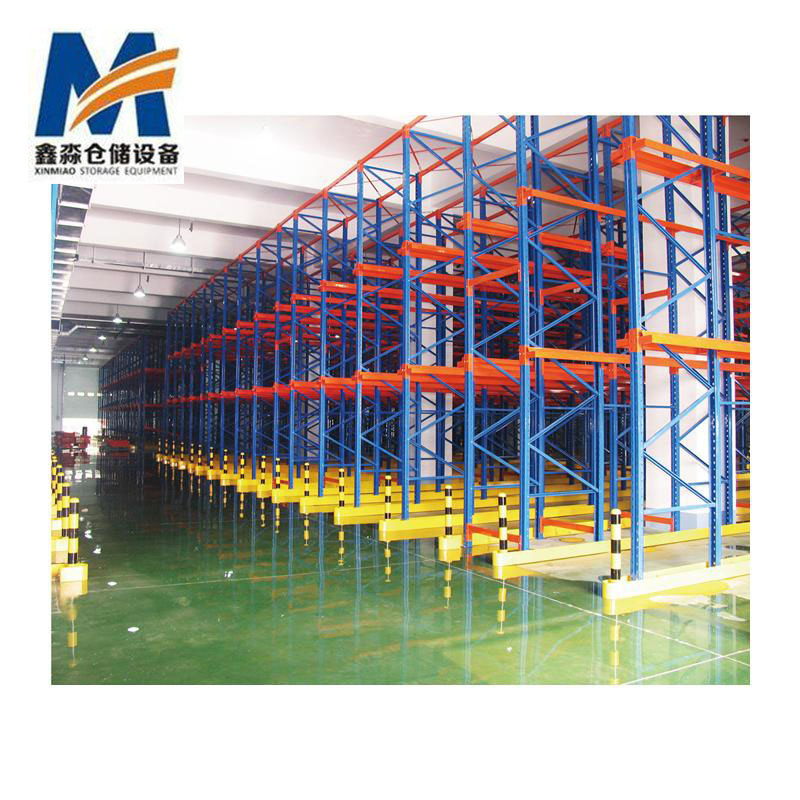

Drive-in Rack System

It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.

Technical Specifications

Parameter	Details & Dimensions
Loading Weight	800~1000kg / pallet
Standard Size	Height: 1500-8000mm, Wide/Depth: 1000-1500mm, Length: 1500-3200mm
Upright Section	9065, 12065 (Thickness: 1.5, 2.0mm)
Beam Section	Box beam 8045/10045/12045/14045/160*45 (Thickness: 1.0/1.2/1.5mm)
Material	High-quality cold rolled steel, Q235
Components	Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors
Packaging	Air bubble pack, PE stretch film for scratch protection

Core Features

✔ Large loading capability: 1000KG-2000KG per pallet.

✔ Forklifts drive directly into channels for pallet access.

✔ Low capital cost using conventional handling equipment.

✔ Exceptionally high warehouse utility ratio.

✔ Supports both FIFO (First-In, First-Out) and LIFO (First-In, Last-Out).

✔ Structural steel construction for maximum durability.

Loading Capacity & Structure

Entry Configurations

Single Entry Racks
Lift trucks enter from only one side.

Double Entry Racks
Lift trucks can enter from both sides of a row.

System Details

Product Overviews

Related Hot Sale Products

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional racking manufacturer specializing in industrial storage solutions.

What materials are used in your racks?

Our racks are made from high-quality Q235B cold rolled steel for maximum strength and safety.

What is the typical delivery time?

In general, delivery takes less than 15 workdays, depending on the order quantity and design complexity.

What information is needed for a quick quotation?

Please provide the rack size (L*D*H), number of layers per set, load capacity per beam layer, and the total quantity required.

How do you handle quality control?

Quality is our priority. Our production process adheres to ISO 9001 certifications to ensure consistent product standards.

What are your standard packaging methods?

Generally, racks are packed using air bubble film. Custom packaging such as wooden cases is available upon request.
