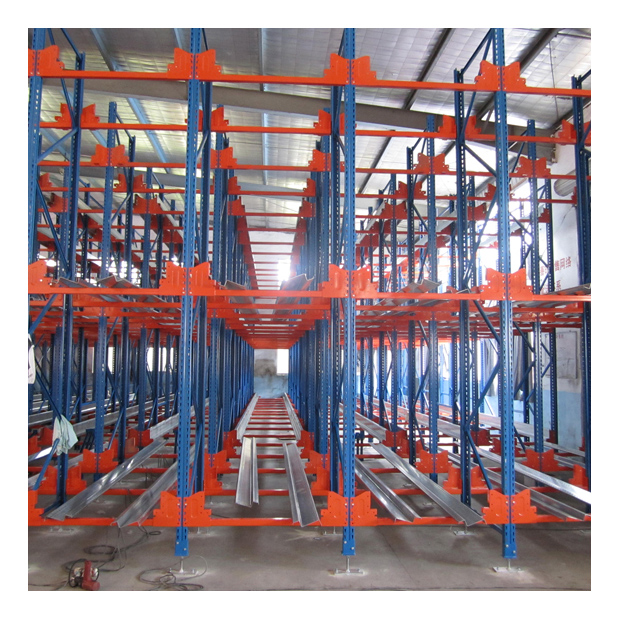

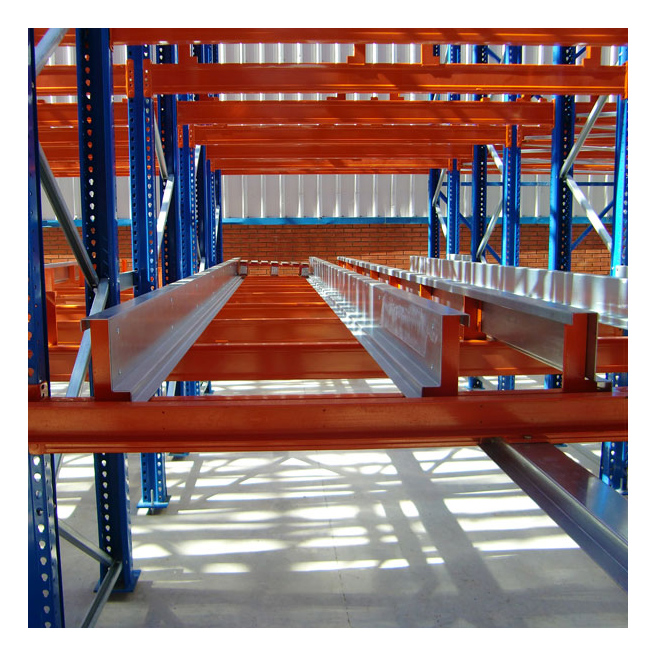

Drive-in Rack is suitable for storing large quantities of goods with fewer types, especially for batched working and small ranges of selection. Goods are stored on the support guide rail with pallets one after another in the direction of depth, significantly increasing storage density and space availability. It is highly convenient for fork truck drives to enter lanes directly to store or retrieve goods.
| Item | Details |
|---|---|
| Loading Weight | 800~1000kg per pallet; Special sizes available for specific needs. |
| Dimensions | Height: 1500-8000mm, Width/Depth: 1000-1500mm, Length: 1500-3200mm. |
| Upright Section | 90*65, 120*65; Thickness: 1.5mm, 2.0mm. |
| Beam Section | Box beam 80*45/100*45/120*45/140*45/160*45, etc; Thickness: 1.0/1.2/1.5mm. |
| Main Components | Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors. |
| Material | High-quality cold rolled steel Q235. |
| Packaging | Air bubble pack, PE stretch film to prevent scratches. |
Single Entry Racks
Lift trucks can enter the rack from only one side.
Double Entry Racks
Lift trucks can enter from both sides. Row centers are stabilized by beams.
