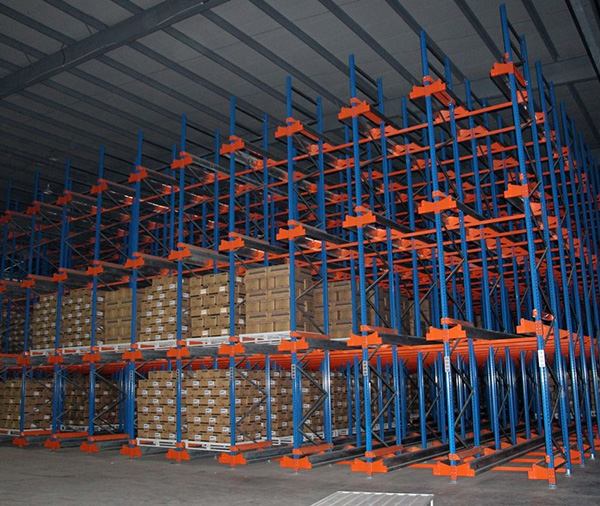

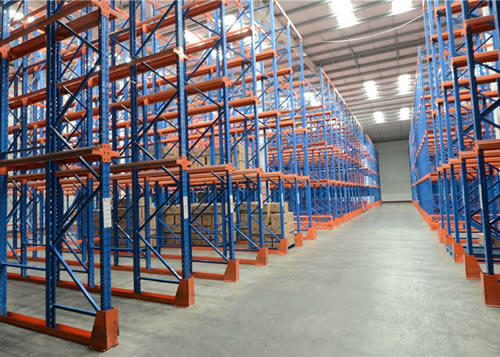

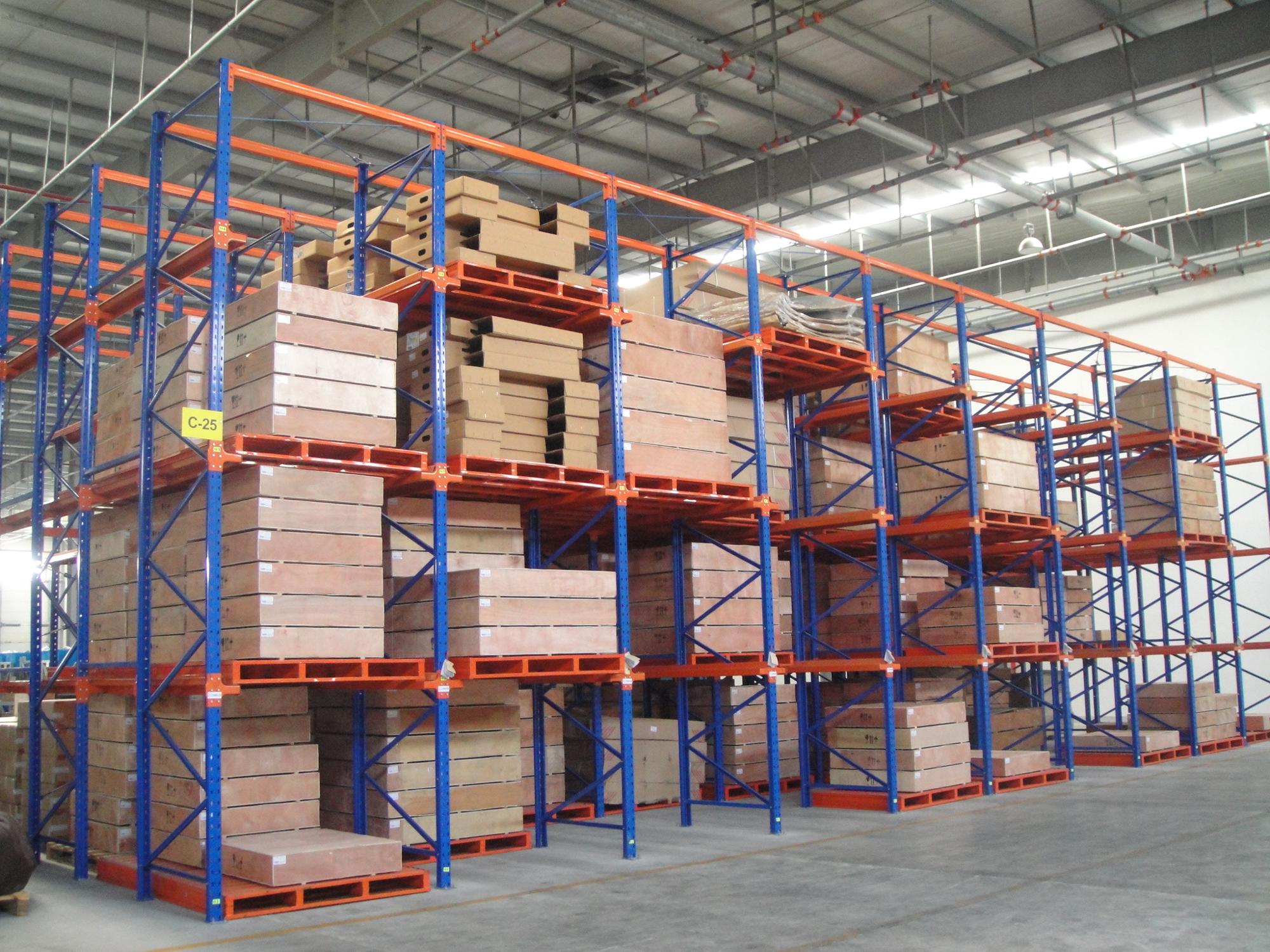

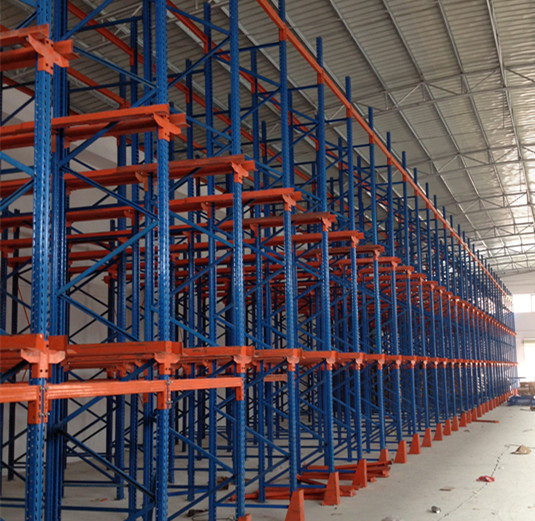

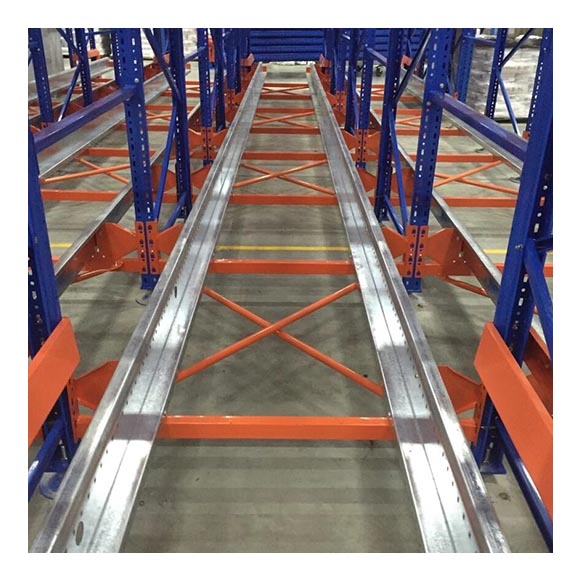

It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.
| Loading Weight | 800~1000kg/pallet |
| Standard Size | Height: 1500-8000mm, Wide/Depth: 1000-1500mm, Length: 1500-3200mm |
| Customization | Special size also available to specific storage needs. |
| Upright Section | 90*65, 120*65, Thickness: 1.5, 2.0mm |
| Beam Section | Box beam 80*45/100*45/120*45/140*45/160*45,etc. Thickness: 1.0/1.2/1.5mm |
| Main Components | Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors. |
| Material | High-quality cold rolled steel Q235 |
| Packaging | Air bubble pack, PE stretch film to prevent scratches. |
Single Entry Racks
Lift trucks can enter the rack from only one side.
Double Entry Racks
Lift trucks can enter from both sides. The center is stabilized by a beam.
