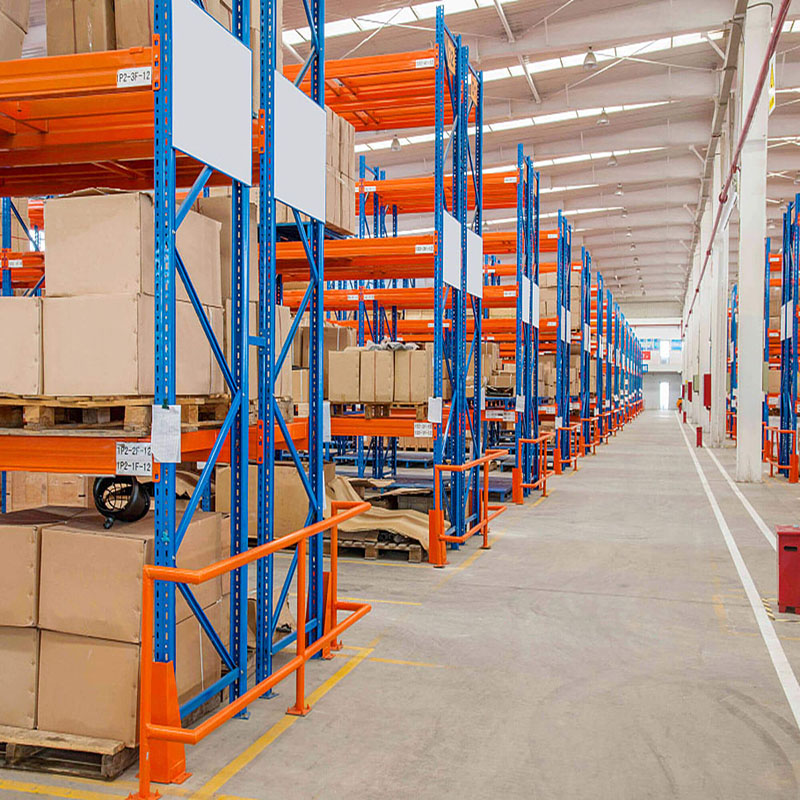

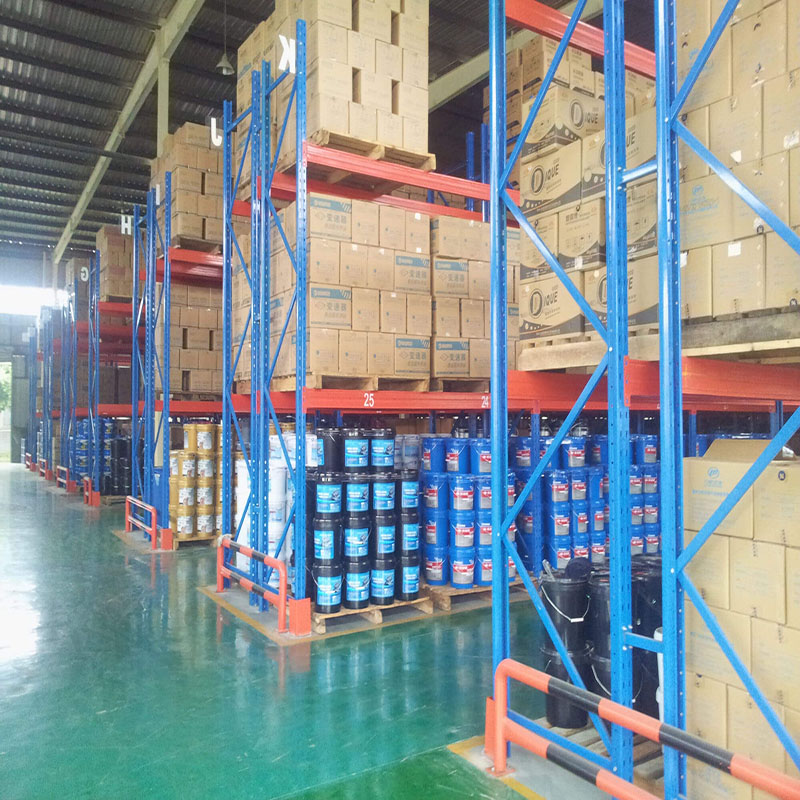

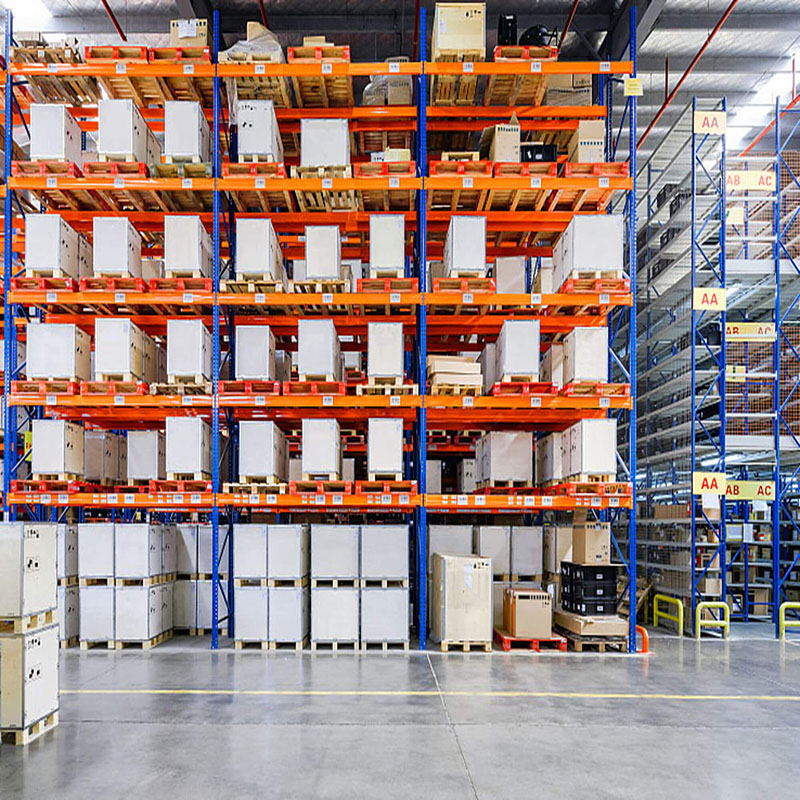

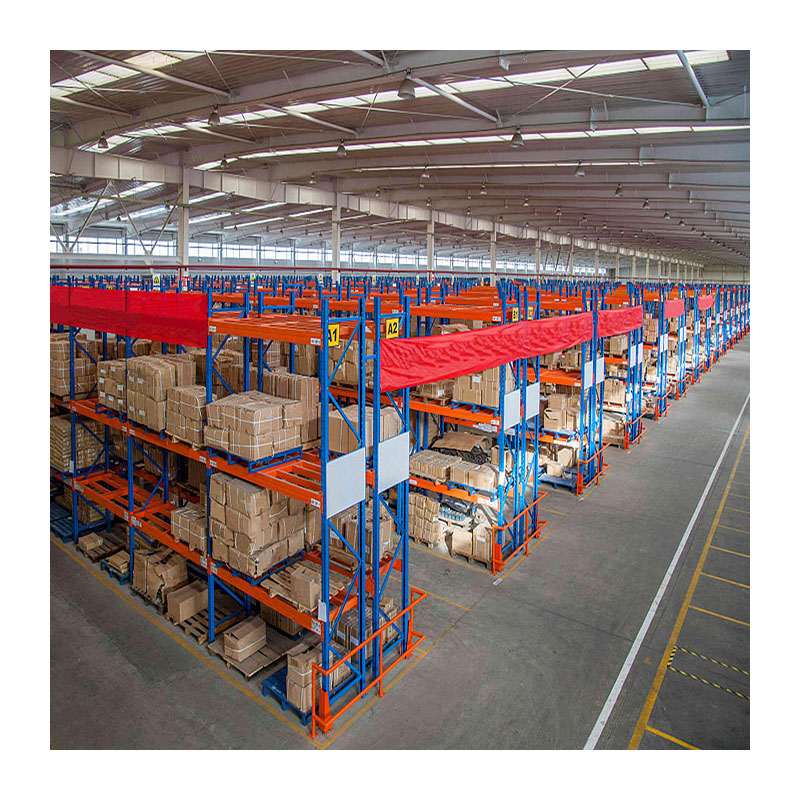

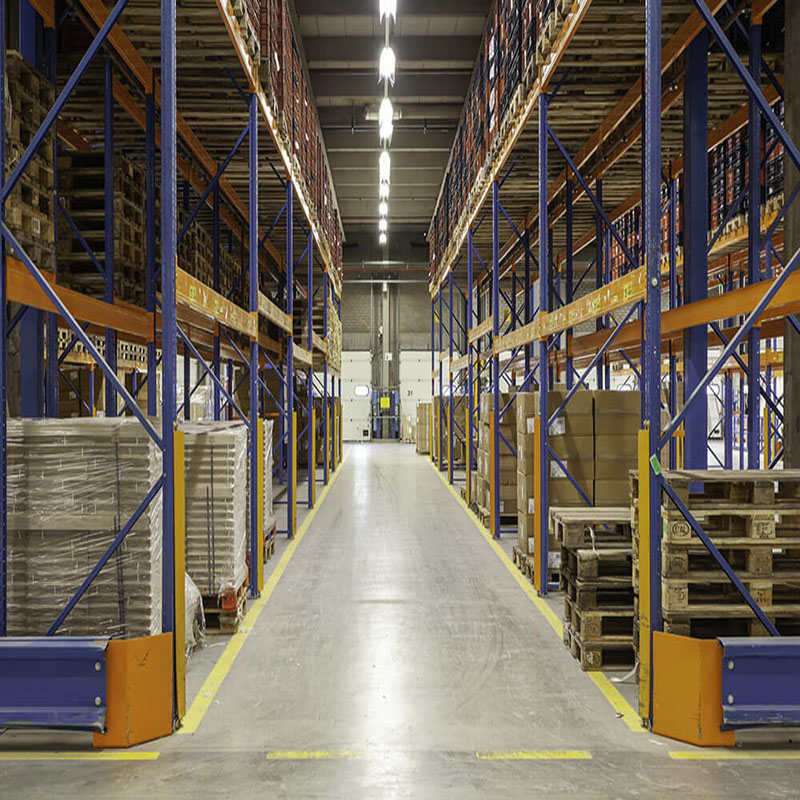

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chose as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouse for its advantages of appropriate height and convenience in accessing goods.
| Raw-Material | High-Quality Q235 Cold rolled steel |
|---|---|
| Color | Upright frame is blue, Beam is orange (Customizable) |
| Standard Size | L2300*D1000*H4500 (Customized according to requirements) |
| Height Range | 1500-8000mm or Customized |
| Width/Depth | 400-1500mm or Customized |
| Length Range | 1500-3200mm or Customized |
| Upright Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm etc. |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Beam Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc. |
| Surface Treatment | Powder coated |
| Packing Term | Air bubble, Wooden Case, etc. |
