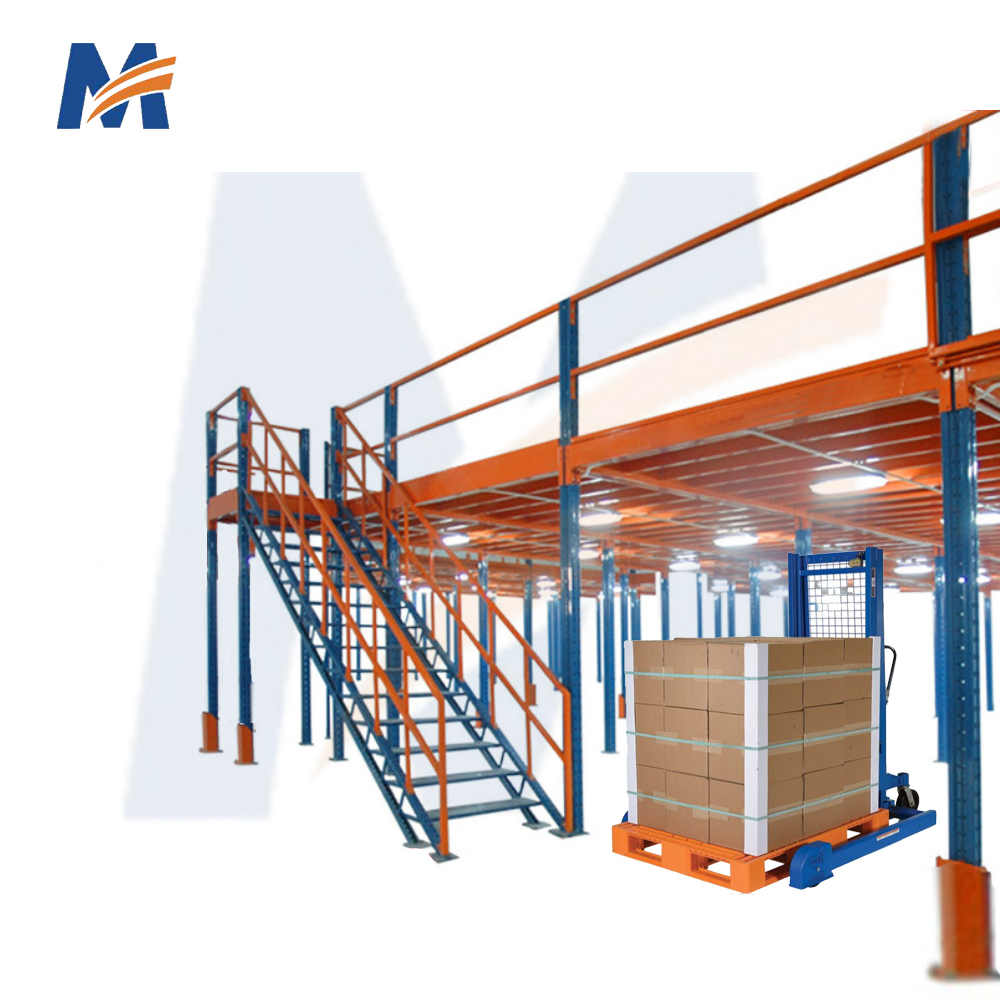

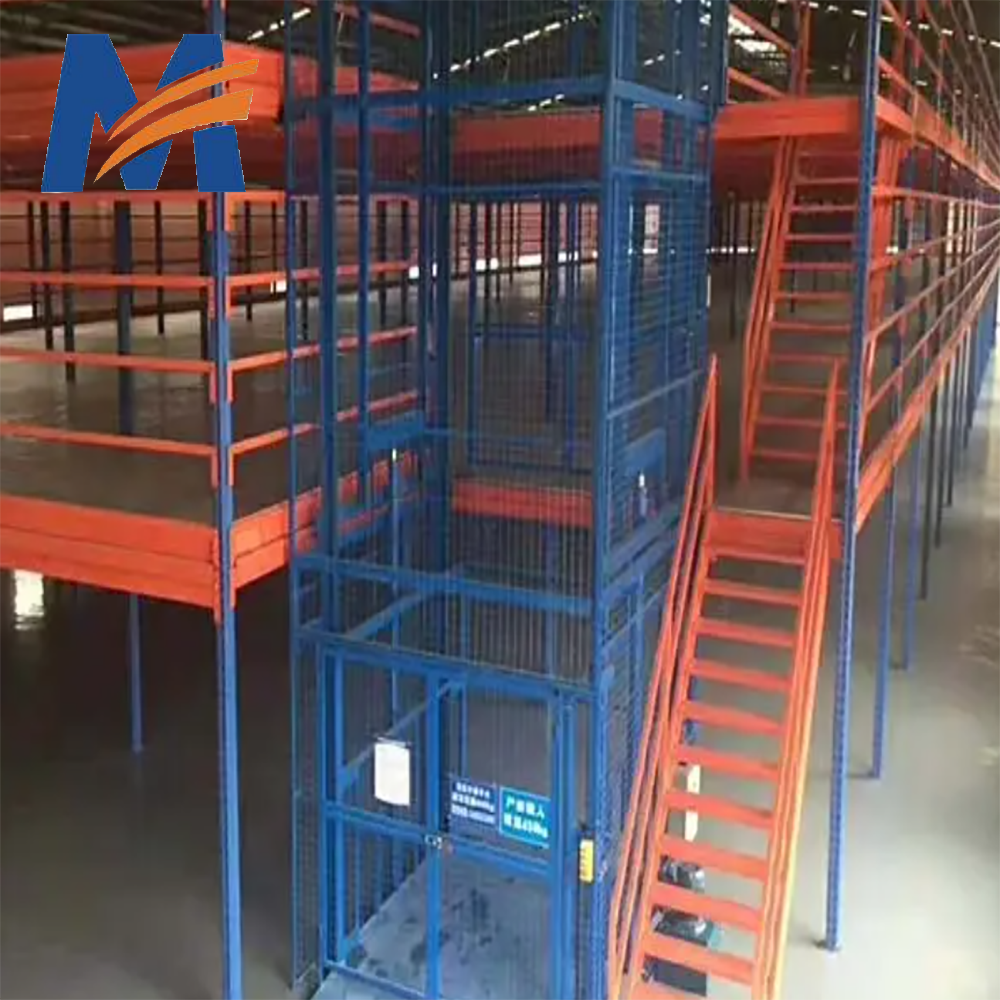

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for the efficiency.
It is suitable for the higher warehouse, large loading capacity, longer span and large storage, it will be full use of the space, one warehouse used as two warehouse. Widely be used for the electronics products, hardware, communication and printing, etc.
Technical Specifications
Feature
Details
Raw Material
High-Quality Q235 Cold rolled steel
Color
Upright frame is blue, Beam is orange, can be customized.
Height
Customized
Width/Depth
Customized
Length
Customized
Loading Capacity
200~5000kg per sqm
Surface Treatment
Powder coated
Packing Term
Air bubble, Wooden Case, etc.
Connection Details
Upright & Main Beam Connect
Both of them are H-steel, Its loading capacity is high and span is long. The major beams are connected by connector piece in each side. It will make the beams more stable.
Support Beam & Main Beam Connect
They are connected with the hanging piece. And the hanging piece is welded on the main beam. So the major beam is more stable.
Steel Panel & Guardrail Connect
Steel panel and support beam are connected with hooks. It is very stable. The guardrail hangs on the main beam without holes on the beam. So there is no bad influence on the beam.
Detailed Images
Case Studies
Hot Sale Products
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Frequently Asked Questions
1. What is the material used for the racks?
Our material is Q235B cold rolled steel, ensuring high quality and durability.
2. What is the typical delivery time for an order?
In general, delivery takes less than 15 workdays. This can vary based on the order quantity and specific shelving design.
3. What are the payment terms?
We require a 30% T/T down payment and the remaining 70% T/T before delivery.
4. How can I get a quick quotation for my racking project?
Please provide the rack size (Length*Depth*Height), number of layers, load capacity per layer, and the total quantity required.
5. Are samples available?
Yes, we can provide free samples with freight collect.
6. How are the products packaged?
Racks are typically packed with air bubble film. Custom packaging like wooden cases is available upon request.
