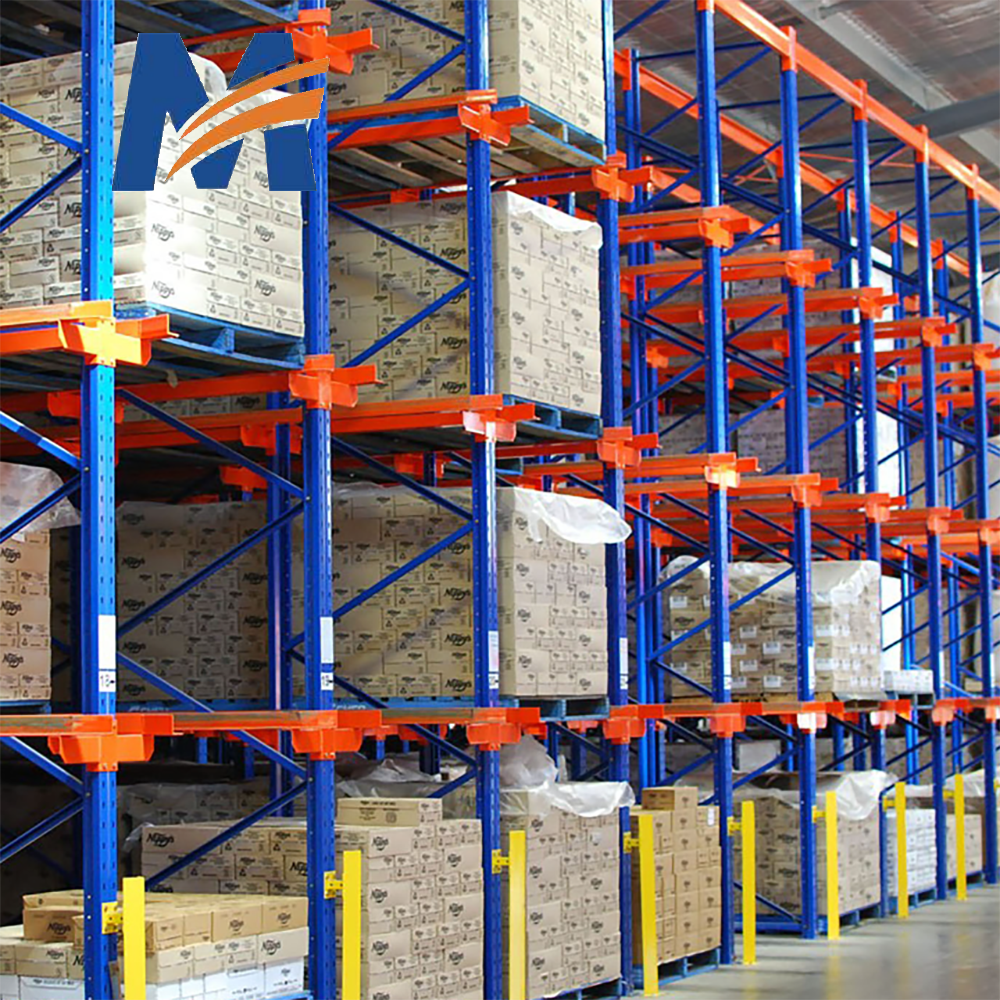

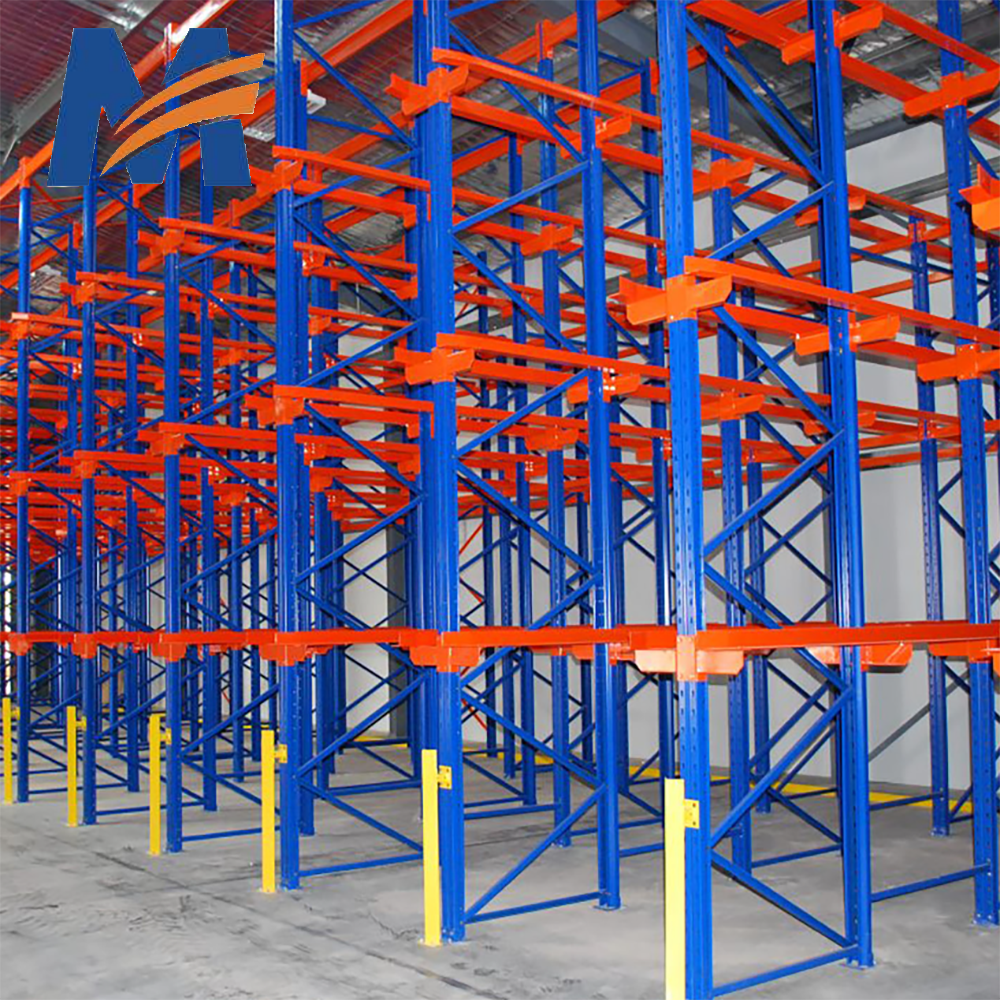

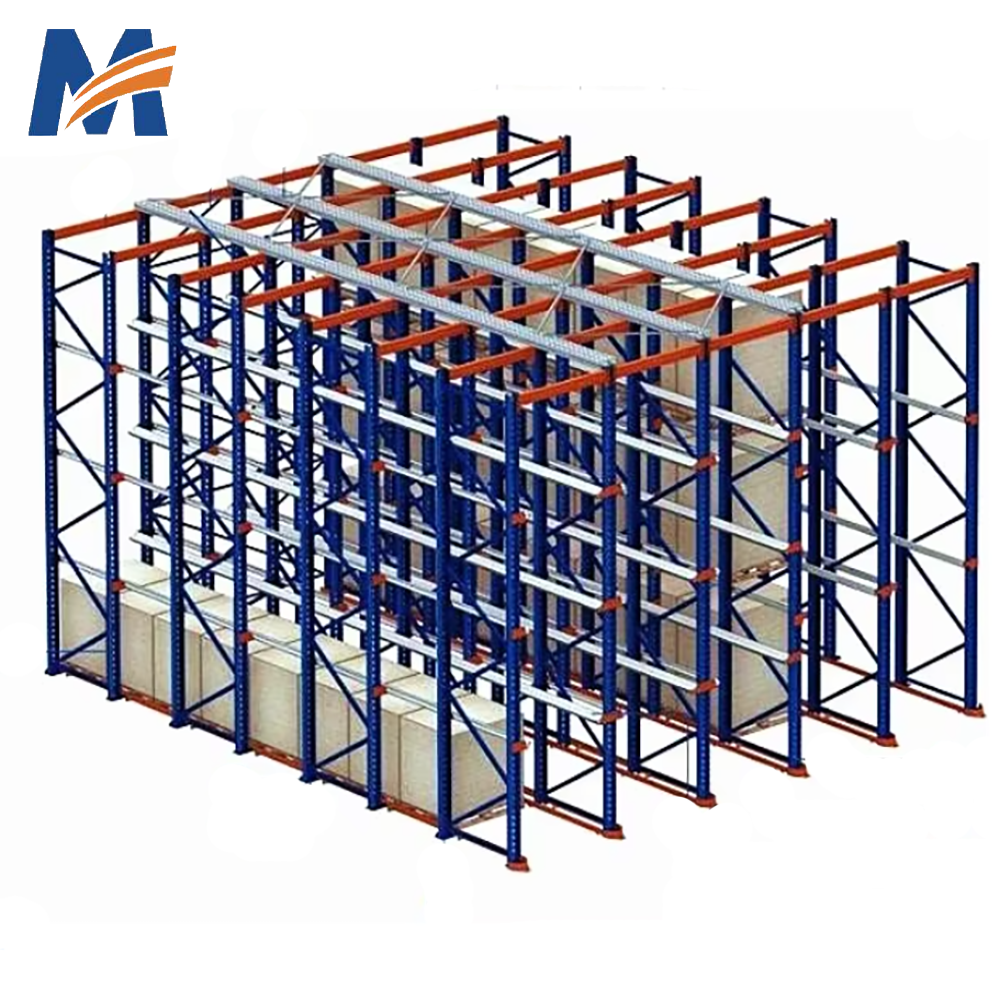

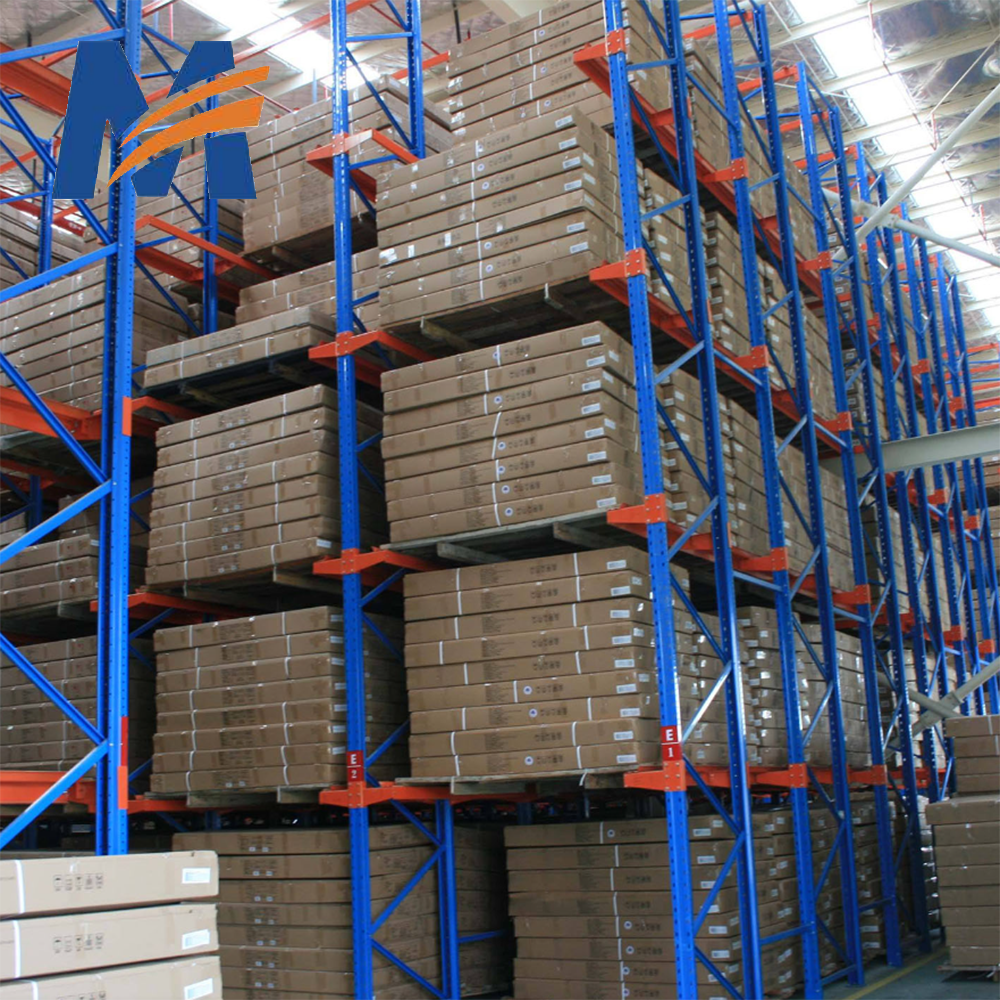

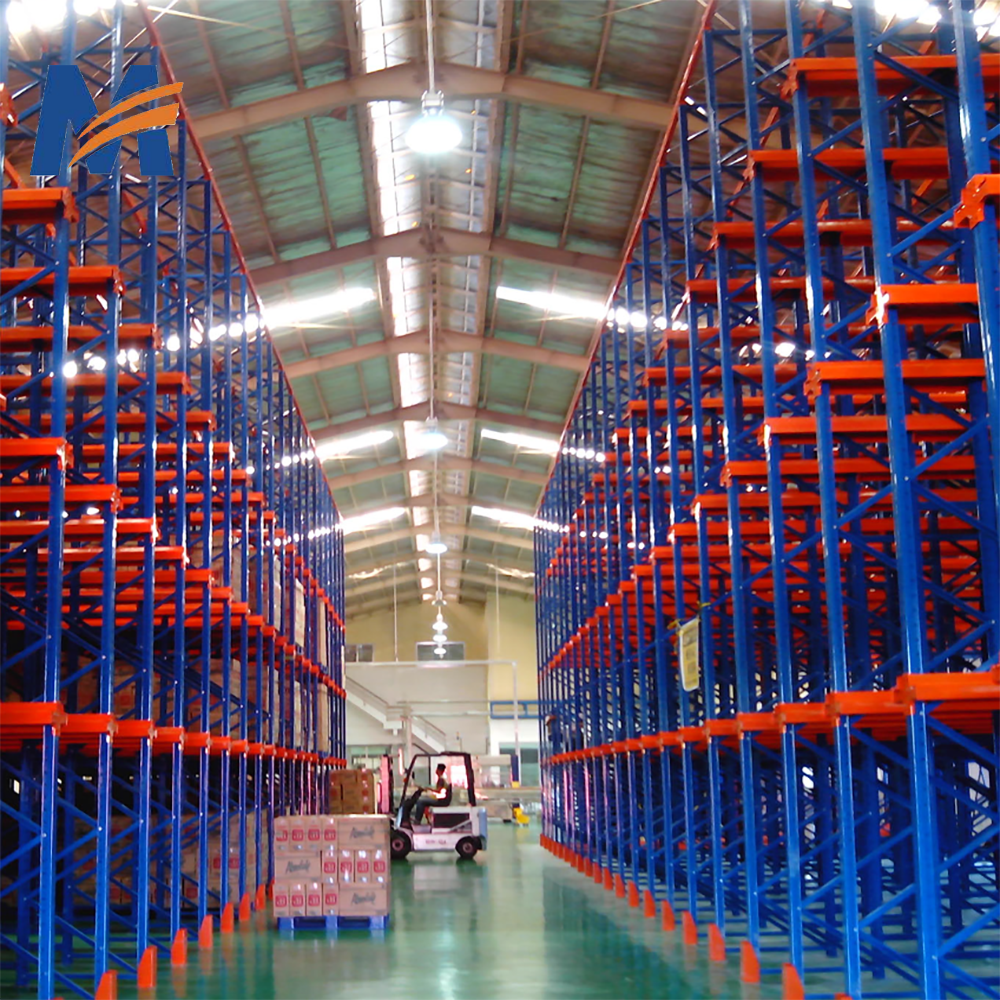

The Drive-in Rack is suitable for storing large quantities of goods with fewer types, especially for batched working and small ranges of selection. Goods are stored on the support guide rails with pallets one after another in the direction of depth, significantly increasing storage density and space availability. It is highly convenient for forklifts to drive directly into lanes to store or retrieve goods.
| Category | Details |
|---|---|
| Loading Weight | 800~1000kg per pallet |
| Standard Dimensions | Height: 1500-8000mm | Width/Depth: 1000-1500mm | Length: 1500-3200mm |
| Upright Section | 90*65, 120*65 (Thickness: 1.5mm, 2.0mm) |
| Beam Section | Box beam 80*45 / 100*45 / 120*45 / 140*45 / 160*45 (Thickness: 1.0 - 1.5mm) |
| Material | High-quality cold rolled steel, Q235 |
| Components | Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors |
| Package | Air bubble pack, PE stretch film to prevent scratches |
Single Entry Racks
Lift trucks can enter the rack from only one side.
Double Entry Racks
Lift trucks can enter from both sides. The center is stabilized by a beam.
