Mracking Industrial-Grade Drive-in Racking, EU Standard Heavy-Duty High-Density Warehouse Storage System

1 / 5

Mracking Industrial-Grade Drive-in Racking, EU Standard Heavy-Duty High-Density Warehouse Storage System

Send Inquiry

Product Description

Product Description: Drive-in Rack

It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.

📊 Specifications

Item	Details
Loading Weight	800~1000kg/pallet
Dimensions	Height: 1500-8000mm, Width/Depth: 1000-1500mm, Length: 1500-3200mm
Customization	Special sizes available for specific storage needs
Upright Section	9065, 12065, Thickness: 1.5mm, 2.0mm
Beam Section	Box beam 8045/10045/12045/14045/160*45, etc. Thickness: 1.0/1.2/1.5mm

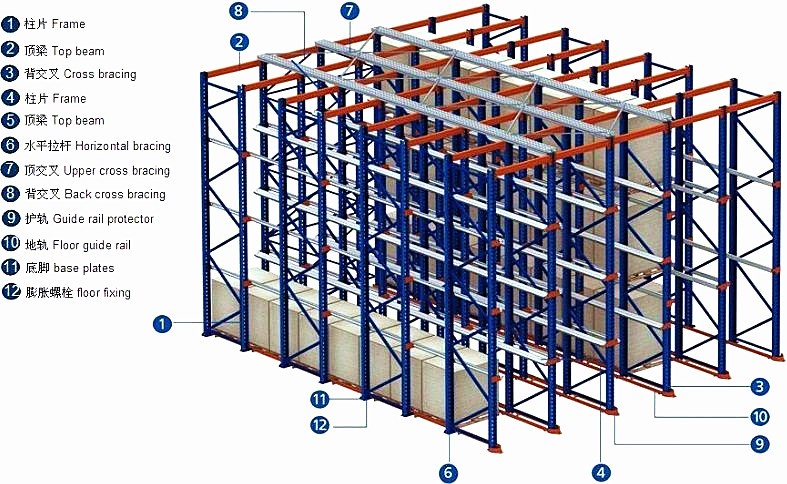

Main Parts	Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors
Material	High-quality cold rolled steel, Q235
Packaging	Air bubble pack, PE stretch film to prevent scratches

🌟 Key Features

✔ Large loading capability: 1000KG-2000KG per pallet.

✔ Forklifts can drive into the rack channels to place and fetch pallets.

✔ Low capital cost using conventional handling equipment.

✔ Very high utility ratio of the warehouse space.

✔ Supports both FIFO (First-In, First-Out) and LIFO (First-In, Last-Out) logistics.

✔ Structural steel construction for maximum durability.

✔ Pallet positions configure from 2-5 deep and 2-5 high.

✔ Durable powder coating finish available in various colors.

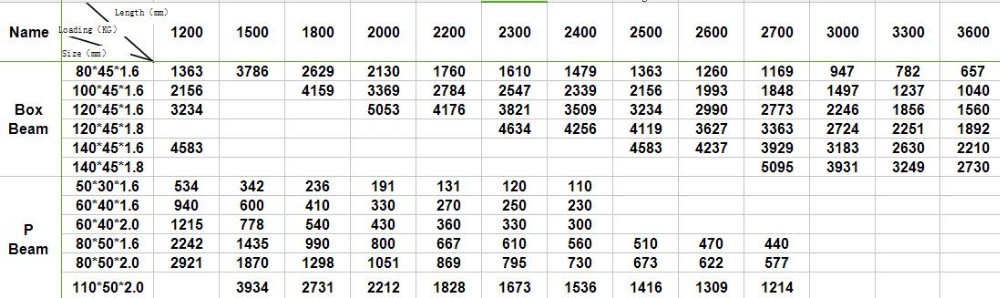

📐 Beam Loading Capacity & Size

🔍 Detailed Entry Types

Single Entry Racks: Lift trucks can enter the rack from only one side.

Double Entry Racks: Lift trucks can enter from both sides. The center of the rack row is stabilized by a beam.

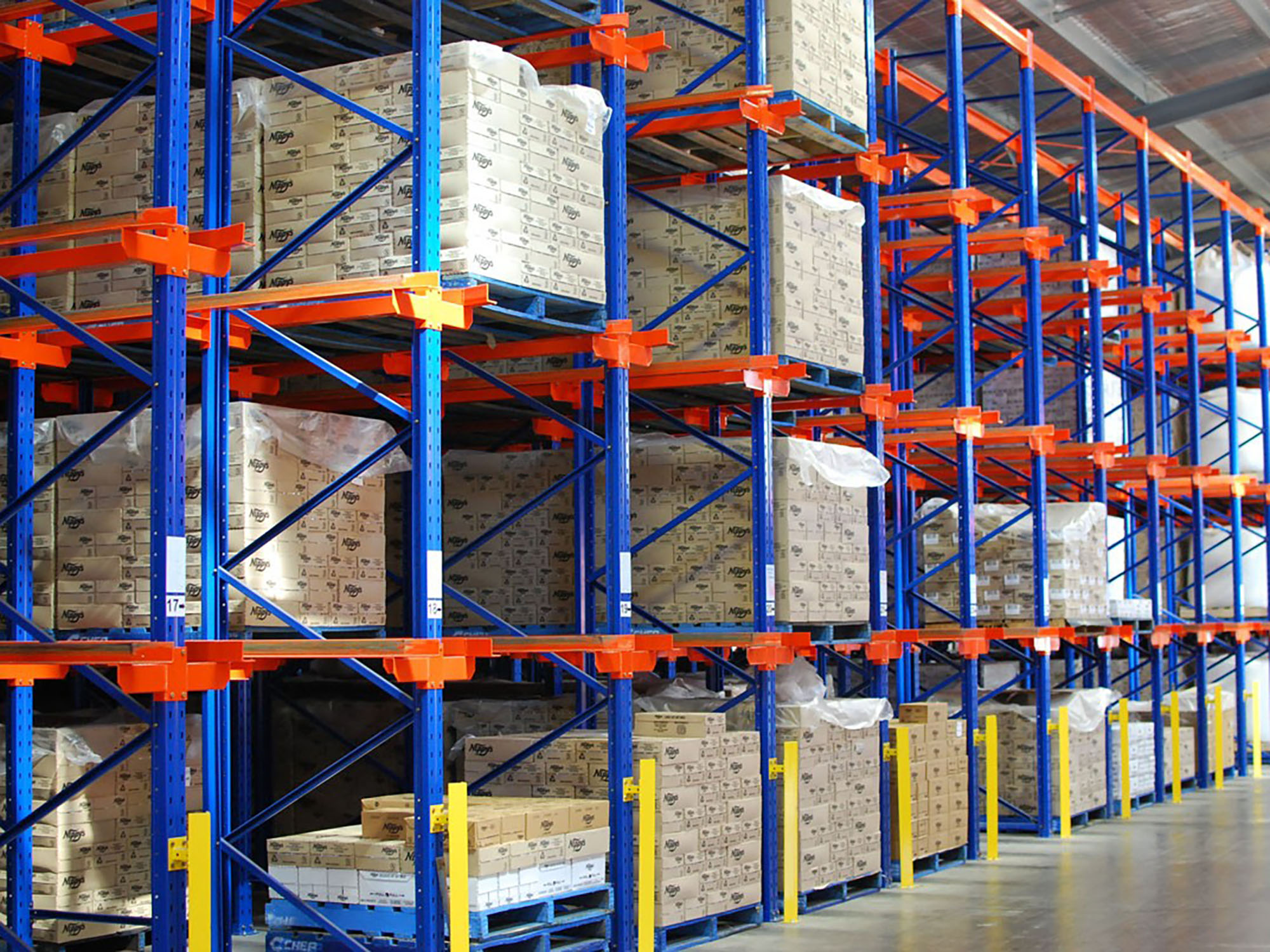

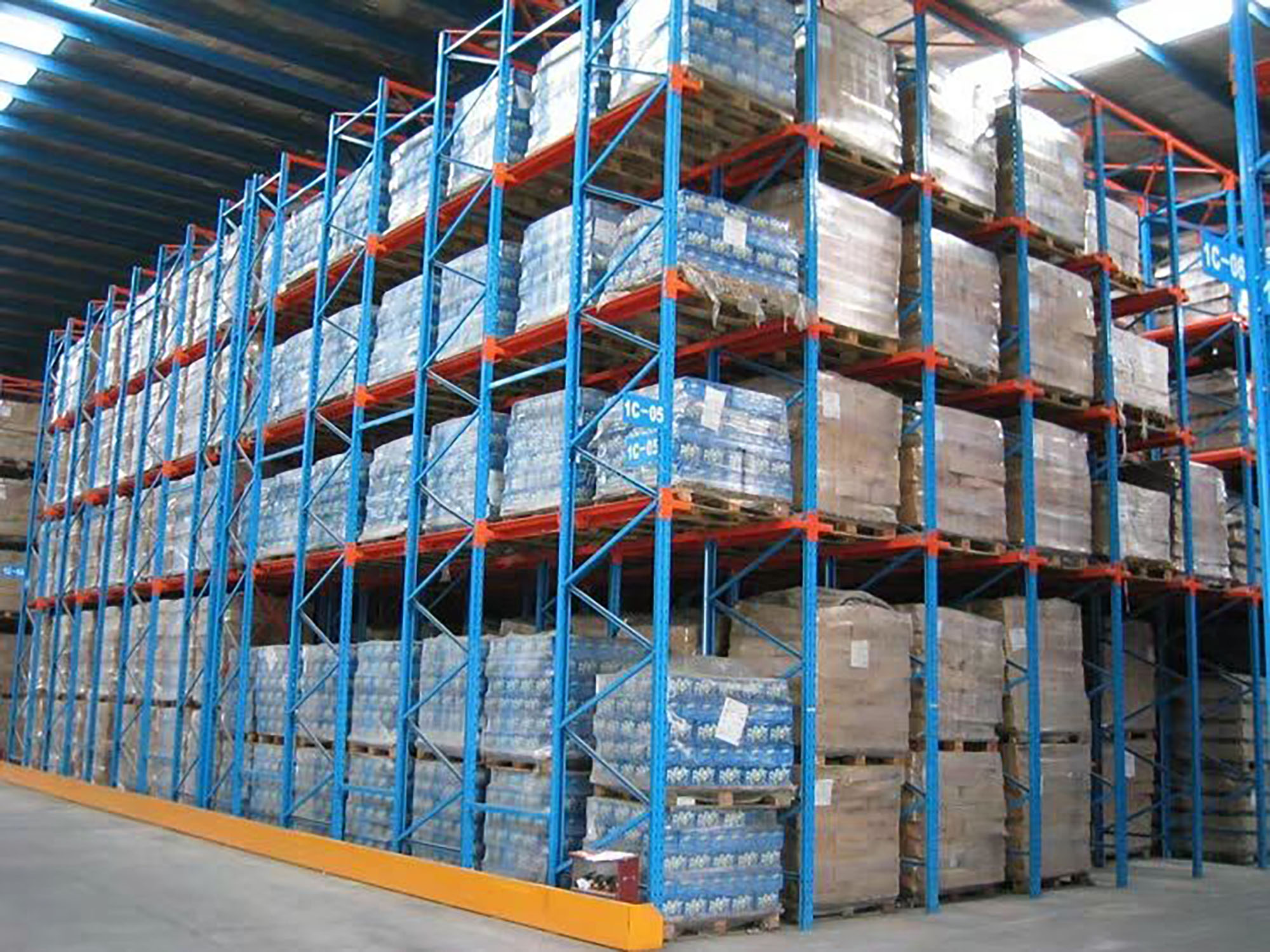

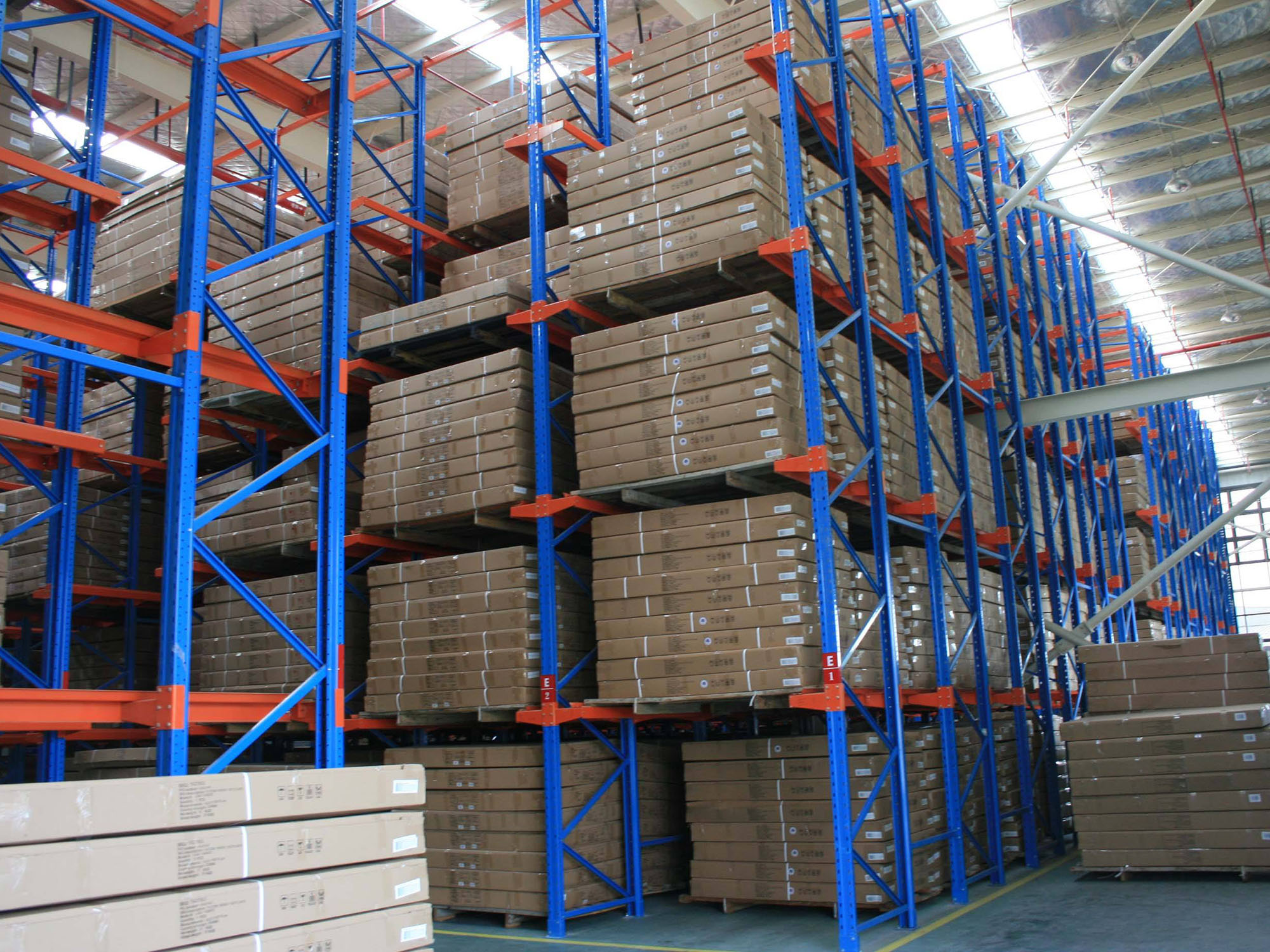

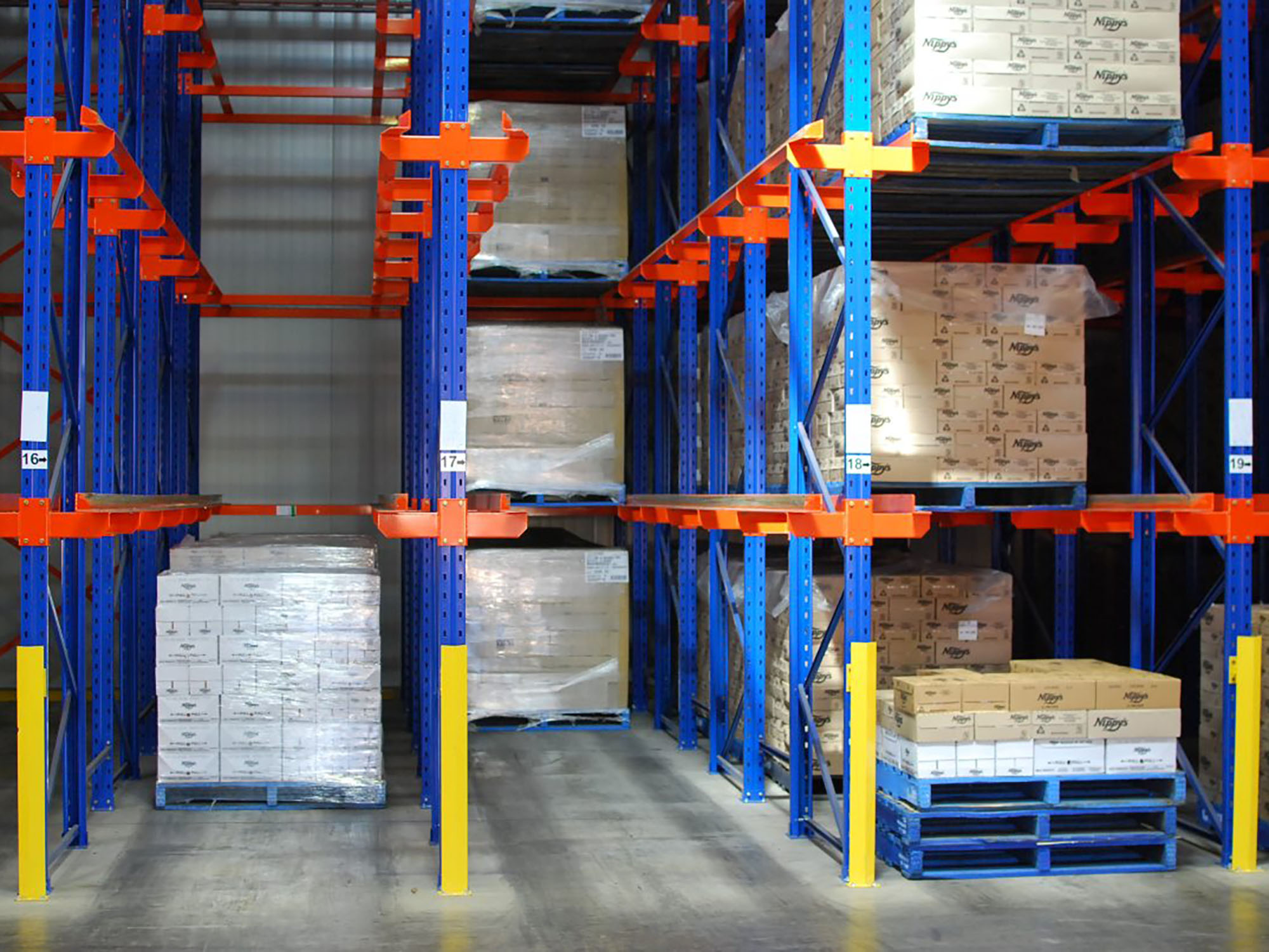

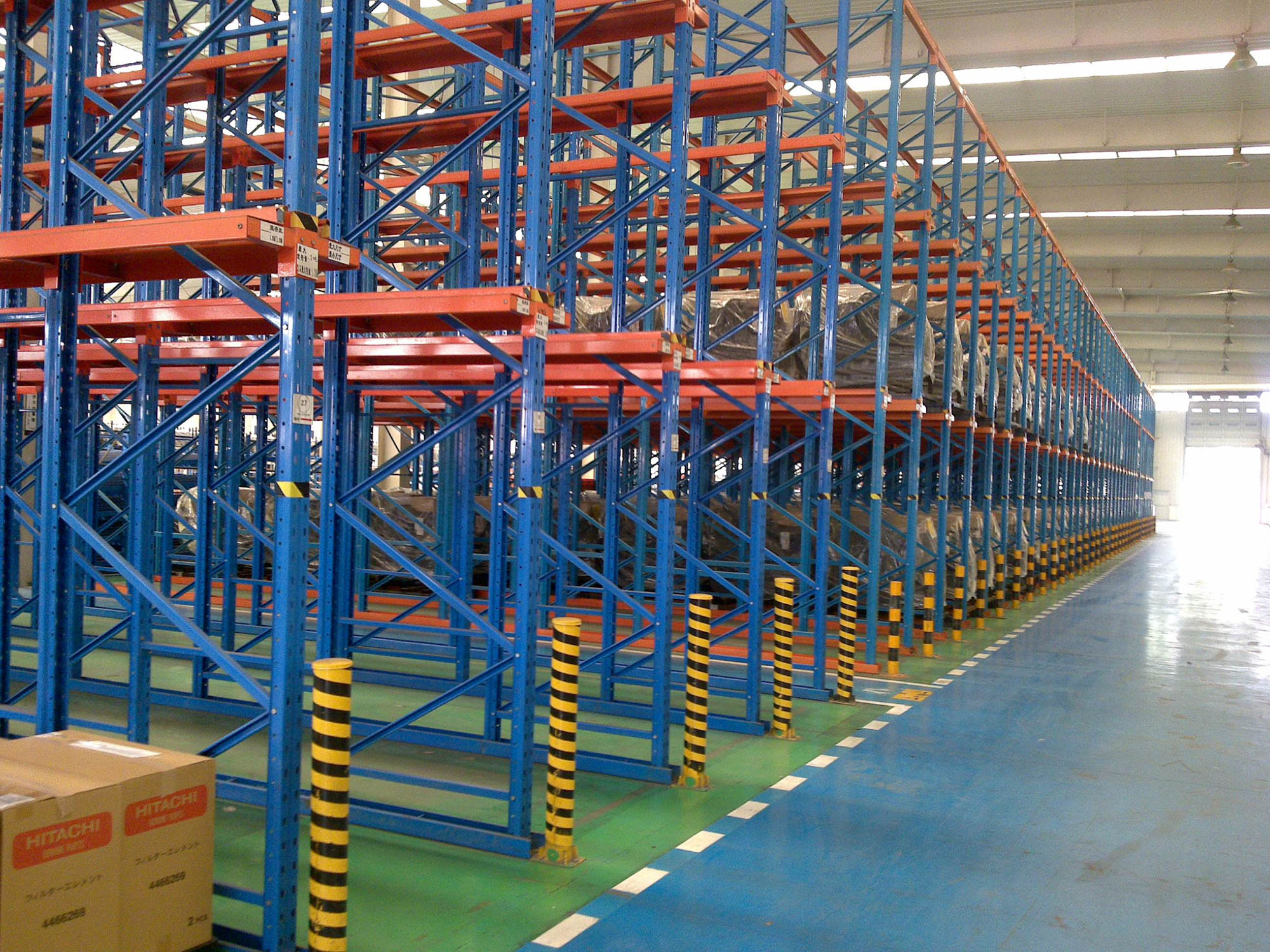

📸 Product Overviews

🔥 Related Solutions

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

❓ Frequently Asked Questions

1. What's the material of the rack?

Our material is Q235B cold rolled steel, known for its high strength and durability in industrial applications.

2. What is the delivery time?

In general, the delivery time is less than 15 workdays. This can vary based on the order quantity and specific shelving design.

3. What are the payment terms?

We typically require a 30% T/T down payment and the remaining 70% T/T before delivery.

4. How can I get a quick quotation for my project?

Please provide the rack size (L*D*H), number of layers per set, load capacity per beam layer, and total quantity needed.

5. Are samples available?

Yes, we can provide free samples; however, the freight cost is to be collected.

6. How is quality control handled?

Quality is our priority. We maintain strict standards and hold ISO 9001 2001 certifications to ensure consistent product excellence.
