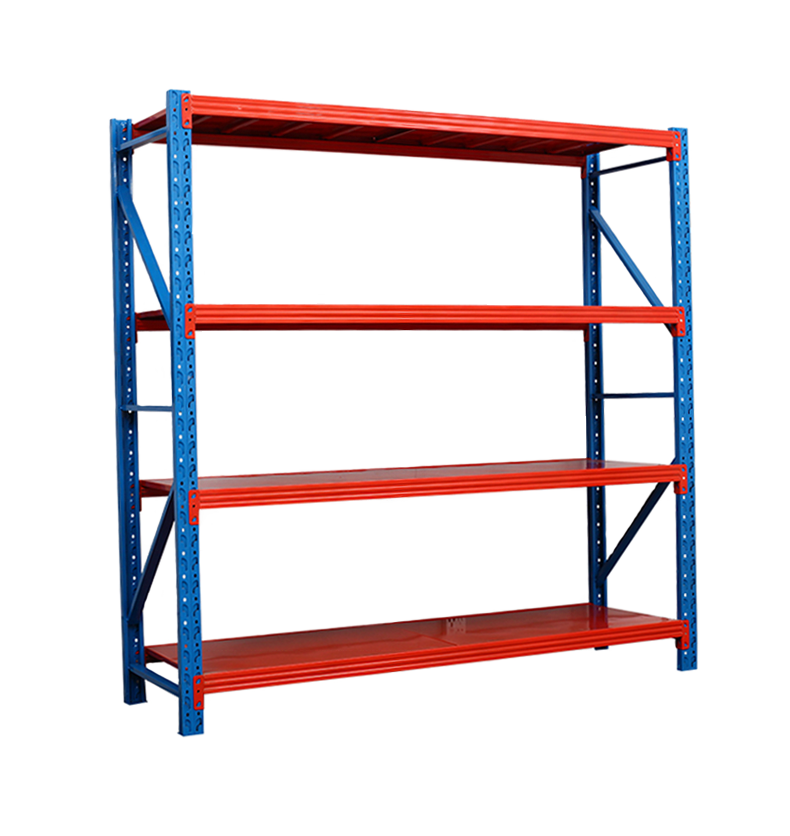

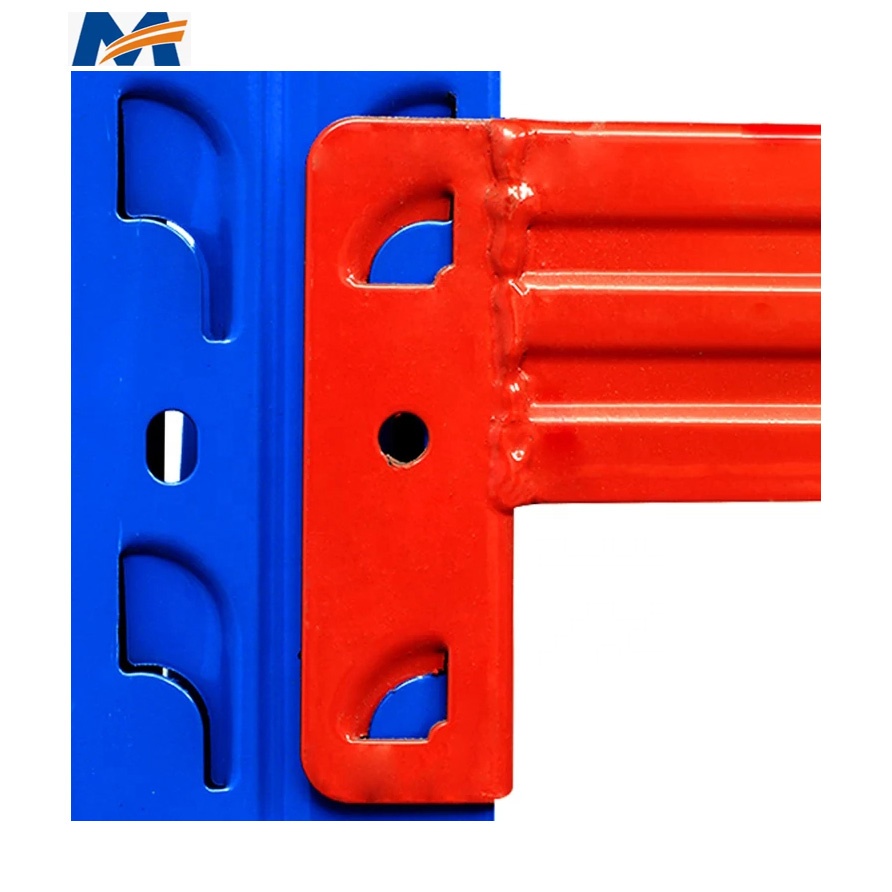

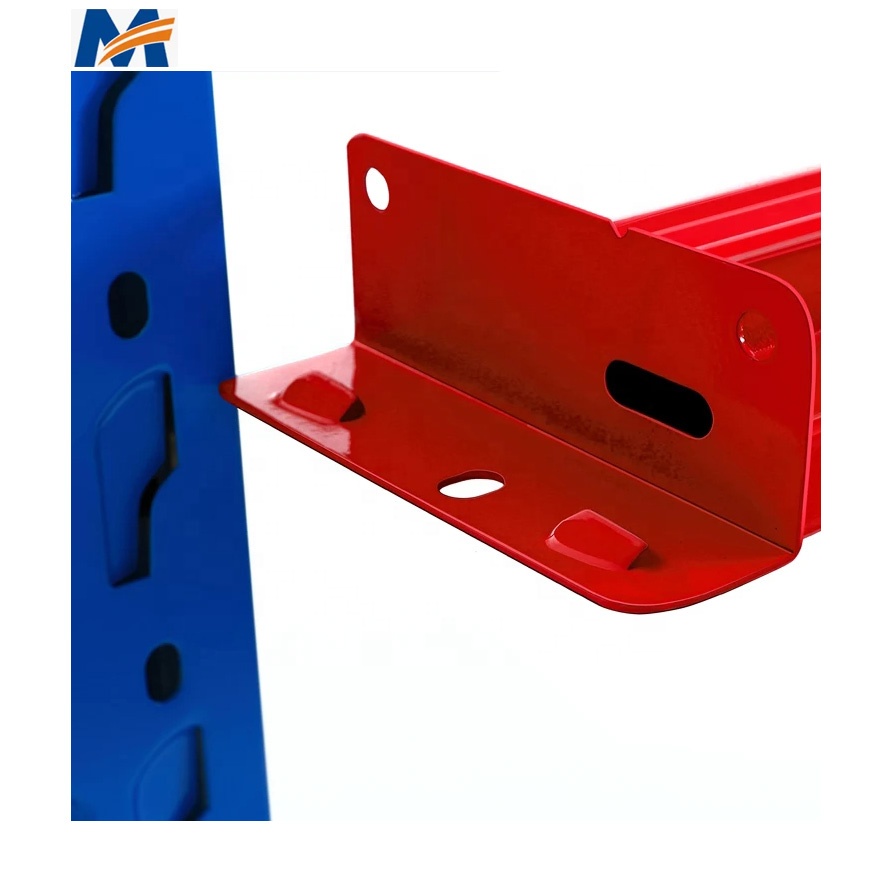

Medium duty rack/shelf belongs to professional warehouse storage racking systems. Designed for versatility, it can be adjusted by every 50mm increments. The load capacity is robust, reaching 200~500kg per level. The system utilizes a specialized "P" type beam, engineered to match the height of the layer board perfectly for maximum stability.
| Feature | Details |
|---|---|
| Product Name | Medium Duty Rack / Shelf |
| Material | Q235 Cold rolled Steel |
| Standard Size | L2000 * D600 * H2000mm |
| Loading Capacity | 200kg / layer (Adjustable) |
| Thickness | Upright: 75*35*0.6mm; Beam: 60*40*0.6mm; Steel panel: 0.3mm |
| Color Options | Blue / Grey white / Orange |
| Surface Treatment | High-quality Powder Coating |
| Certification | SGS / ISO 9001 |
| Model Type | Size L*W*H (mm) | Layers | Load Capacity (kg/layer) |
|---|---|---|---|
| XM-2021 | 2000 * 600 * 2000 | 4 | 200kg, 300kg, 500kg |
| XM-2025 | 2000 * 500 * 2000 | 4 | 200kg, 300kg, 500kg |
| XM-2027 | 2000 * 600 * 2500 | 4 | 200kg, 300kg, 500kg |
| XM-1500 | 1500 * 500 * 2000 | 4 | 200kg, 300kg, 500kg |
Standard Packaging: Uprights are wrapped in air bubble film; Beams and steel boards are packed in reinforced cartons.
Loading Capacity:
- 20GP Container: Approx. 75 sets of main racks.
- 40HQ Container: Approx. 195 sets of main racks.
