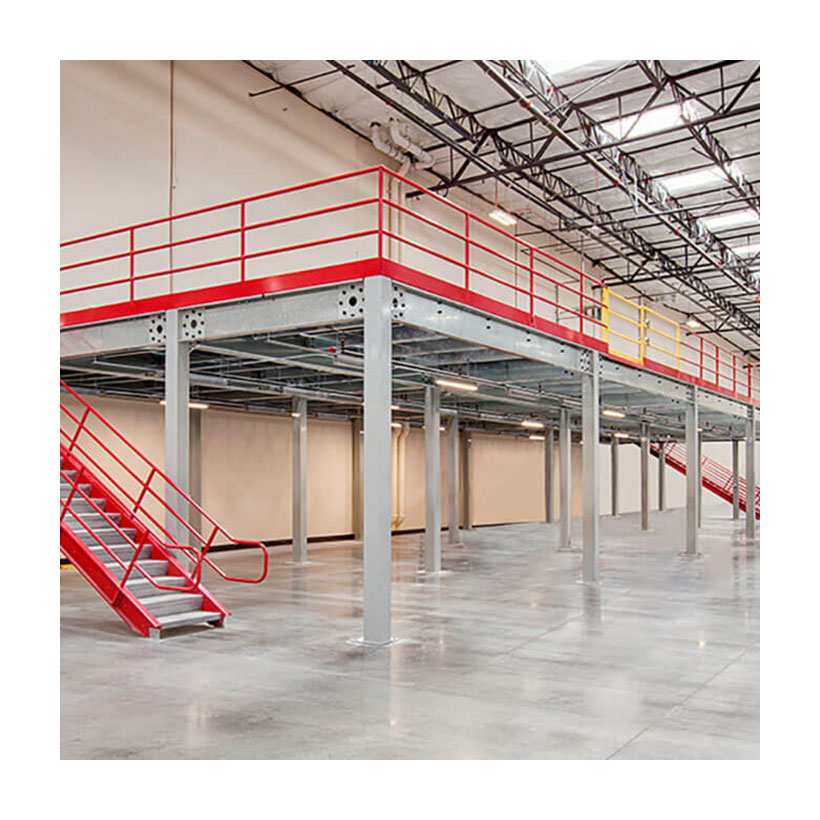

Mracking Provide Mezzanine Installation Support High Quality Warehouse Storage Industrial Mezzanine Floor Supplier Customized

1 / 5

Mracking Provide Mezzanine Installation Support High Quality Warehouse Storage Industrial Mezzanine Floor Supplier Customized

Send Inquiry

Product Description

★

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for efficiency.

✔

It is suitable for the higher warehouse, large loading capacity, longer span and large storage, it will be full use of the space, one warehouse used as two warehouse. Widely be used for the electronics products, hardware, communication and printing, etc.

Technical Specifications
Raw-Material	High-Quality Q235 Cold rolled steel
Color	Upright frame is blue, Beam is orange, can be customized.
Height/Wide/Depth	Customized
Loading Capacity	200~5000kg per sqm
Treatment Surface	Powder coated
Packing Term	Air bubble, Wooden Case, etc.

Upright & Main Beam Connect

Both of them are H-steel, Its loading capacity is high and span is long. The major beams are connected by connector piece in each side. It will make the beams more stable.

Support Beam & Main Beam Connect

They are connected with the hanging piece. And the hanging piece is welded on the main beam. So the major beam is more stable.

Steel Panel & Guardrail Connect

Steel panel and support beam are connected with hooks. It is very stable. The guardrail hangs on the main beam without holes on the beam. So there is no bad influence on the beam.

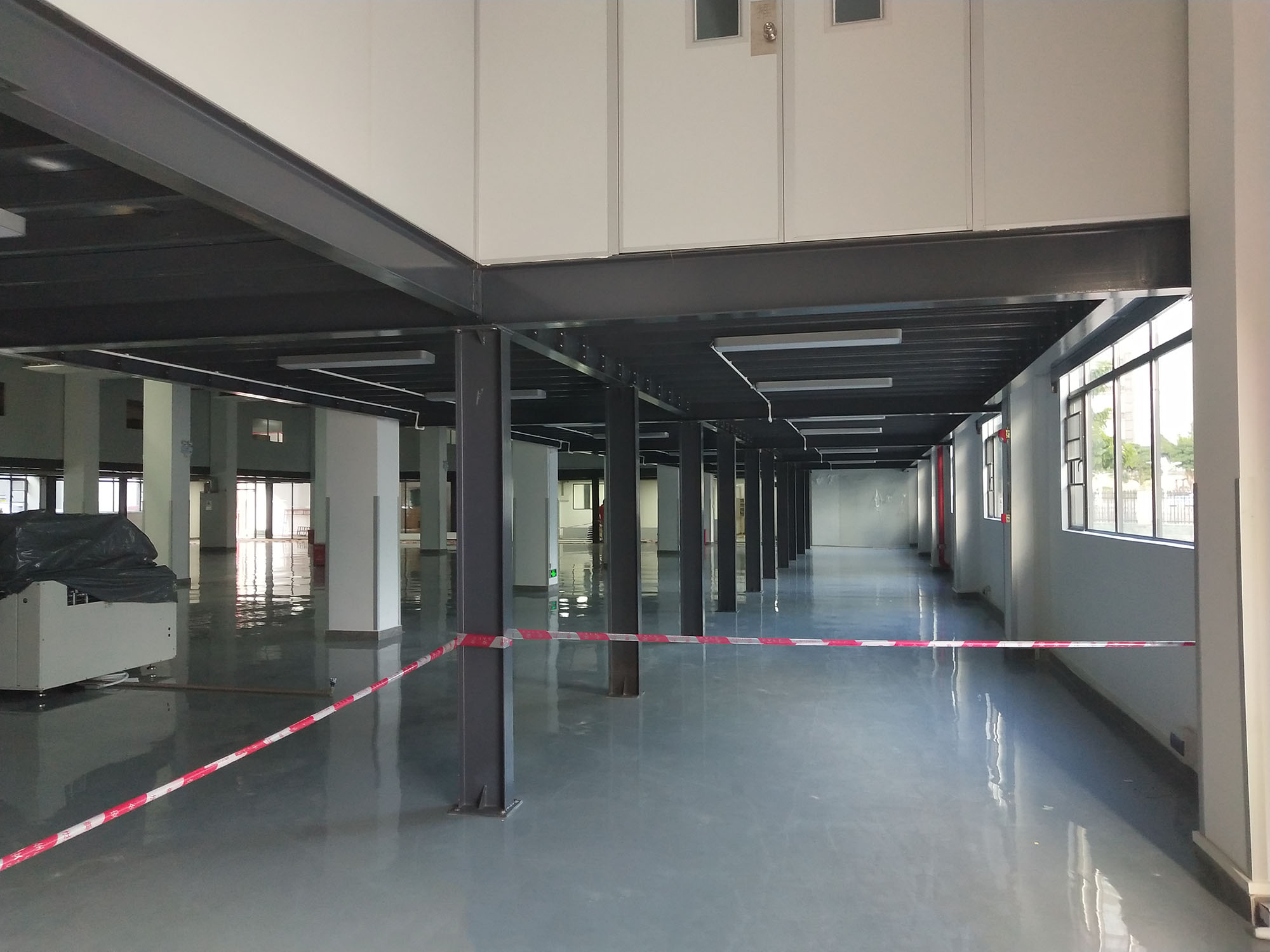

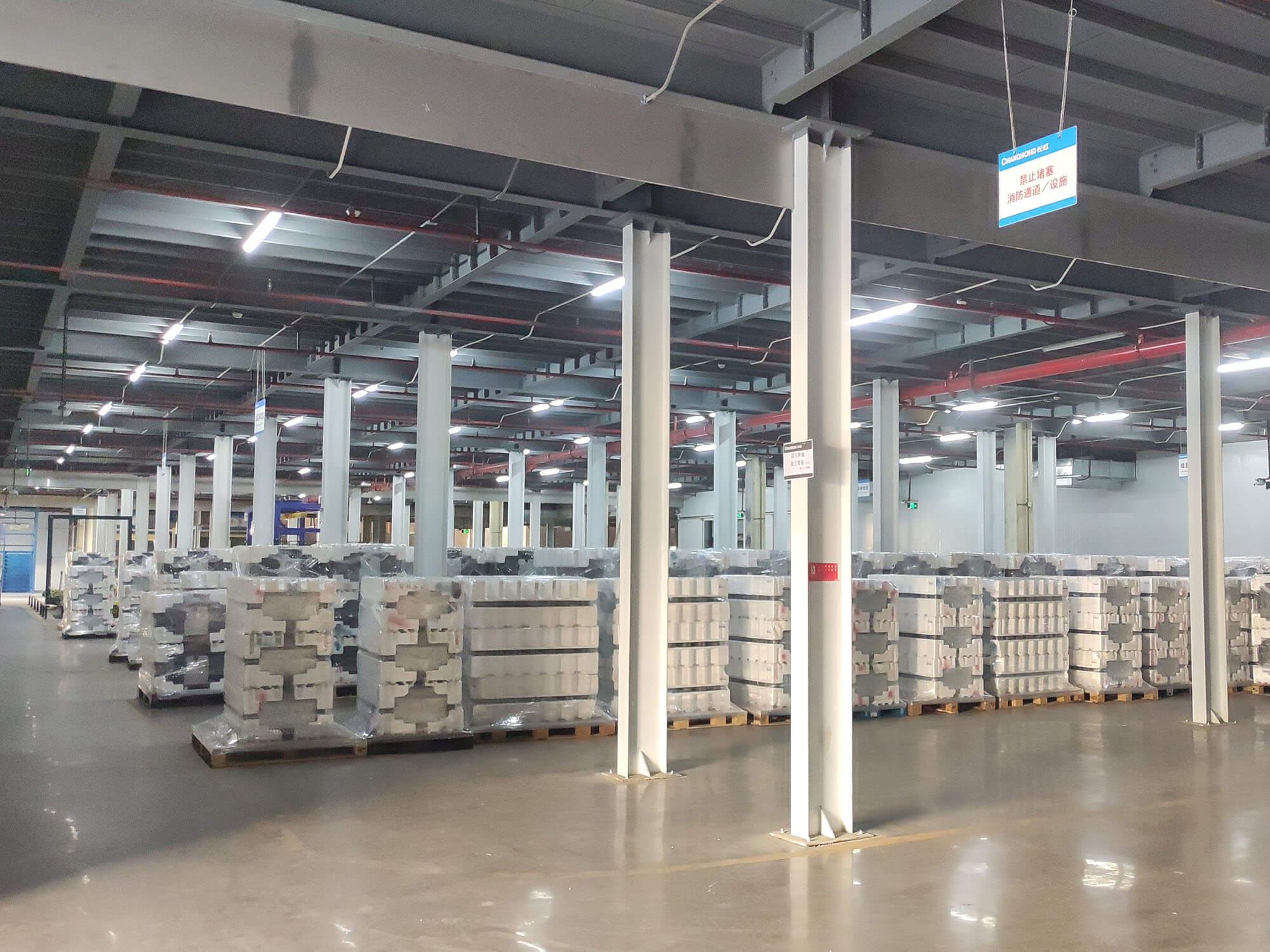

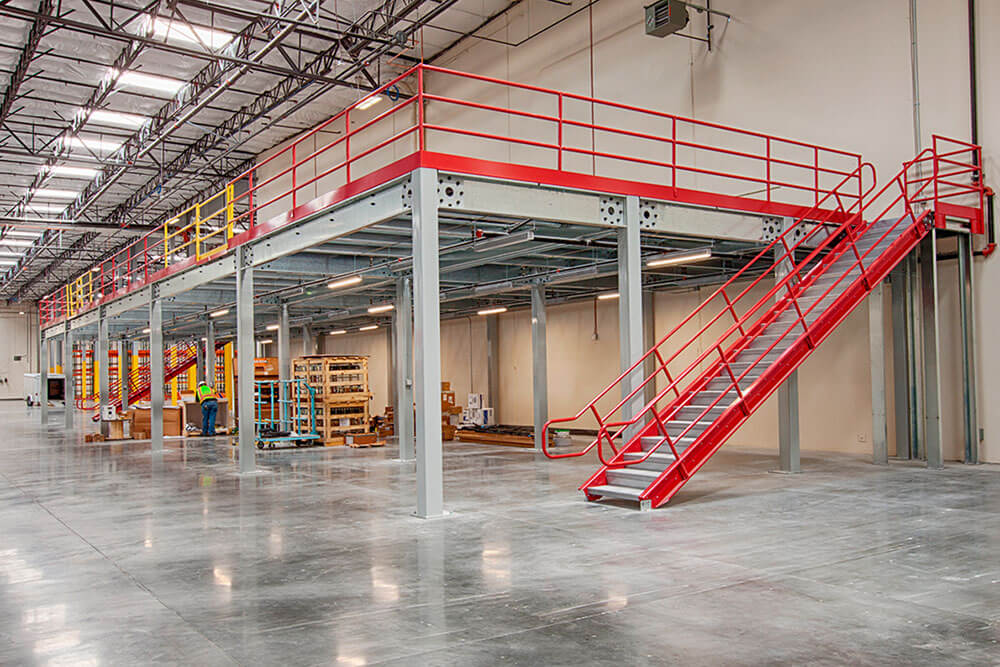

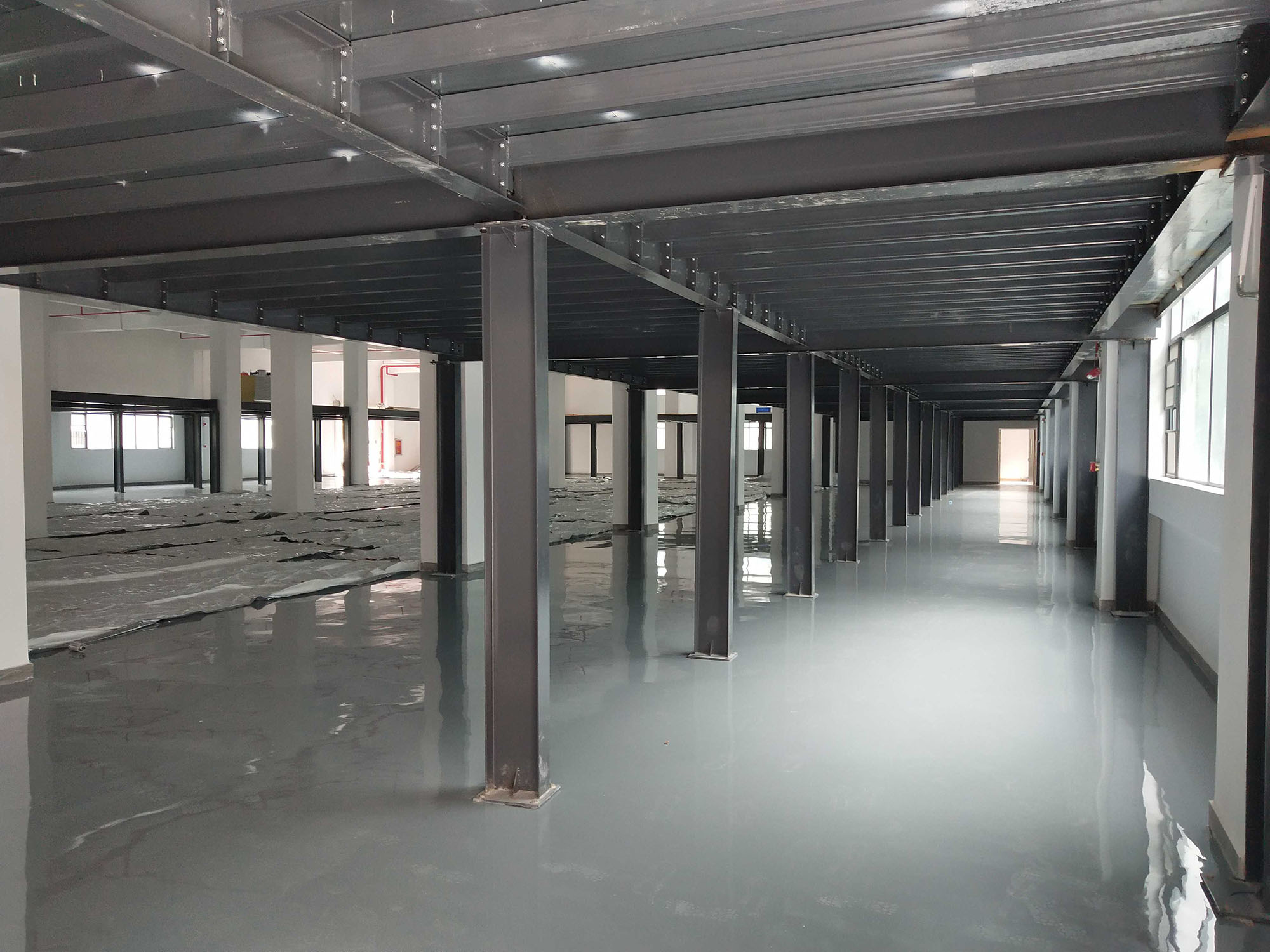

Detailed Images

Product Overviews

Hot Sale Products

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

Frequently Asked Questions

Q: What is the material used for the racks?

A: Our material is high-quality Q235B cold rolled steel, known for its durability and strength.

Q: What is the standard delivery time?

A: In general, delivery takes less than 15 workdays. It also depends on the order quantity and specific shelving design.

Q: What are the terms of payment?

A: We accept 30% T/T down payment and 70% T/T before delivery.

Q: How can I get a quick quotation for my racking project?

A: Please provide the size of the rack (Length*Depth*Height), number of layers per set, load capacity per layer, and the total quantity required.

Q: Are product samples available?

A: Yes, we accept sending free samples with freight collect.

Q: How do you handle quality control?

A: Quality is our priority. We maintain strict quality control standards and hold ISO 9001 certifications.
