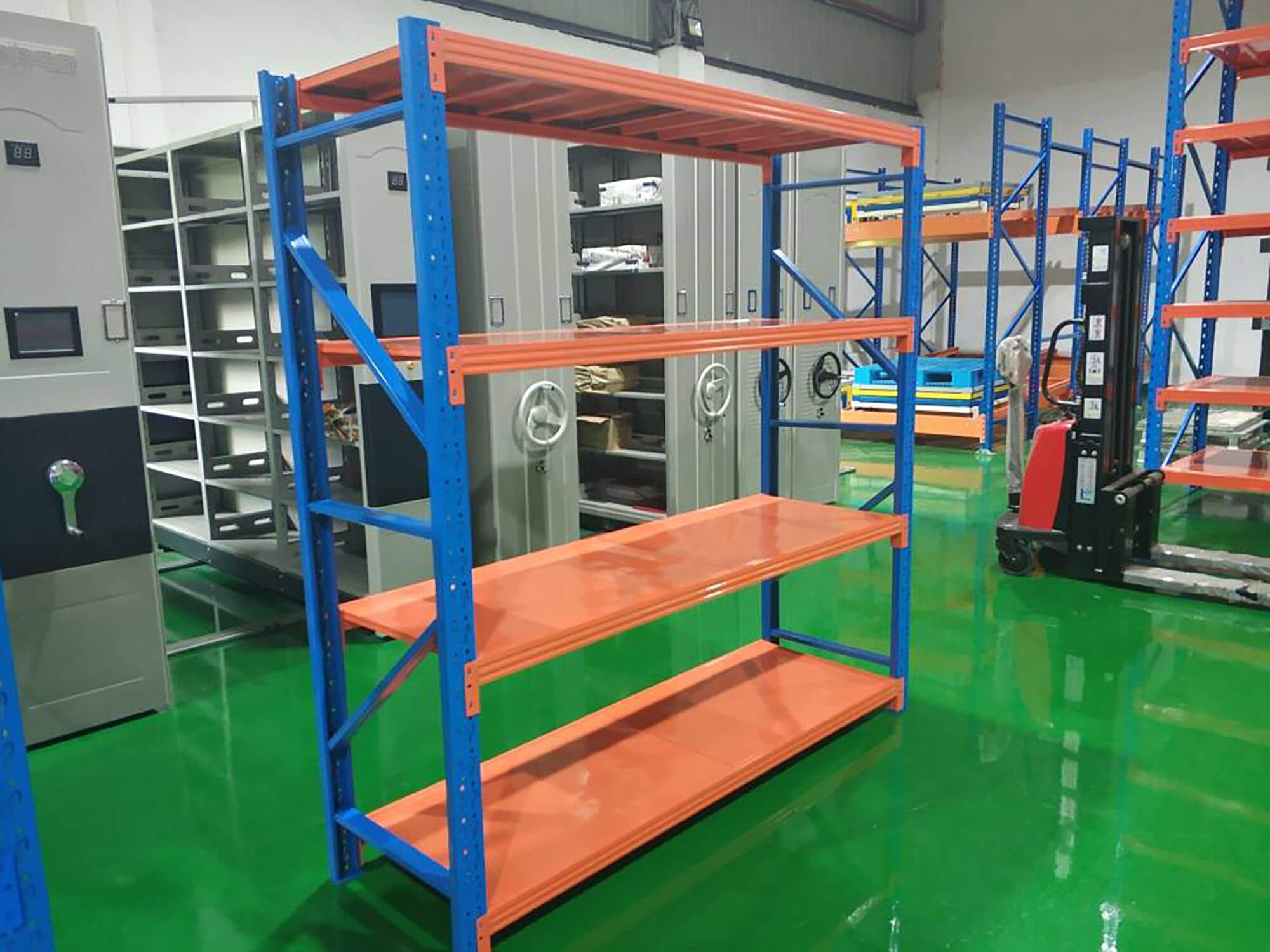

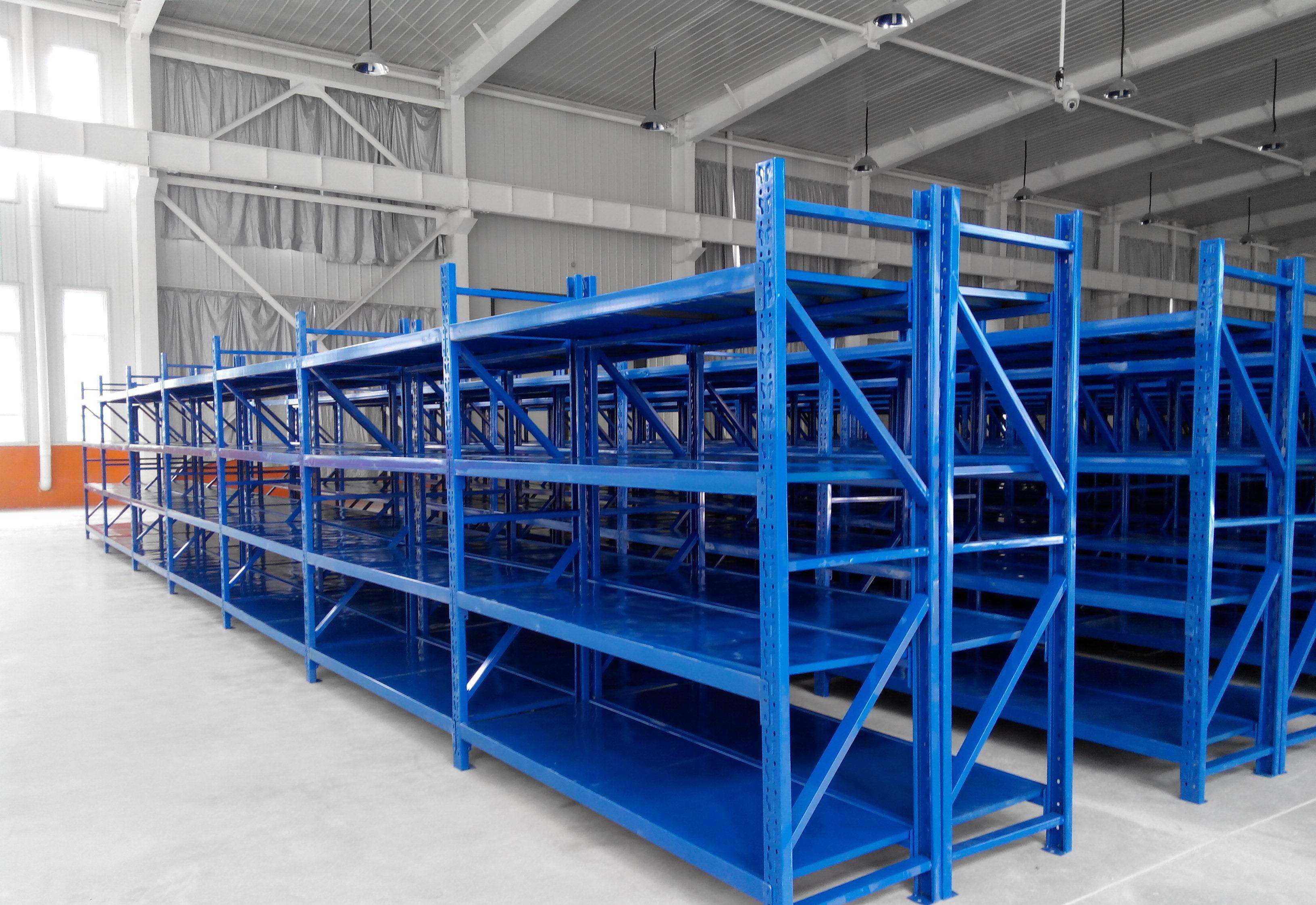

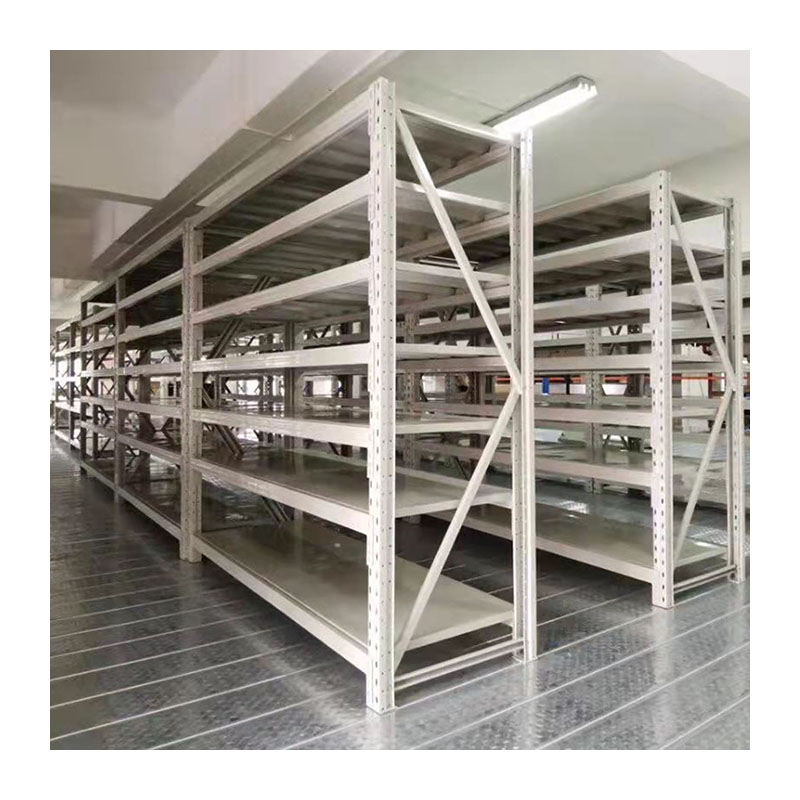

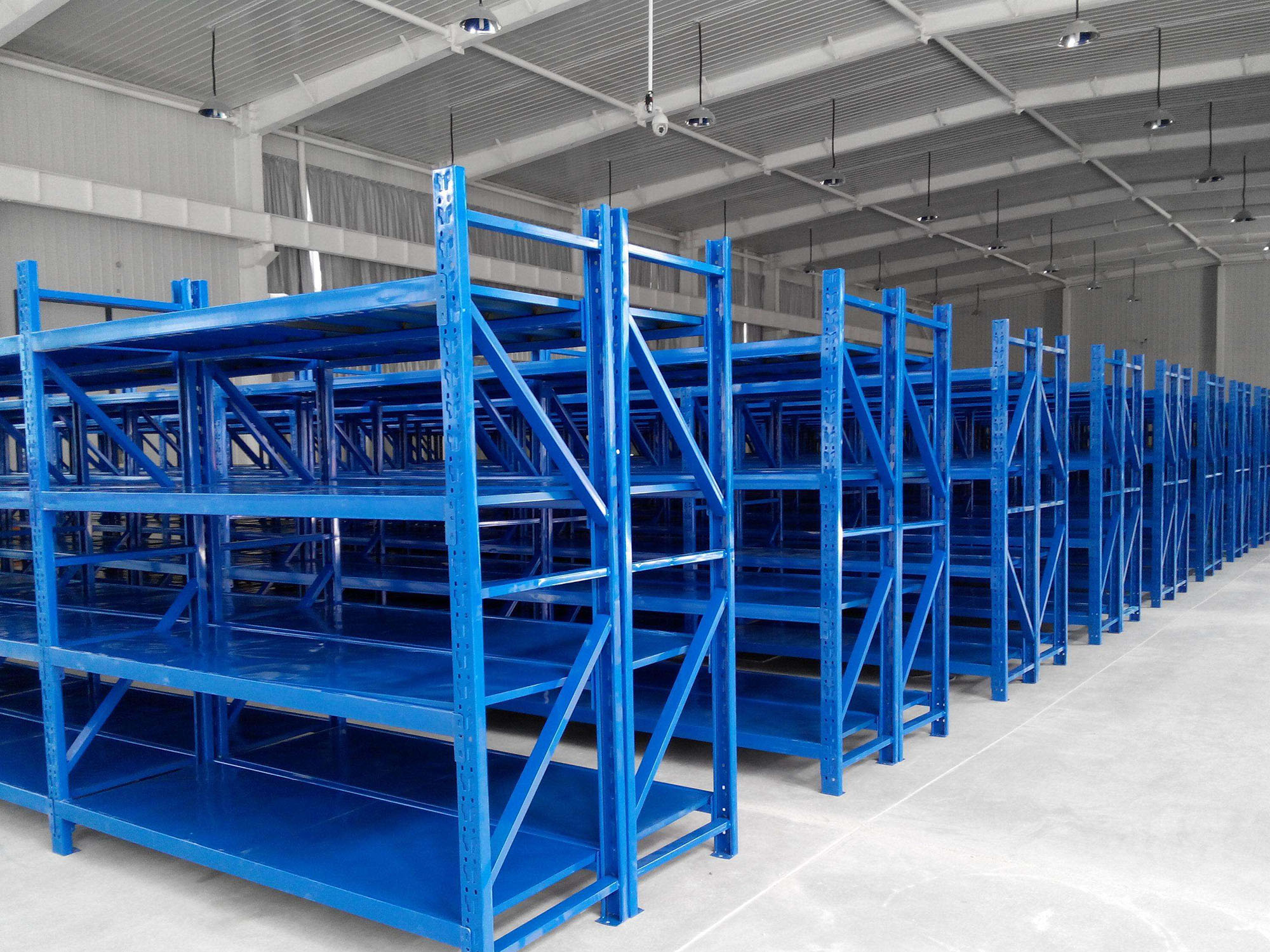

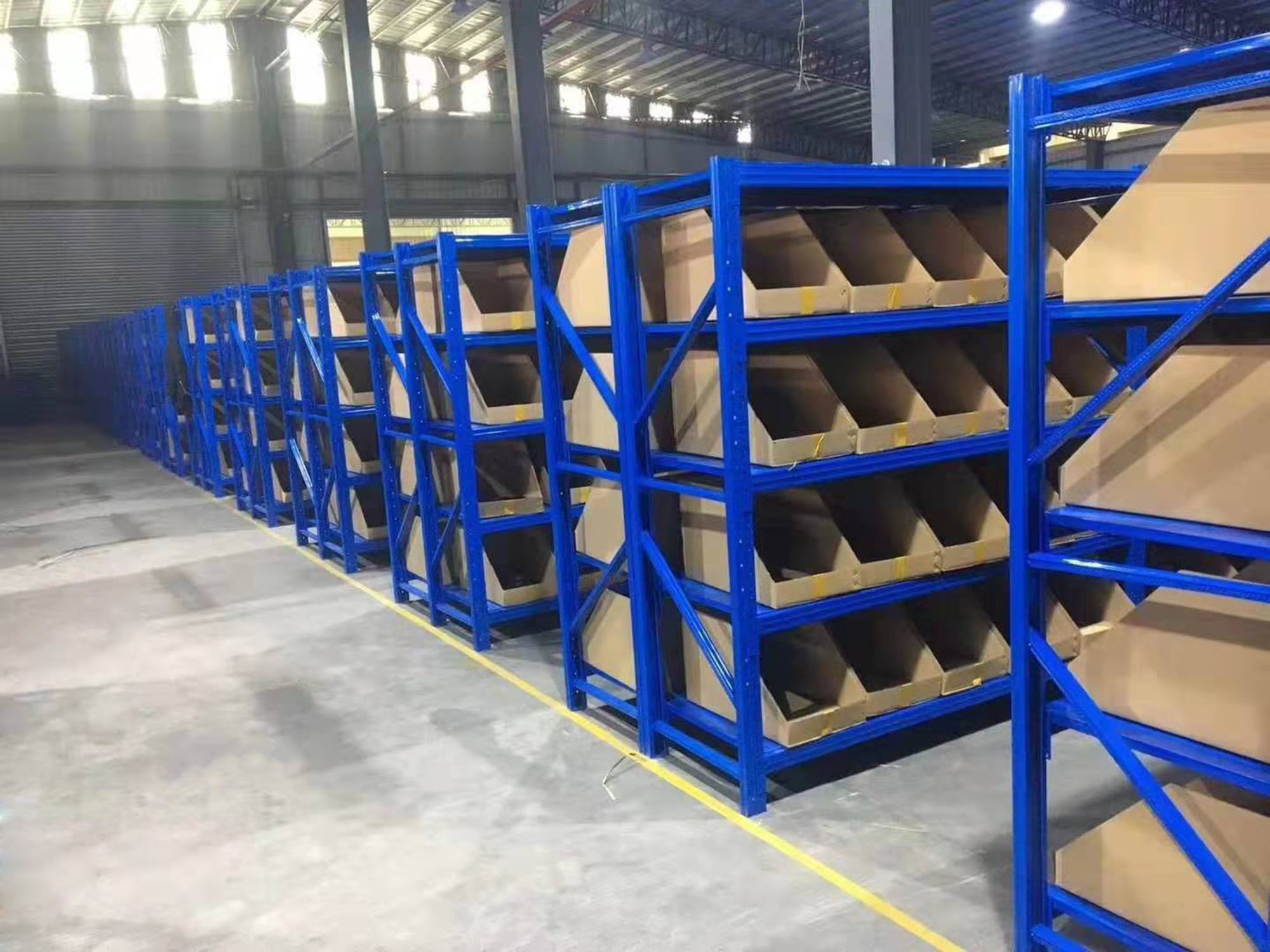

Medium duty rack/shelf belongs to warehouse storage racking systems. It features a versatile design that can be adjusted by each 50mm, and the load capacity can reach 200~500kg per layer. The system utilizes a "P" type beam, whose height matches perfectly with that of the layer board for maximum stability.
| Parameter Details | |
|---|---|
| Product Name | Medium Duty Rack/Shelf |
| Material | Q235 Cold rolled Steel |
| Standard size | L2000*D600*H2000mm |
| Loading Capacity | 200kg/layer |
| Thickness | Upright: 75*35*0.6mm; Beam: 60*40*0.6mm; Steel panel: 0.3mm |
| Color Options | Blue / Grey white / Orange |
| Surface Treatment | Powder Coating |
| Packing Term | Air bubble, Carton, Wooden Case |
| MOQ | 10 sets |
| Payment Terms | T/T ; L/C |
| Delivery Time | 10-15 workdays upon receipt of deposit |
| Certification | SGS / ISO 9001 |
| Service | OEM & ODM |
| Type | Size L*W*H (mm) | Layer | Loading Capacity (kg/layer) |
| XM-2021 | 2000*600*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2025 | 2000*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2027 | 2000*600*2500 | 4 | 200kg, 300kg, 500kg |
| XM-2031 | 1500*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2040 | 1200*500*2000 | 4 | 200kg, 300kg, 500kg |
| Component | Dimensions/Specs | Qty | Unit |
| Start-bay Set | Complete System | 1 | Set |
| Upright Frame | H2000*D600*75*35*0.6 | 2 | pcs |
| Beam | L1830*60*40*0.6 | 8 | pcs |
| Steel Board | L915*D560*0.3 | 8 | pcs |
| Add-bay Set | Extension System | 1 | set |
| Upright Frame | H2000*D600*75*35*0.6 | 1 | pcs |
| Beam | L1830*60*40*0.6 | 8 | pcs |
| Steel Board | L915*D560*0.3 | 8 | pcs |
