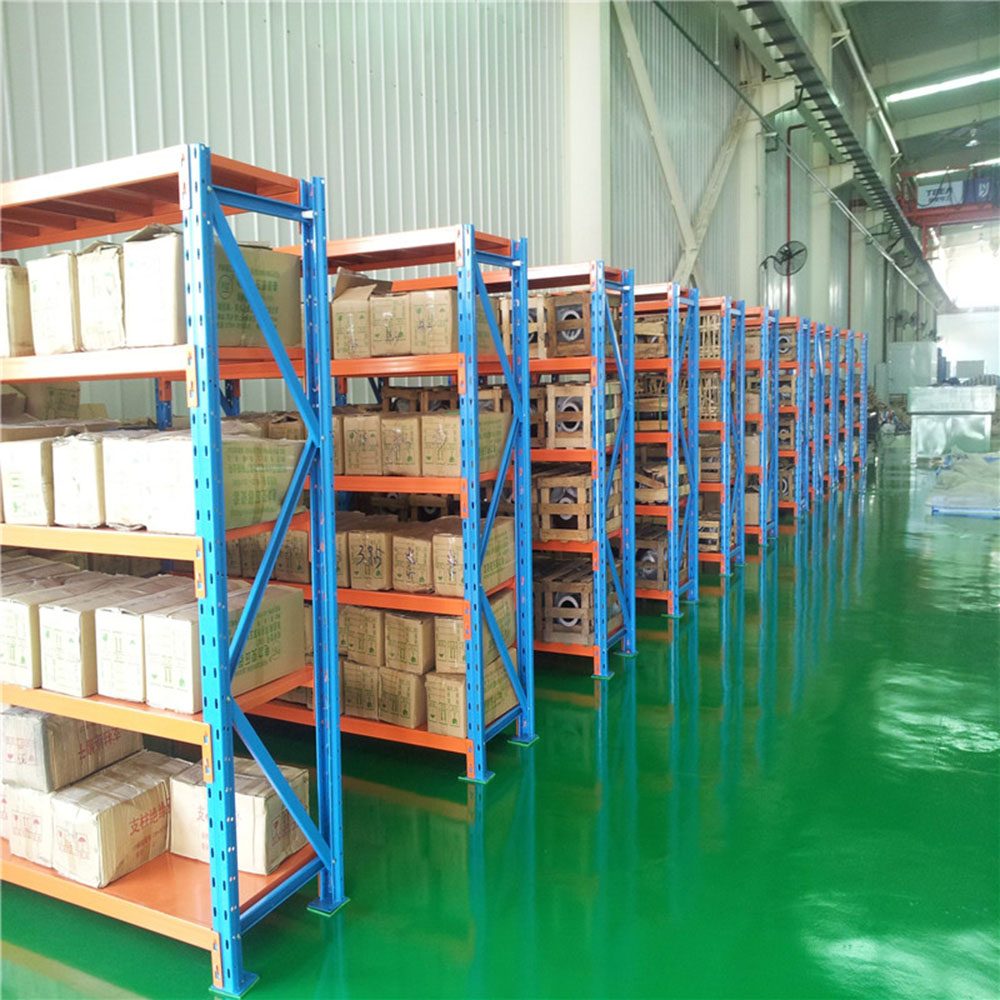

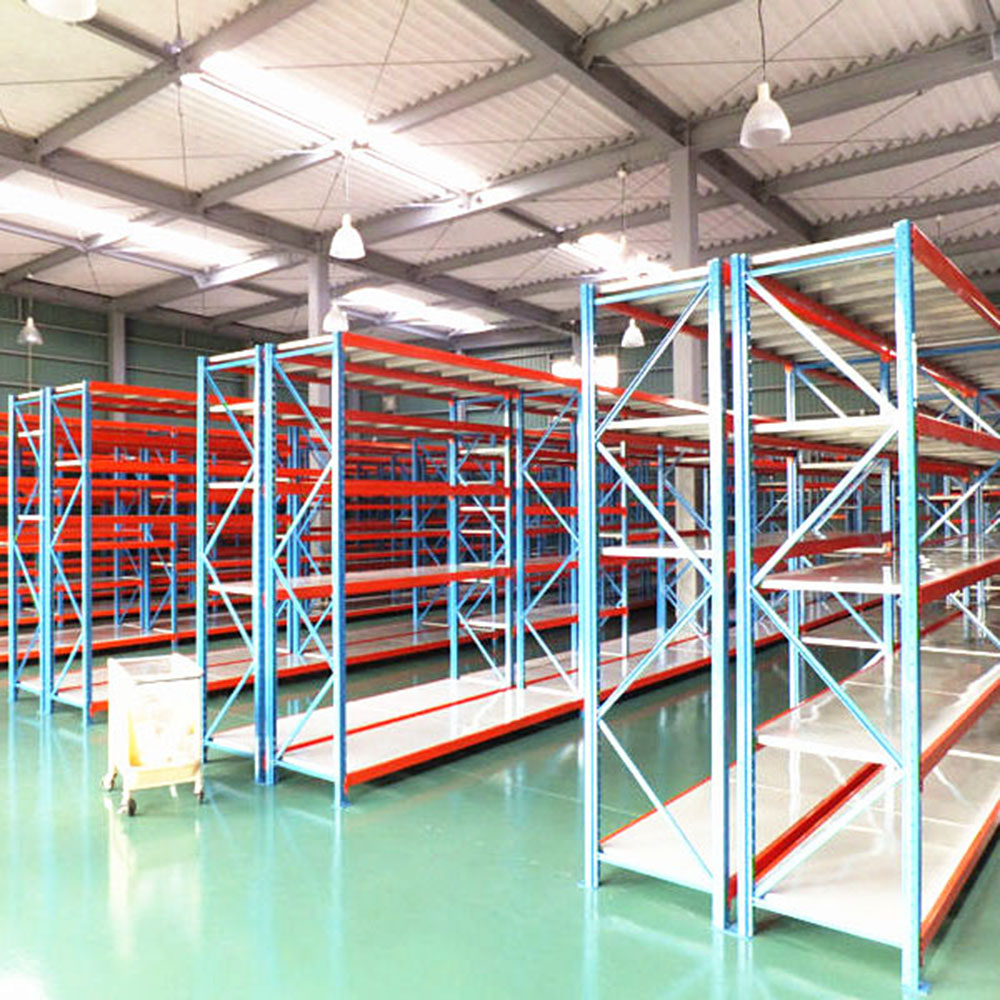

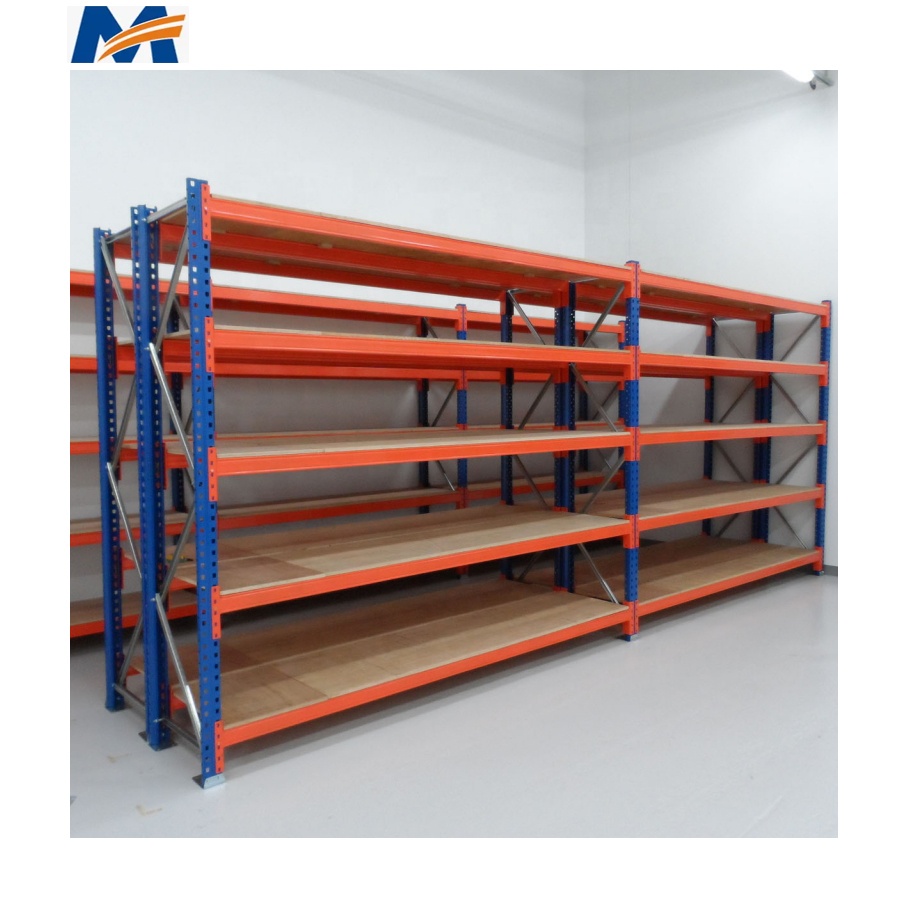

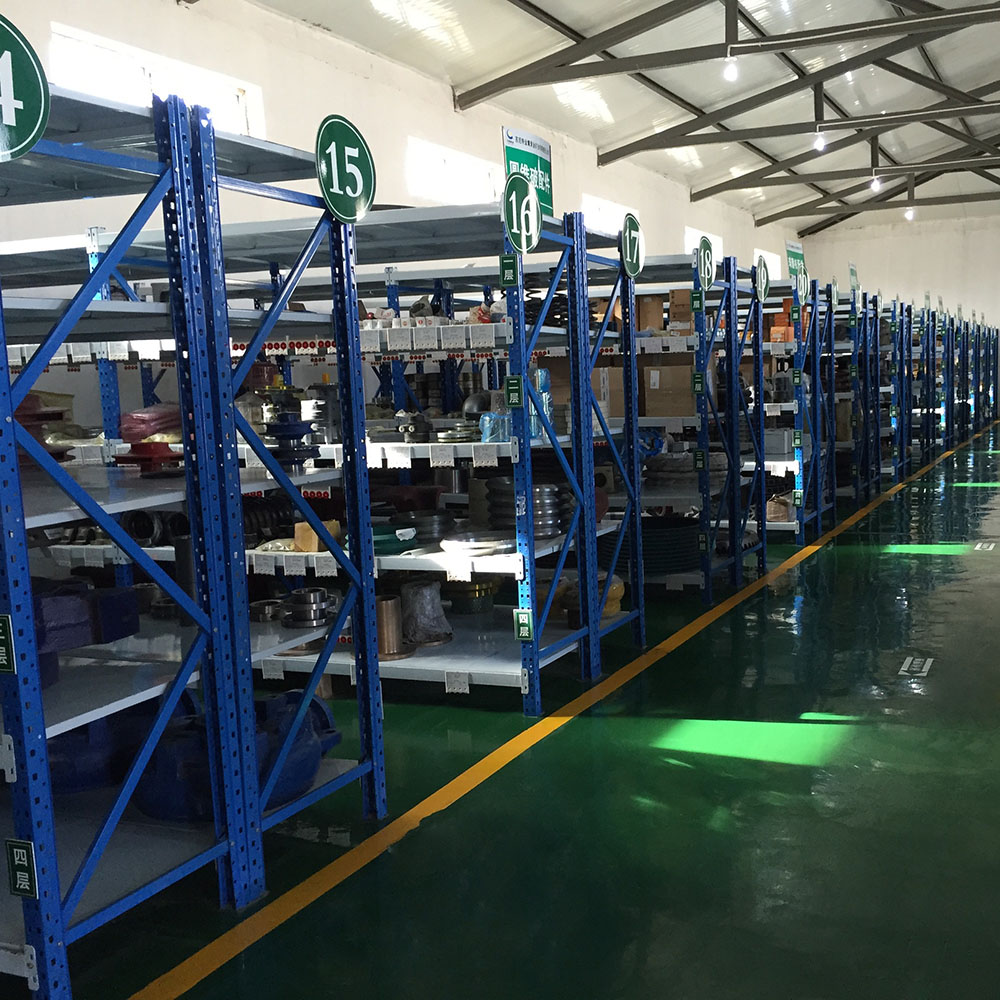

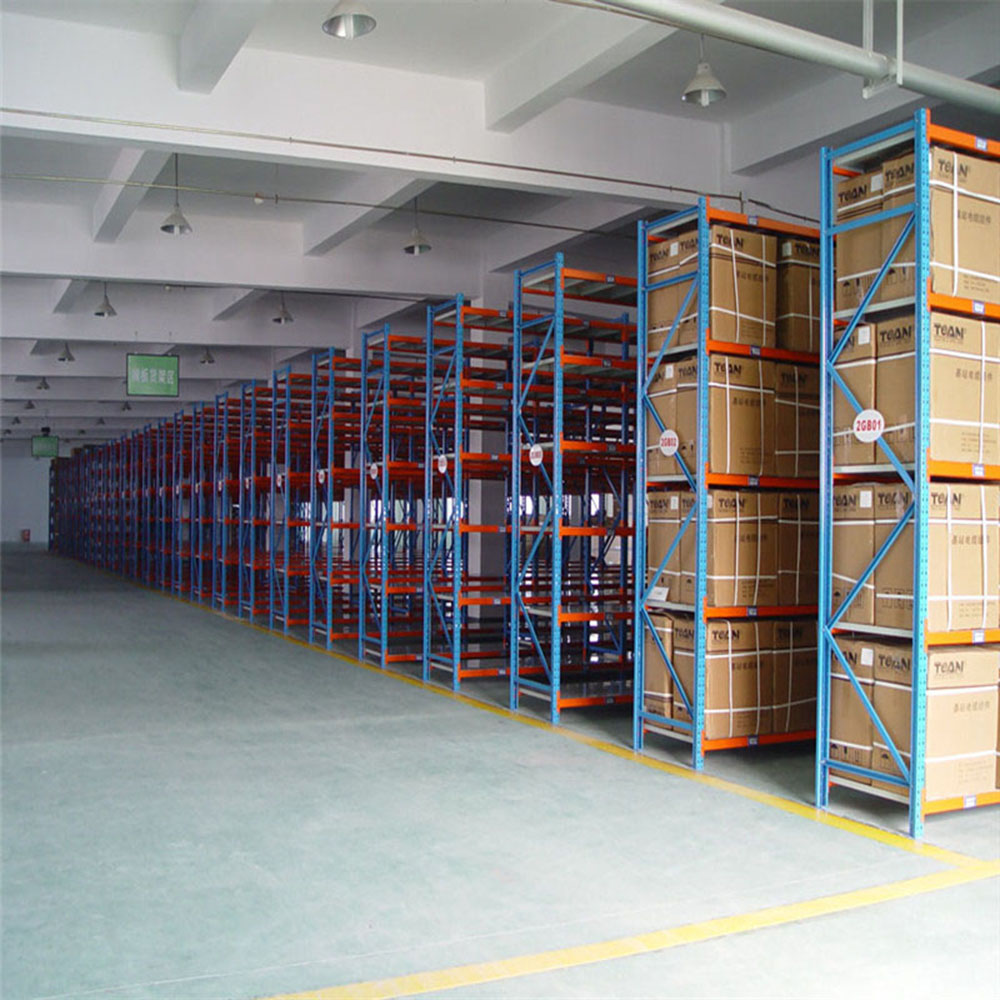

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is a "P" type beam, whose height matches with that of the layer board.
| Standards Size (mm) | Layers | Loading Weight | Beam (mm) | Upright (mm) | Board Thickness |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 mm |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 mm |
| Material | High-Quality Q235 Cold-Rolled Steel |
| Thickness | Upright: 60*40*1.0/1.2/1.5mm; Beam: 60*40/80*40*1.0/1.2/1.5mm; Steel: 0.5/0.6/0.7mm |
| Color | Upright: Blue; Beam: Orange; Steel: Gray White (Customizable) |
| Surface Treatment | Electrostatic Spray Surface / Powder Coating |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
Beam & Upright Connection
Diagonal & Horizontal Bracing
Steel Board Section
