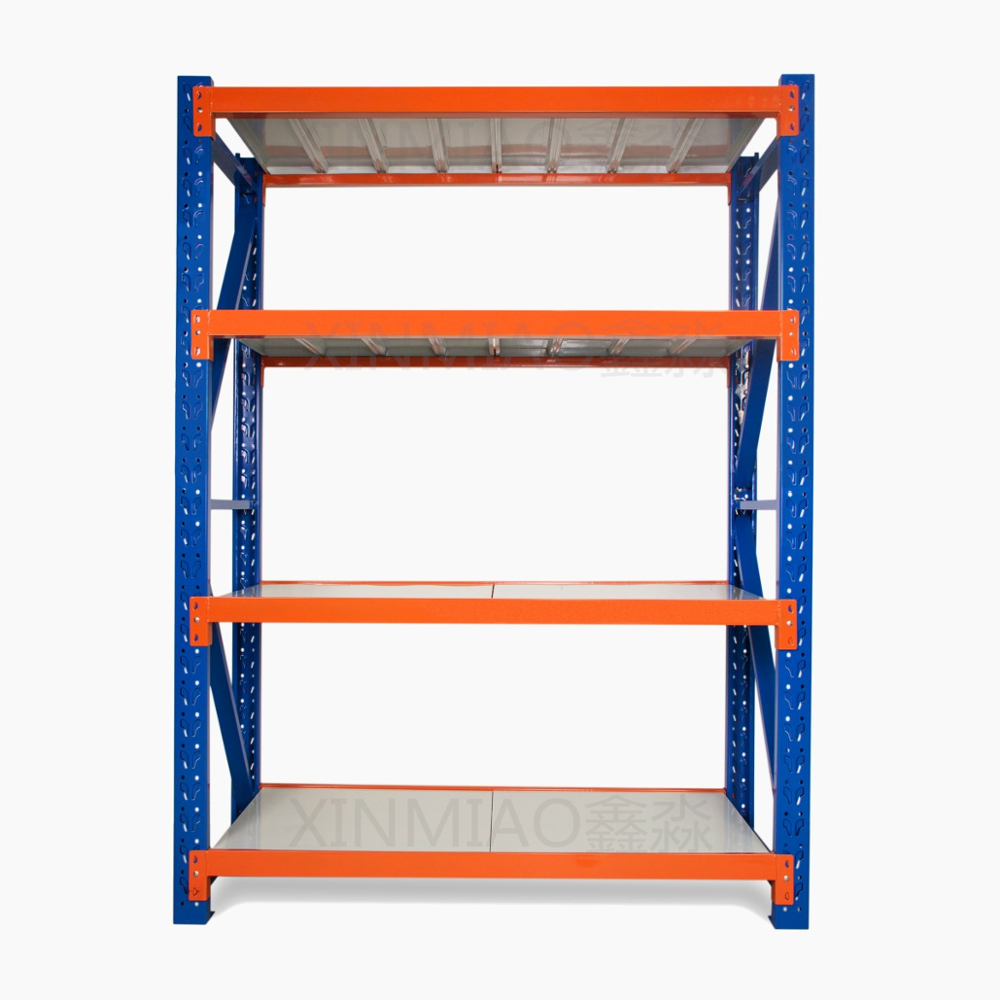

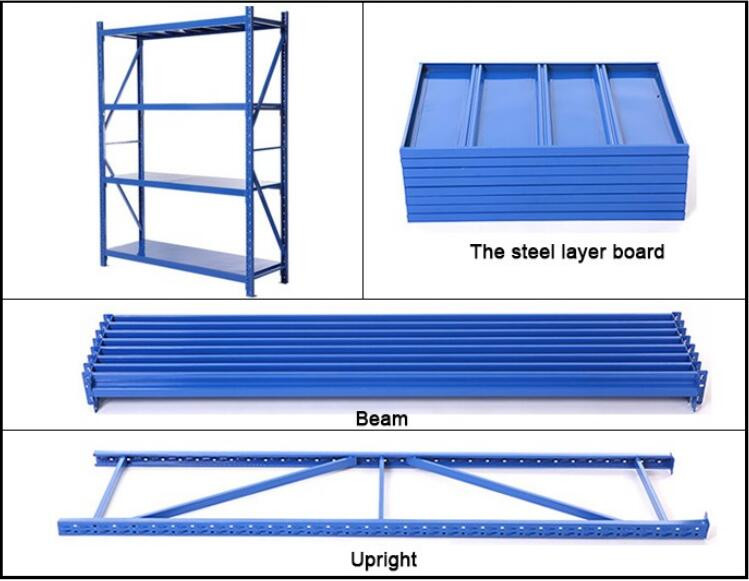

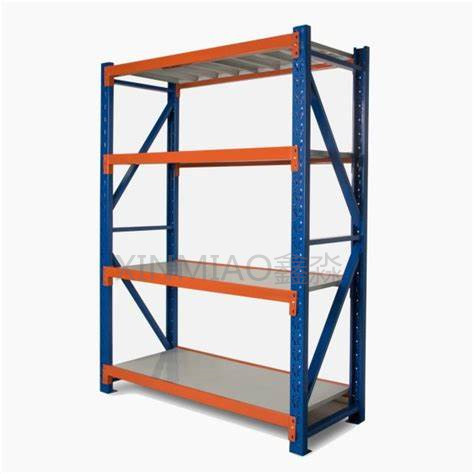

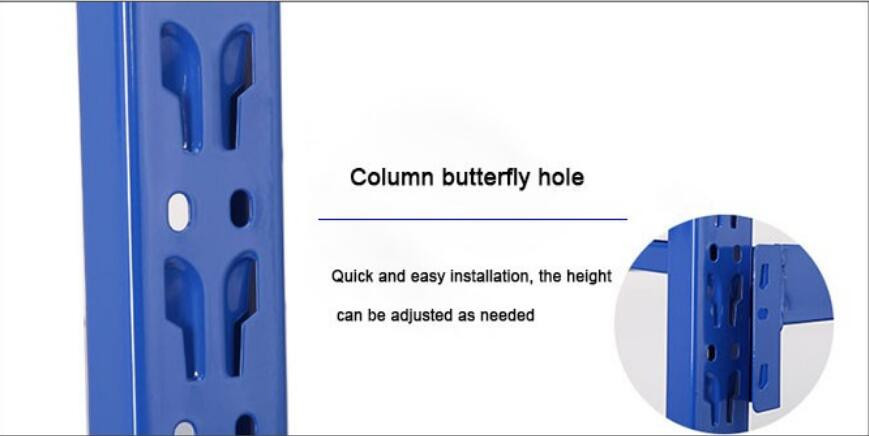

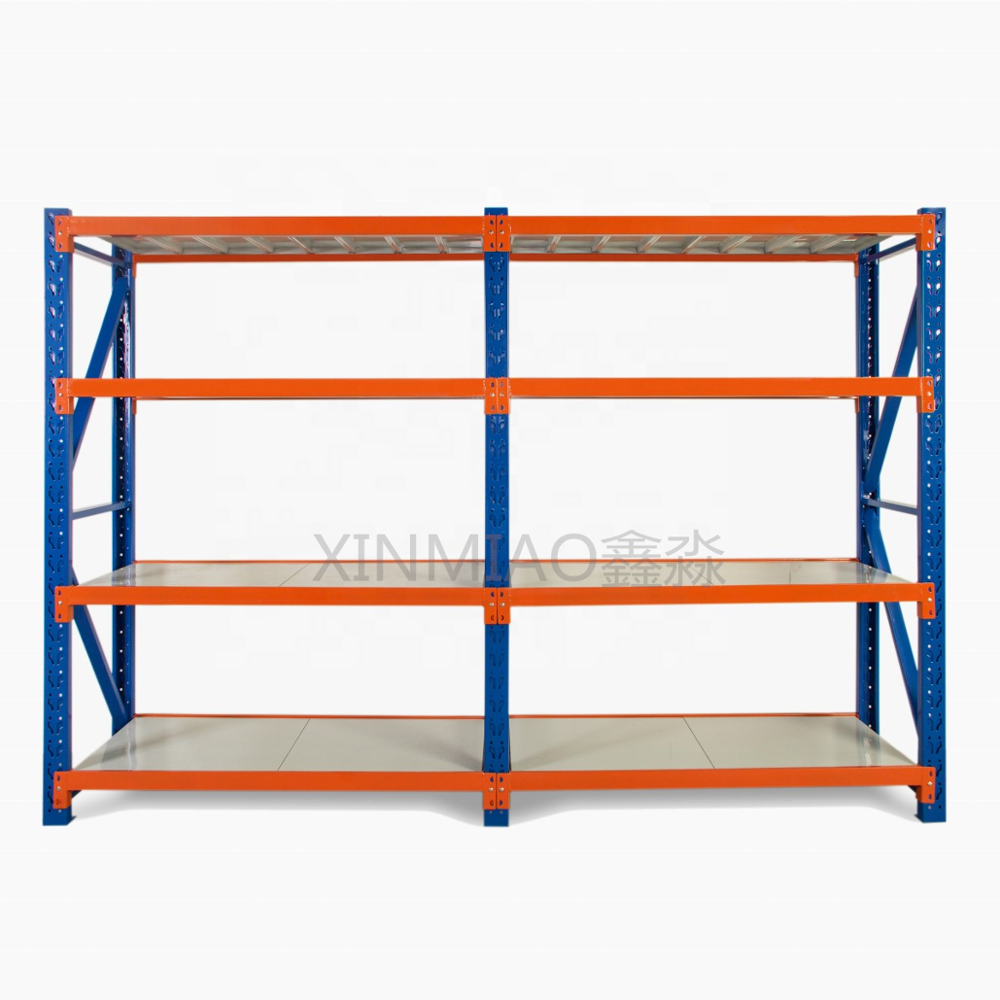

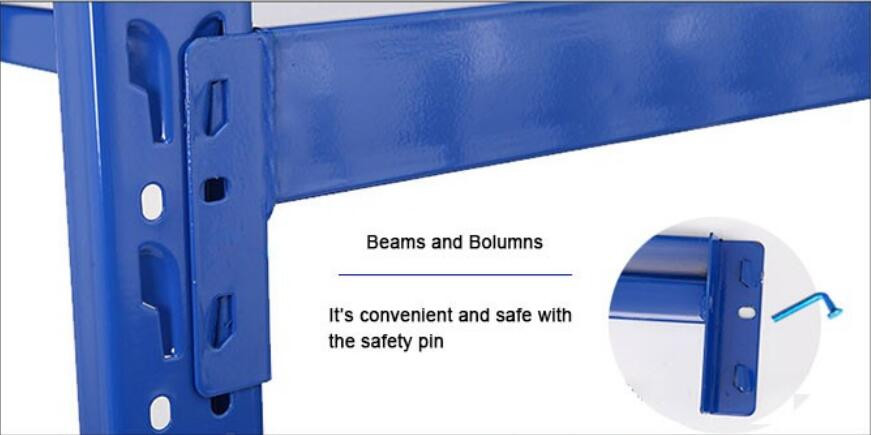

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Board Thickness |
| L2000*D600*H2000 | 4 | 300kg/layer | 60*40*0.8 | 75*35*0.8 | 0.4mm |
| L2000*D600*H2000 | 4 | 500kg/layer | 80*40*1.0 | 75*35*1.0 | 0.5mm |
| Product Name | Medium Duty Rack/Shelf | ||
| Material | High-Quality Q235 Cold-Rolled Steel | ||
| Loading Capacity | 200~500kgs/level | ||
| Thickness | Upright: 75*35*0.8/1.0mm; Beam: 60*40*0.8/80*40*1.0mm; Steel: 0.4/0.5mm | ||
| Color | Upright: Blue, Beam: Orange, Steel: Gray white. Custom colors available. | ||
| Surface Treatment | Powder Coating | ||
| Packing Term | Air bubble, Carton, Wooden Case | ||
Plate Plywood
Plate Steel Board
We devote ourselves to the design and manufacture of high-quality storage equipment. We specialize in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive-in racks, mezzanine and platforms, and other related storage solutions.
Through products and service aimed at providing complete assistance for all warehousing requirements, we offer a wide range of products with highest quality, competitive prices, rapid delivery times, and first-class support.
We are a specialized manufacturing factory located in Guangdong Province, China.
The primary material used is Q235 Cold Rolled Steel. We can also select specific materials based on customer requirements.
Yes, we are honored to offer you samples for quality verification and design reference.
Quality is our priority. Our facility maintains strict quality control standards from beginning to end and holds ISO9001 and SGS authentication.
Yes, we provide customization options for dimensions, loading capacities, and colors (standard blue, orange, and gray, or custom requests).
Medium Duty Racks typically support between 200kg and 500kg per level, depending on the beam and upright specifications.
