Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam(mm) | Upright(mm) | Thickness of Board(mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Technical Specifications | |
|---|---|
| Product Name | Medium Duty Rack/Shelf |
| Material | High-Quality Q235 Cold-Rolled Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright:60*40*1.0/1.2/1.5mm; Beam:60*40/80*40*1.0/1.2/1.5mm; Steel:0.5/0.6/0.7mm |
| Color | Upright: Blue, Beam: Orange, Steel: Gray white. (Customizable) |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
| Medium Duty Rack Details | |
| Size | L2000*D600*H2000mm |
| Loading | 300kg/layer, 4 levels |
| Material | Upright:60*50*1.0, Beam:60*40*1.2, Steel:0.5mm |
| Color | Upright: Blue, Beam/Steel: Gray white |
| Surface | Powder Coating |

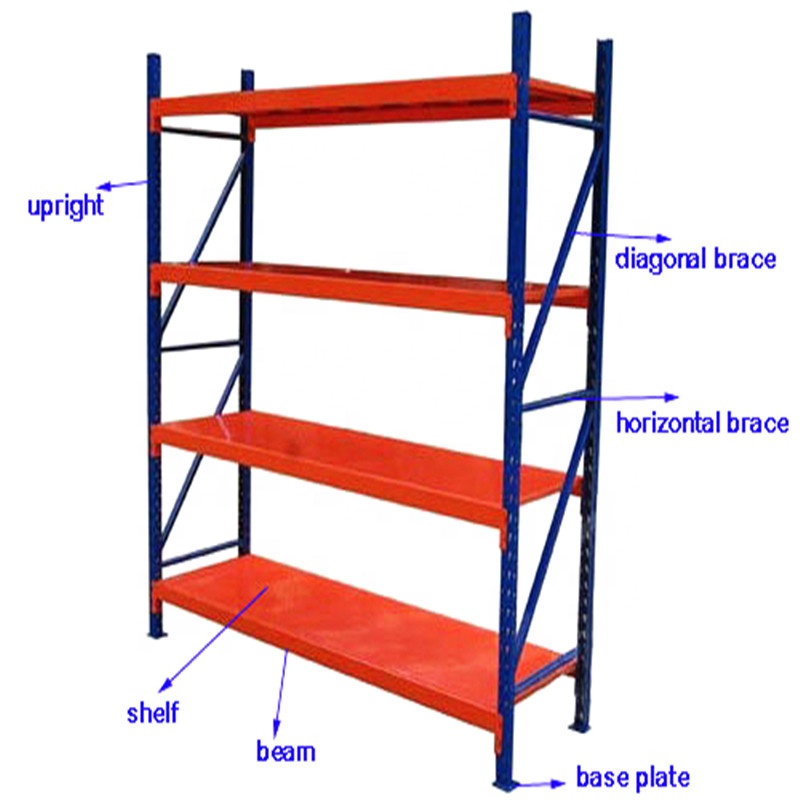

Beam & Upright Connect
Diagonal & Horizontal Bracing Installed
Steel Board Section
