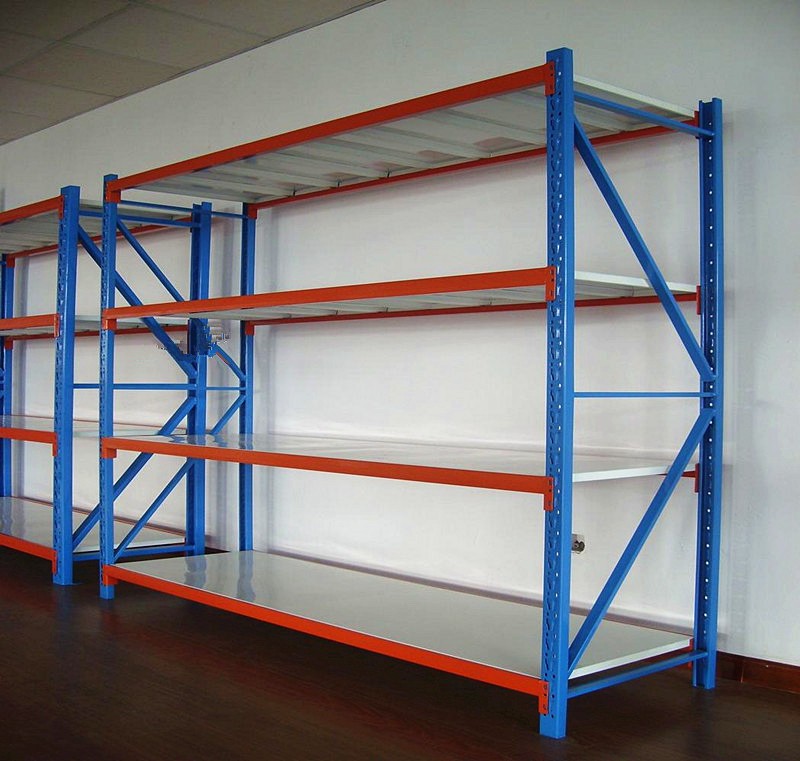

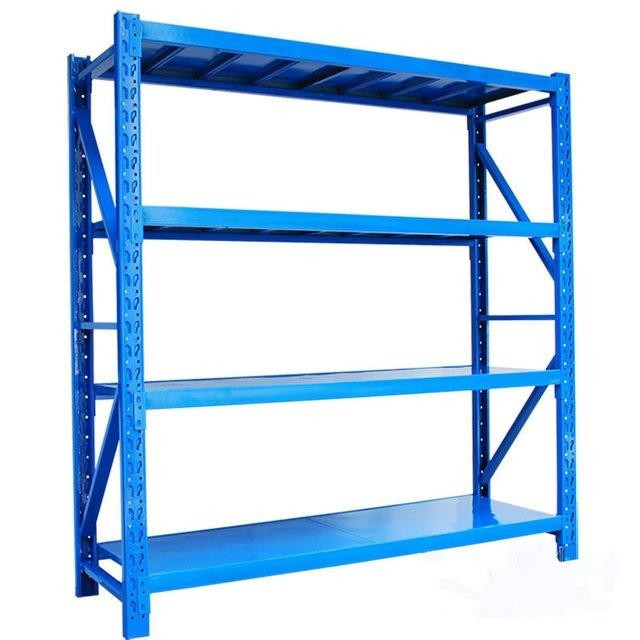

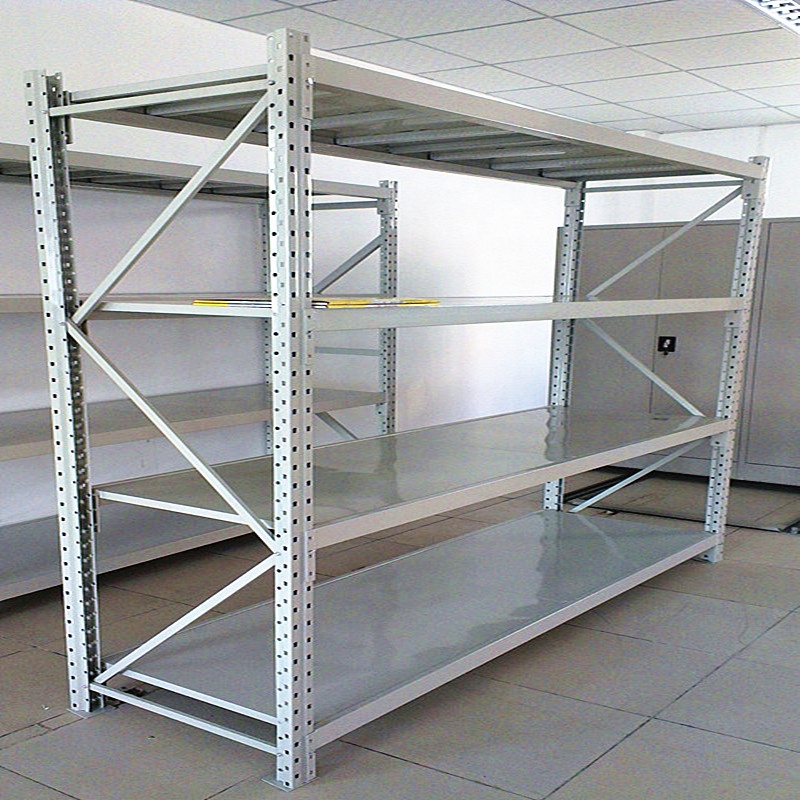

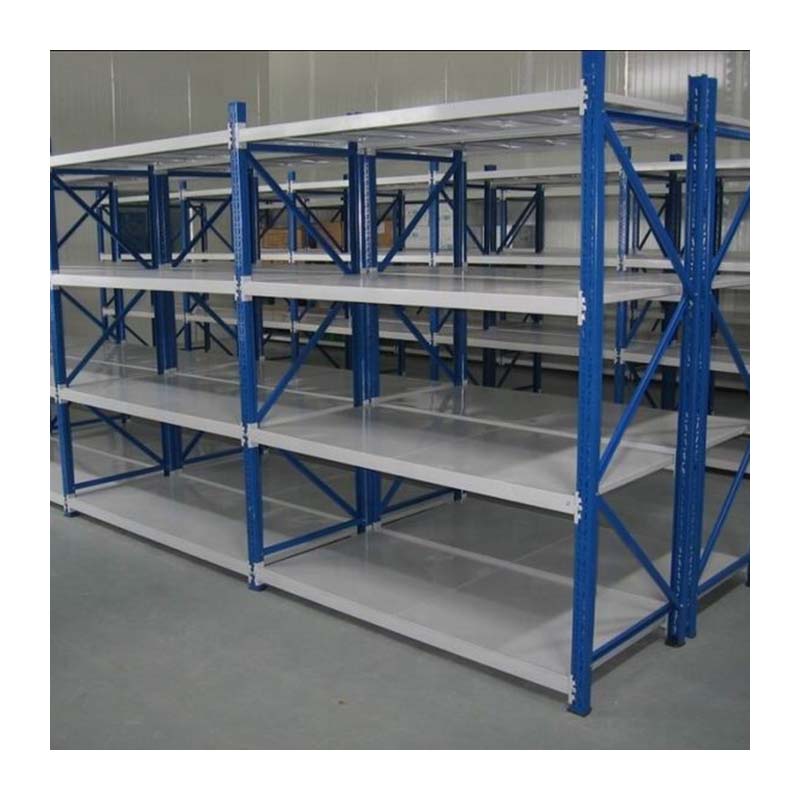

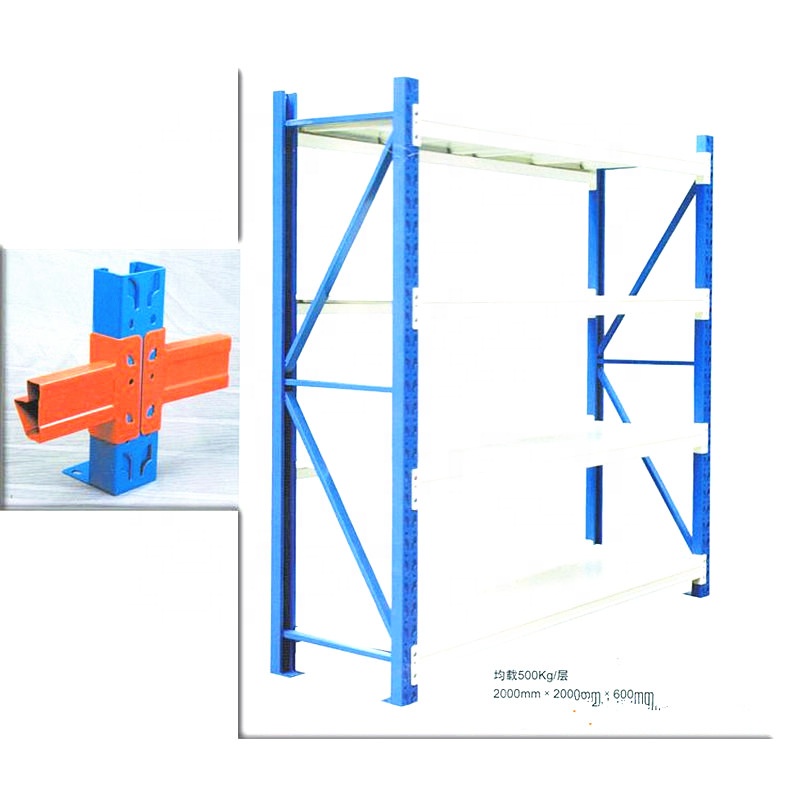

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can be reach 200-800kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Feature |

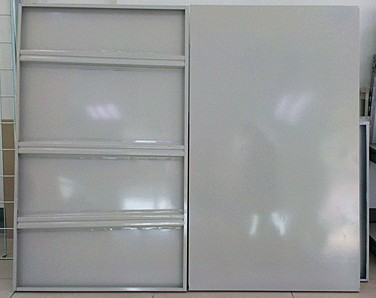

• Infinitely adjustable with a wide range of options. • Maximizes space use and product accessibility. • Rapid handling of palletised goods. • Board Material: Wood, Plywood, Steel. |
| Loading Weight |

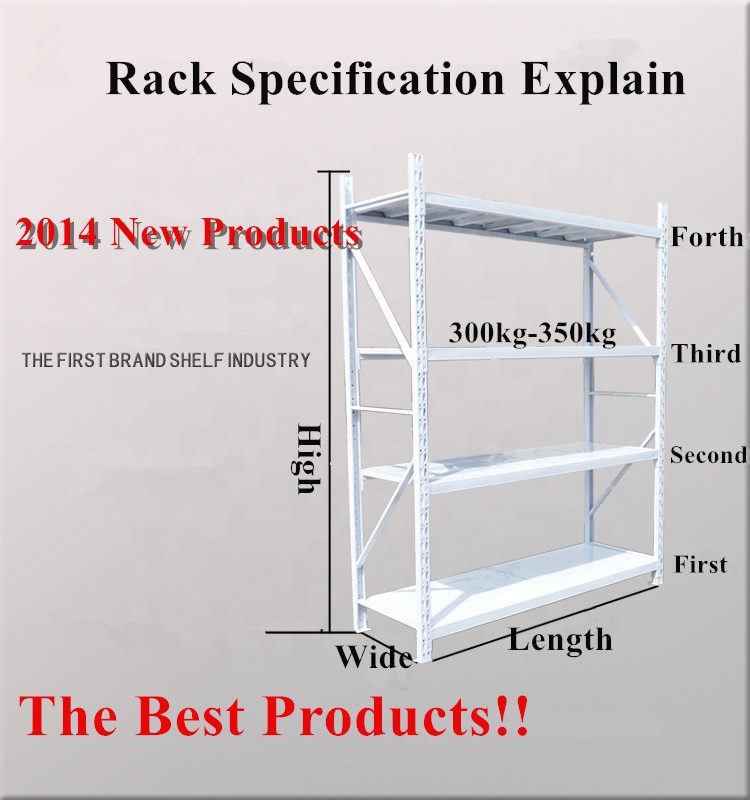

• 50~500kg/beam level. • Height: 1500-3000mm, Depth: 350-600mm, Length: 1500-2500mm. • Special sizes available for specific storage needs. |
| Main Parts Specs |

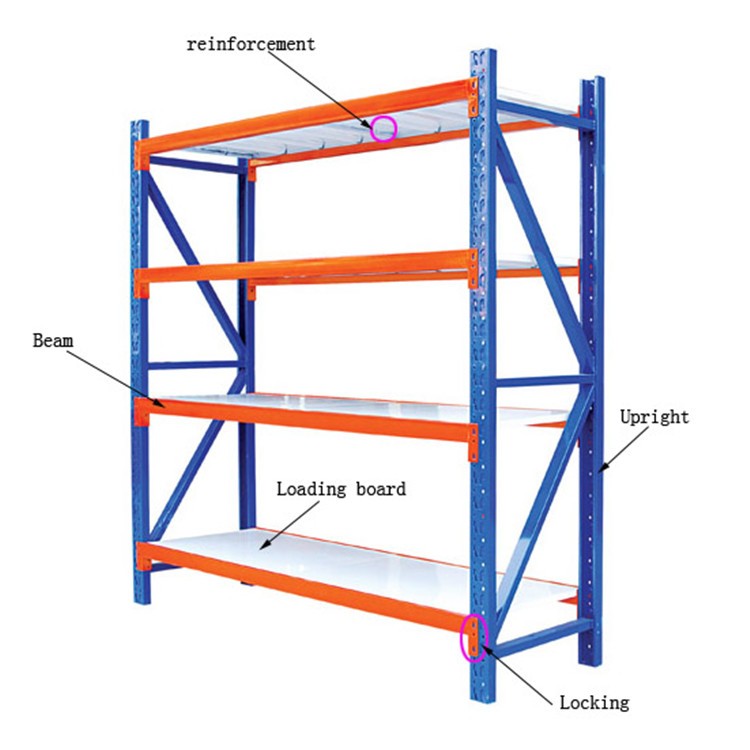

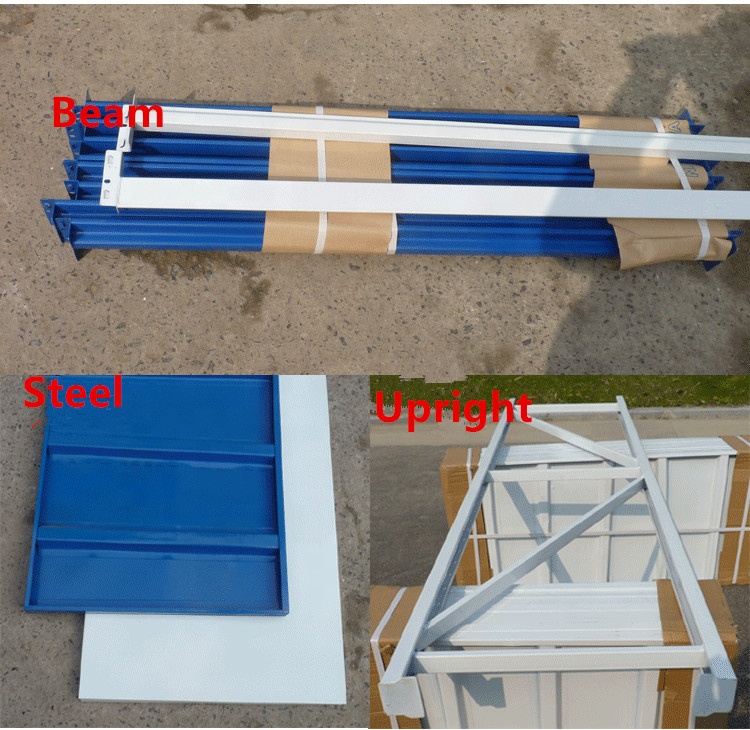

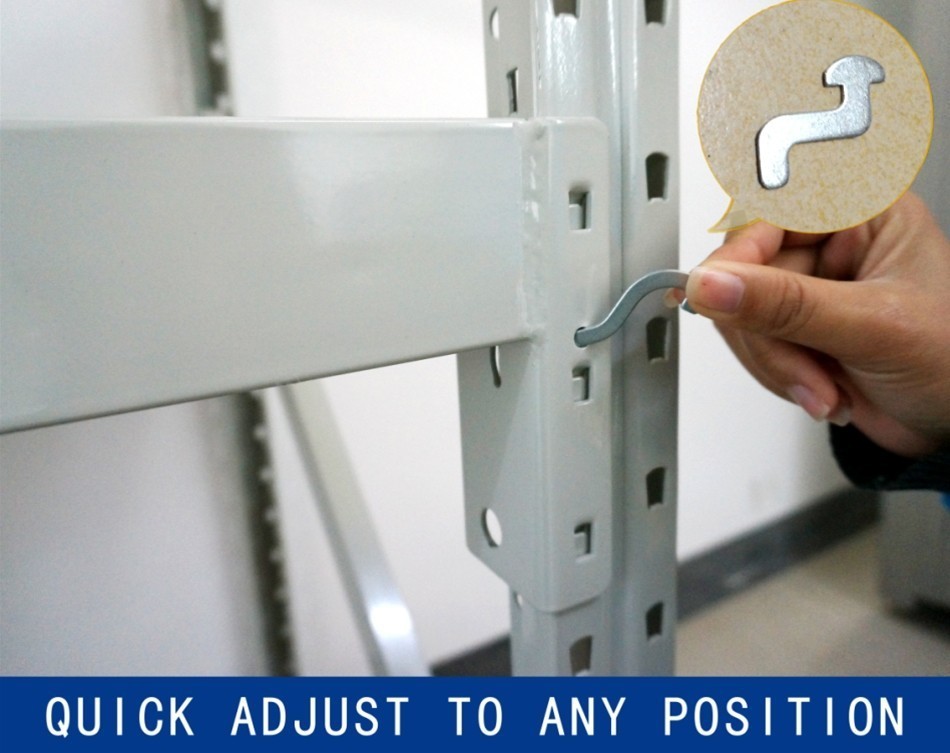

• Upright section: 60*50*1.0/1.2/1.5/2.0mm. • Beam Section: "P" 60*40/80*40, Thickness: 1.0/1.2/1.5mm. • Includes: braces, footplates, locking pins, bolts & nuts. |
| Material | High-quality cold rolled steel, Q235 |
| Delivery Time | Within 15 days. |

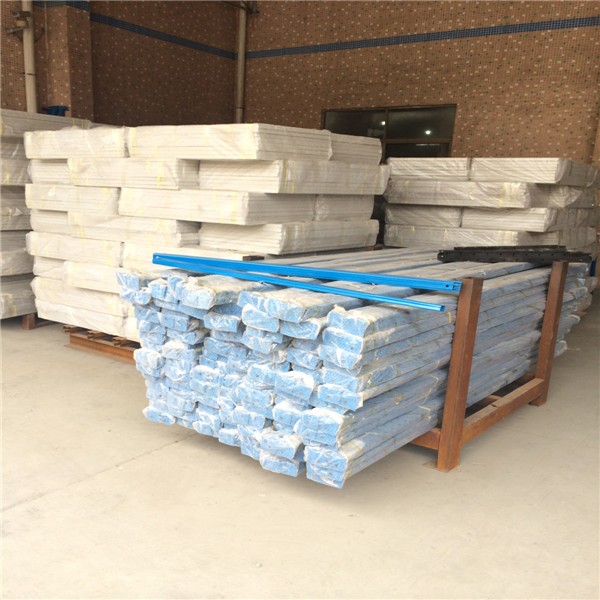

| Package Term | Air bubble pack, PE stretch film to prevent scratches. |
Professional Design Service Group
Storage Area For Raw Materials

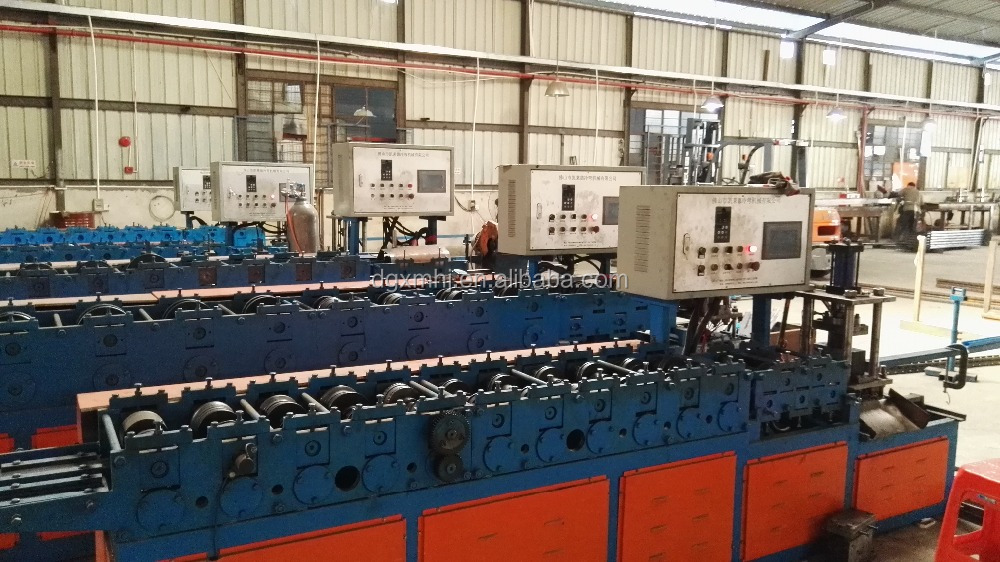

All-automatic Cold Rolling Line
Spraying Coating Line
Stamping Area (Bracket)
Goods Packaging Area
We devote ourselves to the design and manufacture of high-quality storage equipment. Our expertise lies in producing various pallet racking, longspan shelving, warehouse racks, mould racks, wire containers, mobile filing cabinets, cantilever racks, rivet shelving, drive-in racks, mezzanines, and other related storage solutions.
Our products and services are aimed at providing complete assistance for all warehousing, product showcasing, and sales outlet requirements. We offer a wide range of products of the highest quality with competitive pricing, rapid delivery, and first-class back-up service.
