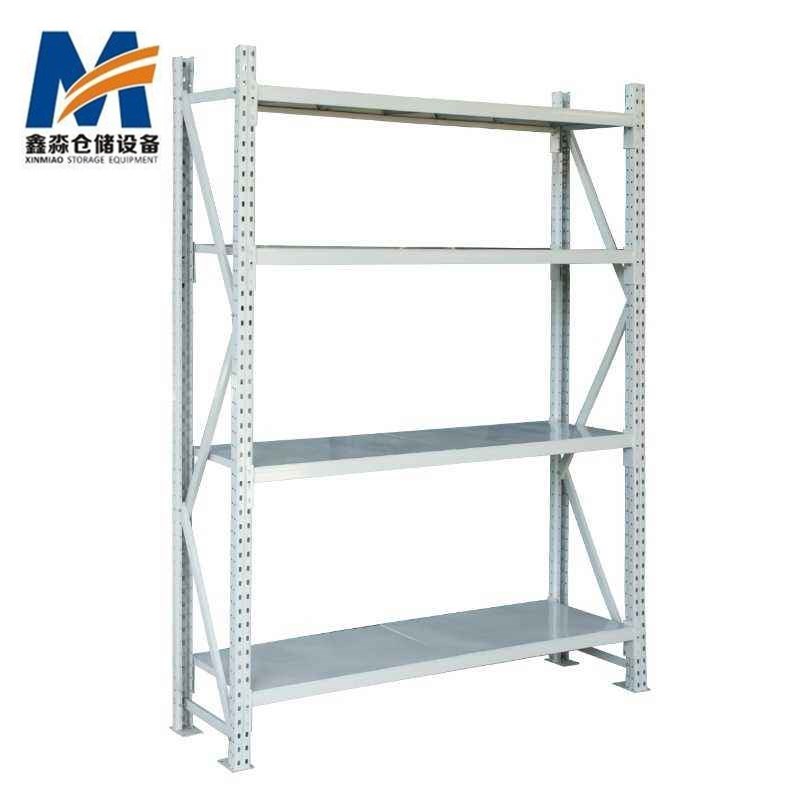

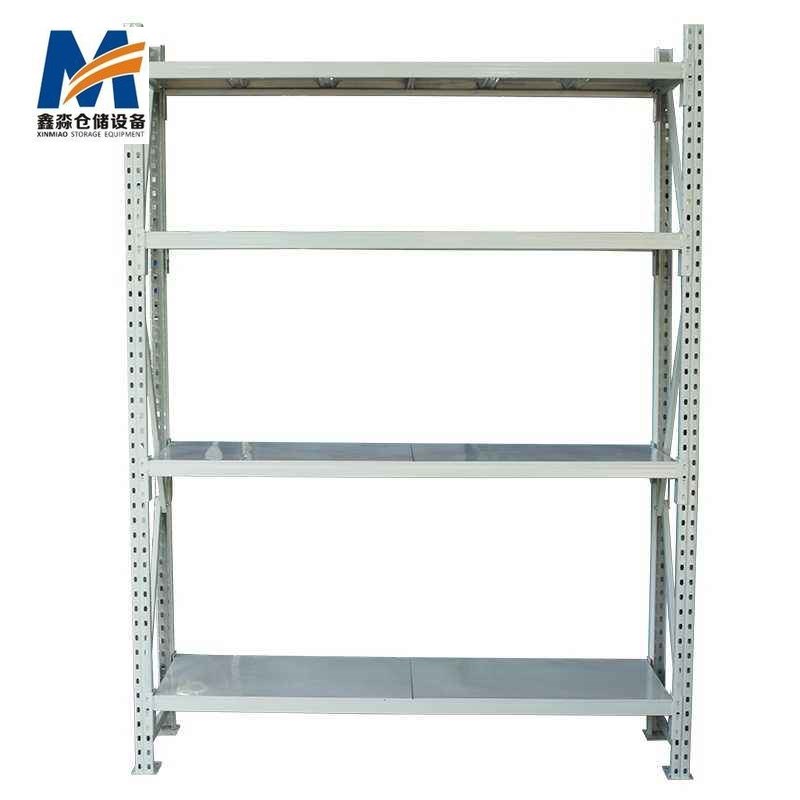

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Board Thickness |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5mm |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7mm |
| Material | High-Quality Q235 Colded-Coll Steel |
| Loading Capacity | 200~500kgs/level |
| Color Options | Upright: Blue, Beam: Orange, Steel: Gray white (Customizable) |
| Surface Treatment | Electrostatic Spray Surface |
| Warranty | 10 Years |
| Certification | SGS |
Medium Duty System
Beam & Upright Connect
Bracing Installation
Steel Board Section
