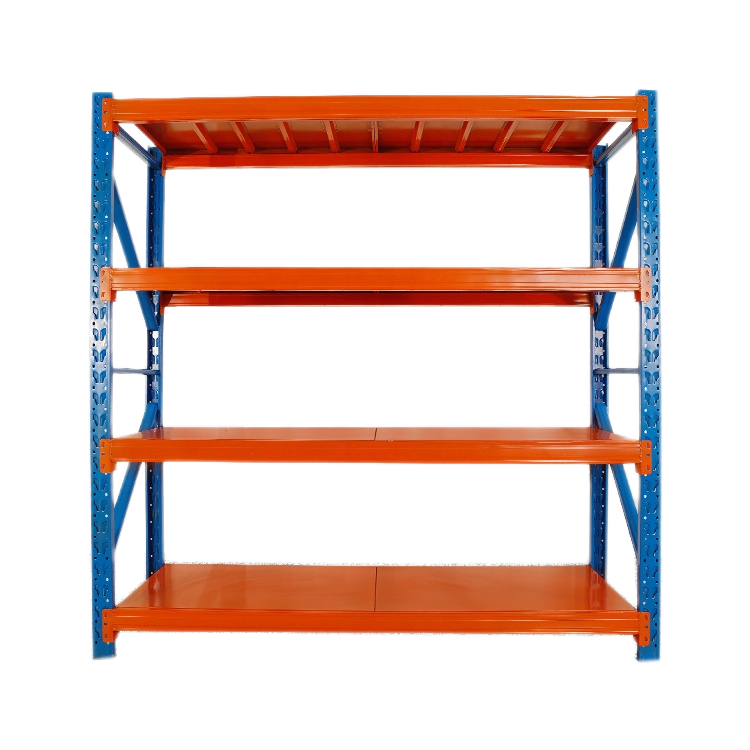

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam(mm) | Upright(mm) | Thickness of Board(mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf | ||||
|---|---|---|---|---|---|
| Material | High-Quality Q235 Cold-Rolled Steel | ||||
| Loading Capacity | 200~500kgs/level | ||||
| Thickness | Upright:60*40*1.0,1.2,1.5mm; Beam:60*40/80*40*1.0,1.2,1.5mm; Steel:0.5,0.6,0.7mm | ||||
| Color | Upright: Blue, Beam: Orange, Steel: Gray white. Custom colors available. | ||||
| Surface Treatment | Electrostatic Spray Surface | ||||
| Packing Term | Air bubble, Carton, Wooden Case | ||||
| Warranty | 10 Years | ||||
| Certification | SGS | ||||
Long span shelving rack is very convenient for installation.
The adjustment distance of steel layers is 50mm for multiple usages. It consists of vertical columns, layer plates, corner pieces, pins, special bolts and plastic footing.
The surface is electrostatic sprayed and the color is selectable. It has good ability of corrosion protection and rust protection.
It is widely used in families, stores, supermarkets, company storages and public institutions.
