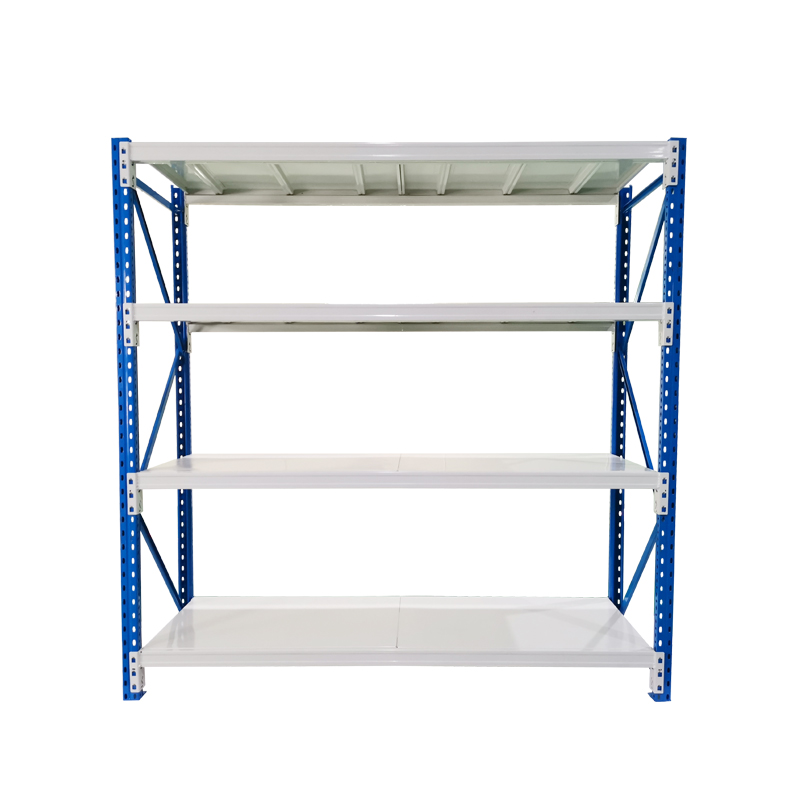

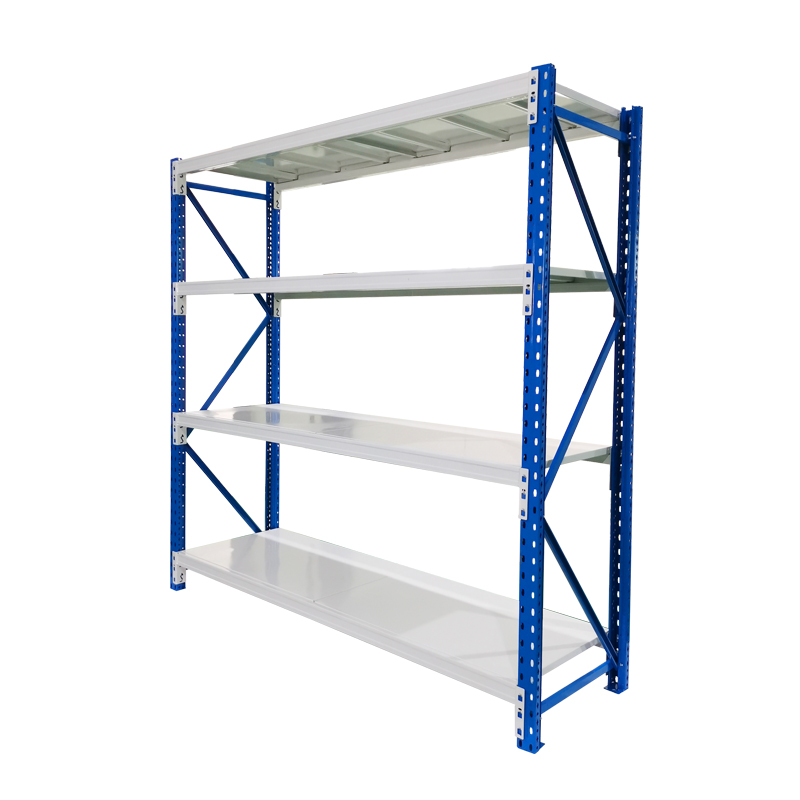

Mracking Medium Duty Warehouse Rack 500KG Loading Capacity Industrial Storage Steel/Metallic Rack Direct Sale by Manufacturer

1 / 5

Mracking Medium Duty Warehouse Rack 500KG Loading Capacity Industrial Storage Steel/Metallic Rack Direct Sale by Manufacturer

Send Inquiry

Product Description

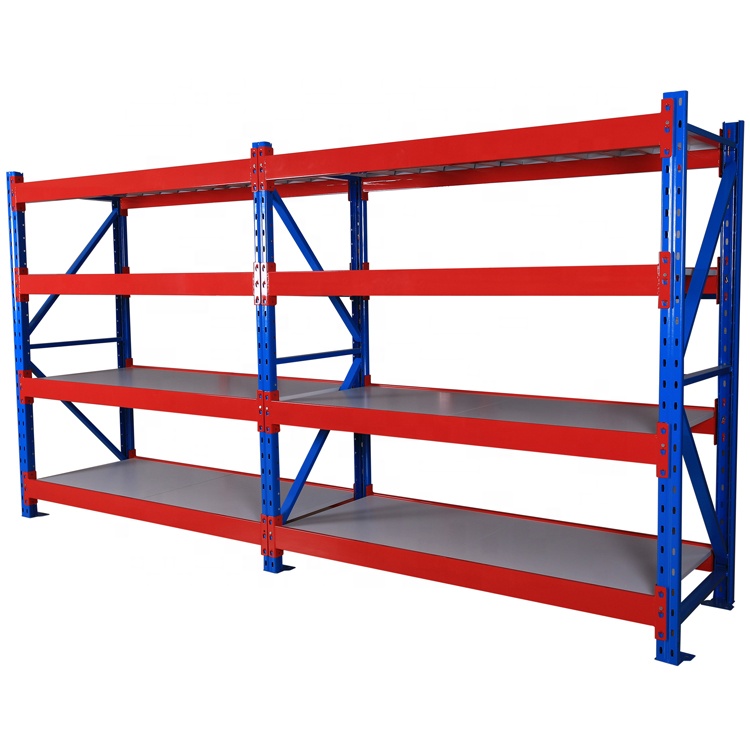

Medium Duty Rack Overview

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.

Standards Size Specifications

Standards Size	Layer	Loading Weight	Beam(mm)	Upright(mm)	Thickness of Board(mm)
L2000D600H2000	4	200~300kg/layer	60401.2	60501.2	0.5
L2000D600H2000	4	400~500kg/layer	60401.5	60501.5	0.7

Product Parameters

Product Name	Medium Duty Rack/Shelf
Material	High-Quality Q235 Colded-Coll Steel
Loading Capacity	200~500kgs/level
Thickness	Upright: 60401.0/1.2/1.5mm; Beam: 6040/8040*1.0/1.2/1.5mm; Steel Board: 0.5/0.6/0.7mm
Color	Upright: Blue, Beam: Orange, Steel: Gray white. (Customizable)
Surface Treatment	Electrostatic Spray Surface
Packing Term	Air bubble, Carton, Wooden Case
Warranty	10 Years
Certification	SGS

✔ Long span shelving rack is very convenient for installation.

✔ The adjustment distance of steel layers is 50mm for multiple usages. Consists of vertical columns, layer plates, corner pieces, pins, special bolts, and plastic footing.

✔ Electrostatic sprayed surface with selectable colors, providing excellent corrosion and rust protection.

✔ Widely used in families, stores, supermarkets, company storages, and public institutions.

Beam Loading Capacity & Size

Detailed Component Images

Unit Specifications:
Size: L2000*D600*H2000mm
Loading: 300kg/layer
Material: Upright 60*50*1.0, Beam 60*40*1.2, Steel 0.5mm
Surface: Powder Coating

Beam & Upright Connect

Bracing Installation

Steel Board Section

Product Overviews

Hot Sale Storage Solutions

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

Frequently Asked Questions

1. Are you a manufacturer or a trading company? We are a professional racking manufacturer specializing in high-quality storage solutions.

2. What material is used for the racks? Our racks are made from high-quality Q235B cold rolled steel, ensuring durability and strength.

3. What is the typical delivery time for an order? In general, delivery takes less than 15 workdays, depending on the order quantity and specific shelving design.

4. What information is needed for a quick quotation? Please provide the rack size (Length*Depth*Height), the number of layers per set, the load capacity per beam layer, and the total quantity needed.

5. How does your factory handle quality control? Quality is our priority. We maintain strict quality control standards and hold ISO 9001 certifications.

6. How are the products packaged for shipping? Standard packaging includes air bubble film. Other options like cartons or wooden cases are available upon request.
