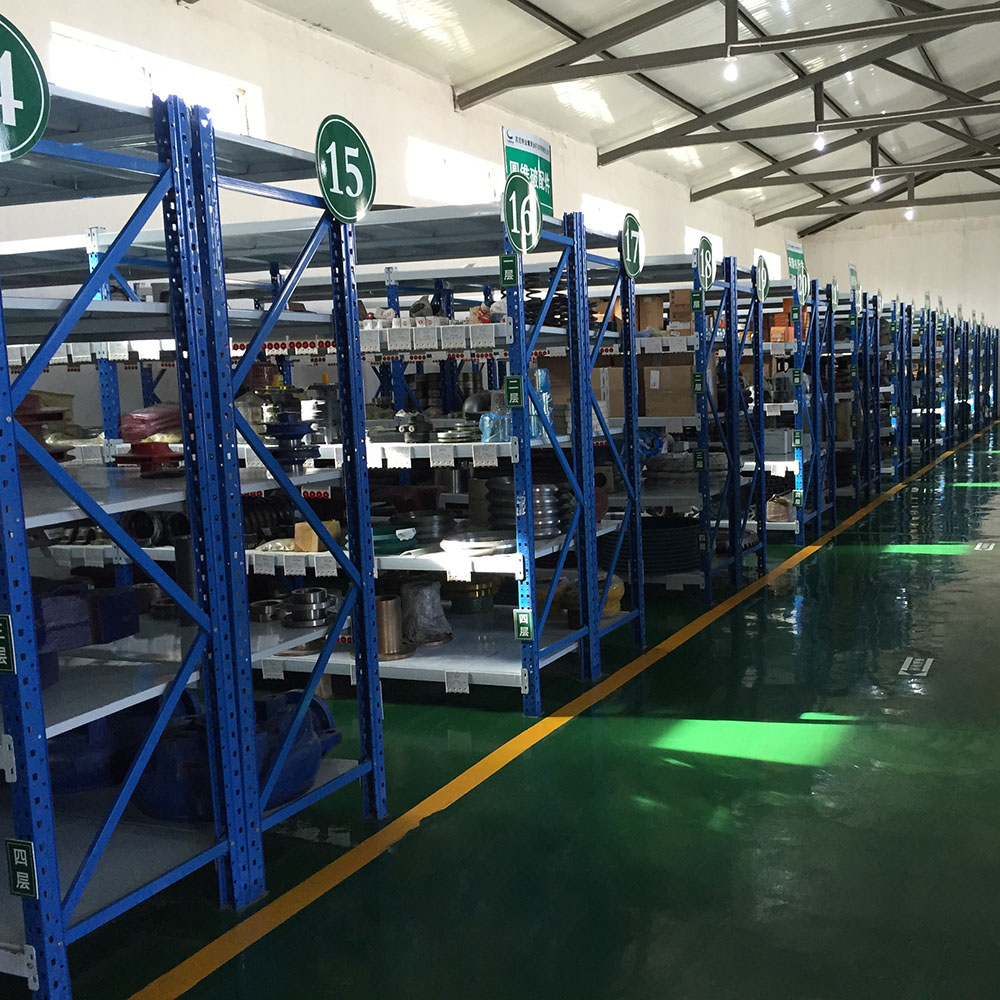

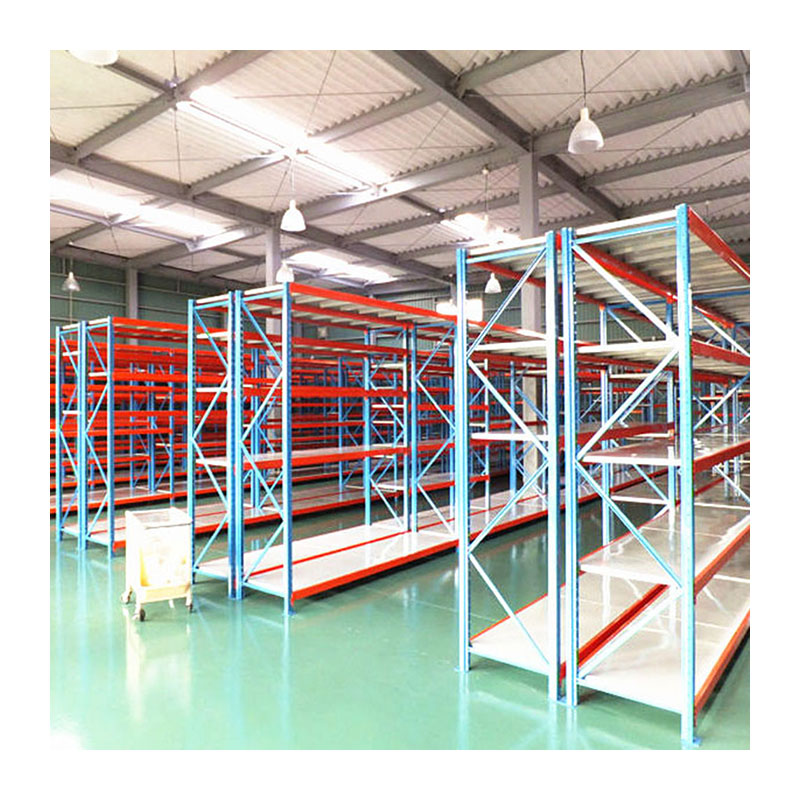

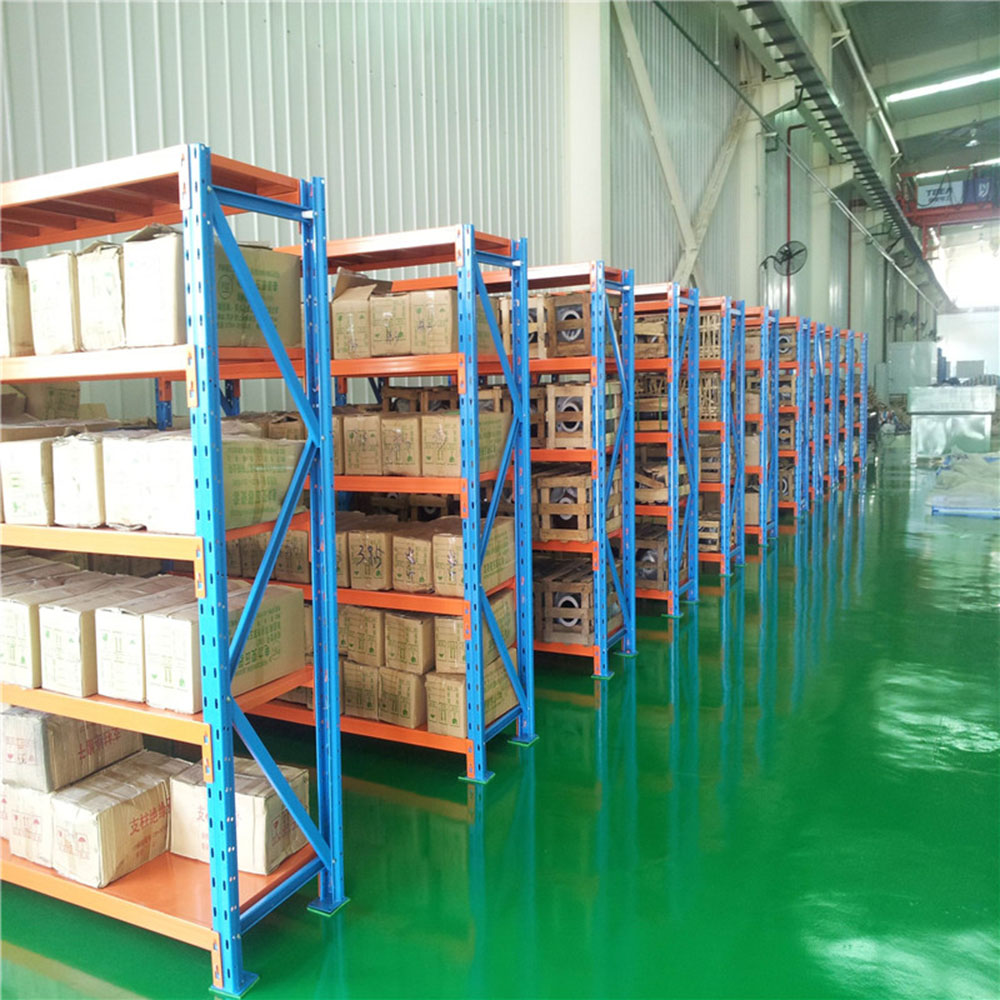

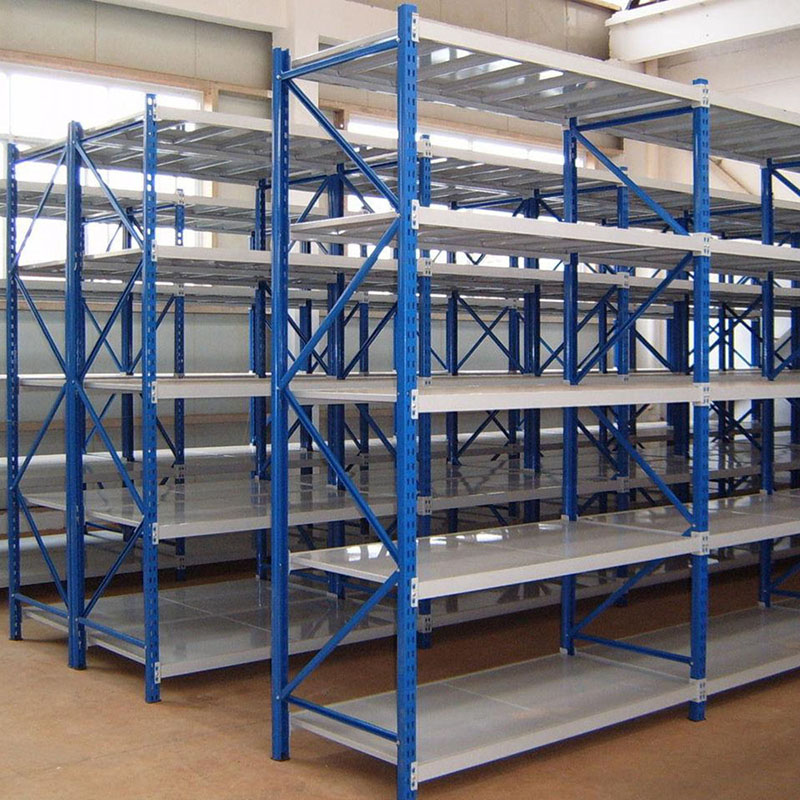

Medium Duty Rack
Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
Standards Size Specifications
| Standards Size |
Layer |
Loading Weight |
Beam (mm) |
Upright (mm) |
Thickness (mm) |
| L2000*D600*H2000 |
4 |
200~300kg/layer |
60*40*1.2 |
60*50*1.2 |
0.5 |
| L2000*D600*H2000 |
4 |
400~500kg/layer |
60*40*1.5 |
60*50*1.5 |
0.7 |
Product Parameters
| Product Name |
Medium Duty Rack/Shelf |
| Material |
High-Quality Q235 Colded-Coll Steel |
| Loading Capacity |
200~500kgs/level |
| Thickness |
Upright: 60*40*1.0/1.2/1.5mm; Beam: 60*40/80*40*1.0/1.2/1.5mm; Steel: 0.5/0.6/0.7mm |
| Color |
Upright: Blue; Beam: Orange; Steel: Gray white. (Customizable) |
| Surface Treatment |
Electrostatic Spray Surface |
| Warranty |
10 Years |
| Certification |
SGS |
Key Features & Benefits
- Easy Installation: Long span shelving rack is very convenient for installation.
- Flexible Adjustment: The adjustment distance of steel layers is 50mm for multiple usages. It is consisted of vertical columns, layer plates, corner pieces, pins, special bolts and plastic footing.
- Superior Protection: The surface is electrostatic sprayed, providing excellent corrosion and rust protection.
- Versatile Application: Widely used in families, stores, supermarkets, company storages, and public institutions.
Beam Loading Capacity & Size Chart
Detailed Construction
| Medium Duty Rack Specs |
| Size | L2000*D600*H2000mm |
| Loading | 300kg/layer, 4 levels |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color | Blue Upright, Gray White Beam/Steel |
| Treatment | Powder Coating |
Beam & Upright Connect
Bracing Installed
Steel Board Section
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional racking manufacturer.
2. What is the material of your racks?
Our primary material is high-quality Q235B cold rolled steel.
3. What is the standard delivery time?
General delivery is less than 15 workdays, depending on the order quantity and shelving design.
4. What are your payment terms?
We typically require a 30% T/T down payment and 70% T/T before delivery.
5. How can I get a quick quotation for my project?
Please provide the rack size (Length*Depth*Height), number of layers, load capacity per beam layer, and total quantity.
6. Do you offer samples and how are products packed?
We provide free samples with freight collect. Standard packing involves air bubble film, with options for wooden cases upon request.
