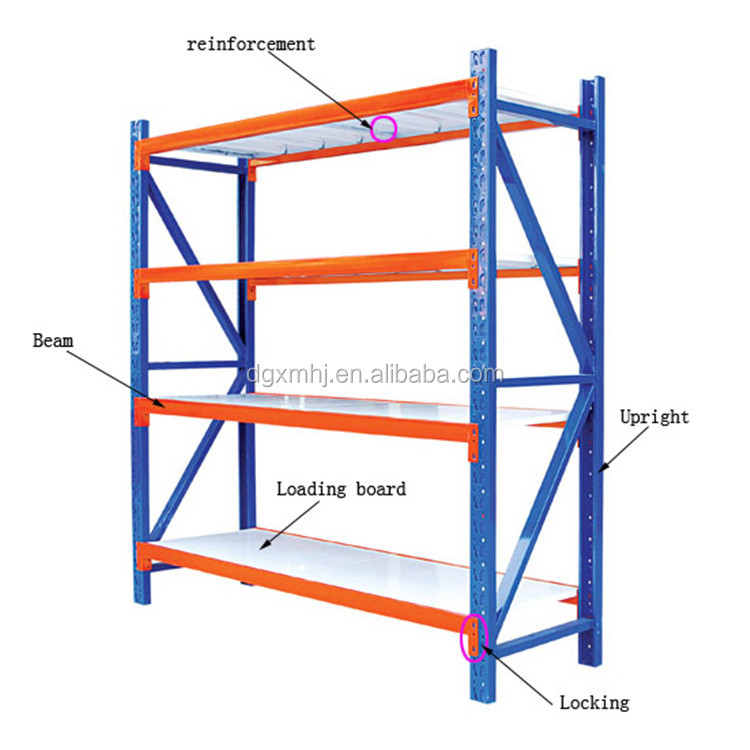

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam(mm) | Upright(mm) | Thickness (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf | ||
| Material | High-Quality Q235 Colded-Coll Steel | ||
| Loading Capacity | 200~500kgs/level | ||
| Thickness | Upright:60*40*1.0/1.2/1.5mm; Beam:60*40/80*40*1.0/1.2/1.5mm; Steel Board:0.5/0.6/0.7mm | ||
| Color | Upright: blue, Beam: Orange, Steel: Gray white. Customizable colors available. | ||
| Surface Treatment | Electrostatic Spray Surface | ||
| Packing Term | Air bubble, Carton, Wooden Case | ||
| Warranty | 10 Years | ||
| Certification | ISO | ||
1. Long span shelving rack is very convenient for installation.
2. The adjustment distance of steel layers is 50mm for multiple usages. It consists of vertical columns, layer plates, corner pieces, pins, special bolts and plastic footing.
3. The surface is electrostatic sprayed and the color is selectable. It has good ability of corrosion protection and rust protection.
4. It is widely used in families, stores, supermarkets, company storages and public institutions.
| Medium Duty Rack Specifications | |
|---|---|
| Size | L2000*D600*H2000mm, 4 levels |
| Loading | 300kg/layer |
| Material | Upright:60*50*1.0, Beam:60*40*1.2, Steel:0.5mm |
| Color | Blue upright, gray white beam/steel |
| Surface | Powder Coating |

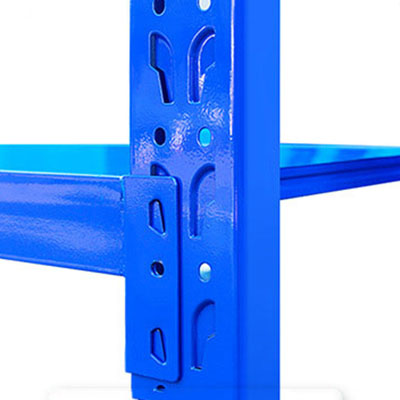

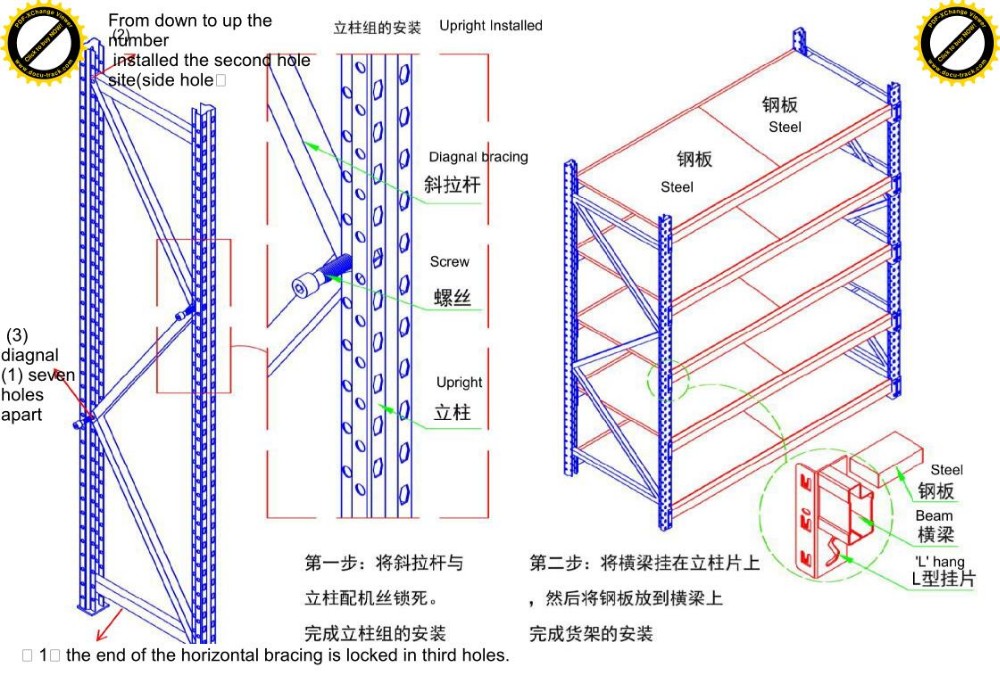

Beam & Upright Connect

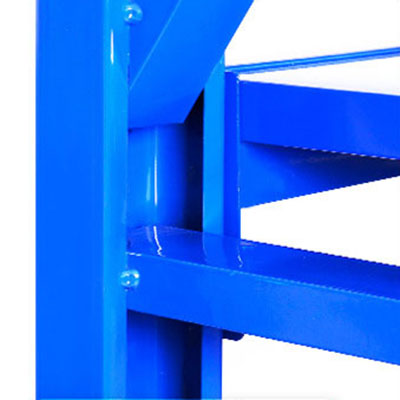

Bracing Installed

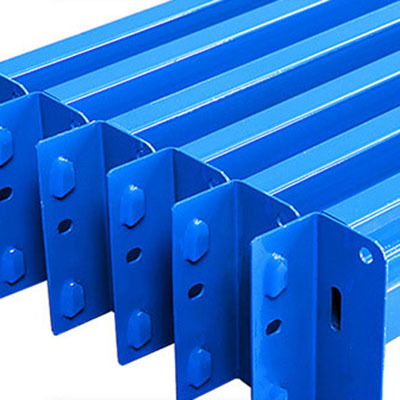

Steel Board Section
Our facility devotes itself to the design and manufacture of high-quality storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, and stacking racking.
