Medium duty rack belongs to professional warehouse storage racking systems. It is designed for versatile storage needs where items can be adjusted by each 50mm pitch. The load capacity typically reaches 200~500kg per level. The system utilizes a specialized "P" type beam, specifically engineered to match the height of the layer board for a flush, secure fit.
| Standard Size (L*D*H) | Layers | Loading Capacity | Beam (mm) | Upright (mm) | Board Thickness |
|---|---|---|---|---|---|
| 2000*600*2000 mm | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 mm |
| 2000*600*2000 mm | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 mm |
| Material | High-Quality Q235 Cold-Rolled Steel | Surface Treatment | Electrostatic Spray Surface |
|---|---|---|---|
| Available Colors | Upright: Blue, Beam: Orange, Steel: Gray white (Customizable) | Warranty | 10 Years |
| Certification | SGS | Packing Term | Air bubble, Carton, Wooden Case |
Long span shelving rack is designed for extremely convenient and fast installation without complex tools.
The adjustment distance of steel layers is 50mm, allowing for multiple storage usages and heights.
Electrostatic sprayed surface provides excellent corrosion and rust protection for long-term use.

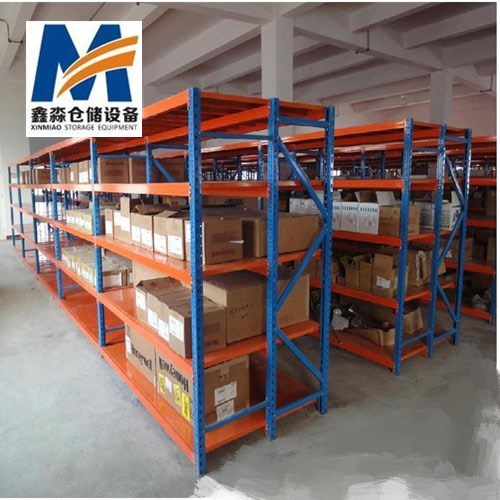

Widely used in homes, stores, supermarkets, company storages, and public institutions.
Beam & Upright Connection
Diagonal & Horizontal Bracing
Steel Board Section
