Xinmiao Storage
1 / 5

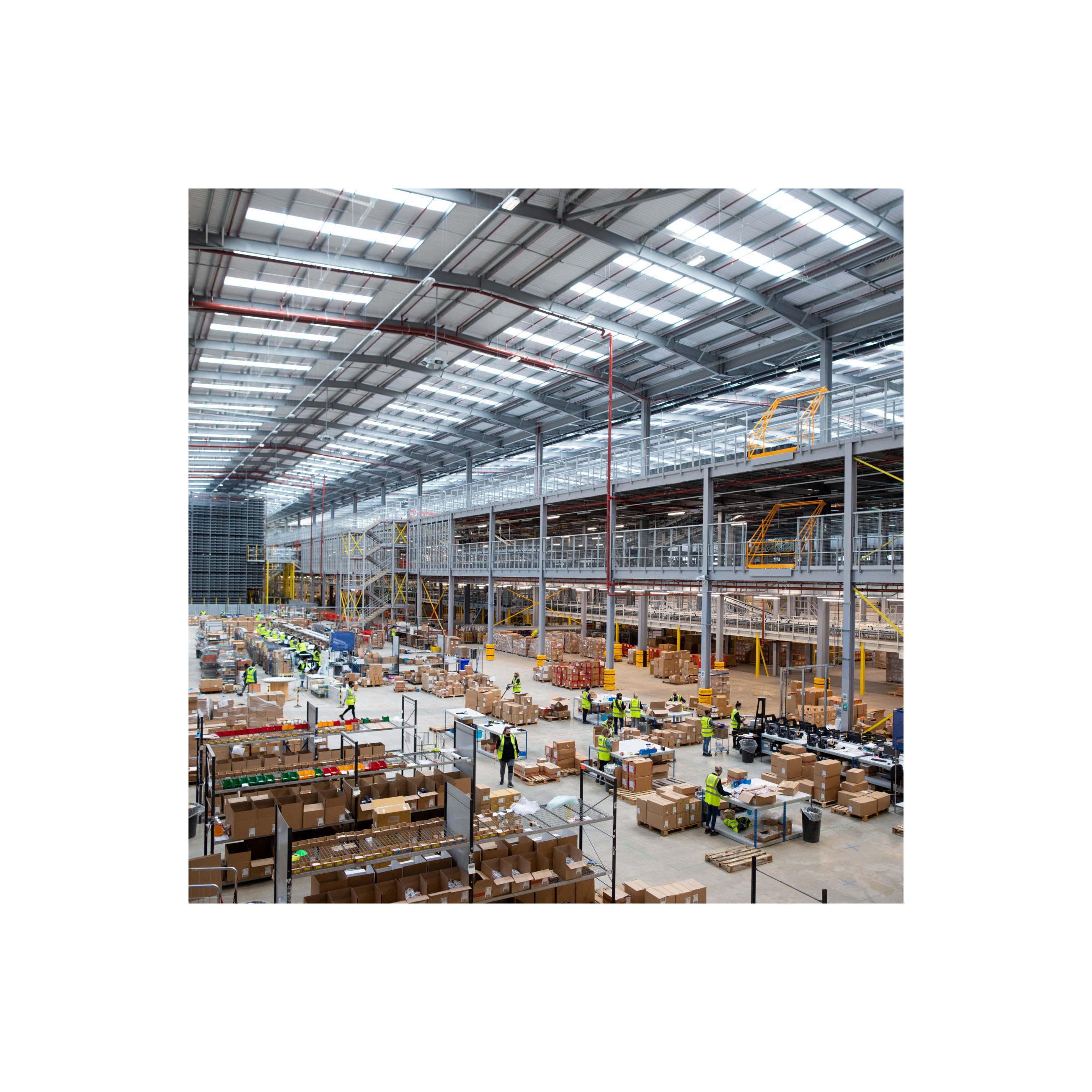

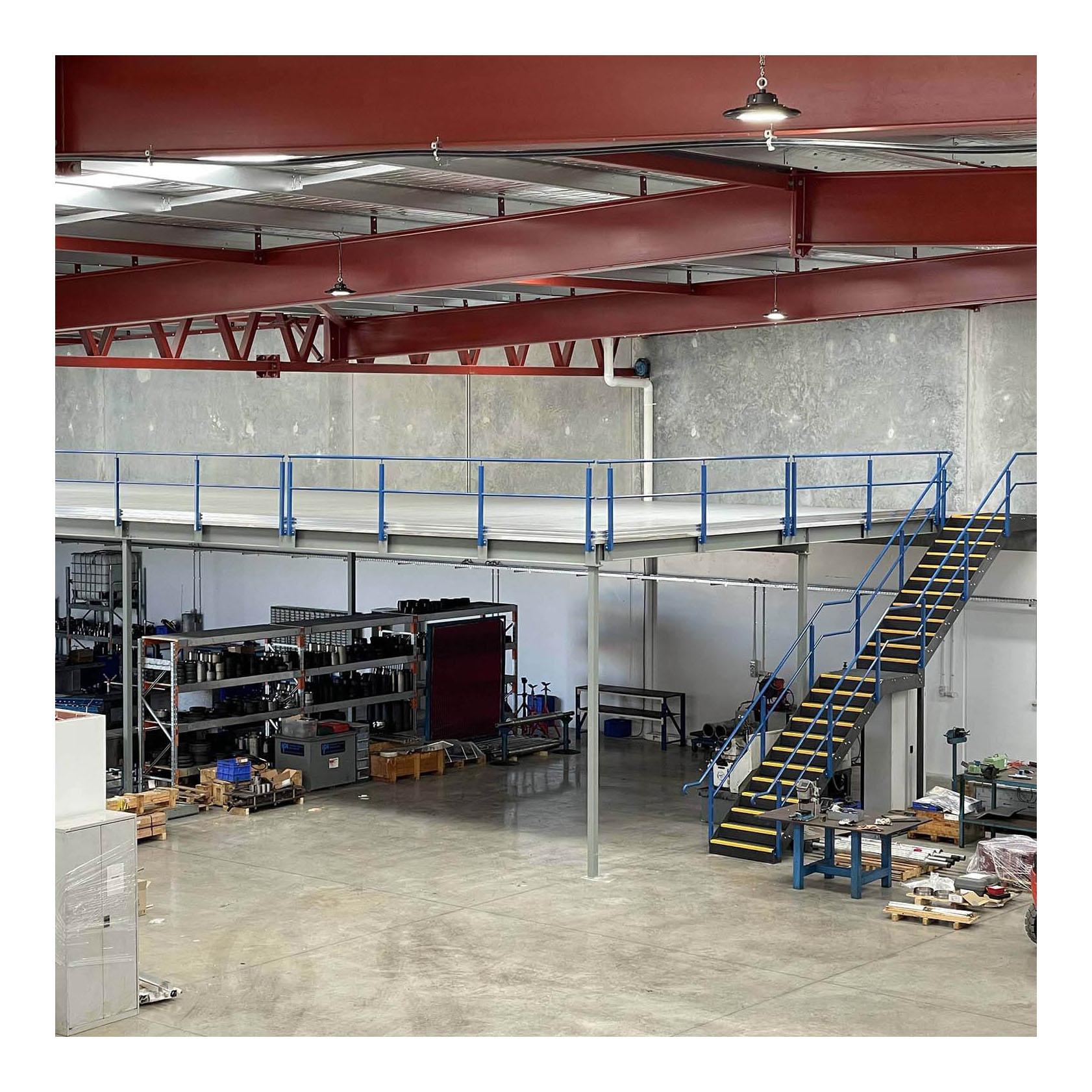

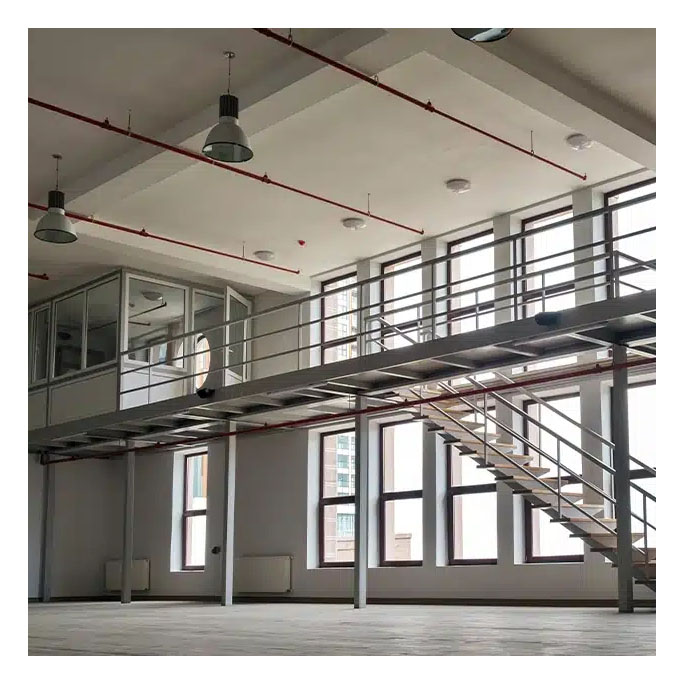

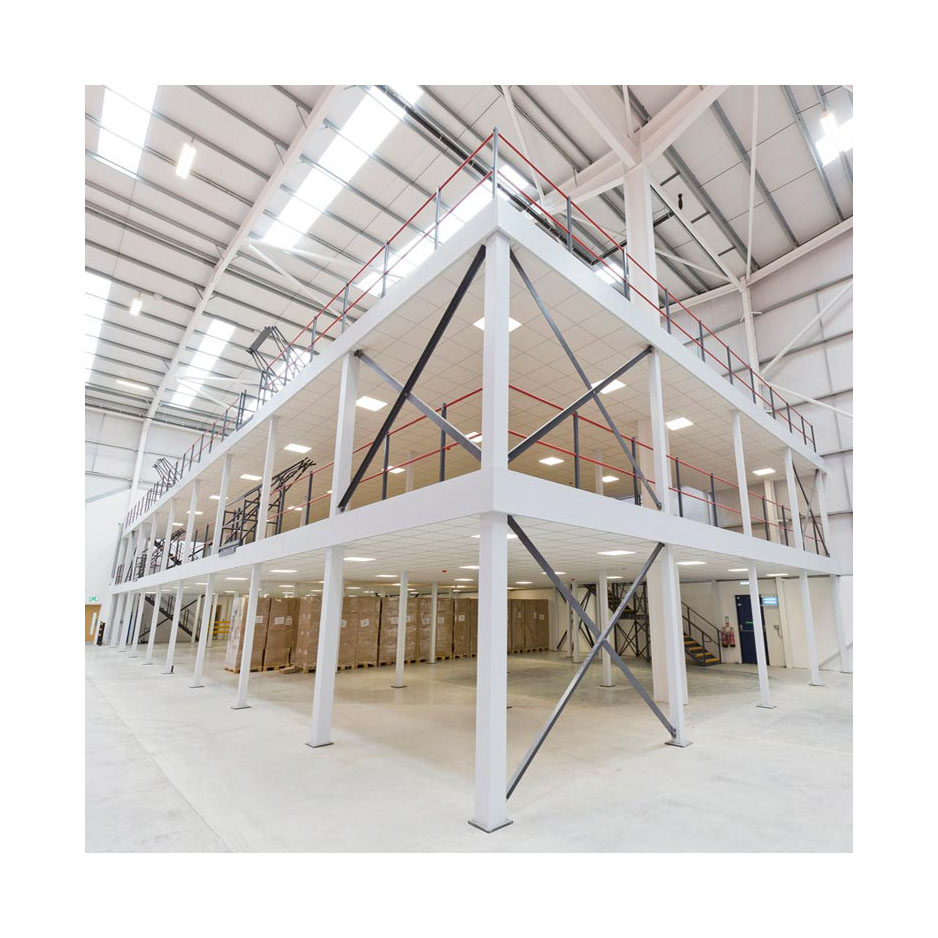

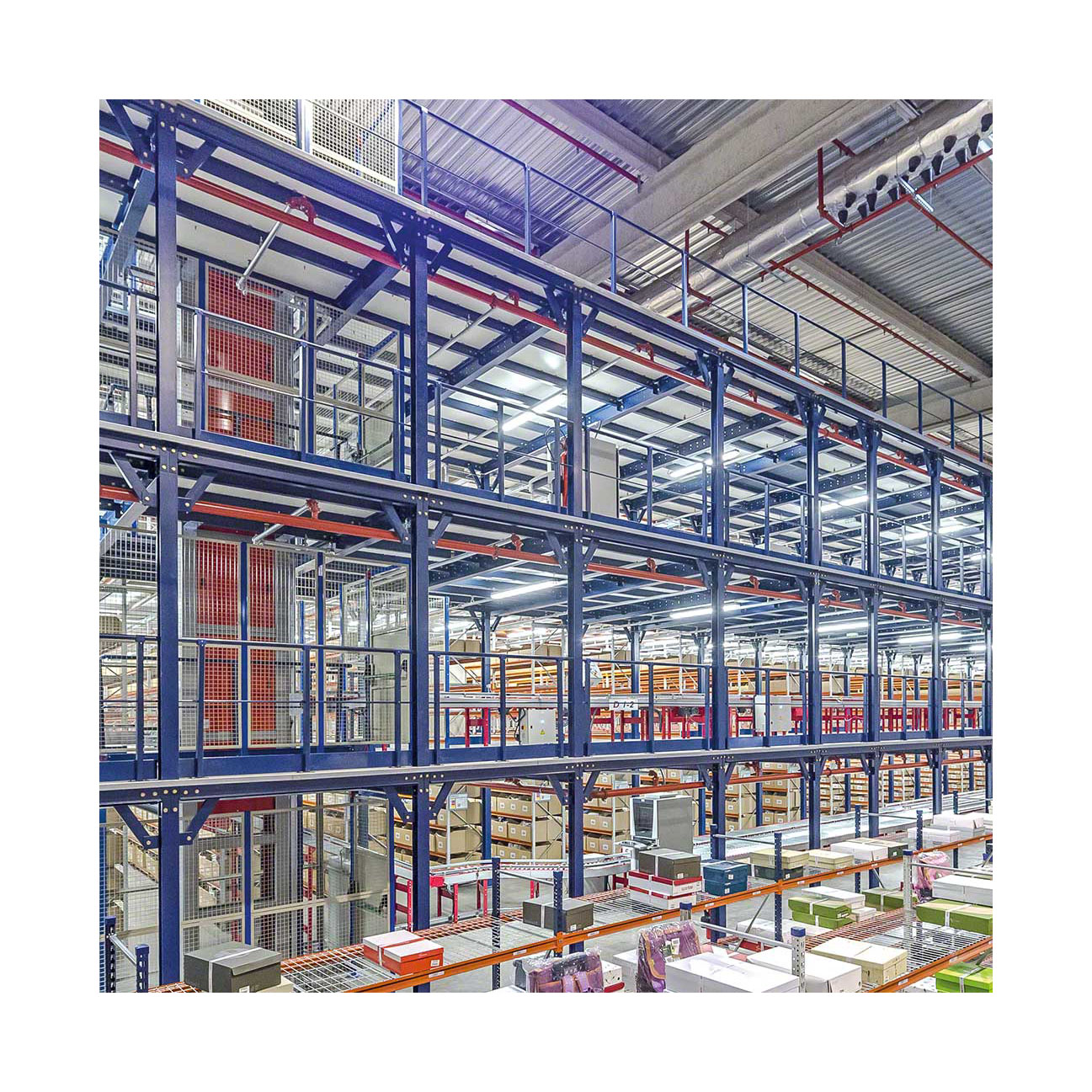

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually, we use the steel panel or MDF panel for the mezzanine floor, integrated with staircases and guardrails. It matches perfectly with cargo lifts for maximum efficiency.
It is suitable for high warehouses requiring large loading capacity, longer spans, and extensive storage. This system makes full use of vertical space, effectively turning one warehouse into two. Widely used for electronics, hardware, communications, and printing industries.
| Raw Material | High-Quality Q235 Cold rolled steel |
|---|---|
| Color | Upright frame is blue, Beam is orange (Customizable) |
| Loading Capacity | 200 ~ 5000kg per sqm |
| Surface Treatment | Powder coated |
| Dimensions | Height, Width, Depth, and Length are all Customized |
| Packing | Air bubble, Wooden Case, etc. |
Both components are made of H-steel. The loading capacity is high and the span is long. Major beams are connected by connector pieces on each side to ensure maximum stability.
They are connected with hanging pieces welded directly onto the main beam. This structural design significantly increases the overall stability of the major beam system.
Steel panels and support beams are connected with secure hooks. The guardrail hangs on the main beam without the need for drilling holes, preserving the integrity and strength of the beam.
