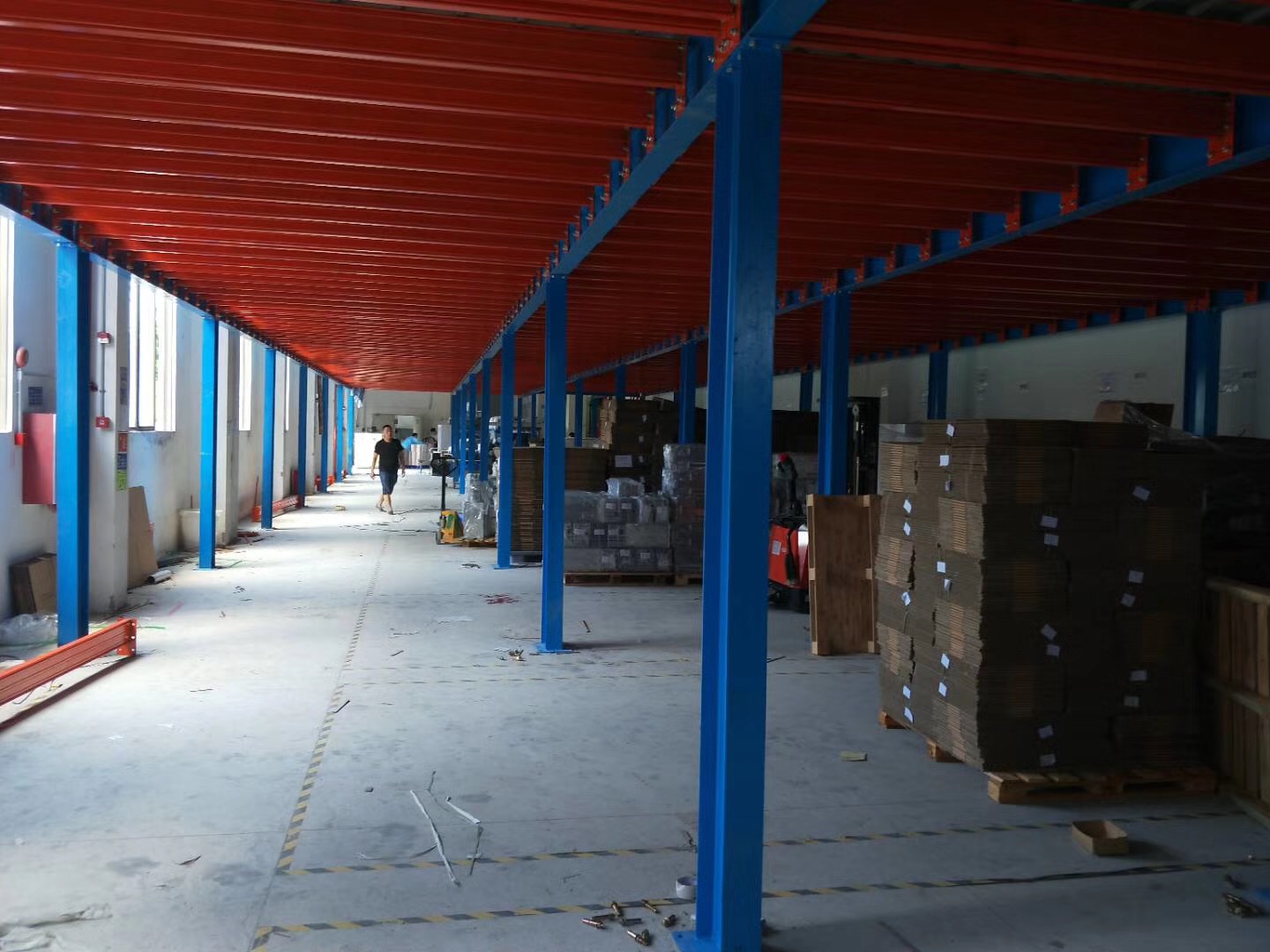

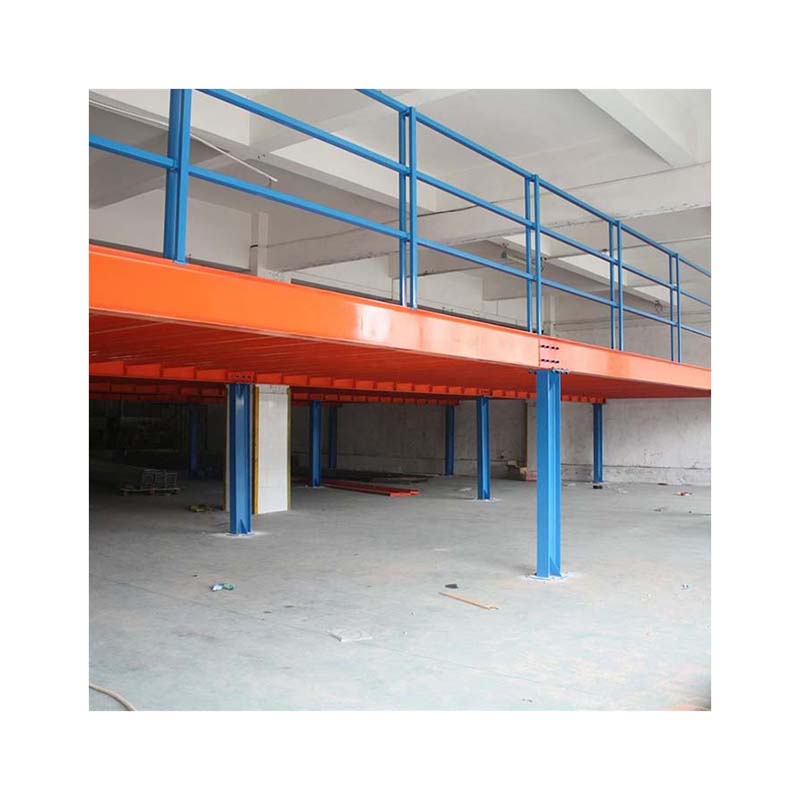

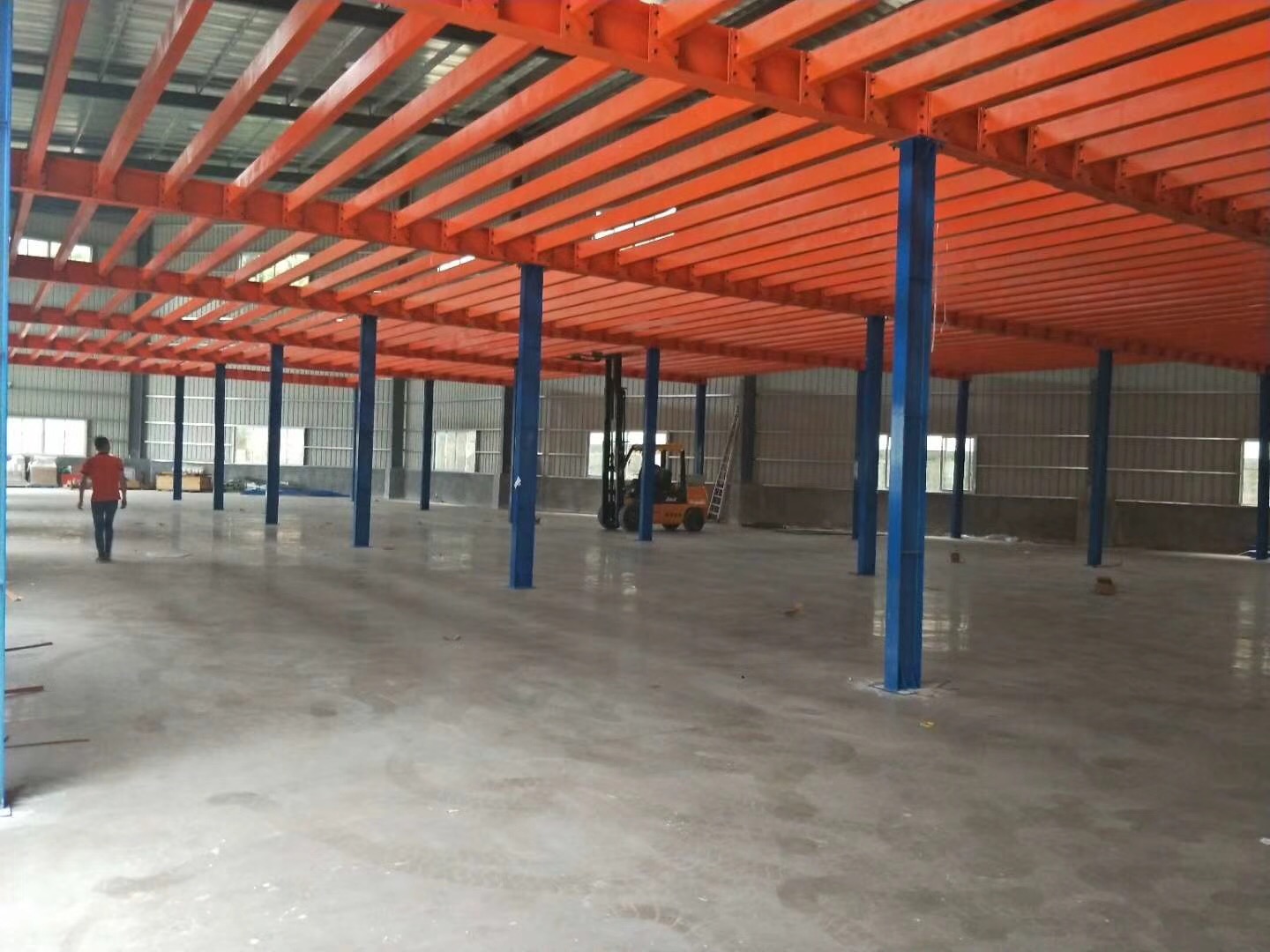

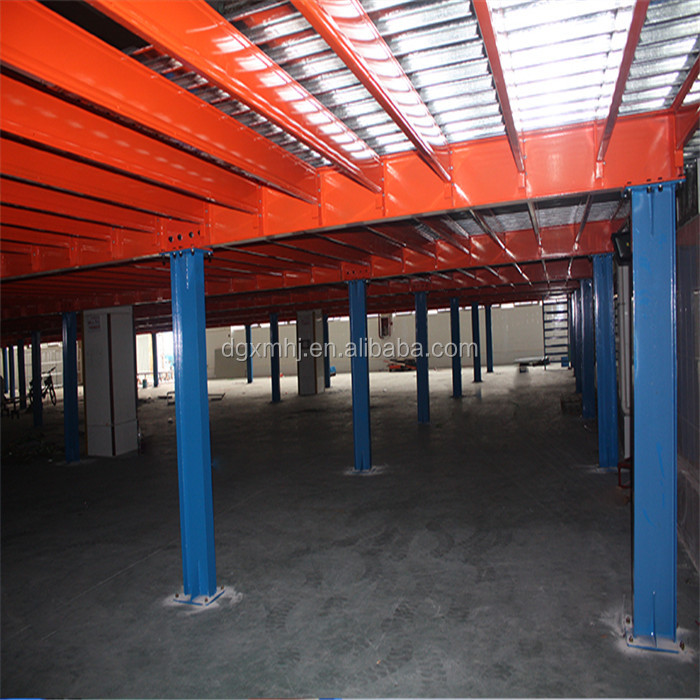

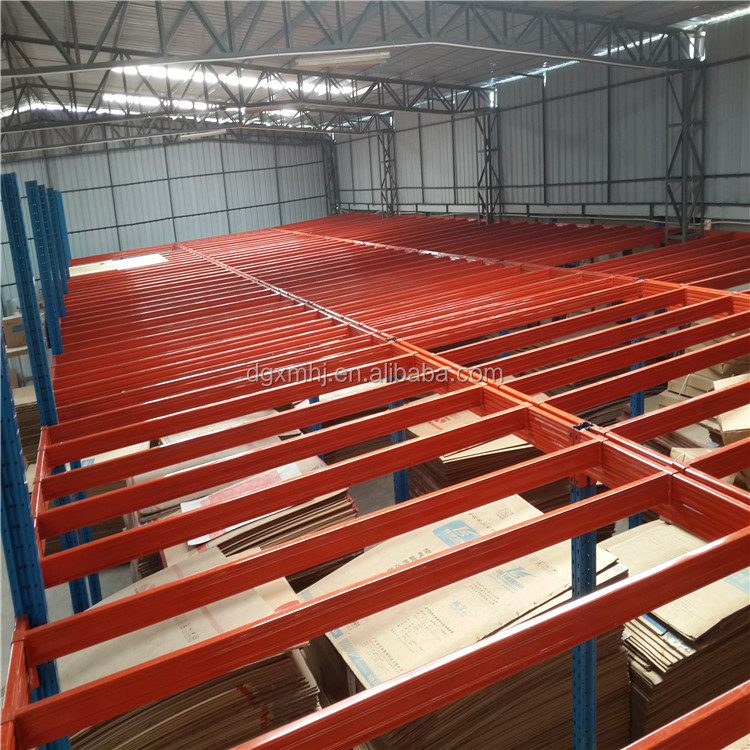

It's supported by racks, and a mezzanine is built on the upper layer, then the lower racks can store goods in order. The upper mezzanine has better load capacity, and the ground load capacity is relatively average.
It's widely used in these situations: warehouse is high; goods are small; accessing goods by manpower, storage demand is large. Besides, it can be applied to renovate old warehouse, to improve the warehouse space utilization. Single layer or multi-layer mezzanine can be designed according to the actual area and specific requirements to make full use of space and save warehouse area. Normally it's 2-layer or 3-layer, and stairs, handrails and cargo elevators are equipped.
| Size | Height: 1000-8000mm, Width: 10000-20000mm, Length: 20000-30000mm |
| Material | High-quality Q235 Cold-Rolled Steel |
| Surface Treatment | Powder Coating |
| Color | Upright is blue, beam is orange, steel board is gray white, etc. |
| Upright | 60*50, 90*65, 120*65, 100*70, 130*90mm |
| Beam | 60*40, 80*40, 80*45, 100*45, 120*45, 140*45, 160*45, 180*45, 200*45, 220*45, 240*45, etc. |
Our company devotes itself to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racking and other related storage equipment.
Through products and service aimed at providing complete assistance for all warehousing, products showcasing and sales outlet requirements. We are able to offer our customers a wide range of products of highest quality with competitive price, as well as rapid delivery time and first-class back-up service.
