Product Description

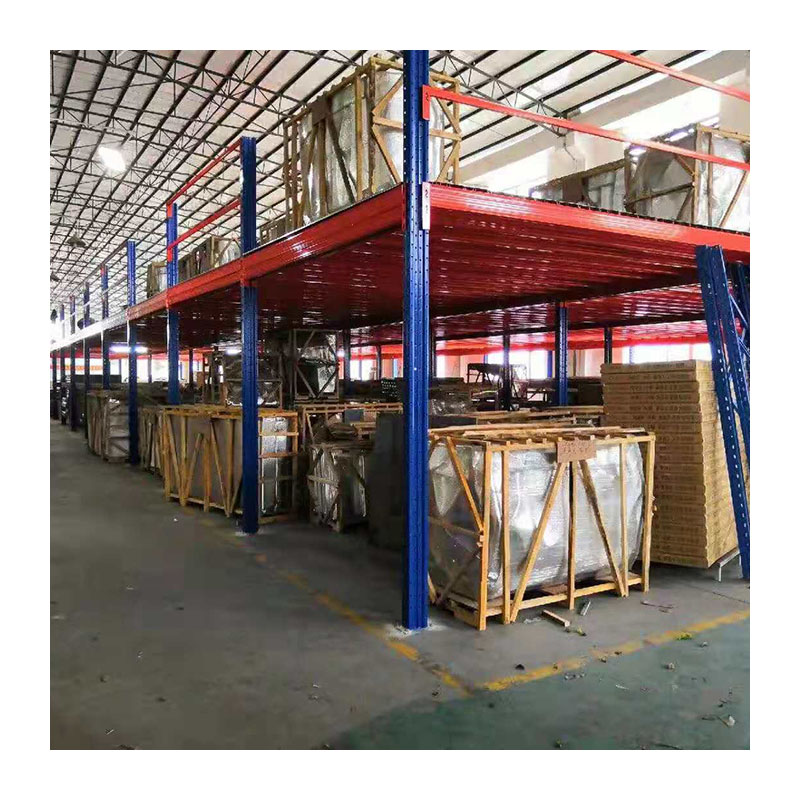

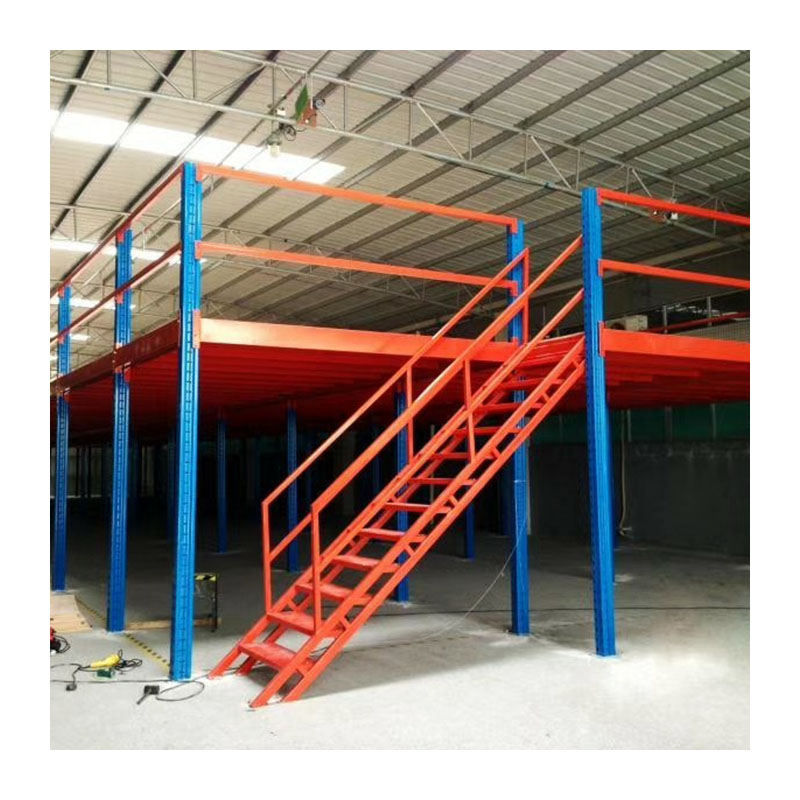

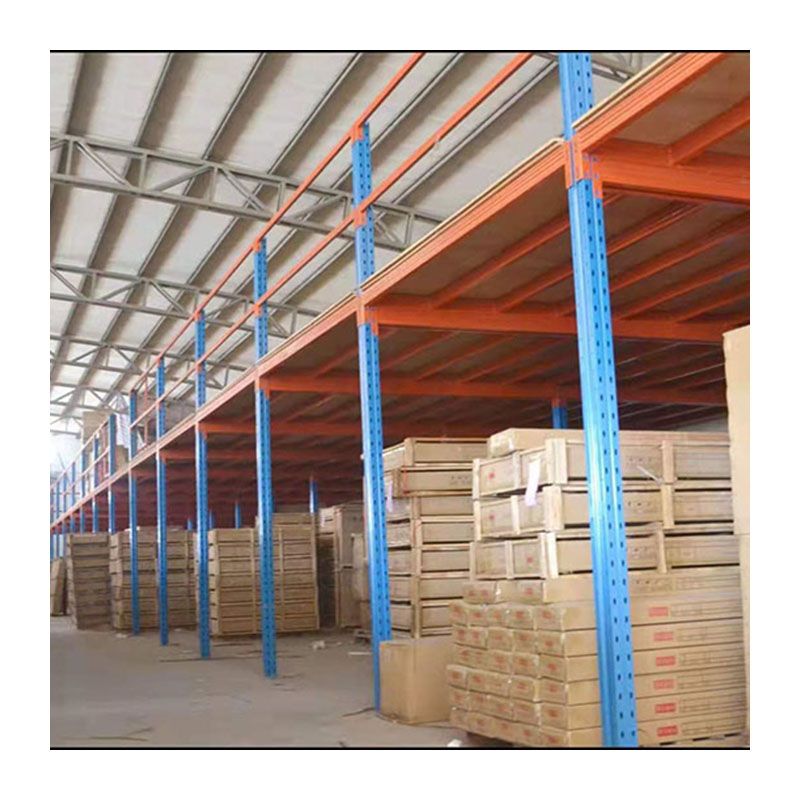

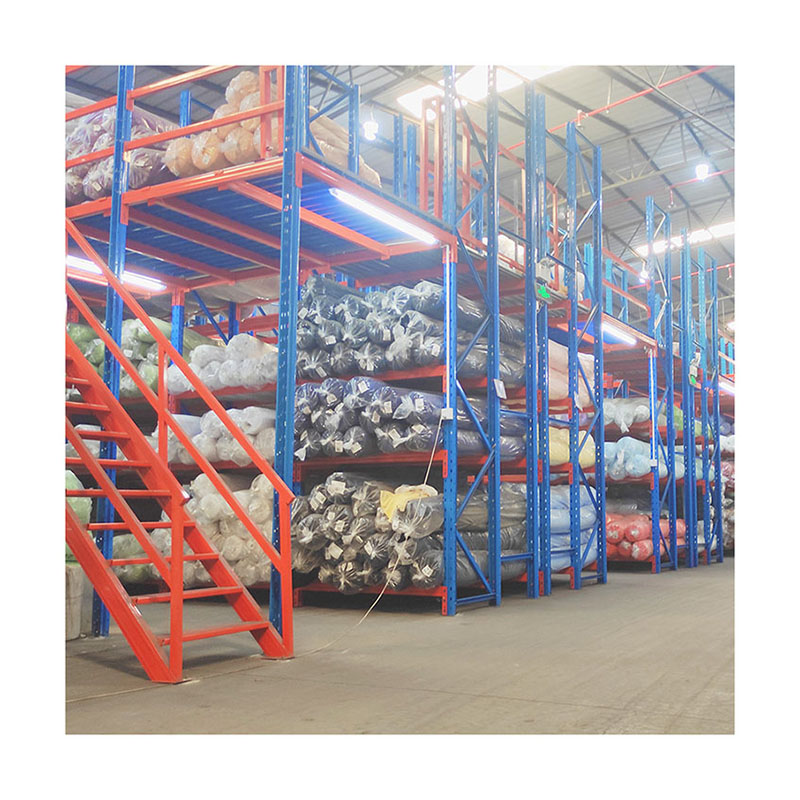

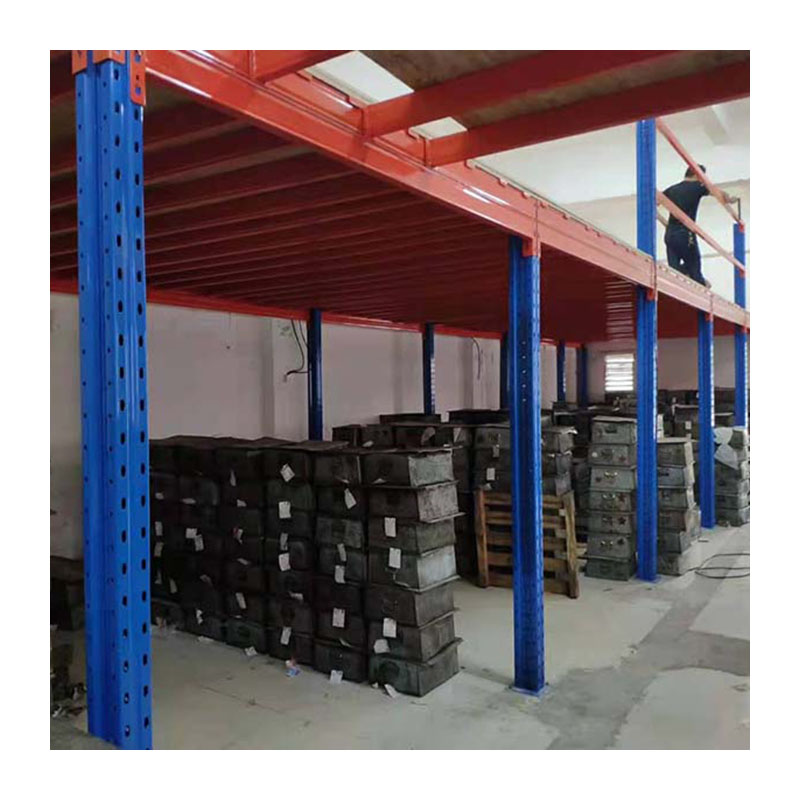

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for the efficiency.

It is suitable for the higher warehouse, large loading capacity, longer span and large storage. It will be full use of the space, one warehouse used as two warehouse. Widely be used for the electronics products, hardware, communication and printing, etc.

2

Specifications

Parameters	Details
Raw-Material	High-Quality Q235 Cold rolled steel
Color	Upright frame is blue, Beam is orange, can be customized.
Height	Customized
Wide/Depth	Customized
Length	Customized
Loading Capacity	200~5000kg per sqm
Surface Treatment	Powder coated
Packing Term	Air bubble, Wooden Case, etc.

3

Technical Connection Details

Upright & Main Beam Connect

Both of them are H-steel, its loading capacity is high and span is long. The major beams are connected by connector piece in each side. It will make the beams more stable.

Support Beam & Main Beam Connect

They are connected with the hanging piece. And the hanging piece is welded on the main beam. So the major beam is more stable.

Steel Panel & Guardrail Connect

Steel panel and support beam are connected with hooks. It is very stable. The guardrail hangs on the main beam without holes on the beam, so there is no bad influence on the beam structural integrity.

4

Detailed Images

5

Product Overviews

6

Related Hot Sale Products

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

?

Frequently Asked Questions

Q1: Are you a manufacture or trading company? A: We are a professional racking manufacturer specializing in industrial storage solutions.

Q2: What is the material used for the racks? A: Our material is high-quality Q235B cold rolled steel for maximum durability and strength.

Q3: What is the standard delivery time? A: Generally, it is less than 15 workdays. This depends on the specific order quantity and project design.

Q4: What are the terms of payment? A: We typically require a 30% T/T down payment and the remaining 70% T/T before delivery.

Q5: How can I get a quick quotation for my project? A: Please provide the rack size (LxDxH), number of layers, load capacity per layer, and the total quantity required.

Q6: What is the standard manner of packaging? A: Racks are typically packed using air bubble film. Custom packaging like wooden cases is available upon request.
