China Customized Commercial and Industrial Mezzanine Racking Steel

Send Inquiry

Product Description

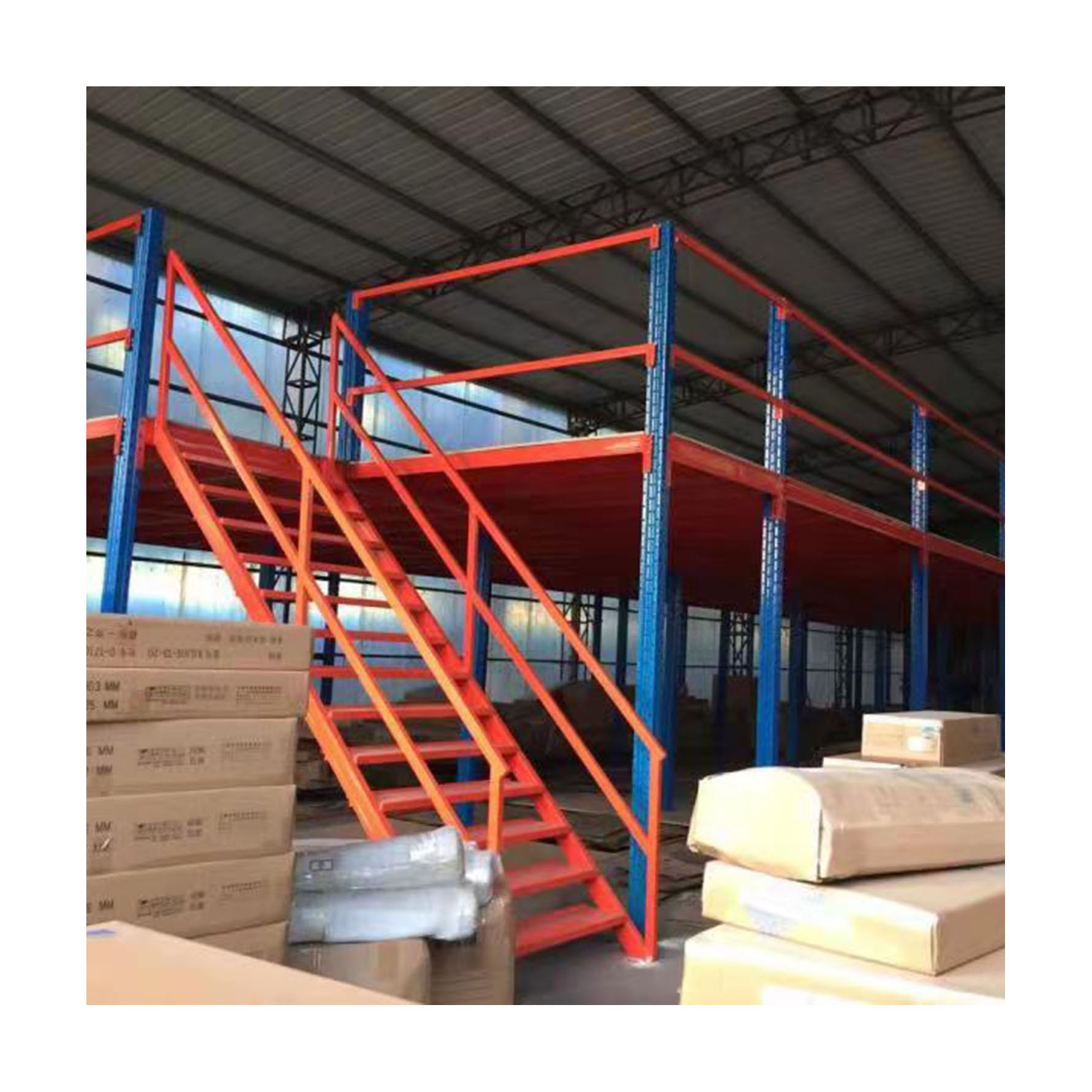

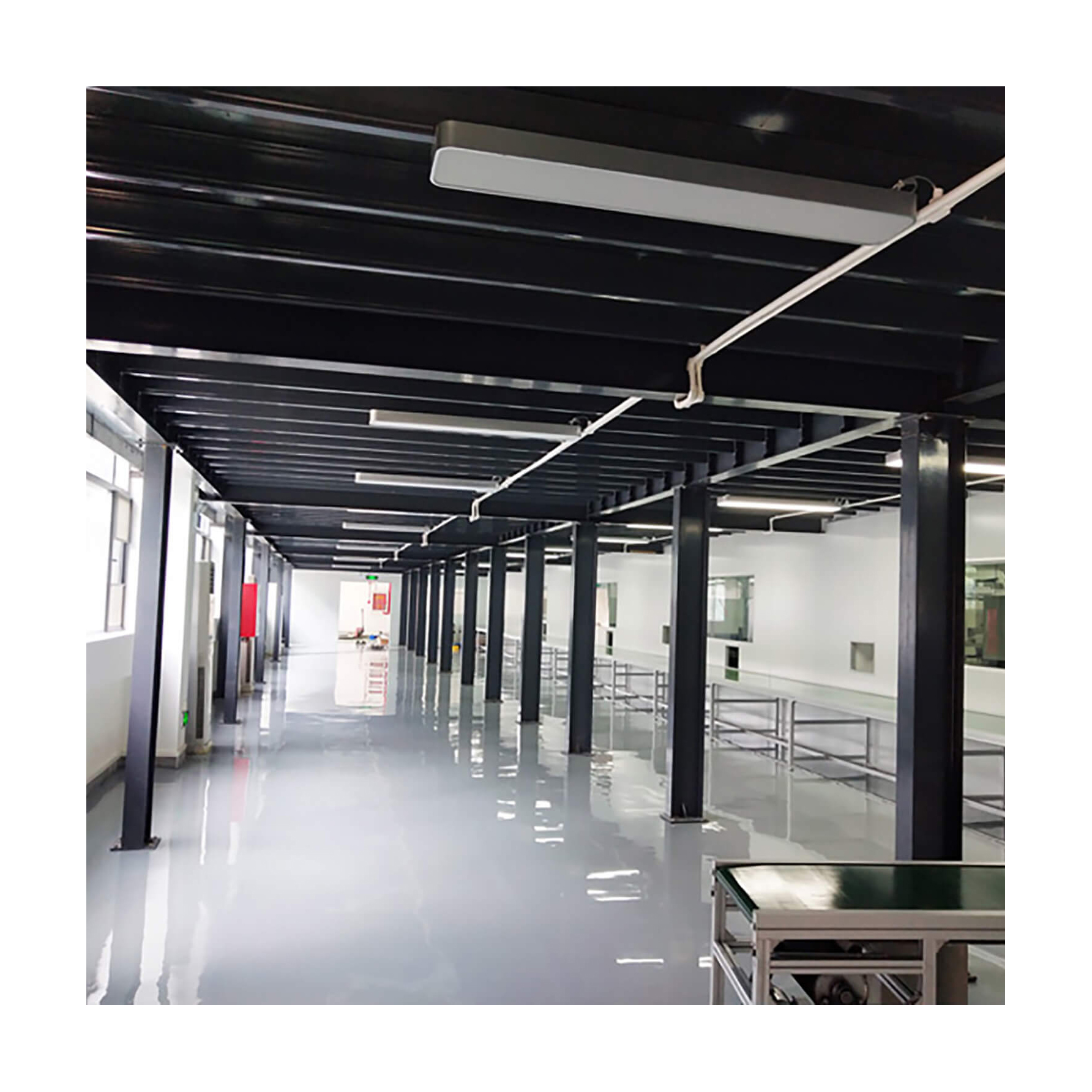

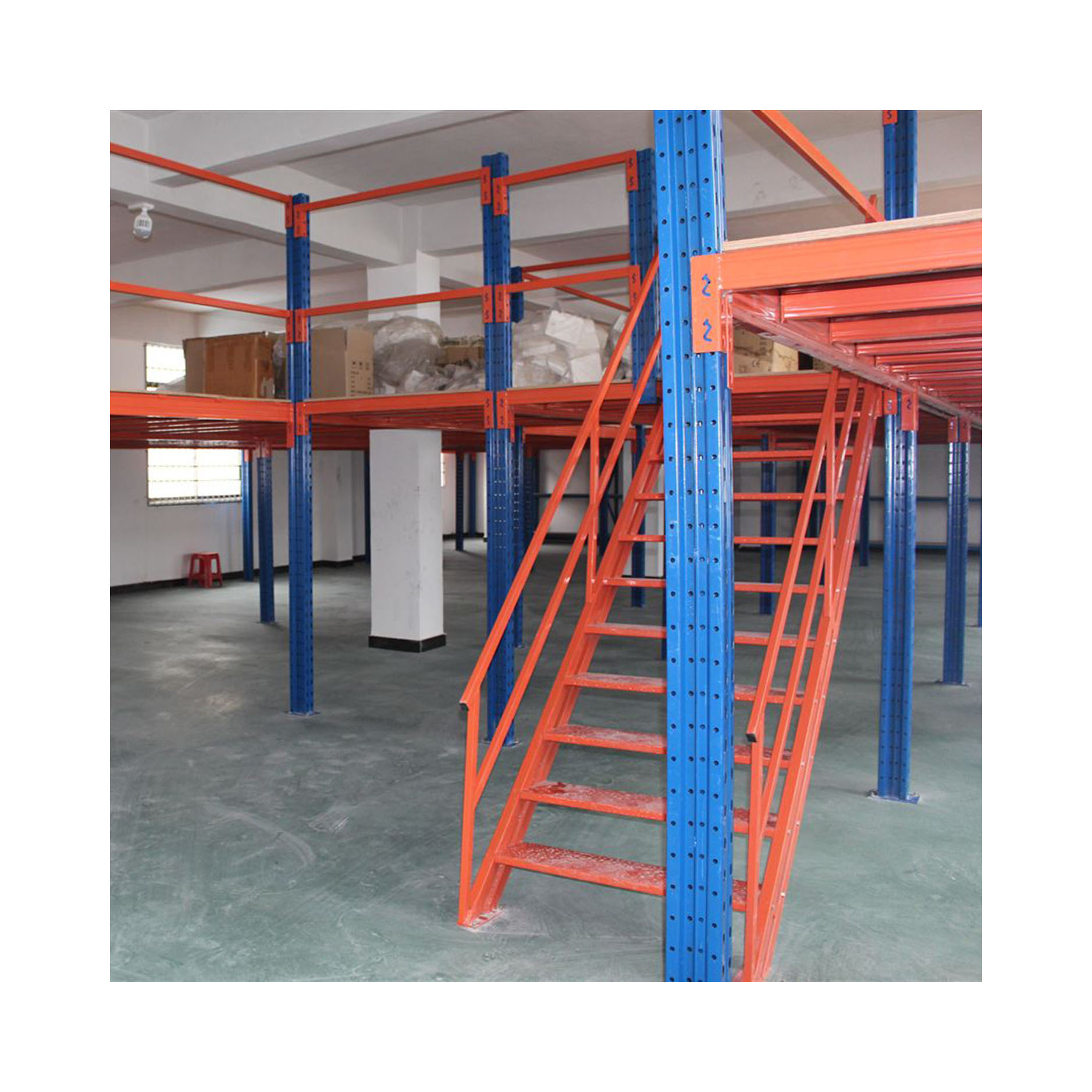

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for efficiency.

It is suitable for higher warehouses, large loading capacity, longer span, and large storage. It will make full use of the space, turning one warehouse into two. Widely used for electronic products, hardware, communication, printing, etc.

Technical Specifications

Parameter	Details
Raw Material	High-Quality Q235 Cold rolled steel
Color	Upright frame is blue, Beam is orange, can be customized
Dimensions	Height, Width, Depth, and Length are all Customized
Loading Capacity	200 ~ 5000kg per sqm
Surface Treatment	Powder coated
Packing Term	Air bubble, Wooden Case, etc.

Technical Features

Core Structure

Upright & Main Beam Connect

Both of them are H-steel, providing high loading capacity and long spans. The major beams are connected by connector pieces in each side, making the beams more stable.

Stability

Support Beam & Main Beam Connect

They are connected with the hanging piece, which is welded on the main beam. This configuration ensures the major beam is more stable during operation.

Safety

Steel Panel & Guardrail Connect

Steel panels and support beams are connected with hooks for high stability. The guardrail hangs on the main beam without requiring holes, avoiding any bad influence on the beam strength.
