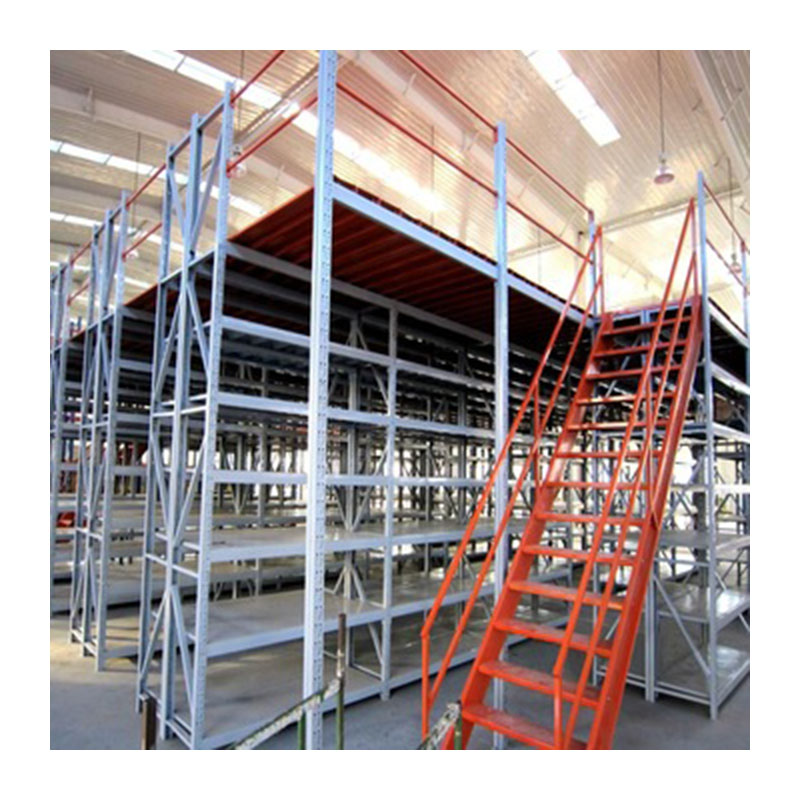

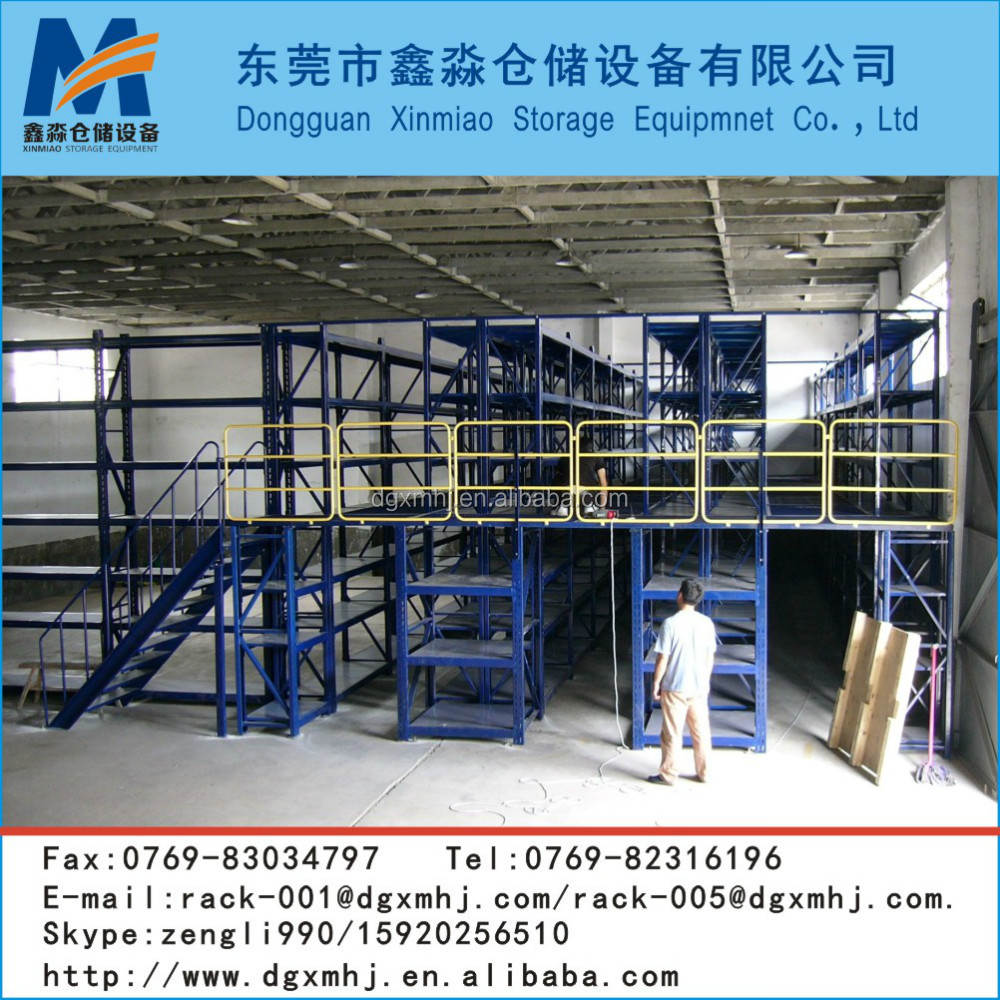

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually, we use the steel panel or MDF panel for the mezzanine floor, equipped with staircases and guardrails. It can be integrated with cargo lifts for enhanced efficiency.
It is suitable for higher warehouses requiring large loading capacity, longer spans, and large storage needs. It makes full use of vertical space, effectively turning one warehouse into two. Widely used for electronics, hardware, communication, and printing industries.
| Raw Material | High-Quality Q235 Cold rolled steel |
|---|---|
| Color | Upright frame is Blue, Beam is Orange (Customizable) |
| Loading Capacity | 200 ~ 5000kg per sqm |
| Surface Treatment | Powder coated |
| Dimensions | Height, Wide/Depth, and Length are all Customized |
| Packing Term | Air bubble film, Wooden Case, etc. |
Both components are constructed from H-steel, ensuring high loading capacity and long spans. The major beams are secured by connector pieces on each side to maximize stability.
Connected via a hanging piece that is welded directly onto the main beam. This specific engineering design ensures the major beam remains perfectly stable under load.
Steel panels and support beams are connected with hooks for a secure fit. The guardrail hangs on the main beam without requiring holes, preserving the structural integrity of the beam.
