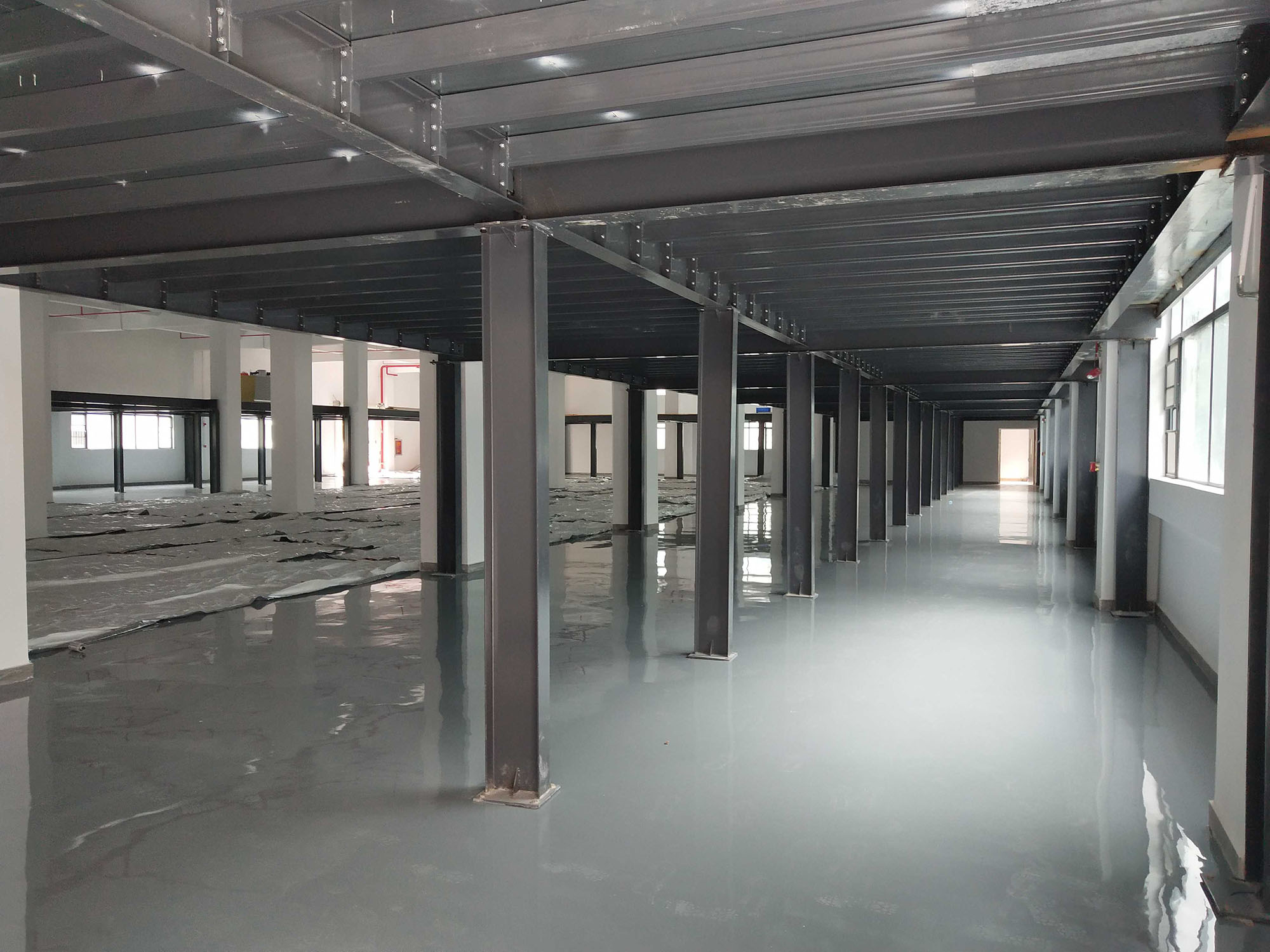

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for the efficiency.

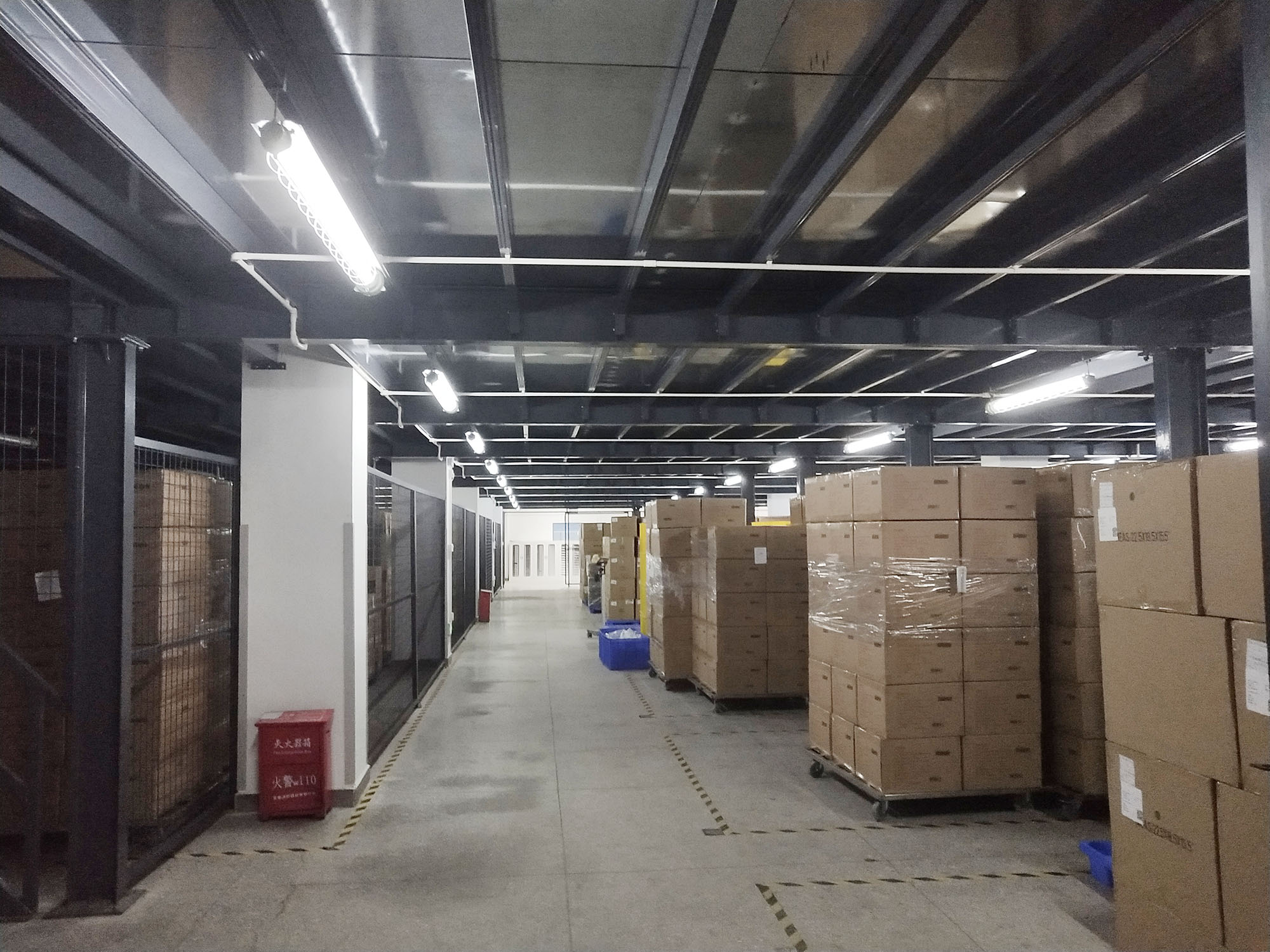

It is suitable for the higher warehouse, large loading capacity, longer span and large storage, it will be full use of the space, one warehouse used as two warehouse. Widely be used for the electronics products, hardware, communication and printing, etc.
| Raw-Material | High-Quality Q235 Cold rolled steel |
|---|---|
| Color | Upright frame is blue, Beam is orange (can be customized) |
| Dimensions | Height, Wide/Depth, Length: Fully Customized |
| Loading Capacity | 200 ~ 5000kg per sqm |
| Surface Treatment | Powder coated |
| Packing | Air bubble film, Wooden Case, etc. |

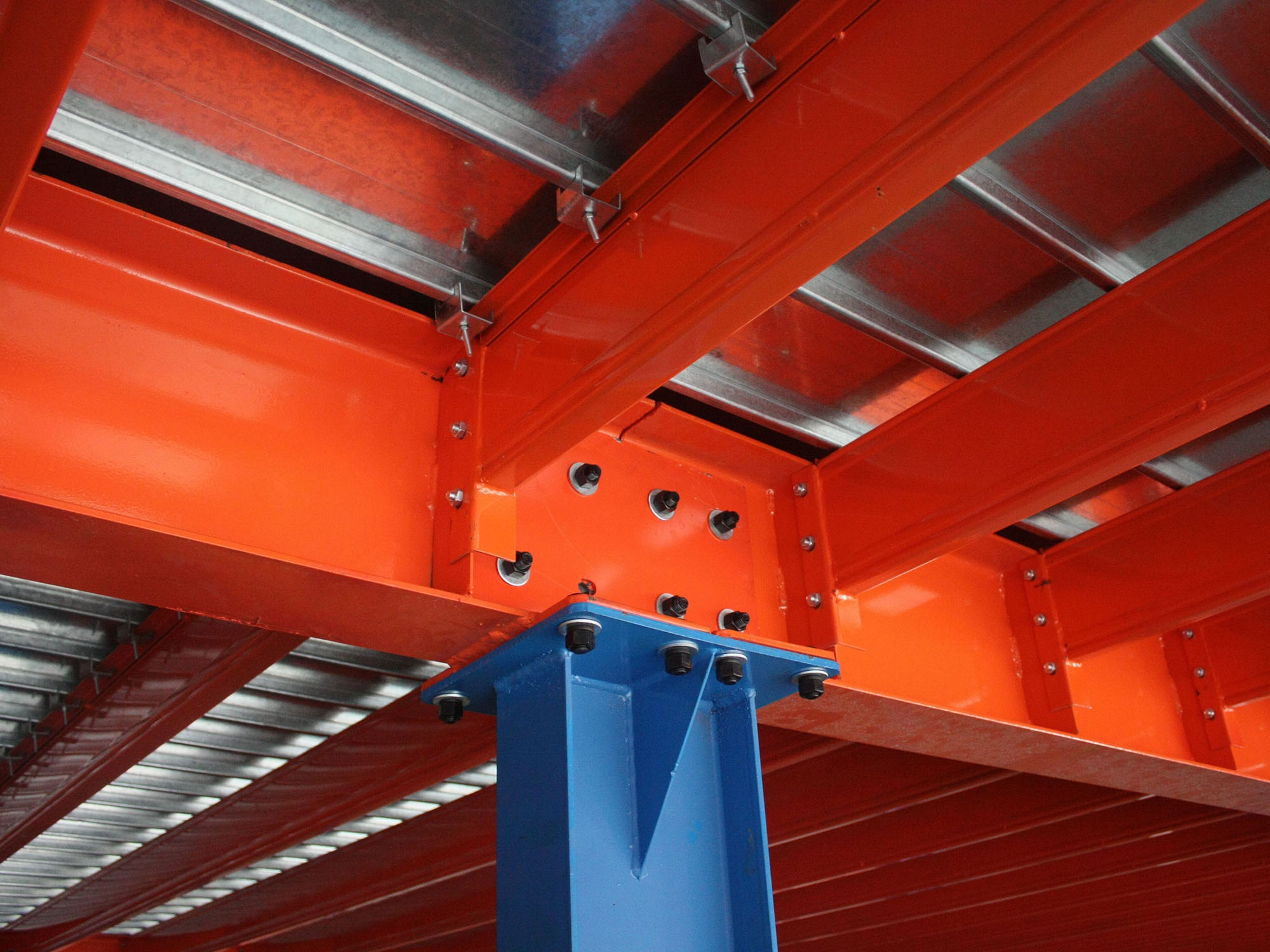

Both are H-steel, providing high loading capacity and long spans. Major beams are connected by connector pieces on each side for maximum stability.
Connected with a hanging piece welded onto the main beam. This specific engineering ensures the major beam remains stable under heavy loads.

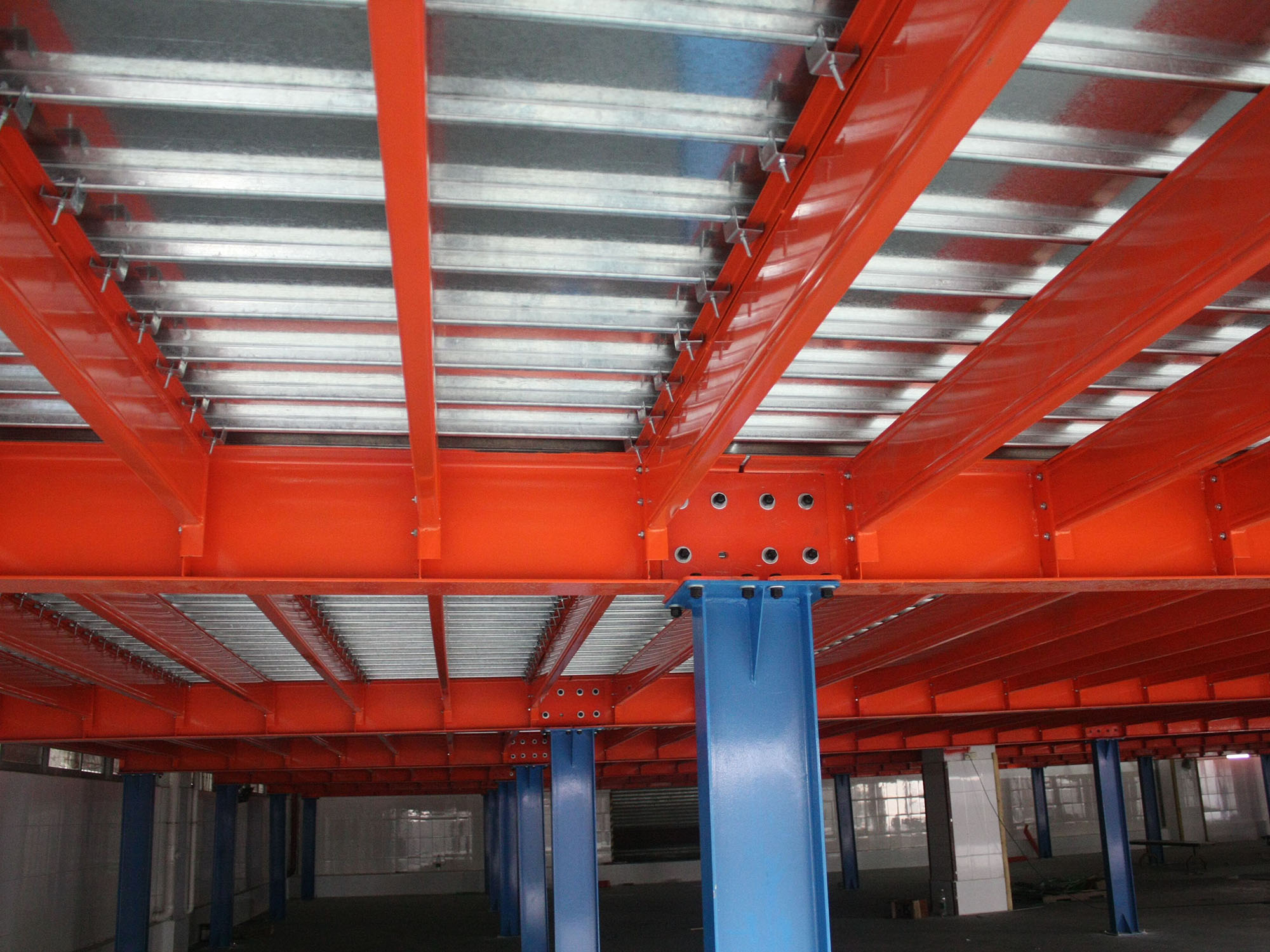

Steel panels and support beams are connected with hooks for stability. Guardrails hang on the main beam without requiring holes, preserving structural integrity.
