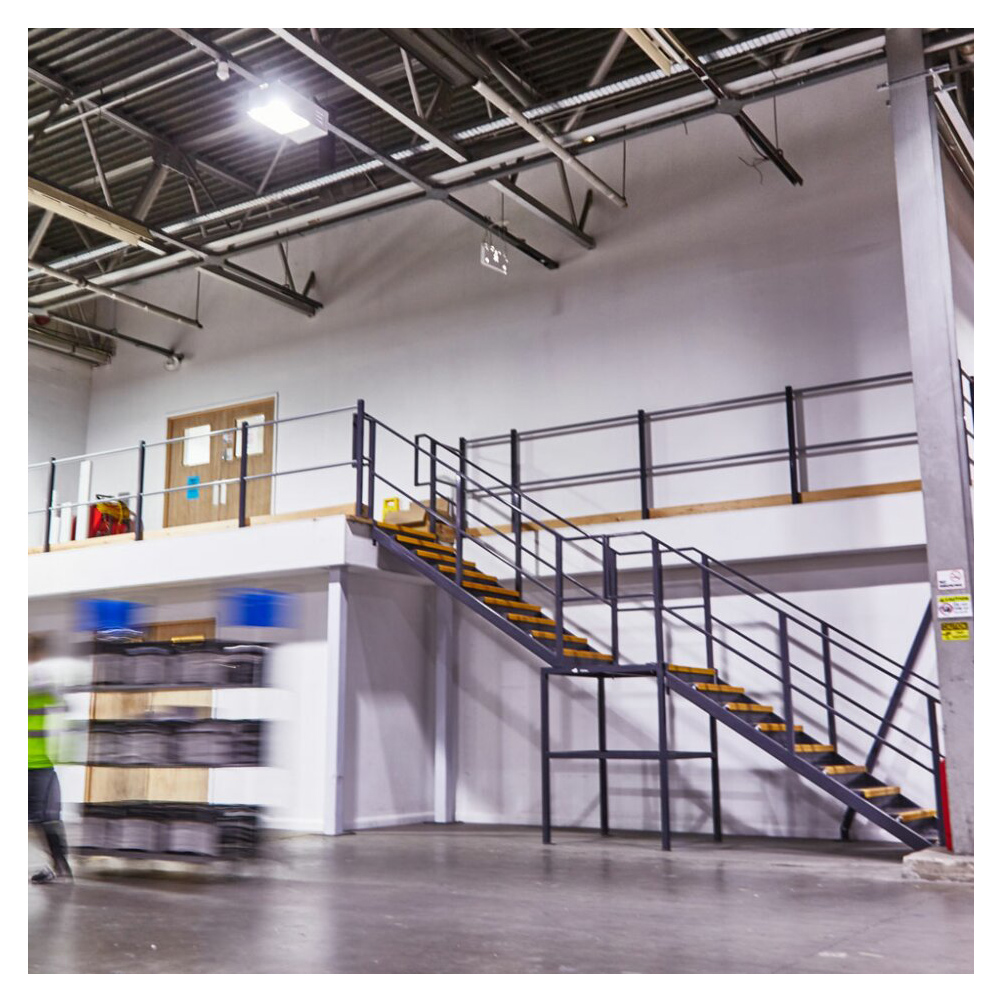

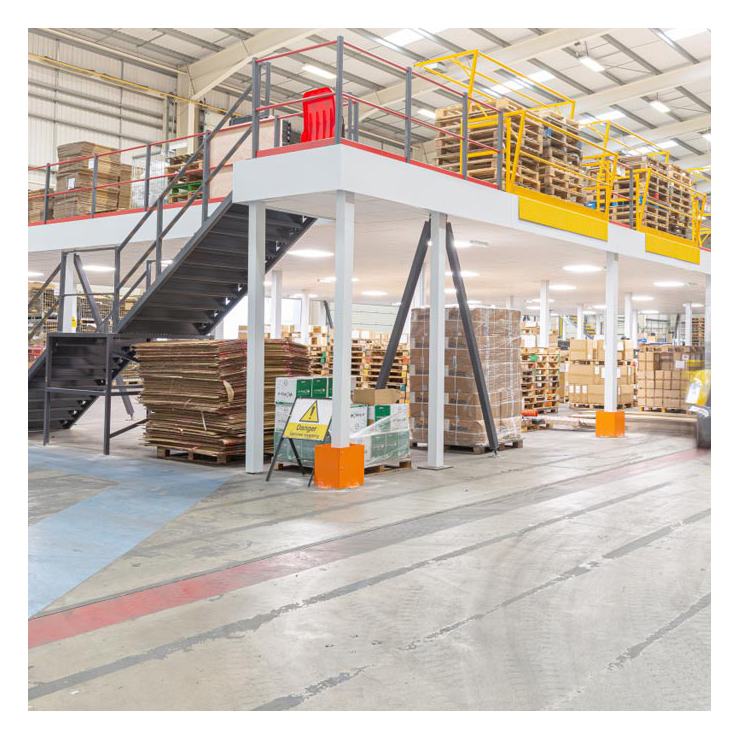

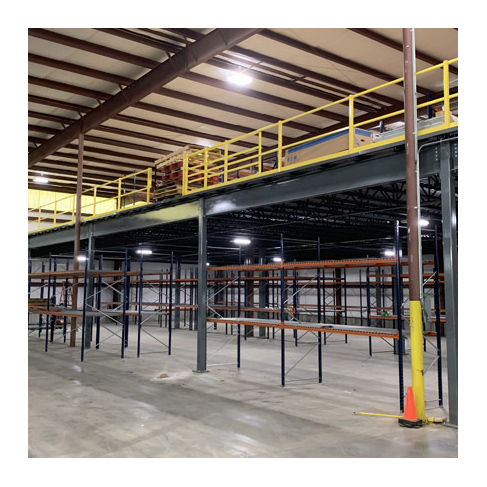

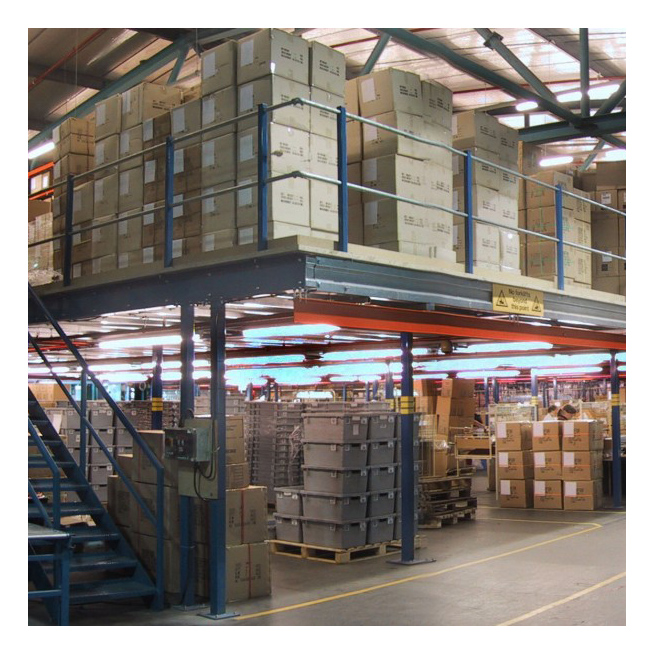

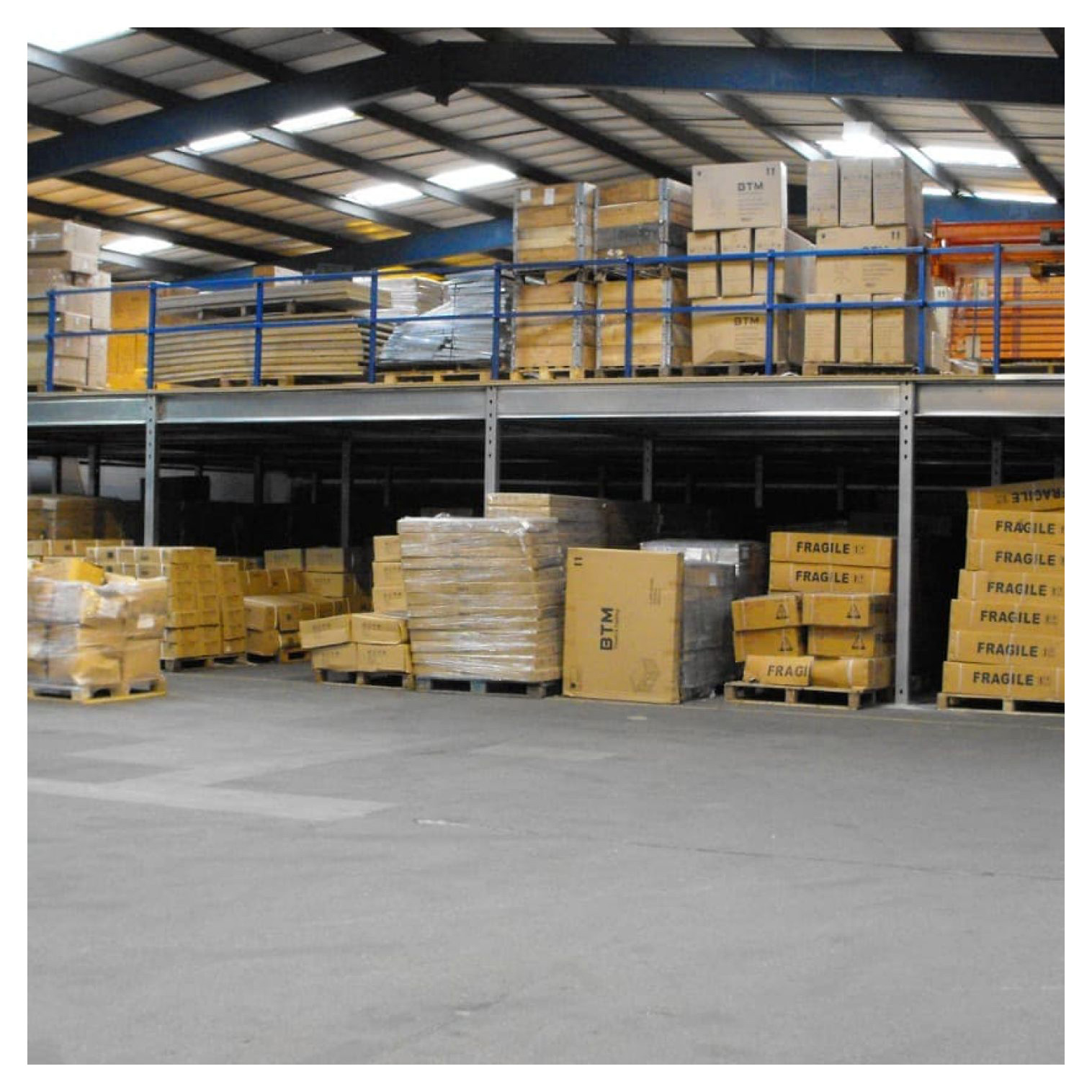

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually, we use the steel panel or MDF panel for the mezzanine floor, which can also be equipped with staircases and guardrails. It matches with cargo lifts for increased efficiency.
| Raw Material | High-Quality Q235 Cold rolled steel |
|---|---|
| Color | Upright frame is blue, Beam is orange (Customizable) |
| Dimensions | Height, Width, Depth, and Length are all Customized |
| Loading Capacity | 200 ~ 5000kg per sqm |
| Surface Treatment | Professional Powder Coated |
| Packing Term | Air bubble film, Wooden Case, etc. |
Both components use H-steel for high loading capacity and long spans. Major beams are connected by connector pieces on each side for maximum stability.
Connected with hanging pieces welded onto the main beam. This configuration ensures the major beam remains stable under heavy loads.
Steel panels and support beams are connected with hooks for stability. Guardrails hang on the main beam without requiring holes, preventing structural weakening.
