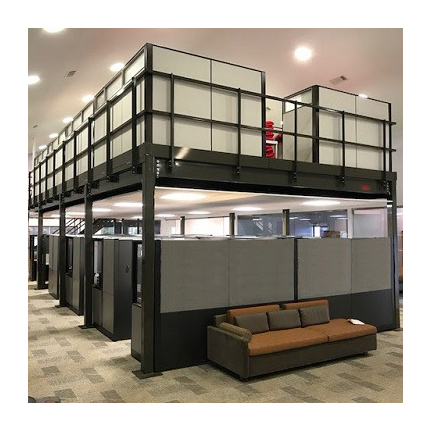

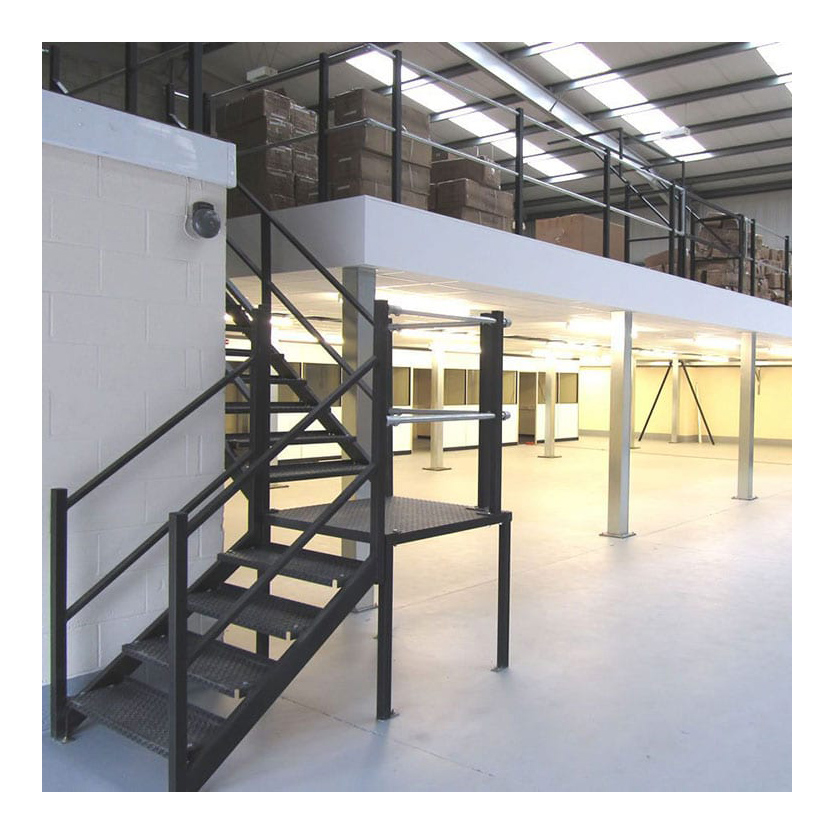

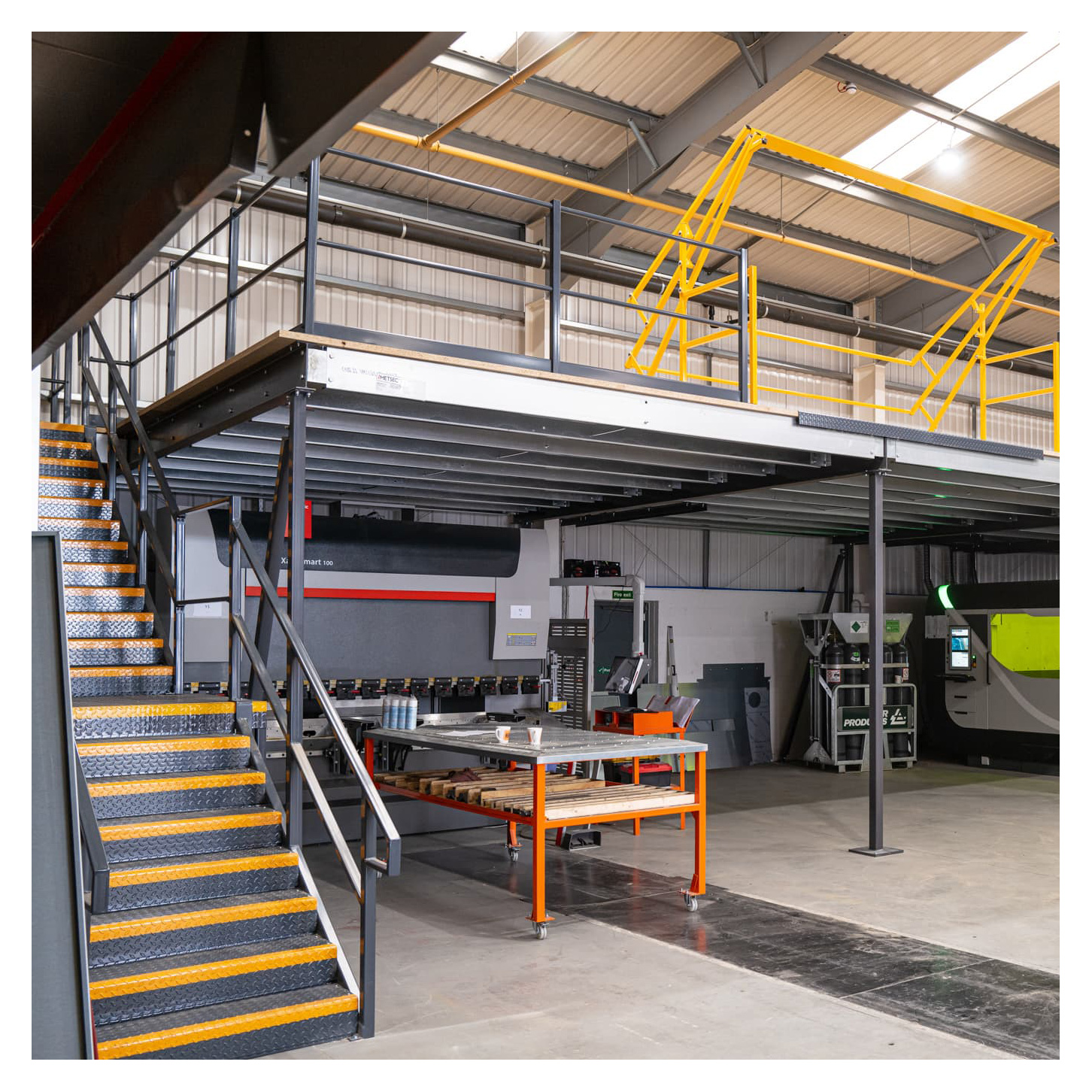

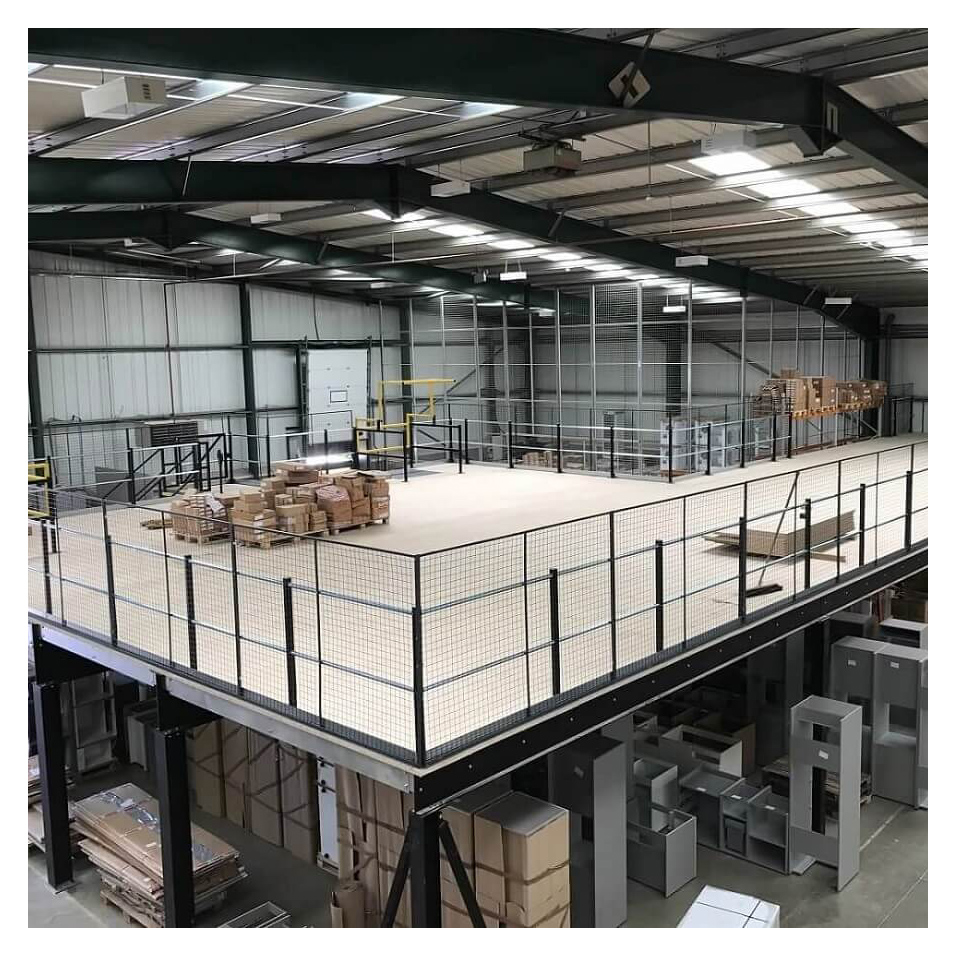

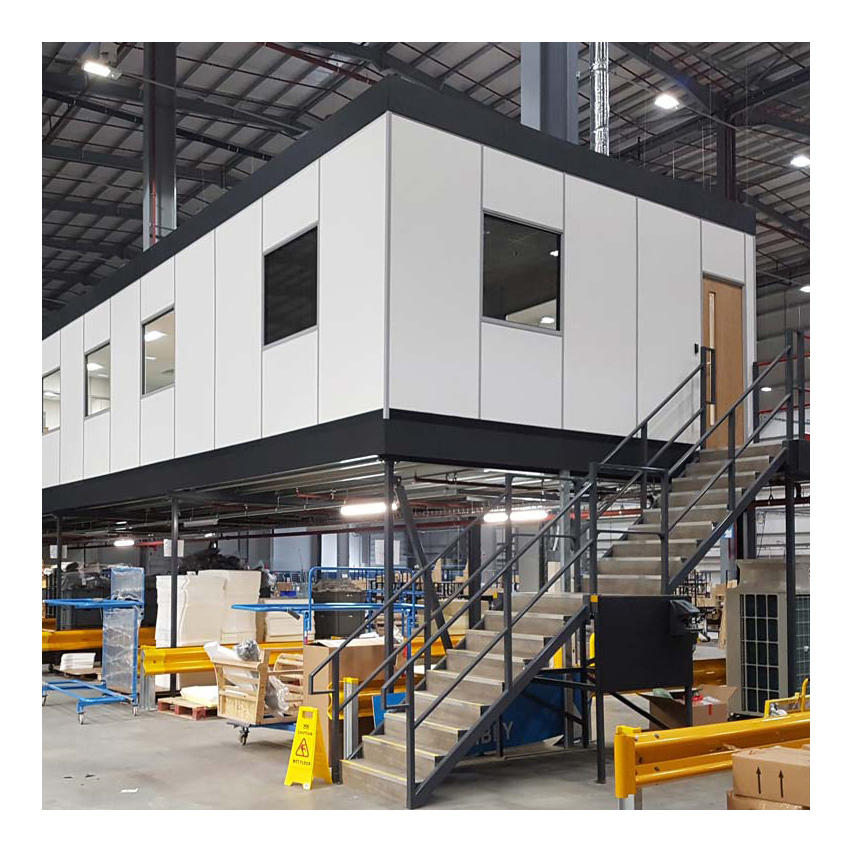

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually, we use the steel panel or MDF panel for the mezzanine floor; it also includes staircases and guardrails. Match with a cargo lift for maximum efficiency.
It is suitable for higher warehouses with large loading capacities, longer spans, and large storage needs. It makes full use of space, effectively turning one warehouse into two. Widely used for electronics, hardware, communication, printing, and more.
| Raw Material | High-Quality Q235 Cold rolled steel |
|---|---|
| Color | Upright frame is Blue, Beam is Orange (Customizable) |
| Dimensions | Height / Width / Depth / Length: Customized |
| Loading Capacity | 200 ~ 5000kg per sqm |
| Surface Treatment | Powder coated |
| Packing | Air bubble film, Wooden Case, etc. |
Both components are made of H-steel, ensuring high loading capacity and long spans. Major beams are connected by connector pieces on each side for superior stability.
Connected with hanging pieces welded onto the main beam. This specific engineering design ensures the major beam remains stable under heavy loads.
Steel panels and support beams are connected with hooks for a stable floor surface. The guardrail hangs on the main beam without requiring holes, preventing any negative influence on beam integrity.
